IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

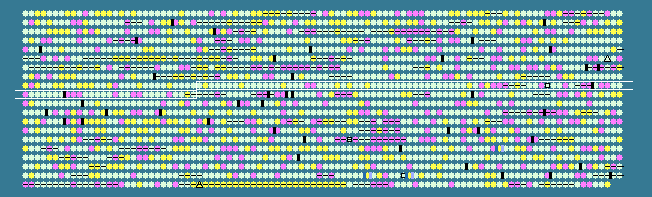

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
830	 47.98	0	833373..834608	+	411	56551726	ftsW	ZMO0830	-	cell division protein
831	 50.69	0	834605..835768	+	387	56551727	murG	ZMO0831	-	N-acetylglucosaminyl transferase
832	 48.92	0	835765..837195	+	476	56551728	murC	ZMO0832	-	UDP-N-acetylmuramate--L-alanine ligase
833	 47.91	0	837192..838124	+	310	56551729	murB	ZMO0833	-	UDP-N-acetylenolpyruvoylglucosamine reductase
834	 47.72	0	838121..839086	+	321	56551730	ddl	ZMO0834	-	D-alanyl-D-alanine ligase
835	 48.21	0	839250..840029	+	259	56551731	ftsQ	ZMO0835	-	cell division protein
836	 49.64	0	840047..841309	+	420	56551732	ftsA	ZMO0836	-	cell division protein
837	 51.13	0	841526..842935	+	469	56551733	ftsZ	ZMO0837	-	cell division protein FtsZ
838	 48.37	0	843134..843871	+	245	56551734	-	ZMO0838	-	hypothetical protein
839	 47.66	0	843855..844517	+	220	56551735	-	ZMO0839	-	hypothetical protein
840	 44.44	0	844676..845080	+	134	56551736	-	ZMO0840	-	hypothetical protein
841	 48.59	0	845077..846354	+	425	56551737	clc-b	ZMO0841	-	chloride channel protein-related protein
842	 47.55	0	846462..847622	+	386	56551738	dgtP	ZMO0842	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
843	 49.30	0	847823..849319	+	498	56551739	argS	ZMO0843	-	arginyl-tRNA synthetase
844	 51.37	0	849582..850679	+	365	56551740	-	ZMO0844	-	hypothetical protein
845	 45.82	0	850820..851548	+	242	56551741	alaS	ZMO0845	-	alanyl-tRNA synthetase
846	 49.52	0	853569..855341	-	590	56551742	kefB	ZMO0846	-	glutathione-regulated potassium-efflux system protein
847	 47.59	0	856042..857928	+	628	56551743	oprB	ZMO0847	-	outer membrane porin precursor
848	 40.27	-1	858215..858589	-	124	56551744	-	ZMO0848	-	hypothetical protein
849	 41.11	-1	858704..859744	-	346	56551745	-	ZMO0849	-	hypothetical protein
850	 44.95	0	860529..861647	+	372	56551746	ntrC	ZMO0850	-	polar flagellar protein
851	 49.57	0	861687..862265	-	192	56551747	pdxH	ZMO0851	-	pyridoxamine 5'-phosphate oxidase
852	 47.23	0	862331..863359	-	342	56551748	-	ZMO0852	-	S-adenosylmethionine:tRNA-ribosyltransferase
853	 50.39	0	863396..864040	-	214	56551749	-	ZMO0853	-	peptidyl-prolyl cis-trans isomerase
854	 44.69	0	864466..865002	-	178	56551750	coaD	ZMO0854	-	phosphopantetheine adenylyltransferase
855	 50.50	0	865086..865982	-	298	56551751	ispA	ZMO0855	-	geranyltranstransferase
856	 47.56	0	865992..866237	-	81	56551752	xseB	ZMO0856	-	exodeoxyribonuclease VII small subunit
857	 47.17	0	866314..866985	-	223	56551753	-	ZMO0857	-	hypothetical protein
858	 51.75	+1	867407..868036	+	209	56551754	nifS	ZMO0858	-	cysteine desulfurase
859	 49.02	0	868116..868523	+	135	56551755	-	ZMO0859	-	hypothetical protein
860	 45.71	0	868533..868847	+	104	56551756	-	ZMO0860	-	ferredoxin
861	 46.63	0	869204..871090	+	628	161611320	dnaZX	ZMO0861	-	DNA polymerase III subunits gamma and tau
862	 48.65	0	871249..871581	+	110	56551758	-	ZMO0862	-	hypothetical protein
863	 48.29	0	871633..872187	-	184	161611319	dcd	ZMO0863	-	deoxycytidine triphosphate deaminase
864	 48.35	0	872241..872726	-	161	56551760	cdd	ZMO0864	-	cytidine deaminase
865	 48.76	0	872822..874357	+	511	56551761	dnaB	ZMO0865	-	replicative DNA helicase
866	 43.65	0	874473..875441	+	322	56551762	-	ZMO0866	-	cation efflux system protein
867	 49.52	0	875696..876733	+	345	56551763	-	ZMO0867	-	nucleoside-diphosphate-sugar epimerase
868	 45.96	0	876733..877872	+	379	56551764	-	ZMO0868	-	glycosyltransferase
869	 46.53	0	877836..878729	+	297	56551765	-	ZMO0869	-	phytoene synthase-related protein
870	 48.17	0	878729..879604	+	291	56551766	-	ZMO0870	-	phytoene/squalene synthetase
871	 46.43	0	879601..880845	+	414	56551767	-	ZMO0871	-	putative oxidoreductase
872	 47.24	0	880860..882836	+	658	56551768	shc	ZMO0872	-	squalene--hopene cyclase
873	 47.05	0	882977..883654	+	225	56551769	deoD	ZMO0873	-	purine phosphorylase
874	 48.52	0	883598..884743	-	381	56551770	-	ZMO0874	-	Fe-S oxidoreductase
875	 50.64	0	884747..885769	-	340	56551771	ispH	ZMO0875	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
876	 47.21	0	886265..886855	+	196	56551772	-	ZMO0876	-	putative ABC-type transport system
877	 42.64	0	886925..887257	-	110	56551773	-	ZMO0877	-	hypothetical protein
878	 50.00	0	887245..888270	-	341	56551774	cheB	ZMO0878	-	protein-glutamate methylesterase
879	 27.56	-2	888437..888592	+	51	56551775	-	ZMO0879	-	hypothetical protein
880	 42.59	0	888627..890300	-	557	56551776	cheA	ZMO0880	-	chemotaxis sensor histidine kinase
881	 34.55	-2	890349..890513	+	54	56551777	-	ZMO0881	-	hypothetical protein
882	 43.80	0	890522..891925	-	467	56551778	mcpA	ZMO0882	-	methyl-accepting chemotaxis protein
883	 54.28	+1	892131..892679	-	182	56551779	rpsI	ZMO0883	-	30S ribosomal protein S9
884	 48.54	0	892679..893158	-	159	56551780	rplM	ZMO0884	-	50S ribosomal protein L13
885	 42.97	0	893488..893871	+	127	56551781	-	ZMO0885	-	hypothetical protein
886	 43.07	0	893934..894467	-	177	56551782	-	ZMO0886	-	hypothetical protein
887	 32.58	-2	894493..894624	-	43	56551783	-	ZMO0887	-	hypothetical protein
888	 44.86	0	894696..895250	-	184	56551784	-	ZMO0888	-	putative transposase
889	 47.45	0	895475..896629	-	384	56551785	mro	ZMO0889	-	aldose 1-epimerase precursor
890	 45.11	0	897157..898752	-	531	56551786	lysK	ZMO0890	-	lysyl-tRNA synthetase
891	 41.44	0	899038..899148	-	36	56551787	-	ZMO0891	-	hypothetical protein
892	 49.28	0	899175..901826	+	883	56551788	-	ZMO0892	-	DNA helicase
893	 47.95	0	901827..902873	-	348	56551789	-	ZMO0893	-	esterase
894	 42.95	0	902909..903823	-	304	56551790	-	ZMO0894	-	hypothetical protein
895	 33.33	-2	903986..904231	-	81	56551791	-	ZMO0895	-	hypothetical protein
896	 45.54	0	904858..905676	+	272	56551792	-	ZMO0896	-	hypothetical protein
897	 37.82	-1	905703..905858	+	51	56551793	-	ZMO0897	-	hypothetical protein
898	 39.62	-1	905752..905910	-	52	56551794	-	ZMO0898	-	hypothetical protein
899	 47.52	0	905909..907579	+	556	56551795	nadE	ZMO0899	-	NAD synthetase
900	 47.12	0	907592..908926	+	444	56551796	gltX	ZMO0900	-	glutamyl-tRNA synthetase
901	 42.65	0	908947..909150	-	67	56551797	-	ZMO0901	-	hypothetical protein
902	 46.17	0	909217..911475	-	752	56551798	-	ZMO0902	-	TonB dependent receptor
903	 48.79	0	911663..913363	-	566	56551799	leuA	ZMO0903	-	2-isopropylmalate synthase
904	 47.20	0	913683..916784	-	1033	56551800	bga	ZMO0904	-	beta-galactosidase
905	 47.39	0	917079..918650	+	523	56551801	mdoD	ZMO0905	-	glucan biosynthesis protein D
906	 44.94	0	918767..920308	+	513	56551802	-	ZMO0906	-	glucosyltransferase MdoH
907	 48.10	0	920280..920726	+	148	56551803	-	ZMO0907	-	membrane glycosyltransferase
908	 41.31	0	921179..922357	-	392	56551804	-	ZMO0908	-	capsule polysaccharide export protein
909	 39.11	-1	922393..923691	-	432	56551805	-	ZMO0909	-	glycosyltransferase
910	 40.76	-1	923648..924307	-	219	56551806	-	ZMO0910	-	putative polysaccharide export protein
911	 46.71	0	924590..925852	+	420	56551807	-	ZMO0911	-	periplasmic polysaccharide export protein
912	 43.17	0	926037..927917	+	626	56551808	-	ZMO0912	-	hypothetical protein
913	 48.23	0	927966..929066	-	366	56551809	ilvE	ZMO0913	-	branched-chain amino acid aminotransferase
914	 48.99	0	929116..930009	-	297	56551810	folD	ZMO0914	-	5,10-methylene-tetrahydrofolate dehydrogenase
915	 43.41	0	930236..932458	+	740	56551811	copA	ZMO0915	-	copper-transporting ATPase
916	 40.95	-1	932455..932664	+	69	56551812	-	ZMO0916	-	hypothetical protein
917	 46.34	0	933263..934669	+	468	56551813	-	ZMO0917	-	dioxygenase
918	 44.12	0	934833..936278	+	481	56551814	cat	ZMO0918	-	catalase
919	 39.08	-1	937704..939461	+	585	56551815	-	ZMO0919	-	two-component response regulator
920	 38.21	-1	939480..939869	-	129	56551816	-	ZMO0920	-	hypothetical protein
921	 44.71	0	940012..941145	+	377	56551817	-	ZMO0921	-	hypothetical protein
922	 45.19	0	941194..941640	+	148	56551818	-	ZMO0922	-	transcriptional regulator
923	 49.76	0	941681..942910	-	409	56551819	argJ	ZMO0923	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
924	 46.54	0	943263..946040	+	925	56551820	secA	ZMO0924	-	preprotein translocase subunit SecA
925	 39.43	-1	946264..946788	+	174	56551821	-	ZMO0925	-	cold shock protein
926	 45.29	0	946933..947442	+	169	56551822	-	ZMO0926	-	ABC transporter substrate-binding protein
927	 45.11	0	947945..948751	-	268	56551823	aat	ZMO0927	-	leucyl/phenylalanyl-tRNA--protein transferase
928	 50.62	0	948904..949464	+	186	56551824	-	ZMO0928	-	hypothetical protein
929	 43.65	0	949921..950046	-	41	56551825	-	ZMO0929	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
