IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

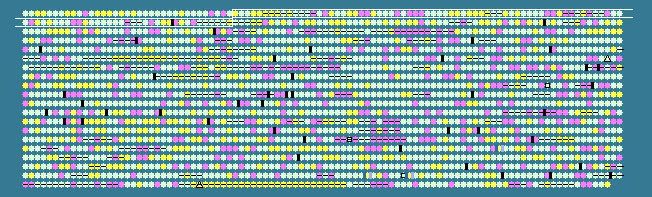

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
36	 52.80	+1	38624..38962	-	112	56550932	-	ZMO0036	-	hypothetical protein
37	 49.35	0	38962..39423	-	153	56550933	nagE	ZMO0037	-	PTS system mannose/fructose-specific component IIA
38	 48.76	0	39624..40226	-	200	56550934	-	ZMO0038	-	ribosome-associated protein Y
39	 51.06	0	40339..41043	-	234	56550935	dnaQ	ZMO0039	-	DNA polymerase III epsilon subunit
40	 50.00	0	41051..41644	-	197	56550936	coaE	ZMO0040	-	dephospho-CoA kinase
41	 54.02	+1	41657..42439	-	260	56550937	aroE	ZMO0041	-	shikimate 5-dehydrogenase
42	 55.83	+1	42449..42568	+	39	56550938	-	ZMO0042	-	hypothetical protein
43	 50.25	0	42535..43131	-	198	56550939	-	ZMO0043	-	nucleotide-binding protein
44	 46.36	0	43595..45352	+	585	56550940	-	ZMO0044	-	hypothetical protein
45	 52.67	+1	45391..45540	-	49	56550941	-	ZMO0045	-	hypothetical protein
46	 46.80	0	45399..45836	-	145	56550943	-	ZMO0047	-	hypothetical protein
47	 48.21	0	45925..46092	+	55	56550942	-	ZMO0046	-	hypothetical protein
48	 45.76	0	45931..46107	-	58	56550944	-	ZMO0048	-	hypothetical protein
49	 41.54	0	45956..46150	+	64	56550945	-	ZMO0049	-	hypothetical protein
50	 49.67	0	46172..47083	+	303	56550946	-	ZMO0050	-	LysR family transcriptional regulator
51	 42.28	0	47080..47202	+	40	56550947	-	ZMO0051	-	hypothetical protein
52	 50.43	0	47275..48426	-	383	56550948	igiE	ZMO0052	-	cyanate permease
53	 49.44	0	48423..49229	-	268	56550949	pcaD	ZMO0053	-	putative beta-ketoadipate enol-lactone hydrolase
54	 47.84	0	49349..49858	+	169	56550950	-	ZMO0054	-	MarR family transcriptional regulator
55	 52.15	+1	49995..50786	-	263	56550951	-	ZMO0055	-	permease
56	 51.54	0	50970..52793	-	607	56550952	glmS	ZMO0056	-	D-fructose-6-phosphate amidotransferase
57	 41.35	0	52879..53439	-	186	56550953	-	ZMO0057	-	hypothetical protein
58	 39.22	-1	53444..53647	+	67	56550954	-	ZMO0058	-	hypothetical protein
59	 50.39	0	53616..54764	+	382	56550955	glxK	ZMO0059	-	glycerate kinase
60	 43.56	0	54812..55114	-	100	56550956	-	ZMO0060	-	hypothetical protein
61	 49.69	0	55124..56425	-	433	56550957	phyM	ZMO0061	-	phytase
62	 49.43	0	56562..57530	-	322	56550958	-	ZMO0062	-	hypothetical protein
63	 34.85	-2	57575..57706	+	43	56550959	-	ZMO0063	-	hypothetical protein
64	 48.95	0	57797..59455	-	552	56550960	oprB	ZMO0064	-	carbohydrate-selective porin
65	 23.53	-2	59429..59530	+	33	56550961	-	ZMO0065	-	hypothetical protein
66	 32.59	-2	59628..59897	+	89	56550962	-	ZMO0066	-	hypothetical protein
67	 26.47	-2	59966..60067	+	33	56550963	-	ZMO0067	-	hypothetical protein
68	 48.23	0	60238..61365	+	375	56550964	-	ZMO0068	-	hypothetical protein
69	 44.98	0	61631..62068	+	145	56550965	-	ZMO0069	-	hypothetical protein
70	 46.43	0	62194..62865	+	223	56550966	grxB	ZMO0070	-	glutaredoxin 2
71	 45.65	0	62917..63054	-	45	56550967	-	ZMO0071	-	hypothetical protein
72	 50.73	0	63126..64487	-	453	56550968	-	ZMO0072	-	glucose/sorbosone dehydrogenase
73	 51.75	+1	64496..65380	-	294	56550969	-	ZMO0073	-	hemolysin
74	 45.20	0	65435..65965	-	176	56550970	-	ZMO0074	-	metal-dependent hydrolase
75	 52.31	+1	65952..67031	-	359	56550971	phoH	ZMO0075	-	phosphate starvation-inducible protein
76	 52.90	+1	67009..67146	-	45	56550972	-	ZMO0076	-	hypothetical protein
77	 52.32	+1	67152..68489	-	445	56550973	-	ZMO0077	-	2-methylthioadenine synthetase
78	 52.94	+1	68587..69096	-	169	56550974	cheW	ZMO0078	-	chemotaxis protein
79	 48.91	0	69267..69632	-	121	56550975	cheY	ZMO0079	-	chemotaxis protein
80	 48.79	0	69777..70313	-	178	56550976	cheD	ZMO0080	-	chemotaxis protein
81	 52.50	+1	70350..71408	-	352	56550977	cheB	ZMO0081	-	chemotaxis-specific methylesterase
82	 47.77	0	71405..72277	-	290	56550978	cheR	ZMO0082	-	chemotaxis methyltransferase
83	 51.52	0	72274..74604	-	776	56550979	cheA	ZMO0083	-	chemotaxis protein
84	 48.52	0	74615..74884	-	89	56550980	-	ZMO0084	-	hypothetical protein
85	 48.55	0	75058..76371	-	437	56550981	mcpJ	ZMO0085	-	chemotaxis methyl-accepting protein
86	 49.54	0	76804..78969	-	721	56550982	-	ZMO0086	-	guanosine polyphosphate pyrophosphohydrolase
87	 44.93	0	79112..79594	-	160	56550983	-	ZMO0087	-	hypothetical protein
88	 42.13	0	79720..80424	-	234	56550984	-	ZMO0088	-	hypothetical protein
89	 42.28	0	80633..81325	-	230	56550985	-	ZMO0089	-	hypothetical protein
90	 50.75	0	81762..82559	-	265	56550986	-	ZMO0090	-	dehydrogenase
91	 39.74	-1	82626..82781	+	51	56550987	-	ZMO0091	-	hypothetical protein
92	 40.65	-1	82882..83646	+	254	56550988	-	ZMO0092	-	hypothetical protein
93	 46.27	0	83741..83941	+	66	56550989	-	ZMO0093	-	hypothetical protein
94	 50.95	0	83922..84869	+	315	56550990	bioB	ZMO0094	-	biotin synthase
95	 41.44	0	84952..85173	-	73	56550991	-	ZMO0095	-	hypothetical protein
96	 49.28	0	85619..86170	-	183	56550992	pgsA	ZMO0096	-	phosphatidylglycerophosphate synthase
97	 47.62	0	86169..86315	+	48	56550993	-	ZMO0097	-	hypothetical protein
98	 42.51	0	86443..86649	+	68	56550994	-	ZMO0098	-	hypothetical protein
99	 47.75	0	86672..87940	+	422	56550995	plsC	ZMO0099	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
100	 45.93	0	88005..88385	-	126	56550996	-	ZMO0100	-	hypothetical protein
101	 45.63	0	88492..89556	+	354	56550997	-	ZMO0101	-	nucleoside-diphosphate-sugar epimerase
102	 39.13	-1	89568..89774	+	68	56550998	-	ZMO0102	-	hypothetical protein
103	 49.96	0	90130..91548	+	472	56550999	-	ZMO0103	-	hypothetical protein
104	 42.98	0	91568..91681	+	37	56551000	-	ZMO0104	-	hypothetical protein
105	 53.88	+1	91653..93107	+	484	56551001	leuC	ZMO0105	-	isopropylmalate isomerase large subunit
106	 46.29	0	93104..93682	+	192	56551002	leuD	ZMO0106	-	3-isopropylmalate dehydratase small subunit
107	 48.02	0	93747..94556	-	269	56551003	-	ZMO0107	-	hypothetical protein
108	 49.85	0	94614..94940	-	108	56551004	-	ZMO0108	-	cation transporter
109	 37.43	-1	95278..96717	+	479	56551005	-	ZMO0109	-	hypothetical protein
110	 39.90	-1	96714..97703	+	329	56551006	-	ZMO0110	-	hypothetical protein
111	 50.70	0	97850..99646	-	598	56551007	-	ZMO0111	-	ABC transporter
112	 45.83	0	99833..100192	+	119	56551008	-	ZMO0112	-	hypothetical protein
113	 45.56	0	100982..102388	+	468	56551009	pabB	ZMO0113	-	para-aminobenzoate synthase component I
114	 46.57	0	102405..103016	+	203	56551010	trpGD	ZMO0114	-	anthranilate synthase component II
115	 47.79	0	102961..103818	+	285	56551011	pabC	ZMO0115	-	branched-chain amino acid aminotransferase
116	 48.86	0	104018..104455	+	145	56551012	-	ZMO0116	-	hypothetical protein
117	 49.33	0	104522..106159	+	545	56551013	hcp	ZMO0117	-	hydroxylamine reductase
118	 41.30	0	106299..106436	+	45	56551014	-	ZMO0118	-	hypothetical protein
119	 44.57	0	106417..107484	+	355	56551015	nhaA	ZMO0119	-	Na+/H+ antiporter
120	 47.72	0	107594..108712	+	372	56551016	-	ZMO0120	-	hypothetical protein
121	 47.78	0	108980..110329	+	449	56551017	-	ZMO0121	-	recombination factor protein RarA
122	 42.11	0	110510..110851	+	113	56551018	-	ZMO0122	-	hypothetical protein
123	 43.75	0	110972..111115	+	47	56551019	-	ZMO0123	-	hypothetical protein
124	 50.82	0	111118..112701	-	527	56551020	-	ZMO0124	-	ATPase
125	 50.00	0	112714..113187	-	157	56551021	-	ZMO0125	-	hypothetical protein
126	 33.33	-2	114284..114433	+	49	56551022	-	ZMO0126	-	hypothetical protein
127	 50.73	0	114594..115553	-	319	56551023	-	ZMO0127	-	nuclease S1
128	 48.52	0	115571..117961	-	796	56551024	-	ZMO0128	-	TonB-dependent receptor
129	 35.56	-2	117948..118127	+	59	56551025	-	ZMO0129	-	hypothetical protein
130	 49.43	0	118386..119180	-	264	56551026	phoC	ZMO0130	-	acid phosphatase precursor
131	 48.34	0	119338..120363	-	341	56551027	-	ZMO0131	-	hypothetical protein
132	 48.09	0	120850..121608	+	252	56551028	-	ZMO0132	-	hypothetical protein
133	 47.23	0	121929..122669	+	246	56551029	-	ZMO0133	-	hypothetical protein
134	 47.70	0	122852..123352	+	166	56551030	-	ZMO0134	-	hypothetical protein
135	 50.08	0	123511..124161	+	216	56551031	-	ZMO0135	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
