IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

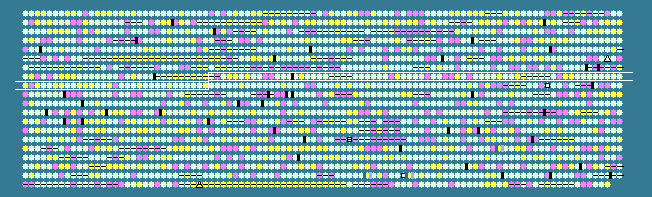

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
732	 49.66	0	729737..733912	+	1391	56551628	-	ZMO0732	-	DNA-directed RNA polymerase subunit beta'
733	 42.02	0	734041..734535	-	164	56551629	-	ZMO0733	-	putative acetyltransferase
734	 46.76	0	734709..735527	+	272	56551630	pssB	ZMO0734	-	exopolysaccharide production protein
735	 50.74	0	735587..736873	-	428	56551631	accC	ZMO0735	-	acetyl-CoA carboxylase
736	 52.38	+1	736950..737432	-	160	56551632	-	ZMO0736	-	acetyl-CoA carboxylase
737	 47.85	0	737528..737968	-	146	56551633	aroD	ZMO0737	-	3-dehydroquinate dehydratase
738	 50.50	0	738047..739042	+	331	56551634	thiG	ZMO0738	-	bifunctional sulfur carrier protein/thiazole synthase protein
739	 45.12	0	739109..739405	-	98	56551635	-	ZMO0739	-	hypothetical protein
740	 43.96	0	739626..739898	+	90	56551636	-	ZMO0740	-	hypothetical protein
741	 42.59	0	739973..740080	-	35	56551637	-	ZMO0741	-	hypothetical protein
742	 41.88	0	740102..740218	+	38	56551638	-	ZMO0742	-	hypothetical protein
743	 48.43	0	740230..741819	+	529	56551639	prfC	ZMO0743	-	peptide chain release factor RF-3
744	 45.32	0	741978..742778	+	266	56551640	-	ZMO0744	-	hypothetical protein
745	 43.67	0	742896..743369	+	157	56551641	-	ZMO0745	-	hypothetical protein
746	 45.88	0	743990..744523	+	177	56551642	-	ZMO0746	-	hypothetical protein
747	 51.67	0	744627..745046	+	139	56551643	-	ZMO0747	-	hypothetical protein
748	 48.81	0	745089..746012	-	307	56551644	cysK	ZMO0748	-	cysteine synthase
749	 49.17	0	746222..747130	-	302	56551645	rpoH	ZMO0749	-	RNA polymerase factor sigma-32
750	 49.90	0	747183..748136	-	317	56551646	rluD	ZMO0750	-	pseudouridine synthase D large subunit
751	 45.61	0	748181..748636	+	151	56551647	-	ZMO0751	-	metal-dependent protease
752	 47.37	0	748754..749380	+	208	56551648	-	ZMO0752	-	hypothetical protein
753	 46.27	0	749552..749806	+	84	56551649	-	ZMO0753	-	glutaredoxin 3
754	 46.53	0	749844..750146	+	100	56551650	-	ZMO0754	-	hypothetical protein
755	 46.12	0	750221..751252	-	343	56551651	-	ZMO0755	-	hypothetical protein
756	 45.08	0	751227..751643	-	138	56551652	-	ZMO0756	-	hypothetical protein
757	 45.09	0	751754..752884	-	376	56551653	-	ZMO0757	-	hypothetical protein
758	 48.54	0	752868..753518	-	216	56551654	dhbB	ZMO0758	-	putative isochorismatase
759	 46.83	0	753556..754281	-	241	56551655	-	ZMO0759	-	Zn-dependent hydrolase
760	 47.73	0	754322..754717	-	131	56551656	gloA	ZMO0760	-	lactoylglutathione lyase
761	 45.65	0	754406..754819	+	137	56551657	gloA	ZMO0761	-	lactoylglutathione lyase
762	 39.62	-1	754695..754853	-	52	56551658	-	ZMO0762	-	hypothetical protein
763	 51.75	+1	754938..755963	-	341	56551659	-	ZMO0763	-	hypothetical protein
764	 48.52	0	755989..756732	-	247	56551660	-	ZMO0764	-	hydrolase
765	 48.94	0	756996..758975	+	659	56551661	thrS	ZMO0765	-	threonyl-tRNA synthetase
766	 47.03	0	758989..761769	+	926	56551662	glnD	ZMO0766	-	PII uridylyl-transferase
767	 49.28	0	761963..764182	+	739	56551663	-	ZMO0767	-	hypothetical protein
768	 41.96	0	764208..764462	-	84	56551664	-	ZMO0768	-	hypothetical protein
769	 47.22	0	764537..765688	+	383	56551665	trmU	ZMO0769	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
770	 49.80	0	765771..767246	-	491	56551666	mgtE	ZMO0770	-	Mg/Co/Ni transporter
771	 39.58	-1	767231..767422	+	63	56551667	-	ZMO0771	-	hypothetical protein
772	 42.22	0	767352..767486	+	44	56551668	-	ZMO0772	-	hypothetical protein
773	 50.21	0	767459..767926	+	155	56551669	-	ZMO0773	-	peptidyl-prolyl cis-trans isomerase
774	 48.67	0	767937..768836	-	299	56551670	-	ZMO0774	-	transcriptional regulator
775	 35.15	-2	768868..769032	+	54	56551671	-	ZMO0775	-	hypothetical protein
776	 45.93	0	769365..769991	+	208	56551672	pmtA	ZMO0776	-	phospholipid N-methyltransferase
777	 47.66	0	770021..770704	-	227	56551673	-	ZMO0777	-	metallo-beta-lactamase family protein
778	 47.01	0	770972..771373	+	133	56551674	ragC	ZMO0778	-	cation/multidrug efflux pump
779	 49.80	0	774196..775434	+	412	56551675	-	ZMO0779	-	membrane-fusion protein
780	 51.56	0	775412..776914	+	500	56551676	-	ZMO0780	-	outer membrane protein
781	 47.05	0	777103..778050	+	315	56551677	-	ZMO0781	-	LysR family transcriptional regulator
782	 49.22	0	778126..779661	-	511	56551678	gatB	ZMO0782	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
783	 52.33	+1	779600..781078	-	492	56551679	gatA	ZMO0783	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
784	 51.55	0	781078..781368	-	96	56551680	gatC	ZMO0784	-	glutamyl-tRNA(Gln) amidotransferase subunit C
785	 46.67	0	781602..782141	+	179	56551681	-	ZMO0785	-	endonuclease
786	 49.02	0	782345..782905	+	186	56551682	-	ZMO0786	-	hypothetical protein
787	 48.65	0	782963..784549	+	528	56551683	-	ZMO0787	-	choline dehydrogenase
788	 47.56	0	784559..786076	+	505	56551684	sldC	ZMO0788	-	sorbitol dehydrogenase cytochrome c subunit
789	 44.18	0	786394..788919	+	841	56551685	-	ZMO0789	-	TonB-dependent receptor
790	 32.56	-2	789561..789689	+	42	56551686	-	ZMO0790	-	hypothetical protein
791	 50.52	0	789730..790689	+	319	56551687	pyrB	ZMO0791	-	aspartate carbamoyltransferase catalytic subunit
792	 50.20	0	790686..791912	+	408	56551688	pyrC	ZMO0792	-	dihydroorotase
793	 44.77	0	792024..792644	+	206	56551689	-	ZMO0793	-	hypothetical protein
794	 48.41	0	792691..794739	-	682	56551690	-	ZMO0794	-	prolyl oligopeptidase family protein
795	 47.78	0	794852..797032	-	726	56551691	-	ZMO0795	-	iron transport receptor
796	 49.70	0	797182..797346	-	54	56551692	-	ZMO0796	-	hypothetical protein
797	 49.49	0	797602..798387	-	261	56551693	-	ZMO0797	-	dehydrogenase
798	 48.80	0	798615..800030	-	471	56551694	-	ZMO0798	-	outer membrane protein
799	 48.32	0	800030..801157	-	375	56551695	-	ZMO0799	-	hypothetical protein
800	 48.71	0	801161..803989	-	942	56551696	-	ZMO0800	-	hypothetical protein
801	 51.10	0	803934..804980	-	348	56551697	-	ZMO0801	-	membrane-fusion protein
802	 37.37	-1	805127..805324	-	65	56551698	-	ZMO0802	-	hypothetical protein
803	 50.47	0	805403..807001	-	532	56551699	-	ZMO0803	-	hypothetical protein
804	 48.35	0	807172..808110	-	312	56551700	argC	ZMO0804	-	N-acetyl-gamma-glutamyl-phosphate reductase
805	 48.73	0	808113..809015	-	300	56551701	-	ZMO0805	-	hypothetical protein
806	 50.90	0	809099..810493	-	464	56551702	pepA	ZMO0806	-	leucyl aminopeptidase
807	 51.08	0	810637..811932	-	431	56551703	-	ZMO0807	-	hypothetical protein
808	 46.33	0	811895..812071	-	58	56551704	-	ZMO0808	-	hypothetical protein
809	 47.95	0	812213..812554	-	113	56551705	-	ZMO0809	-	hypothetical protein
810	 52.57	+1	812569..813306	-	245	56551706	truA	ZMO0810	-	tRNA pseudouridine synthase A
811	 51.77	+1	813303..814208	-	301	56551707	fmt	ZMO0811	-	methionyl-tRNA formyltransferase
812	 50.08	0	814355..814951	+	198	56551708	recR	ZMO0812	-	recombinational DNA repair protein
813	 45.51	0	814974..815507	+	177	56551709	defA	ZMO0813	-	polypeptide deformylase
814	 45.95	0	815592..816938	+	448	56551710	-	ZMO0814	-	DNA recombination protein
815	 60.00	+2	816975..817214	-	79	56551711	-	ZMO0815	-	hypothetical protein
816	 36.88	-1	817251..817391	-	46	56551712	-	ZMO0816	-	hypothetical protein
817	 45.27	0	817426..817626	-	66	56551713	-	ZMO0817	-	hypothetical protein
818	 47.34	0	817881..818237	+	118	56551714	ygcM	ZMO0818	-	putative 6-pyruvol tetrahydrobiopterin synthase
819	 46.58	0	818450..819763	+	437	56551715	ugd	ZMO0819	-	UDP-glucose 6-dehydrogenase
820	 50.84	0	819840..822044	-	734	56551716	pur-q	ZMO0820	-	phosphoribosylformylglycinamidine synthase II
821	 47.34	0	822192..823205	+	337	56551717	cysZ	ZMO0821	-	cysteine synthase A
822	 49.04	0	823275..823637	+	120	56551718	-	ZMO0822	-	hypothetical protein
823	 48.05	0	824847..825845	+	332	56551719	mraW	ZMO0823	-	S-adenosyl-methyltransferase
824	 46.53	0	825842..826432	+	196	56551720	-	ZMO0824	-	hypothetical protein
825	 50.28	0	826510..828144	+	544	56551721	pbp	ZMO0825	-	penicillin-binding protein
826	 48.73	0	828144..829520	+	458	56551722	murE	ZMO0826	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
827	 46.98	0	829602..830993	+	463	56551723	murF	ZMO0827	-	UDP-N-acetylmuramyl pentapeptide synthase
828	 47.99	0	830981..832051	+	356	56551724	mraY	ZMO0828	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
829	 48.42	0	832048..833373	+	441	56551725	murD	ZMO0829	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
830	 47.98	0	833373..834608	+	411	56551726	ftsW	ZMO0830	-	cell division protein
831	 50.69	0	834605..835768	+	387	56551727	murG	ZMO0831	-	N-acetylglucosaminyl transferase
46.43	MEAN

5.31	STD DEV
