IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

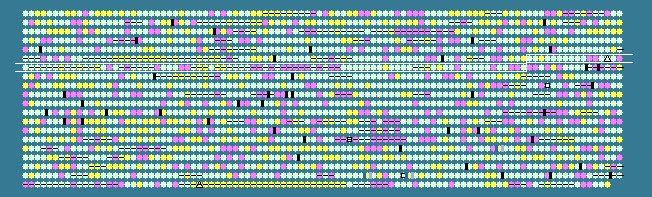

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
585	 49.23	0	586067..587293	-	408	56551481	trpB	ZMO0585	-	tryptophan synthase subunit beta
586	 49.21	0	587290..587925	-	211	56551482	trpF	ZMO0586	-	N-(5'-phosphoribosyl)anthranilate isomerase
587	 51.05	0	588038..588748	-	236	56551483	pyrF	ZMO0587	-	orotidine-5'-phosphate decarboxylase
588	 44.44	0	588762..589076	-	104	56551484	-	ZMO0588	-	hypothetical protein
589	 49.71	0	589166..590533	+	455	56551485	radA	ZMO0589	-	DNA repair protein RadA
590	 44.08	0	590533..591258	+	241	56551486	-	ZMO0590	-	uncharacterized membrane protein
591	 47.33	0	591473..591922	+	149	56551487	-	ZMO0591	-	Fe-S cluster formation protein
592	 47.73	0	591952..592326	+	124	56551488	-	ZMO0592	-	hypothetical protein
593	 46.93	0	592369..593508	-	379	56551489	aroB	ZMO0593	-	3-dehydroquinate synthase
594	 48.21	0	593505..594035	-	176	56551490	aroK	ZMO0594	-	shikimate kinase
595	 42.00	0	594116..594265	+	49	56551491	-	ZMO0595	-	hypothetical protein
596	 41.51	0	594152..594310	-	52	56551492	-	ZMO0596	-	hypothetical protein
597	 47.53	0	594369..596009	+	546	56551493	-	ZMO0597	-	hypothetical protein
598	 46.54	0	596051..596974	+	307	56551494	xerD	ZMO0598	-	integrase
599	 49.79	0	596985..597926	+	313	56551495	accA	ZMO0599	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
600	 31.58	-2	598030..598200	-	56	56551496	-	ZMO0600	-	hypothetical protein
601	 43.97	0	598187..600622	+	811	56551497	-	ZMO0601	-	two-component response regulator
602	 47.91	0	601676..602656	-	326	56551498	motB	ZMO0602	-	flagellar motor component
603	 46.30	0	602708..603571	-	287	56551499	motA	ZMO0603	-	flagellar motor protein MotA
604	 43.71	0	603774..604631	-	285	56551500	flgL	ZMO0604	-	flagellar hook-associated protein 3
605	 48.08	0	604646..606022	-	458	56551501	flgK	ZMO0605	-	flagellar hook-associated protein 1
606	 48.60	0	606183..606575	-	130	56551502	-	ZMO0606	-	peptidoglycan hydrolase
607	 50.87	0	606572..607723	-	383	56551503	flgI	ZMO0607	-	flagellar basal body P-ring protein
608	 49.63	0	607738..608412	-	224	56551504	flgH	ZMO0608	-	flagellar L-ring protein precursor
609	 47.98	0	608426..609217	-	263	56551505	flgG	ZMO0609	-	flagellar basal body rod protein FlgG
610	 51.60	0	609270..610019	-	249	56551506	flgF	ZMO0610	-	flagellar basal-body rod protein
611	 46.84	0	610059..611294	-	411	56551507	flgE	ZMO0611	-	flagellar hook protein
612	 49.35	0	611335..612027	-	230	56551508	flgD	ZMO0612	-	flagellar scaffolding protein
613	 50.12	0	612089..612493	-	134	56551509	flgC	ZMO0613	-	flagellar cell-proximal portion protein
614	 46.33	0	612502..612855	-	117	56551510	flgB	ZMO0614	-	flagellar proximal rod protein
615	 42.65	0	612887..613090	+	67	56551511	-	ZMO0615	-	hypothetical protein
616	 49.28	0	613068..613763	+	231	56551512	motA	ZMO0616	-	flagellar motor component
617	 45.05	0	613820..614425	+	201	56551513	motB	ZMO0617	-	flagellar chemotaxis protein
618	 40.88	-1	614621..614779	+	52	56551514	-	ZMO0618	-	hypothetical protein
619	 45.68	0	614991..615557	+	188	56551515	flgA	ZMO0619	-	flagellar protein
620	 48.04	0	615621..615926	-	101	56551516	-	ZMO0620	-	hypothetical protein
621	 48.51	0	615649..616083	+	144	56551517	-	ZMO0621	-	platelet binding protein
622	 48.43	0	616076..616393	+	105	56551518	-	ZMO0622	-	hypothetical protein
623	 34.04	-2	616667..616807	+	46	56551519	-	ZMO0623	-	hypothetical protein
624	 48.63	0	616807..618930	+	707	56551520	flhA	ZMO0624	-	flagellar biosynthesis protein FlhA
625	 47.69	0	618931..619752	+	273	56551521	fleN	ZMO0625	-	flagellar synthesis regulator
626	 47.04	0	619742..620485	+	247	56551522	fliA	ZMO0626	-	flagellar-specific RNA polymerase sigma factor
627	 41.63	0	620618..621304	+	228	56551523	-	ZMO0627	-	hypothetical protein
628	 38.12	-1	621363..621989	+	208	56551524	-	ZMO0628	-	hypothetical protein
629	 48.77	0	622080..622934	-	284	56551525	fliC	ZMO0629	-	flagellin
630	 50.26	0	623618..624001	+	127	56551526	-	ZMO0630	-	hypothetical protein
631	 51.16	0	624040..624942	+	300	56551527	-	ZMO0631	-	two-component response regulator
632	 48.54	0	625049..625390	+	113	56551528	fliE	ZMO0632	-	flagellar hook-basal body complex protein
633	 52.78	+1	625394..627049	+	551	56551529	fliF	ZMO0633	-	flagellar M-ring protein
634	 51.77	+1	627114..627254	+	46	56551530	-	ZMO0634	-	hypothetical protein
635	 49.08	0	627247..628281	+	344	56551531	fliG	ZMO0635	-	flagellar motor switch protein
636	 45.05	0	628268..629035	+	255	56551532	-	ZMO0636	-	flagellar biosynthetic protein
637	 49.11	0	629032..629925	+	297	56551533	fliI	ZMO0637	-	flagellum-specific ATP synthase
638	 46.48	0	630361..630786	+	141	56551534	-	ZMO0638	-	hypothetical protein
639	 41.89	0	630783..631331	+	182	56551535	-	ZMO0639	-	hypothetical protein
640	 42.08	0	631386..632666	+	426	56551536	-	ZMO0640	-	hypothetical protein
641	 44.44	0	632782..633186	+	134	56551537	motD	ZMO0641	-	chemotaxis protein
642	 39.82	-1	633199..633768	+	189	56551538	-	ZMO0642	-	hypothetical protein
643	 46.95	0	633765..634763	+	332	56551539	fliM	ZMO0643	-	flagellar switch protein
644	 40.71	-1	634760..635071	+	103	56551540	fliN	ZMO0644	-	flagellar motor switch
645	 40.61	-1	635064..635228	+	54	56551541	-	ZMO0645	-	hypothetical protein
646	 37.38	-1	635068..635388	+	106	56551542	fliO	ZMO0646	-	flagellar protein
647	 42.27	0	635393..636343	+	316	56551543	fliP	ZMO0647	-	flagellar biosynthesis protein FliP
648	 41.30	0	636340..636615	+	91	56551544	fliQ	ZMO0648	-	flagellar biosynthetic protein
649	 43.36	0	636629..637426	+	265	56551545	fliR	ZMO0649	-	flagellar biosynthetic protein
650	 41.99	0	637416..638558	+	380	56551546	flhB	ZMO0650	-	flagellar biosynthesis protein FlhB
651	 44.07	0	638660..640354	+	564	56551547	fliD	ZMO0651	-	flagellar hook-associated protein 2
652	 42.56	0	640395..640784	+	129	56551548	fliS	ZMO0652	-	flagellar protein
653	 42.76	0	640877..641947	-	356	56551549	-	ZMO0653	-	permease
654	 43.92	0	641996..645376	-	1126	56551550	-	ZMO0654	-	glycosyltransferase
655	 43.96	0	645528..647108	+	526	56551551	add	ZMO0655	-	adenosine deaminase
656	 44.06	0	647236..647757	-	173	56551552	gpt	ZMO0656	-	putative purine phosphoribosyltransferase
657	 45.29	0	647835..648863	-	342	56551553	aruG	ZMO0657	-	arginine/ornithine N-succinyltransferase beta subunit
658	 45.89	0	648860..650014	-	384	56551554	-	ZMO0658	-	hypothetical protein
659	 46.15	0	650527..651072	+	181	56551555	-	ZMO0659	-	hypothetical protein
660	 47.85	0	651304..653211	+	635	56551556	dnaK	ZMO0660	-	DnaK molecular chaperone
661	 50.18	0	653331..654458	+	375	56551557	dnaJ	ZMO0661	-	DnaJ molecular chaperone
662	 47.61	0	654569..655864	-	431	56551558	purB	ZMO0662	-	adenylosuccinate lyase
663	 47.51	0	656004..656687	-	227	56551559	radC	ZMO0663	-	DNA repair protein
664	 43.52	0	656842..659982	+	1046	56551560	-	ZMO0664	-	exoproteins
665	 44.78	0	660037..660237	+	66	56551561	-	ZMO0665	-	hypothetical protein
666	 48.62	0	660234..660632	+	132	56551562	-	ZMO0666	-	hypothetical protein
667	 48.19	0	661242..662042	+	266	56551563	atpB	ZMO0667	-	F0F1 ATP synthase subunit A
668	 55.00	+1	662078..662317	+	79	56551564	atpE	ZMO0668	-	ATP synthase C chain
669	 48.90	0	662439..662939	+	166	56551565	atpG	ZMO0669	-	ATP synthase B chain
670	 53.49	+1	662953..663210	+	85	56551566	-	ZMO0670	-	hypothetical protein
671	 47.99	0	663245..663592	+	115	56551567	atpF	ZMO0671	-	ATP synthase subunit b
672	 43.21	0	663747..665741	+	664	56551568	uvrC	ZMO0672	-	excinuclease ABC subunit C
673	 42.82	0	665783..666541	+	252	56551569	recO	ZMO0673	-	DNA repair protein RecO
674	 46.10	0	666579..667103	+	174	56551570	-	ZMO0674	-	hypothetical protein
675	 46.05	0	667104..667913	-	269	56551571	-	ZMO0675	-	LysR family transcriptional regulator
676	 48.97	0	667980..669188	-	402	56551572	-	ZMO0676	-	cystathionine beta-lyase
677	 48.10	0	669255..670304	-	349	56551573	leuB	ZMO0677	-	3-isopropylmalate dehydrogenase
678	 46.15	0	670437..671060	-	207	56551574	tdsD	ZMO0678	-	nitroreductase
679	 23.53	-2	671150..671251	+	33	56551575	-	ZMO0679	-	hypothetical protein
680	 44.03	0	671414..672451	+	345	56551576	-	ZMO0680	-	hypothetical protein
681	 43.72	0	672448..674391	+	647	56551577	-	ZMO0681	-	hypothetical protein
682	 42.05	0	675915..677234	+	439	56551578	-	ZMO0682	-	hypothetical protein
683	 40.75	-1	677276..678259	+	327	56551579	-	ZMO0683	-	hypothetical protein
684	 43.13	0	678308..679348	+	346	56551580	-	ZMO0684	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
