IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

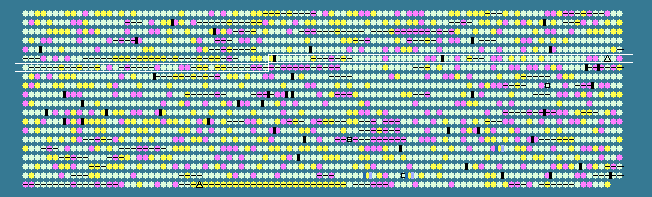

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
542	 50.12	0	532520..532942	+	140	56551438	rplQ	ZMO0542	-	50S ribosomal protein L17
543	 44.78	0	533710..535980	+	756	56551439	acnA	ZMO0543	-	aconitate hydratase
544	 45.92	0	536046..537308	+	420	56551440	citC	ZMO0544	-	isocitrate dehydrogenase
545	 45.66	0	537417..538211	-	264	56551441	trpC	ZMO0545	-	indole-3-glycerol-phosphate synthase
546	 46.43	0	538609..540051	+	480	56551442	-	ZMO0546	-	sulfate permease
547	 45.68	0	540556..542070	-	504	56551443	-	ZMO0547	-	hypothetical protein
548	 43.39	0	542213..543226	-	337	56551444	-	ZMO0548	-	two-component signal transduction histidine kinase
549	 51.13	0	543379..545625	-	748	56551445	pnp	ZMO0549	-	polynucleotide phosphorylase/polyadenylase
550	 47.78	0	545739..546008	-	89	56551446	rpsO	ZMO0550	-	ribosomal protein S15P
551	 49.45	0	546026..546937	-	303	56551447	rulB	ZMO0551	-	tRNA pseudouridine synthase B
552	 42.44	0	546934..547515	-	193	56551448	tdk	ZMO0552	-	thymidine kinase
553	 46.24	0	547539..547964	-	141	56551449	rbfA	ZMO0553	-	ribosome-binding factor A
554	 52.86	+1	548111..551080	-	989	56551450	infB	ZMO0554	-	translation initiation factor IF-2
555	 49.12	0	551084..551818	-	244	56551451	-	ZMO0555	-	transcription terminating nucleic-acid-binding protein
556	 49.20	0	551885..553510	-	541	56551452	nusA	ZMO0556	-	transcription elongation factor NusA
557	 49.01	0	553507..554061	-	184	56551453	-	ZMO0557	-	hypothetical protein
558	 46.95	0	554462..555790	+	442	56551454	-	ZMO0558	-	dehydrogenase
559	 48.19	0	555866..556693	+	275	56551455	-	ZMO0559	-	ATPase
560	 45.43	0	556860..558008	+	382	56551456	hisC	ZMO0560	-	putative aminotransferase
561	 42.04	0	559101..560558	-	485	56551457	-	ZMO0561	-	TonB-dependent receptor
562	 44.04	0	560726..561883	+	385	56551458	hisC	ZMO0562	-	putative aminotransferase
563	 45.21	0	562026..562328	-	100	56551459	aroH	ZMO0563	-	chorismate mutase
564	 49.21	0	562444..563457	+	337	56551460	ispB	ZMO0564	-	geranylgeranyl pyrophosphate synthase
565	 48.61	0	563499..566012	+	837	56551461	hrpB	ZMO0565	-	ATP-dependent helicases
566	 44.66	0	566205..567458	-	417	56551462	-	ZMO0566	-	MFS permease
567	 49.62	0	567679..568605	-	308	56551463	sucD	ZMO0567	-	succinyl-CoA synthetase alpha subunit
568	 41.93	0	568662..569045	-	127	56551464	sdhD	ZMO0568	-	succinate dehydrogenase anchor subunit
569	 42.72	0	569048..569473	-	141	56551465	sdhC	ZMO0569	-	succinate dehydrogenase
570	 49.79	0	569630..570577	+	315	56551466	prmA	ZMO0570	-	ribosomal protein L11 methylase
571	 46.72	0	571449..573218	+	589	56551467	-	ZMO0571	-	ABC-type anion transport system
572	 46.89	0	573245..574564	+	439	56551468	-	ZMO0572	-	ABC-type nitrate/sulfonate/bicarbonate transport system
573	 42.75	0	574746..575393	+	215	56551469	grxB	ZMO0573	-	glutaredoxin 2
574	 46.51	0	575446..577752	-	768	56551470	-	ZMO0574	-	DNA and RNA helicase
575	 51.45	0	577816..578367	-	183	56551471	mboA	ZMO0575	-	N6-adenine-specific methylase
576	 47.62	0	578997..579395	-	132	56551472	-	ZMO0576	-	pseudouridylate synthase
577	 46.57	0	579778..579981	+	67	56551473	-	ZMO0577	-	hypothetical protein
578	 46.37	0	580056..581336	-	426	56551474	-	ZMO0578	-	Na+/H+-dicarboxylate symporter
579	 27.87	-2	581479..581661	+	60	56551475	-	ZMO0579	-	hypothetical protein
580	 33.95	-2	581538..581699	-	53	56551476	-	ZMO0580	-	hypothetical protein
581	 45.98	0	581710..583014	+	434	56551477	-	ZMO0581	-	MFS permease
582	 50.08	0	583035..584366	-	443	56551478	folC	ZMO0582	-	putative folylpolyglutamate/dihydrofolate synthase
583	 49.47	0	584395..585249	-	284	56551479	accD	ZMO0583	-	acetyl-CoA carboxylase beta subunit
584	 50.42	0	585246..586070	-	274	56551480	trpA	ZMO0584	-	tryptophan synthase subunit alpha
585	 49.23	0	586067..587293	-	408	56551481	trpB	ZMO0585	-	tryptophan synthase subunit beta
586	 49.21	0	587290..587925	-	211	56551482	trpF	ZMO0586	-	N-(5'-phosphoribosyl)anthranilate isomerase
587	 51.05	0	588038..588748	-	236	56551483	pyrF	ZMO0587	-	orotidine-5'-phosphate decarboxylase
588	 44.44	0	588762..589076	-	104	56551484	-	ZMO0588	-	hypothetical protein
589	 49.71	0	589166..590533	+	455	56551485	radA	ZMO0589	-	DNA repair protein RadA
590	 44.08	0	590533..591258	+	241	56551486	-	ZMO0590	-	uncharacterized membrane protein
591	 47.33	0	591473..591922	+	149	56551487	-	ZMO0591	-	Fe-S cluster formation protein
592	 47.73	0	591952..592326	+	124	56551488	-	ZMO0592	-	hypothetical protein
593	 46.93	0	592369..593508	-	379	56551489	aroB	ZMO0593	-	3-dehydroquinate synthase
594	 48.21	0	593505..594035	-	176	56551490	aroK	ZMO0594	-	shikimate kinase
595	 42.00	0	594116..594265	+	49	56551491	-	ZMO0595	-	hypothetical protein
596	 41.51	0	594152..594310	-	52	56551492	-	ZMO0596	-	hypothetical protein
597	 47.53	0	594369..596009	+	546	56551493	-	ZMO0597	-	hypothetical protein
598	 46.54	0	596051..596974	+	307	56551494	xerD	ZMO0598	-	integrase
599	 49.79	0	596985..597926	+	313	56551495	accA	ZMO0599	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
600	 31.58	-2	598030..598200	-	56	56551496	-	ZMO0600	-	hypothetical protein
601	 43.97	0	598187..600622	+	811	56551497	-	ZMO0601	-	two-component response regulator
602	 47.91	0	601676..602656	-	326	56551498	motB	ZMO0602	-	flagellar motor component
603	 46.30	0	602708..603571	-	287	56551499	motA	ZMO0603	-	flagellar motor protein MotA
604	 43.71	0	603774..604631	-	285	56551500	flgL	ZMO0604	-	flagellar hook-associated protein 3
605	 48.08	0	604646..606022	-	458	56551501	flgK	ZMO0605	-	flagellar hook-associated protein 1
606	 48.60	0	606183..606575	-	130	56551502	-	ZMO0606	-	peptidoglycan hydrolase
607	 50.87	0	606572..607723	-	383	56551503	flgI	ZMO0607	-	flagellar basal body P-ring protein
608	 49.63	0	607738..608412	-	224	56551504	flgH	ZMO0608	-	flagellar L-ring protein precursor
609	 47.98	0	608426..609217	-	263	56551505	flgG	ZMO0609	-	flagellar basal body rod protein FlgG
610	 51.60	0	609270..610019	-	249	56551506	flgF	ZMO0610	-	flagellar basal-body rod protein
611	 46.84	0	610059..611294	-	411	56551507	flgE	ZMO0611	-	flagellar hook protein
612	 49.35	0	611335..612027	-	230	56551508	flgD	ZMO0612	-	flagellar scaffolding protein
613	 50.12	0	612089..612493	-	134	56551509	flgC	ZMO0613	-	flagellar cell-proximal portion protein
614	 46.33	0	612502..612855	-	117	56551510	flgB	ZMO0614	-	flagellar proximal rod protein
615	 42.65	0	612887..613090	+	67	56551511	-	ZMO0615	-	hypothetical protein
616	 49.28	0	613068..613763	+	231	56551512	motA	ZMO0616	-	flagellar motor component
617	 45.05	0	613820..614425	+	201	56551513	motB	ZMO0617	-	flagellar chemotaxis protein
618	 40.88	-1	614621..614779	+	52	56551514	-	ZMO0618	-	hypothetical protein
619	 45.68	0	614991..615557	+	188	56551515	flgA	ZMO0619	-	flagellar protein
620	 48.04	0	615621..615926	-	101	56551516	-	ZMO0620	-	hypothetical protein
621	 48.51	0	615649..616083	+	144	56551517	-	ZMO0621	-	platelet binding protein
622	 48.43	0	616076..616393	+	105	56551518	-	ZMO0622	-	hypothetical protein
623	 34.04	-2	616667..616807	+	46	56551519	-	ZMO0623	-	hypothetical protein
624	 48.63	0	616807..618930	+	707	56551520	flhA	ZMO0624	-	flagellar biosynthesis protein FlhA
625	 47.69	0	618931..619752	+	273	56551521	fleN	ZMO0625	-	flagellar synthesis regulator
626	 47.04	0	619742..620485	+	247	56551522	fliA	ZMO0626	-	flagellar-specific RNA polymerase sigma factor
627	 41.63	0	620618..621304	+	228	56551523	-	ZMO0627	-	hypothetical protein
628	 38.12	-1	621363..621989	+	208	56551524	-	ZMO0628	-	hypothetical protein
629	 48.77	0	622080..622934	-	284	56551525	fliC	ZMO0629	-	flagellin
630	 50.26	0	623618..624001	+	127	56551526	-	ZMO0630	-	hypothetical protein
631	 51.16	0	624040..624942	+	300	56551527	-	ZMO0631	-	two-component response regulator
632	 48.54	0	625049..625390	+	113	56551528	fliE	ZMO0632	-	flagellar hook-basal body complex protein
633	 52.78	+1	625394..627049	+	551	56551529	fliF	ZMO0633	-	flagellar M-ring protein
634	 51.77	+1	627114..627254	+	46	56551530	-	ZMO0634	-	hypothetical protein
635	 49.08	0	627247..628281	+	344	56551531	fliG	ZMO0635	-	flagellar motor switch protein
636	 45.05	0	628268..629035	+	255	56551532	-	ZMO0636	-	flagellar biosynthetic protein
637	 49.11	0	629032..629925	+	297	56551533	fliI	ZMO0637	-	flagellum-specific ATP synthase
638	 46.48	0	630361..630786	+	141	56551534	-	ZMO0638	-	hypothetical protein
639	 41.89	0	630783..631331	+	182	56551535	-	ZMO0639	-	hypothetical protein
640	 42.08	0	631386..632666	+	426	56551536	-	ZMO0640	-	hypothetical protein
641	 44.44	0	632782..633186	+	134	56551537	motD	ZMO0641	-	chemotaxis protein
46.43	MEAN

5.31	STD DEV
