IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

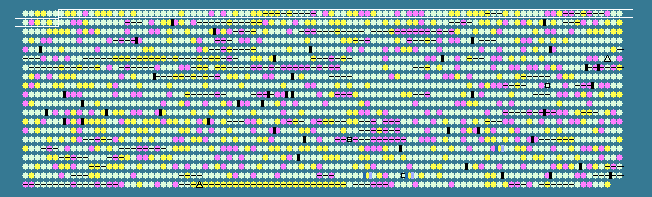

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
7	 48.16	0	8386..9120	-	244	56550903	cysH	ZMO0007	-	phosphoadenosine phosphosulfate reductase
8	 50.55	0	9131..10843	-	570	56550904	cysI	ZMO0008	-	sulfite reductase subunit beta
9	 49.97	0	10843..12663	-	606	56550905	cysJ	ZMO0009	-	sulfite reductase subunit alpha
10	 46.55	0	13006..13716	+	236	56550906	-	ZMO0010	-	zinc metalloprotease
11	 40.03	-1	13757..14473	-	238	56550907	-	ZMO0011	-	hypothetical protein
12	 49.07	0	14548..15729	-	393	56550908	hemN	ZMO0012	-	coproporphyrinogen III oxidase
13	 55.24	+1	15736..16365	-	209	56550909	-	ZMO0013	-	putative deoxyribonucleotide triphosphate pyrophosphatase
14	 57.00	+1	16367..17080	-	237	56550910	rph	ZMO0014	-	RNase PH
15	 50.48	0	17333..18370	+	345	56550911	hrcA	ZMO0015	-	heat-inducible transcription repressor
16	 46.60	0	18367..18939	+	190	56550912	grpE	ZMO0016	-	molecular chaperone GrpE
17	 52.24	+1	18995..20401	+	468	56550913	-	ZMO0017	-	tRNA and rRNA cytosine-C5-methylase
18	 47.96	0	20553..21215	+	220	56550914	rpe	ZMO0018	-	pentose-5-phosphate-3-epimerase
19	 51.61	0	21212..22978	+	588	56550915	-	ZMO0019	-	hypothetical protein
20	 49.76	0	23204..23830	-	208	56550916	-	ZMO0020	-	hypothetical protein
21	 49.48	0	23797..25239	-	480	56550917	ykgF	ZMO0021	-	electron transport protein
22	 49.06	0	25239..25982	-	247	56550918	-	ZMO0022	-	Fe-S oxidoreductase
23	 43.19	0	26353..26829	-	158	56550919	-	ZMO0023	-	transcriptional regulator
24	 48.33	0	26925..27104	+	59	56550920	-	ZMO0024	-	integral membrane protein
25	 48.65	0	27151..27855	+	234	56550921	-	ZMO0025	-	hypothetical protein
26	 48.10	0	28030..28977	+	315	56550922	-	ZMO0026	-	hypothetical protein
27	 51.09	0	29294..30898	+	534	56550923	purH	ZMO0027	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
28	 46.86	0	31084..32007	+	307	56550924	-	ZMO0028	-	mrr restriction system protein
29	 43.44	0	32037..33935	-	632	56550925	-	ZMO0029	-	hypothetical protein
30	 43.14	0	34225..34632	+	135	56550926	gloA	ZMO0030	-	lactoylglutathione lyase
31	 47.96	0	34636..37056	-	806	56550927	-	ZMO0031	-	TonB-dependent receptor
32	 30.83	-2	37273..37392	+	39	56550928	-	ZMO0032	-	hypothetical protein
33	 49.43	0	37404..37838	-	144	56550929	-	ZMO0033	-	hypothetical protein
34	 33.33	-2	37839..37997	-	52	56550930	-	ZMO0034	-	hypothetical protein
35	 49.25	0	38018..38620	+	200	56550931	-	ZMO0035	-	hypothetical protein
36	 52.80	+1	38624..38962	-	112	56550932	-	ZMO0036	-	hypothetical protein
37	 49.35	0	38962..39423	-	153	56550933	nagE	ZMO0037	-	PTS system mannose/fructose-specific component IIA
38	 48.76	0	39624..40226	-	200	56550934	-	ZMO0038	-	ribosome-associated protein Y
39	 51.06	0	40339..41043	-	234	56550935	dnaQ	ZMO0039	-	DNA polymerase III epsilon subunit
40	 50.00	0	41051..41644	-	197	56550936	coaE	ZMO0040	-	dephospho-CoA kinase
41	 54.02	+1	41657..42439	-	260	56550937	aroE	ZMO0041	-	shikimate 5-dehydrogenase
42	 55.83	+1	42449..42568	+	39	56550938	-	ZMO0042	-	hypothetical protein
43	 50.25	0	42535..43131	-	198	56550939	-	ZMO0043	-	nucleotide-binding protein
44	 46.36	0	43595..45352	+	585	56550940	-	ZMO0044	-	hypothetical protein
45	 52.67	+1	45391..45540	-	49	56550941	-	ZMO0045	-	hypothetical protein
46	 46.80	0	45399..45836	-	145	56550943	-	ZMO0047	-	hypothetical protein
47	 48.21	0	45925..46092	+	55	56550942	-	ZMO0046	-	hypothetical protein
48	 45.76	0	45931..46107	-	58	56550944	-	ZMO0048	-	hypothetical protein
49	 41.54	0	45956..46150	+	64	56550945	-	ZMO0049	-	hypothetical protein
50	 49.67	0	46172..47083	+	303	56550946	-	ZMO0050	-	LysR family transcriptional regulator
51	 42.28	0	47080..47202	+	40	56550947	-	ZMO0051	-	hypothetical protein
52	 50.43	0	47275..48426	-	383	56550948	igiE	ZMO0052	-	cyanate permease
53	 49.44	0	48423..49229	-	268	56550949	pcaD	ZMO0053	-	putative beta-ketoadipate enol-lactone hydrolase
54	 47.84	0	49349..49858	+	169	56550950	-	ZMO0054	-	MarR family transcriptional regulator
55	 52.15	+1	49995..50786	-	263	56550951	-	ZMO0055	-	permease
56	 51.54	0	50970..52793	-	607	56550952	glmS	ZMO0056	-	D-fructose-6-phosphate amidotransferase
57	 41.35	0	52879..53439	-	186	56550953	-	ZMO0057	-	hypothetical protein
58	 39.22	-1	53444..53647	+	67	56550954	-	ZMO0058	-	hypothetical protein
59	 50.39	0	53616..54764	+	382	56550955	glxK	ZMO0059	-	glycerate kinase
60	 43.56	0	54812..55114	-	100	56550956	-	ZMO0060	-	hypothetical protein
61	 49.69	0	55124..56425	-	433	56550957	phyM	ZMO0061	-	phytase
62	 49.43	0	56562..57530	-	322	56550958	-	ZMO0062	-	hypothetical protein
63	 34.85	-2	57575..57706	+	43	56550959	-	ZMO0063	-	hypothetical protein
64	 48.95	0	57797..59455	-	552	56550960	oprB	ZMO0064	-	carbohydrate-selective porin
65	 23.53	-2	59429..59530	+	33	56550961	-	ZMO0065	-	hypothetical protein
66	 32.59	-2	59628..59897	+	89	56550962	-	ZMO0066	-	hypothetical protein
67	 26.47	-2	59966..60067	+	33	56550963	-	ZMO0067	-	hypothetical protein
68	 48.23	0	60238..61365	+	375	56550964	-	ZMO0068	-	hypothetical protein
69	 44.98	0	61631..62068	+	145	56550965	-	ZMO0069	-	hypothetical protein
70	 46.43	0	62194..62865	+	223	56550966	grxB	ZMO0070	-	glutaredoxin 2
71	 45.65	0	62917..63054	-	45	56550967	-	ZMO0071	-	hypothetical protein
72	 50.73	0	63126..64487	-	453	56550968	-	ZMO0072	-	glucose/sorbosone dehydrogenase
73	 51.75	+1	64496..65380	-	294	56550969	-	ZMO0073	-	hemolysin
74	 45.20	0	65435..65965	-	176	56550970	-	ZMO0074	-	metal-dependent hydrolase
75	 52.31	+1	65952..67031	-	359	56550971	phoH	ZMO0075	-	phosphate starvation-inducible protein
76	 52.90	+1	67009..67146	-	45	56550972	-	ZMO0076	-	hypothetical protein
77	 52.32	+1	67152..68489	-	445	56550973	-	ZMO0077	-	2-methylthioadenine synthetase
78	 52.94	+1	68587..69096	-	169	56550974	cheW	ZMO0078	-	chemotaxis protein
79	 48.91	0	69267..69632	-	121	56550975	cheY	ZMO0079	-	chemotaxis protein
80	 48.79	0	69777..70313	-	178	56550976	cheD	ZMO0080	-	chemotaxis protein
81	 52.50	+1	70350..71408	-	352	56550977	cheB	ZMO0081	-	chemotaxis-specific methylesterase
82	 47.77	0	71405..72277	-	290	56550978	cheR	ZMO0082	-	chemotaxis methyltransferase
83	 51.52	0	72274..74604	-	776	56550979	cheA	ZMO0083	-	chemotaxis protein
84	 48.52	0	74615..74884	-	89	56550980	-	ZMO0084	-	hypothetical protein
85	 48.55	0	75058..76371	-	437	56550981	mcpJ	ZMO0085	-	chemotaxis methyl-accepting protein
86	 49.54	0	76804..78969	-	721	56550982	-	ZMO0086	-	guanosine polyphosphate pyrophosphohydrolase
87	 44.93	0	79112..79594	-	160	56550983	-	ZMO0087	-	hypothetical protein
88	 42.13	0	79720..80424	-	234	56550984	-	ZMO0088	-	hypothetical protein
89	 42.28	0	80633..81325	-	230	56550985	-	ZMO0089	-	hypothetical protein
90	 50.75	0	81762..82559	-	265	56550986	-	ZMO0090	-	dehydrogenase
91	 39.74	-1	82626..82781	+	51	56550987	-	ZMO0091	-	hypothetical protein
92	 40.65	-1	82882..83646	+	254	56550988	-	ZMO0092	-	hypothetical protein
93	 46.27	0	83741..83941	+	66	56550989	-	ZMO0093	-	hypothetical protein
94	 50.95	0	83922..84869	+	315	56550990	bioB	ZMO0094	-	biotin synthase
95	 41.44	0	84952..85173	-	73	56550991	-	ZMO0095	-	hypothetical protein
96	 49.28	0	85619..86170	-	183	56550992	pgsA	ZMO0096	-	phosphatidylglycerophosphate synthase
97	 47.62	0	86169..86315	+	48	56550993	-	ZMO0097	-	hypothetical protein
98	 42.51	0	86443..86649	+	68	56550994	-	ZMO0098	-	hypothetical protein
99	 47.75	0	86672..87940	+	422	56550995	plsC	ZMO0099	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
100	 45.93	0	88005..88385	-	126	56550996	-	ZMO0100	-	hypothetical protein
101	 45.63	0	88492..89556	+	354	56550997	-	ZMO0101	-	nucleoside-diphosphate-sugar epimerase
102	 39.13	-1	89568..89774	+	68	56550998	-	ZMO0102	-	hypothetical protein
103	 49.96	0	90130..91548	+	472	56550999	-	ZMO0103	-	hypothetical protein
104	 42.98	0	91568..91681	+	37	56551000	-	ZMO0104	-	hypothetical protein
105	 53.88	+1	91653..93107	+	484	56551001	leuC	ZMO0105	-	isopropylmalate isomerase large subunit
106	 46.29	0	93104..93682	+	192	56551002	leuD	ZMO0106	-	3-isopropylmalate dehydratase small subunit
46.43	MEAN

5.31	STD DEV
