IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

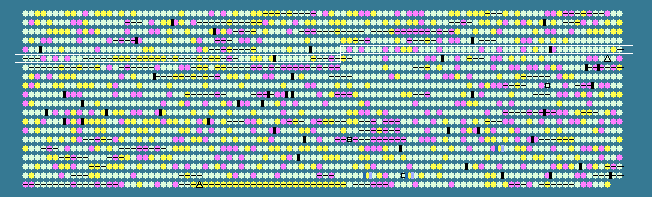

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
454	 49.77	0	449330..449968	-	212	56551350	fhs	ZMO0454	-	formate-tetrahydrofolate ligase
455	 39.64	-1	450154..450264	-	36	56551351	-	ZMO0455	-	hypothetical protein
456	 47.80	0	450398..450715	+	105	56551352	vanB	ZMO0456	-	vanillate O-demethylase oxidoreductase
457	 42.83	0	450841..451335	+	164	56551353	grp	ZMO0457	-	glutamate uptake regulatory protein
458	 46.35	0	451332..452030	-	232	56551354	-	ZMO0458	-	lipoprotein releasing system ATP-binding protein
459	 46.60	0	452023..453273	-	416	56551355	lolC	ZMO0459	-	ABC-type transport system
460	 48.94	0	453475..454602	-	375	56551356	proS	ZMO0460	-	prolyl-tRNA synthetase
461	 30.67	-2	454572..454721	-	49	56551357	-	ZMO0461	-	hypothetical protein
462	 46.97	0	455092..456726	-	544	56551358	pyrG	ZMO0462	-	CTP synthetase
463	 36.05	-1	456735..456881	+	48	56551359	-	ZMO0463	-	hypothetical protein
464	 52.21	+1	456865..457293	-	142	56551360	secG	ZMO0464	-	preprotein translocase subunit
465	 51.73	0	457473..458222	-	249	56551361	tpi	ZMO0465	-	triosephosphate isomerase
466	 30.95	-2	458279..458404	-	41	56551362	-	ZMO0466	-	hypothetical protein
467	 47.01	0	458508..460466	+	652	56551363	-	ZMO0467	-	peptidyl-prolyl isomerase
468	 48.03	0	460463..462013	+	516	56551364	trpE	ZMO0468	-	anthranilate synthase component I
469	 44.21	0	462052..462483	-	143	56551365	-	ZMO0469	-	hypothetical protein
470	 37.41	-1	462592..462738	-	48	56551366	-	ZMO0470	-	hypothetical protein
471	 48.75	0	462737..463696	+	319	56551367	-	ZMO0471	-	transcriptional regulator
472	 45.96	0	463735..464415	-	226	56551368	-	ZMO0472	-	hypothetical protein
473	 45.95	0	464625..465044	-	139	56551369	ribH	ZMO0473	-	riboflavin synthase beta-chain
474	 48.77	0	465046..466185	-	379	56551370	ribB	ZMO0474	-	GTP cyclohydrolase II
475	 48.47	0	466182..466802	-	206	56551371	ribC	ZMO0475	-	riboflavin synthase subunit alpha
476	 48.97	0	466891..467862	-	323	56551372	ribD	ZMO0476	-	riboflavin-specific deaminase/reductase
477	 41.31	0	467893..468243	-	116	56551373	-	ZMO0477	-	hypothetical protein
478	 45.00	0	468425..469144	+	239	56551374	-	ZMO0478	-	two-component response regulator
479	 43.75	0	469148..470500	+	450	56551375	-	ZMO0479	-	peptidoglycan binding domain-containing protein
480	 42.84	0	470493..472784	+	763	56551376	-	ZMO0480	-	two-component signal transduction histidine kinase
481	 43.99	0	472747..473328	-	193	56551377	-	ZMO0481	-	hypothetical protein
482	 48.15	0	473340..474338	-	332	56551378	glpX	ZMO0482	-	fructose 1,6-bisphosphatase II
483	 47.25	0	474460..475752	-	430	56551379	hom	ZMO0483	-	homoserine dehydrogenase
484	 41.07	-1	475910..476620	+	236	56551380	-	ZMO0484	-	magnesium transporter
485	 48.52	0	476871..478049	+	392	56551381	-	ZMO0485	-	acyl-CoA dehydrogenase
486	 50.11	0	478113..478988	+	291	56551382	-	ZMO0486	-	hypothetical protein
487	 49.45	0	478981..479793	+	270	56551383	-	ZMO0487	-	citrate lyase beta chain
488	 44.18	0	479911..480915	-	334	56551384	-	ZMO0488	-	GTP binding protein
489	 33.33	-2	481247..481477	+	76	56551385	-	ZMO0489	-	hypothetical protein
490	 47.31	0	481484..483550	-	688	56551386	ptrB	ZMO0490	-	protease II
491	 48.78	0	483675..485474	+	599	56551387	pepP	ZMO0491	-	aminopeptidase P
492	 49.59	0	485584..485946	+	120	56551388	glnB	ZMO0492	-	nitrogen regulatory protein PII
493	 48.69	0	486040..487452	+	470	56551389	glnA	ZMO0493	-	glutamine synthetase
494	 45.24	0	487648..488898	+	416	56551390	-	ZMO0494	-	MFS permease
495	 44.86	0	488892..493169	-	1425	56551391	-	ZMO0495	-	hypothetical protein
496	 46.86	0	493169..495061	-	630	56551392	-	ZMO0496	-	hypothetical protein
497	 46.58	0	495241..495942	-	233	56551393	-	ZMO0497	-	phosphatase
498	 47.19	0	496114..497499	+	461	56551394	glmU	ZMO0498	-	N-acetylglucosamine-1-phosphate uridyltransferase
499	 50.73	0	497681..499789	-	702	56551395	pbpF	ZMO0499	-	membrane carboxypeptidase
500	 46.47	0	499820..501760	-	646	56551396	-	ZMO0500	-	hypothetical protein
501	 44.37	0	502012..502464	+	150	56551397	-	ZMO0501	-	hypothetical protein
502	 46.21	0	502476..504137	-	553	56551398	-	ZMO0502	-	hypothetical protein
503	 44.87	0	504300..505469	+	389	56551399	dpm1	ZMO0503	-	putative dolichol-phosphate mannosyltransferase
504	 40.69	-1	505352..505555	-	67	56551400	-	ZMO0504	-	hypothetical protein
505	 46.36	0	505576..506235	+	219	56551401	rluC	ZMO0505	-	pseudouridylate synthase
506	 41.19	0	506485..506904	-	139	56551402	rf-2	ZMO0506	-	hypothetical protein
507	 47.53	0	507018..507503	+	161	56551403	-	ZMO0507	-	GAF domain-containing protein
508	 42.13	0	507527..507958	+	143	56551404	-	ZMO0508	-	acetyltransferase
509	 49.31	0	508043..508762	+	239	56551405	-	ZMO0509	-	hypothetical protein
510	 46.56	0	509042..510364	+	440	56551406	pdhC	ZMO0510	-	pyruvate dehydrogenase E2 component
511	 49.33	0	510361..510810	+	149	56551407	-	ZMO0511	-	acyl-CoA hydrolase
512	 48.47	0	510856..512256	+	466	56551408	lpd	ZMO0512	-	dihydrolipoyl dehydrogenase
513	 47.88	0	512268..512975	+	235	56551409	-	ZMO0513	-	hypothetical protein
514	 49.68	0	513761..514231	+	156	56551410	rpsG	ZMO0514	-	30S ribosomal protein S7
515	 49.40	0	514290..516362	+	690	56551411	-	ZMO0515	-	elongation factor G
516	 51.01	0	516466..517659	+	397	56551412	-	ZMO0516	-	elongation factor Tu
517	 52.13	+1	518391..519119	+	242	56551413	rplC	ZMO0517	-	50S ribosomal protein L3
518	 50.48	0	519122..519745	+	207	56551414	rplD	ZMO0518	-	50S ribosomal protein L4
519	 48.72	0	519738..520049	+	103	56551415	rplW	ZMO0519	-	50S ribosomal protein L23
520	 52.57	+1	520054..520890	+	278	56551416	rplB	ZMO0520	-	50S ribosomal protein L2
521	 51.97	+1	521168..521548	+	126	56551417	rplV	ZMO0521	-	50S ribosomal protein L22
522	 51.72	0	521550..522245	+	231	56551418	rpsC	ZMO0522	-	30S ribosomal protein S3
523	 53.47	+1	522309..522740	+	143	56551419	rplP	ZMO0523	-	50S ribosomal protein L16
524	 53.92	+1	522743..522946	+	67	56551420	rpmC	ZMO0524	-	50S ribosomal protein L29
525	 46.03	0	522958..523209	+	83	56551421	rpsQ	ZMO0525	-	ribosomal protein S17
526	 51.92	+1	523337..523648	+	103	56551422	rplN	ZMO0526	-	ribosomal protein L14
527	 49.69	0	523648..523965	+	105	56551423	rplX	ZMO0527	-	50S ribosomal protein L24
528	 48.36	0	523958..524536	+	192	56551424	rplE	ZMO0528	-	50S ribosomal protein L5
529	 49.67	0	524580..524885	+	101	56551425	rpsN	ZMO0529	-	30S ribosomal protein S14
530	 51.77	+1	524899..525294	+	131	56551426	rpsH	ZMO0530	-	30S ribosomal protein S8
531	 48.88	0	525294..525827	+	177	56551427	rplF	ZMO0531	-	50S ribosomal protein L6
532	 50.98	0	525827..526183	+	118	56551428	rplR	ZMO0532	-	50S ribosomal protein L18
533	 53.99	+1	526184..526885	+	233	56551429	rpsE	ZMO0533	-	30S ribosomal protein S5
534	 48.59	0	526893..527069	+	58	56551430	rpmD	ZMO0534	-	50S ribosomal protein L30
535	 39.58	-1	527053..527196	-	47	56551431	-	ZMO0535	-	hypothetical protein
536	 47.97	0	527220..527711	+	163	56551432	rplO	ZMO0536	-	50S ribosomal protein L15
537	 45.64	0	527997..529385	+	462	56551433	secY	ZMO0537	-	preprotein translocase subunit SecY
538	 46.73	0	529418..530089	+	223	56551434	adk	ZMO0538	-	adenylate kinase
539	 50.14	0	530424..530792	+	122	161611321	rpsM	ZMO0539	-	30S ribosomal protein S13
540	 51.54	0	530857..531246	+	129	56551436	rpsK	ZMO0540	-	30S ribosomal protein S11
541	 48.12	0	531339..532400	+	353	56551437	rpoA	ZMO0541	-	DNA-directed RNA polymerase subunit alpha
542	 50.12	0	532520..532942	+	140	56551438	rplQ	ZMO0542	-	50S ribosomal protein L17
543	 44.78	0	533710..535980	+	756	56551439	acnA	ZMO0543	-	aconitate hydratase
544	 45.92	0	536046..537308	+	420	56551440	citC	ZMO0544	-	isocitrate dehydrogenase
545	 45.66	0	537417..538211	-	264	56551441	trpC	ZMO0545	-	indole-3-glycerol-phosphate synthase
546	 46.43	0	538609..540051	+	480	56551442	-	ZMO0546	-	sulfate permease
547	 45.68	0	540556..542070	-	504	56551443	-	ZMO0547	-	hypothetical protein
548	 43.39	0	542213..543226	-	337	56551444	-	ZMO0548	-	two-component signal transduction histidine kinase
549	 51.13	0	543379..545625	-	748	56551445	pnp	ZMO0549	-	polynucleotide phosphorylase/polyadenylase
550	 47.78	0	545739..546008	-	89	56551446	rpsO	ZMO0550	-	ribosomal protein S15P
551	 49.45	0	546026..546937	-	303	56551447	rulB	ZMO0551	-	tRNA pseudouridine synthase B
552	 42.44	0	546934..547515	-	193	56551448	tdk	ZMO0552	-	thymidine kinase
553	 46.24	0	547539..547964	-	141	56551449	rbfA	ZMO0553	-	ribosome-binding factor A
46.43	MEAN

5.31	STD DEV
