IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

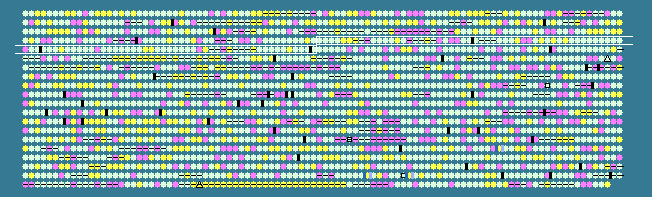

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
350	 45.45	0	343575..344201	+	208	56551246	-	ZMO0350	-	hypothetical protein
351	 47.37	0	344424..349625	+	1733	56551247	-	ZMO0351	-	DNA and RNA helicase
352	 44.12	0	349727..351358	+	543	56551248	-	ZMO0352	-	hypothetical protein
353	 46.88	0	351403..352746	+	447	56551249	-	ZMO0353	-	pyrophosphorylase
354	 50.13	0	352884..354776	-	630	56551250	mutL	ZMO0354	-	DNA mismatch repair enzyme
355	 52.15	+1	354983..356029	+	348	56551251	mreB	ZMO0355	-	ATPase
356	 50.49	0	356060..357079	+	339	56551252	mreC	ZMO0356	-	rod shape-determining protein
357	 44.93	0	357093..357644	+	183	56551253	-	ZMO0357	-	hypothetical protein
358	 38.46	-1	357685..357801	-	38	56551254	-	ZMO0358	-	hypothetical protein
359	 49.01	0	357835..359703	+	622	56551255	mrdA	ZMO0359	-	cell division protein
360	 47.52	0	359715..360821	+	368	56551256	mrdB	ZMO0360	-	rod shape-determining protein
361	 44.91	0	361428..362420	+	330	56551257	-	ZMO0361	-	hypothetical protein
362	 47.01	0	362518..364740	+	740	56551258	uvrB	ZMO0362	-	excinuclease ABC subunit B
363	 50.33	0	364874..366073	+	399	56551259	tgt	ZMO0363	-	tRNA guanine transglycosylase
364	 43.90	0	366120..368315	+	731	56551260	ligA	ZMO0364	-	DNA ligase
365	 23.53	-2	368372..368473	+	33	56551261	-	ZMO0365	-	hypothetical protein
366	 48.73	0	368688..370109	+	473	56551262	glf	ZMO0366	-	glucose facilitated diffusion protein
367	 47.05	0	370255..371712	+	485	56551263	zwf	ZMO0367	-	glucose-6-phosphate 1-dehydrogenase
368	 51.32	0	371705..373528	+	607	56551264	edd	ZMO0368	-	phosphogluconate dehydratase
369	 48.82	0	373661..374635	+	324	56551265	glk	ZMO0369	-	glucokinase
370	 28.57	-2	374605..374730	-	41	56551266	-	ZMO0370	-	hypothetical protein
371	 47.39	0	375138..375827	-	229	56551267	asr	ZMO0371	-	aspartate racemase
372	 39.18	-1	375999..376460	+	153	56551268	-	ZMO0372	-	global regulatory protein
373	 35.85	-1	376457..376813	-	118	56551269	-	ZMO0373	-	hypothetical protein
374	 47.64	0	377648..378919	+	423	56551270	sacB	ZMO0374	-	levansucrase
375	 47.10	0	379075..380316	+	413	56551271	sacC	ZMO0375	-	extracellular sucrase
376	 48.62	0	380607..383033	-	808	56551272	lon	ZMO0376	-	ATP-dependent Lon protease
377	 44.44	0	383220..383849	+	209	56551273	tag	ZMO0377	-	3-methyladenine DNA glycosylase
378	 46.94	0	383933..384439	+	168	56551274	-	ZMO0378	-	hypothetical protein
379	 49.57	0	384439..385725	+	428	56551275	-	ZMO0379	-	terminase
380	 47.63	0	385768..387957	+	729	56551276	-	ZMO0380	-	putative portal protein
381	 46.00	0	387957..388256	+	99	56551277	-	ZMO0381	-	hypothetical protein
382	 49.71	0	388306..388476	+	56	56551278	-	ZMO0382	-	hypothetical protein
383	 50.76	0	388445..389230	+	261	56551279	-	ZMO0383	-	hypothetical protein
384	 42.59	0	389256..389363	+	35	56551280	-	ZMO0384	-	hypothetical protein
385	 40.83	-1	389548..389667	+	39	56551281	-	ZMO0385	-	hypothetical protein
386	 48.33	0	389599..389718	-	39	56551282	-	ZMO0386	-	hypothetical protein
387	 53.84	+1	389894..390610	+	238	56551283	-	ZMO0387	-	major head protein
388	 46.67	0	390746..391090	+	114	56551284	-	ZMO0388	-	hypothetical protein
389	 50.15	0	391100..391759	+	219	56551285	-	ZMO0389	-	constituent protein
390	 49.44	0	391753..393174	+	473	56551286	-	ZMO0390	-	hypothetical protein
391	 50.36	0	393144..393419	+	91	56551287	-	ZMO0391	-	hypothetical protein
392	 48.61	0	393398..393901	+	167	56551288	-	ZMO0392	-	hypothetical protein
393	 46.88	0	393902..394573	+	223	56551289	-	ZMO0393	-	hypothetical protein
394	 46.37	0	394586..395260	+	224	56551290	-	ZMO0394	-	hypothetical protein
395	 49.00	0	395407..395757	-	116	56551292	-	ZMO0396	-	hypothetical protein
396	 49.86	0	395440..395808	+	122	56551291	-	ZMO0395	-	hypothetical protein
397	 48.77	0	395805..396251	+	148	56551293	-	ZMO0397	-	hypothetical protein
398	 48.12	0	396205..396657	+	150	56551294	-	ZMO0398	-	RTX toxin
399	 48.10	0	396662..397663	+	333	56551295	-	ZMO0399	-	neck appendage protein precursor
400	 47.95	0	397668..400322	+	884	56551296	-	ZMO0400	-	hypothetical protein
401	 39.42	-1	400332..402383	-	683	56551297	-	ZMO0401	-	signal transduction protein
402	 47.90	0	402603..403268	-	221	56551298	ftsJ	ZMO0402	-	23S rRNA methylase
403	 49.37	0	403265..404368	-	367	56551299	ppx	ZMO0403	-	exopolyphosphatase
404	 43.64	0	405047..405211	+	54	56551300	-	ZMO0404	-	hypothetical protein
405	 49.01	0	405319..407640	+	773	56551301	clpA	ZMO0405	-	ATPase
406	 46.35	0	407730..408551	-	273	56551302	-	ZMO0406	-	ABC-type multidrug transport system
407	 54.55	+1	408703..409395	+	230	56551303	-	ZMO0407	-	hypothetical protein
408	 48.39	0	409612..410820	+	402	56551304	argD	ZMO0408	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
409	 49.42	0	410842..411792	+	316	56551305	argF	ZMO0409	-	ornithine carbamoyltransferase
410	 45.67	0	411921..412844	+	307	56551306	hslO	ZMO0410	-	chaperone protein Hsp33
411	 48.66	0	412919..414901	+	660	56551307	gyrB	ZMO0411	-	DNA topoisomerase IV subunit B
412	 45.77	0	415097..415723	-	208	56551308	-	ZMO0412	-	multiple antibiotic transporter
413	 42.20	0	415912..416238	-	108	56551309	-	ZMO0413	-	hypothetical protein
414	 45.34	0	416262..417302	-	346	56551310	-	ZMO0414	-	hypothetical protein
415	 47.37	0	417299..417412	-	37	56551311	-	ZMO0415	-	hypothetical protein
416	 44.85	0	417463..418209	+	248	56551312	ftsE	ZMO0416	-	cell division involved ATPase
417	 43.55	0	418191..419081	+	296	56551313	ftsX	ZMO0417	-	cell division protein
418	 45.26	0	419113..419724	+	203	56551314	-	ZMO0418	-	hypothetical protein
419	 46.75	0	419773..420525	+	250	56551315	plsC	ZMO0419	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
420	 48.64	0	420574..421455	-	293	56551316	tyrC	ZMO0420	-	cyclohexadienyl dehydrogenase
421	 50.00	0	421456..422565	-	369	56551317	hisC	ZMO0421	-	histidinol-phosphate aminotransferase
422	 50.00	0	423132..423539	+	135	56551318	-	ZMO0422	-	transcriptional regulator
423	 46.50	0	423539..425011	+	490	56551319	-	ZMO0423	-	cysteine desulfurase activator complex subunit SufB
424	 45.33	0	425035..425184	+	49	56551320	-	ZMO0424	-	ABC transporter ATP-binding protein
425	 49.18	0	425168..425779	+	203	56551321	-	ZMO0425	-	ABC-type transport system
426	 48.57	0	425776..426891	+	371	56551322	-	ZMO0426	-	ABC-type transport system permease component
427	 48.53	0	426888..428111	+	407	56551323	csdB	ZMO0427	-	selenocysteine lyase
428	 47.36	0	428108..428542	+	144	56551324	-	ZMO0428	-	metal-sulfur cluster biosynthetic enzyme
429	 44.44	0	428581..428922	+	113	56551325	-	ZMO0429	-	hypothetical protein
430	 42.90	0	429047..429715	+	222	56551326	-	ZMO0430	-	hydrolase
431	 50.66	0	429749..430579	+	276	56551327	dapD	ZMO0431	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
432	 43.12	0	430647..431525	-	292	56551328	rocF	ZMO0432	-	arginase/agmatinase/formimionoglutamate hydrolase
433	 47.16	0	431867..432517	-	216	56551329	gmk	ZMO0433	-	guanylate kinase
434	 36.81	-1	432556..432699	-	47	56551330	-	ZMO0434	-	hypothetical protein
435	 58.09	+2	432671..433078	-	135	56551331	-	ZMO0435	-	hypothetical protein
436	 45.36	0	433243..433641	-	132	56551332	-	ZMO0436	-	hypothetical protein
437	 43.69	0	433799..434020	+	73	56551333	-	ZMO0437	-	hypothetical protein
438	 45.83	0	434159..434278	+	39	56551334	-	ZMO0438	-	hypothetical protein
439	 51.64	0	434275..435399	+	374	56551335	rluC	ZMO0439	-	pseudouridylate synthase
440	 44.33	0	435509..435799	+	96	56551336	-	ZMO0440	-	hypothetical protein
441	 45.82	0	435826..436530	+	234	56551337	-	ZMO0441	-	chaperone
442	 44.96	0	436559..437203	+	214	56551338	-	ZMO0442	-	putative phosphatase
443	 46.05	0	437287..438324	-	345	56551339	nrdF	ZMO0443	-	ribonucleotide-diphosphate reductase subunit beta
444	 48.62	0	438653..439699	+	348	56551340	-	ZMO0444	-	hypothetical protein
445	 50.70	0	439696..441261	+	521	56551341	-	ZMO0445	-	hypothetical protein
446	 45.98	0	441293..442699	+	468	56551342	algI	ZMO0446	-	putative alginate O-acetyltransferase
447	 49.68	0	442717..443028	+	103	56551343	-	ZMO0447	-	hypothetical protein
448	 48.84	0	443044..443733	-	229	56551344	-	ZMO0448	-	cell wall hydrolyses
449	 47.01	0	444524..445291	+	255	56551345	-	ZMO0449	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
