IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

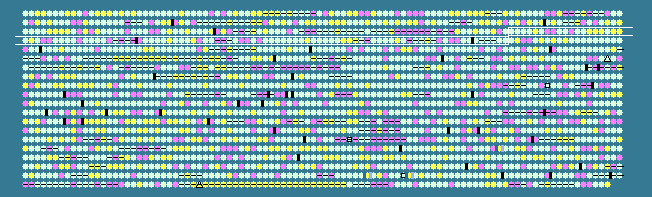

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
282	 48.72	0	284674..285843	+	389	56551178	acrA	ZMO0282	-	acridine efflux pump
283	 48.28	0	285847..288990	+	1047	56551179	mexB	ZMO0283	-	RND multidrug efflux transporter
284	 49.50	0	288990..289589	+	199	56551180	-	ZMO0284	-	outer membrane protein
285	 48.54	0	289769..290524	+	251	56551181	-	ZMO0285	-	drug efflux lipoprotein
286	 50.31	0	290571..291371	-	266	56551182	-	ZMO0286	-	outer membrane protein
287	 46.65	0	291695..292843	+	382	56551183	-	ZMO0287	-	putative transport protein
288	 39.74	-1	292824..292979	-	51	56551185	-	ZMO0289	-	hypothetical protein
289	 42.86	0	292867..292992	-	41	56551184	-	ZMO0288	-	hypothetical protein
290	 46.46	0	292972..294228	+	418	56551186	-	ZMO0290	-	hypothetical protein
291	 47.72	0	294218..295051	-	277	56551187	lgt	ZMO0291	-	prolipoprotein diacylglyceryl transferase
292	 31.53	-2	295207..295317	+	36	56551188	-	ZMO0292	-	hypothetical protein
293	 49.00	0	295336..296778	-	480	56551189	-	ZMO0293	-	metabolite/sugar transport protein
294	 49.72	0	297463..297639	-	58	56551190	-	ZMO0294	-	ribosomal protein L28
295	 55.26	+1	297686..297799	+	37	56551191	-	ZMO0295	-	hypothetical protein
296	 50.93	0	298056..298538	+	160	56551192	-	ZMO0296	-	cytidine and deoxycytidylate deaminase
297	 50.75	0	298787..300112	+	441	56551193	-	ZMO0297	-	hemolysin
298	 48.64	0	300210..300908	-	232	56551194	-	ZMO0298	-	hypothetical protein
299	 53.75	+1	301067..302320	-	417	56551195	purD	ZMO0299	-	phosphoribosylamine--glycine ligase
300	 49.97	0	302319..303953	+	544	56551196	xseA	ZMO0300	-	exodeoxyribonuclease VII large subunit
301	 44.36	0	304099..304851	+	250	56551197	-	ZMO0301	-	hypothetical protein
302	 50.51	0	304823..305119	-	98	56551198	-	ZMO0302	-	hypothetical protein
303	 47.34	0	305125..306081	-	318	56551199	hemH	ZMO0303	-	ferrochelatase
304	 39.58	-1	306071..306262	+	63	56551200	-	ZMO0304	-	hypothetical protein
305	 41.35	0	306277..306750	-	157	56551201	-	ZMO0305	-	hypothetical protein
306	 48.46	0	306844..308112	-	422	56551202	-	ZMO0306	-	putative glycosyltransferase
307	 46.66	0	308140..309873	-	577	56551203	kpsC	ZMO0307	-	capsule polysaccharide export protein
308	 44.93	0	310007..310144	+	45	56551204	-	ZMO0308	-	hypothetical protein
309	 49.62	0	310425..311222	+	265	56551205	-	ZMO0309	-	oxidoreductase
310	 42.86	0	311204..311308	+	34	56551206	-	ZMO0310	-	hypothetical protein
311	 47.67	0	311288..312103	-	271	56551207	proC	ZMO0311	-	pyrroline-5-carboxylate reductase
312	 46.72	0	312306..313448	+	380	56551208	-	ZMO0312	-	N-acyl-L-amino acid amidohydrolase
313	 43.48	0	313478..313960	+	160	56551209	-	ZMO0313	-	L-2-amino-thiazoline-4-carboxylic acid hydrolase
314	 46.65	0	313999..315417	-	472	56551210	cls	ZMO0314	-	cardiolipin synthase
315	 40.62	-1	315482..315673	-	63	56551211	-	ZMO0315	-	hypothetical protein
316	 44.97	0	315707..315895	+	62	56551212	-	ZMO0316	-	hypothetical protein
317	 28.10	-2	316011..316220	-	69	56551213	-	ZMO0317	-	hypothetical protein
318	 46.83	0	316209..316964	+	251	56551214	-	ZMO0318	-	oxidoreductase
319	 41.37	0	317037..317285	-	82	56551215	-	ZMO0319	-	hypothetical protein
320	 33.33	-2	317573..317752	+	59	56551216	-	ZMO0320	-	hypothetical protein
321	 43.17	0	317899..318396	+	165	56551217	dhfrIII	ZMO0321	-	dihydrofolate reductase
322	 49.74	0	318735..319679	+	314	56551218	ribF	ZMO0322	-	riboflavin biosynthesis protein
323	 48.87	0	319798..322623	+	941	56551219	ileS	ZMO0323	-	isoleucyl-tRNA synthetase
324	 45.14	0	322627..323151	+	174	56551220	lspA	ZMO0324	-	lipoprotein signal peptidase
325	 51.85	+1	323236..323748	+	170	56551221	-	ZMO0325	-	hypothetical protein
326	 48.65	0	323765..324208	-	147	56551222	-	ZMO0326	-	7-cyano-7-deazaguanine reductase
327	 48.41	0	324392..326440	+	682	56551223	metC	ZMO0327	-	cystathionine beta-lyase
328	 48.58	0	326596..327159	+	187	56551224	efp	ZMO0328	-	elongation factor P
329	 51.59	0	327159..327974	+	271	56551225	cbbF	ZMO0329	-	fructose-1,6-bisphosphatase
330	 33.33	-2	327960..328142	-	60	56551226	-	ZMO0330	-	hypothetical protein
331	 46.06	0	328420..329016	+	198	56551227	-	ZMO0331	-	hypothetical protein
332	 49.09	0	329081..329797	-	238	56551228	thiE	ZMO0332	-	thiamine-phosphate pyrophosphorylase
333	 33.33	-2	329973..330149	-	58	56551229	-	ZMO0333	-	hypothetical protein
334	 37.50	-1	330029..330196	+	55	56551230	-	ZMO0334	-	hypothetical protein
335	 46.56	0	330186..330971	+	261	56551231	-	ZMO0335	-	ATPase
336	 46.81	0	331068..331742	+	224	56551232	-	ZMO0336	-	DnaJ domain-containing protein
337	 31.58	-2	331732..331845	+	37	56551233	-	ZMO0337	-	hypothetical protein
338	 30.70	-2	331739..331852	-	37	56551234	-	ZMO0338	-	hypothetical protein
339	 49.42	0	331883..333262	+	459	56551235	exoC	ZMO0339	-	phosphoglucomutase
340	 36.60	-1	333237..333389	+	50	56551236	-	ZMO0340	-	hypothetical protein
341	 49.10	0	333449..334228	+	259	56551237	-	ZMO0341	-	oxidoreductase
342	 49.46	0	334290..335492	-	400	56551238	aatA	ZMO0342	-	aspartate aminotransferase
343	 44.35	0	335615..336286	-	223	56551239	-	ZMO0343	-	anthranilate/para-aminobenzoate synthase component I
344	 49.41	0	336589..338031	+	480	56551240	-	ZMO0344	-	Zn-dependent protease
345	 45.94	0	338326..339039	+	237	56551241	-	ZMO0345	-	metal-dependent hydrolase
346	 48.37	0	339240..340589	+	449	56551242	amtB	ZMO0346	-	ammonia permease
347	 45.88	0	340984..341469	+	161	56551243	hfq	ZMO0347	-	RNA-binding protein Hfq
348	 50.90	0	341466..342848	+	460	56551244	-	ZMO0348	-	GTPase
349	 48.68	0	342869..343435	+	188	56551245	-	ZMO0349	-	putative transcriptional regulator
350	 45.45	0	343575..344201	+	208	56551246	-	ZMO0350	-	hypothetical protein
351	 47.37	0	344424..349625	+	1733	56551247	-	ZMO0351	-	DNA and RNA helicase
352	 44.12	0	349727..351358	+	543	56551248	-	ZMO0352	-	hypothetical protein
353	 46.88	0	351403..352746	+	447	56551249	-	ZMO0353	-	pyrophosphorylase
354	 50.13	0	352884..354776	-	630	56551250	mutL	ZMO0354	-	DNA mismatch repair enzyme
355	 52.15	+1	354983..356029	+	348	56551251	mreB	ZMO0355	-	ATPase
356	 50.49	0	356060..357079	+	339	56551252	mreC	ZMO0356	-	rod shape-determining protein
357	 44.93	0	357093..357644	+	183	56551253	-	ZMO0357	-	hypothetical protein
358	 38.46	-1	357685..357801	-	38	56551254	-	ZMO0358	-	hypothetical protein
359	 49.01	0	357835..359703	+	622	56551255	mrdA	ZMO0359	-	cell division protein
360	 47.52	0	359715..360821	+	368	56551256	mrdB	ZMO0360	-	rod shape-determining protein
361	 44.91	0	361428..362420	+	330	56551257	-	ZMO0361	-	hypothetical protein
362	 47.01	0	362518..364740	+	740	56551258	uvrB	ZMO0362	-	excinuclease ABC subunit B
363	 50.33	0	364874..366073	+	399	56551259	tgt	ZMO0363	-	tRNA guanine transglycosylase
364	 43.90	0	366120..368315	+	731	56551260	ligA	ZMO0364	-	DNA ligase
365	 23.53	-2	368372..368473	+	33	56551261	-	ZMO0365	-	hypothetical protein
366	 48.73	0	368688..370109	+	473	56551262	glf	ZMO0366	-	glucose facilitated diffusion protein
367	 47.05	0	370255..371712	+	485	56551263	zwf	ZMO0367	-	glucose-6-phosphate 1-dehydrogenase
368	 51.32	0	371705..373528	+	607	56551264	edd	ZMO0368	-	phosphogluconate dehydratase
369	 48.82	0	373661..374635	+	324	56551265	glk	ZMO0369	-	glucokinase
370	 28.57	-2	374605..374730	-	41	56551266	-	ZMO0370	-	hypothetical protein
371	 47.39	0	375138..375827	-	229	56551267	asr	ZMO0371	-	aspartate racemase
372	 39.18	-1	375999..376460	+	153	56551268	-	ZMO0372	-	global regulatory protein
373	 35.85	-1	376457..376813	-	118	56551269	-	ZMO0373	-	hypothetical protein
374	 47.64	0	377648..378919	+	423	56551270	sacB	ZMO0374	-	levansucrase
375	 47.10	0	379075..380316	+	413	56551271	sacC	ZMO0375	-	extracellular sucrase
376	 48.62	0	380607..383033	-	808	56551272	lon	ZMO0376	-	ATP-dependent Lon protease
377	 44.44	0	383220..383849	+	209	56551273	tag	ZMO0377	-	3-methyladenine DNA glycosylase
378	 46.94	0	383933..384439	+	168	56551274	-	ZMO0378	-	hypothetical protein
379	 49.57	0	384439..385725	+	428	56551275	-	ZMO0379	-	terminase
380	 47.63	0	385768..387957	+	729	56551276	-	ZMO0380	-	putative portal protein
381	 46.00	0	387957..388256	+	99	56551277	-	ZMO0381	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
