IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

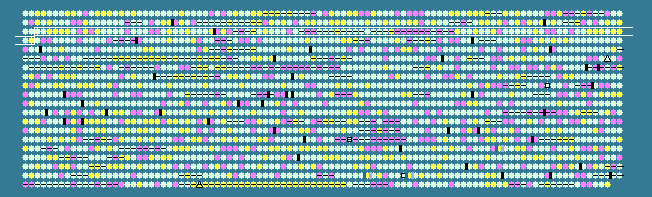

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
203	 44.22	0	196706..197155	-	149	56551099	pbrR	ZMO0203	-	heavy metal resistance transcriptional regulator
204	 43.98	0	197207..197854	+	215	56551100	czcD	ZMO0204	-	Co/Zn/Cd efflux system component
205	 51.62	0	197858..198781	-	307	56551101	-	ZMO0205	-	nucleoside-diphosphate-sugar epimerase
206	 51.59	0	198778..199971	-	397	56551102	proB	ZMO0206	-	gamma-glutamyl kinase
207	 52.78	+1	199956..200999	-	347	56551103	obgE	ZMO0207	-	GTPase ObgE
208	 51.23	0	201091..201699	-	202	56551104	-	ZMO0208	-	hypothetical protein
209	 49.26	0	201892..202161	-	89	56551105	rpmA	ZMO0209	-	50S ribosomal protein L27
210	 39.84	-1	202206..202328	+	40	56551106	-	ZMO0210	-	hypothetical protein
211	 54.69	+1	202294..202602	-	102	161611322	rplU	ZMO0211	-	50S ribosomal protein L21
212	 36.67	-1	202781..202900	+	39	56551108	-	ZMO0212	-	hypothetical protein
213	 50.22	0	202906..205380	-	824	56551109	sppA	ZMO0213	-	autotransporter
214	 46.12	0	206592..208046	-	484	56551110	dinF	ZMO0214	-	putative cation efflux pump
215	 47.36	0	208259..208921	+	220	56551111	-	ZMO0215	-	5-formyltetrahydrofolate cyclo-ligase
216	 47.02	0	209001..210410	-	469	56551112	-	ZMO0216	-	membrane protein
217	 49.51	0	210418..210621	-	67	56551113	-	ZMO0217	-	hypothetical protein
218	 33.33	-2	210739..210858	+	39	56551114	-	ZMO0218	-	hypothetical protein
219	 47.95	0	210925..213756	+	943	56551115	helY	ZMO0219	-	ATP-dependent helicase
220	 46.02	0	213988..214326	+	112	56551116	fdxA	ZMO0220	-	ferredoxin
221	 49.73	0	214655..215209	+	184	56551117	-	ZMO0221	-	transcriptional regulator
222	 42.33	0	215423..215722	+	99	56551118	-	ZMO0222	-	hypothetical protein
223	 40.94	-1	215802..216563	+	253	56551119	-	ZMO0223	-	hypothetical protein
224	 45.68	0	216572..217219	-	215	56551120	-	ZMO0224	-	hypothetical protein
225	 50.53	0	217219..218340	-	373	56551121	metX	ZMO0225	-	homoserine O-acetyltransferase
226	 48.53	0	218719..219468	+	249	56551122	sdh	ZMO0226	-	serine dehydrogenase
227	 47.58	0	219484..222249	+	921	56551123	polA	ZMO0227	-	DNA polymerase I
228	 51.28	0	222231..223634	+	467	56551124	-	ZMO0228	-	membrane protein
229	 48.33	0	223778..224824	+	348	56551125	-	ZMO0229	-	ABC-type Fe3+ transport system
230	 48.22	0	224821..225606	+	261	56551126	fhuC	ZMO0230	-	ABC-type cobalamin/Fe3+ transport systems
231	 49.03	0	225865..226380	+	171	56551127	-	ZMO0231	-	hypothetical protein
232	 51.87	+1	226497..227246	-	249	56551128	-	ZMO0232	-	rRNA methylase
233	 37.73	-1	227819..228205	-	128	56551129	-	ZMO0233	-	hypothetical protein
234	 51.81	+1	228298..229959	-	553	56551130	-	ZMO0234	-	trypsin-like serine protease
235	 35.71	-2	230303..230428	-	41	56551131	-	ZMO0235	-	hypothetical protein
236	 49.37	0	230409..231437	+	342	56551132	-	ZMO0236	-	ATPase
237	 37.04	-1	231450..231557	-	35	56551133	-	ZMO0237	-	hypothetical protein
238	 49.01	0	231871..232425	+	184	56551134	atpH	ZMO0238	-	ATP synthase delta subunit
239	 50.85	0	232428..233957	+	509	56551135	atpA	ZMO0239	-	F0F1 ATP synthase subunit alpha
240	 48.05	0	233991..234887	+	298	56551136	atpG	ZMO0240	-	F0F1 ATP synthase subunit gamma
241	 50.31	0	234916..236370	+	484	56551137	atpD	ZMO0241	-	F0F1 ATP synthase subunit beta
242	 46.07	0	236430..236696	+	88	56551138	atpC	ZMO0242	-	F0F1 ATP synthase subunit epsilon
243	 47.51	0	237095..237898	-	267	56551139	-	ZMO0243	-	hypothetical protein
244	 48.91	0	238193..238468	-	91	56551140	-	ZMO0244	-	HU DNA-binding protein
245	 34.78	-2	238673..238810	+	45	56551141	-	ZMO0245	-	hypothetical protein
246	 49.19	0	239003..239557	+	184	56551142	hslV	ZMO0246	-	ATP-dependent protease peptidase subunit
247	 47.02	0	239582..240874	+	430	56551143	hslU	ZMO0247	-	ATP-dependent protease ATP-binding subunit
248	 38.46	-1	240896..241090	+	64	56551144	-	ZMO0248	-	hypothetical protein
249	 41.67	0	241160..241327	+	55	56551145	rpmG	ZMO0249	-	50S ribosomal protein L33
250	 43.25	0	241443..241805	-	120	56551146	-	ZMO0250	-	two-component response regulator
251	 49.89	0	241977..242435	+	152	56551147	-	ZMO0251	-	putative translation initiation inhibitor
252	 49.02	0	242784..251738	+	2984	56551148	ompA	ZMO0252	-	RTX family exoprotein
253	 50.68	0	251743..253218	+	491	56551149	tolC	ZMO0253	-	outer membrane efflux protein
254	 49.02	0	253215..255362	+	715	56551150	cyaB	ZMO0254	-	cytoplasmic membrane export protein
255	 48.73	0	255355..256536	+	393	56551151	-	ZMO0255	-	membrane spanning export protein
256	 45.97	0	256658..258382	+	574	56551152	-	ZMO0256	-	D-lactate dehydrogenase
257	 49.85	0	258605..259282	+	225	56551153	-	ZMO0257	-	two-component response regulator
258	 48.77	0	259285..260742	+	485	56551154	-	ZMO0258	-	two-component signal transduction histidine kinase
259	 44.44	0	260873..260989	-	38	56551155	-	ZMO0259	-	hypothetical protein
260	 46.90	0	260993..261604	+	203	56551156	cycV	ZMO0260	-	ABC-type transport system ATPase component
261	 44.00	0	261573..261722	+	49	56551157	-	ZMO0261	-	hypothetical protein
262	 50.09	0	261712..262248	+	178	56551158	-	ZMO0262	-	ABC-type transport system permease component
263	 40.31	-1	262254..263657	-	467	56551159	-	ZMO0263	-	hypothetical protein
264	 37.18	-1	263712..265166	-	484	56551160	-	ZMO0264	-	hypothetical protein
265	 40.04	-1	265200..266630	-	476	56551161	-	ZMO0265	-	hypothetical protein
266	 39.71	-1	266685..268112	-	475	56551162	-	ZMO0266	-	hypothetical protein
267	 40.44	-1	268167..269615	-	482	56551163	-	ZMO0267	-	hypothetical protein
268	 40.77	-1	269649..271073	-	474	56551164	-	ZMO0268	-	hypothetical protein
269	 43.95	0	271128..272549	-	473	56551165	-	ZMO0269	-	hypothetical protein
270	 40.69	-1	272604..274085	-	493	56551166	-	ZMO0270	-	hypothetical protein
271	 49.88	0	275186..276472	+	428	56551167	lnt	ZMO0271	-	apolipoprotein N-acyltransferase
272	 35.75	-2	276469..276675	-	68	56551168	-	ZMO0272	-	hypothetical protein
273	 50.51	0	276665..277840	+	391	56551169	metK	ZMO0273	-	S-adenosylmethionine synthetase
274	 48.00	0	277915..279414	-	499	56551170	rpoN1	ZMO0274	-	RNA polymerase factor sigma-54
275	 49.43	0	279462..280256	-	264	56551171	-	ZMO0275	-	ABC-type transport system ATPase component
276	 50.42	0	280459..281055	-	198	56551172	-	ZMO0276	-	hypothetical protein
277	 48.83	0	281061..281699	-	212	56551173	-	ZMO0277	-	hypothetical protein
278	 48.06	0	281732..282349	-	205	56551174	rnd	ZMO0278	-	ribonuclease D 3'-5' exonuclease
279	 51.41	0	282879..283409	+	176	56551175	-	ZMO0279	-	cold shock protein
280	 38.46	-1	283440..283595	+	51	56551176	-	ZMO0280	-	hypothetical protein
281	 43.06	0	283802..284449	-	215	56551177	-	ZMO0281	-	TetR family transcriptional regulator
282	 48.72	0	284674..285843	+	389	56551178	acrA	ZMO0282	-	acridine efflux pump
283	 48.28	0	285847..288990	+	1047	56551179	mexB	ZMO0283	-	RND multidrug efflux transporter
284	 49.50	0	288990..289589	+	199	56551180	-	ZMO0284	-	outer membrane protein
285	 48.54	0	289769..290524	+	251	56551181	-	ZMO0285	-	drug efflux lipoprotein
286	 50.31	0	290571..291371	-	266	56551182	-	ZMO0286	-	outer membrane protein
287	 46.65	0	291695..292843	+	382	56551183	-	ZMO0287	-	putative transport protein
288	 39.74	-1	292824..292979	-	51	56551185	-	ZMO0289	-	hypothetical protein
289	 42.86	0	292867..292992	-	41	56551184	-	ZMO0288	-	hypothetical protein
290	 46.46	0	292972..294228	+	418	56551186	-	ZMO0290	-	hypothetical protein
291	 47.72	0	294218..295051	-	277	56551187	lgt	ZMO0291	-	prolipoprotein diacylglyceryl transferase
292	 31.53	-2	295207..295317	+	36	56551188	-	ZMO0292	-	hypothetical protein
293	 49.00	0	295336..296778	-	480	56551189	-	ZMO0293	-	metabolite/sugar transport protein
294	 49.72	0	297463..297639	-	58	56551190	-	ZMO0294	-	ribosomal protein L28
295	 55.26	+1	297686..297799	+	37	56551191	-	ZMO0295	-	hypothetical protein
296	 50.93	0	298056..298538	+	160	56551192	-	ZMO0296	-	cytidine and deoxycytidylate deaminase
297	 50.75	0	298787..300112	+	441	56551193	-	ZMO0297	-	hemolysin
298	 48.64	0	300210..300908	-	232	56551194	-	ZMO0298	-	hypothetical protein
299	 53.75	+1	301067..302320	-	417	56551195	purD	ZMO0299	-	phosphoribosylamine--glycine ligase
300	 49.97	0	302319..303953	+	544	56551196	xseA	ZMO0300	-	exodeoxyribonuclease VII large subunit
301	 44.36	0	304099..304851	+	250	56551197	-	ZMO0301	-	hypothetical protein
302	 50.51	0	304823..305119	-	98	56551198	-	ZMO0302	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
