IslandPathversion 1.0

IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

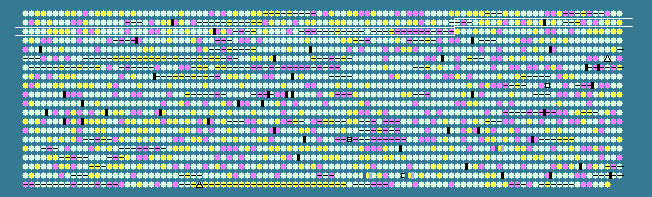

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
173	 44.78	0	157752..158153	-	133	56551069	-	ZMO0173	-	hypothetical protein
174	 42.75	0	158346..158738	-	130	56551070	-	ZMO0174	-	hypothetical protein
175	 46.81	0	158949..159230	-	93	56551071	-	ZMO0175	-	hypothetical protein
176	 49.70	0	159445..161436	+	663	56551072	tklB	ZMO0176	-	transketolase
177	 53.94	+1	161486..162499	+	337	56551073	gap	ZMO0177	-	glyceraldehyde 3-phosphate dehydrogenase
178	 51.26	0	162722..163915	+	397	56551074	pgk	ZMO0178	-	phosphoglycerate kinase
179	 46.34	0	164684..165598	+	304	56551075	fbaB	ZMO0179	-	fructose-bisphosphate aldolase
180	 53.53	+1	165755..166888	-	377	56551076	ispG	ZMO0180	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
181	 29.46	-2	166940..167068	+	42	56551077	-	ZMO0181	-	hypothetical protein
182	 48.96	0	167266..168660	+	464	56551078	ahcY	ZMO0182	-	S-adenosyl-L-homocysteine hydrolase
183	 51.10	0	168954..170636	-	560	56551079	-	ZMO0183	-	putative ABC transporter ATP-binding protein
184	 36.36	-1	171159..171290	-	43	56551081	-	ZMO0185	-	hypothetical protein
185	 50.42	0	171345..171584	+	79	56551080	-	ZMO0184	-	hypothetical protein
186	 46.16	0	171805..173355	+	516	56551082	cysS	ZMO0186	-	cysteinyl-tRNA synthetase
187	 49.96	0	173448..174776	+	442	56551083	aroH	ZMO0187	-	3-deoxy-D-arabino-heptulosonate 7-phosphate synthase
188	 45.42	0	175355..177721	+	788	56551084	pbuA	ZMO0188	-	ferric-pseudobactin receptor
189	 50.00	0	177747..179108	-	453	56551085	sdaA	ZMO0189	-	L-serine dehydratase
190	 44.34	0	179199..180116	-	305	56551086	-	ZMO0190	-	transcriptional regulator
191	 46.67	0	180450..181229	-	259	56551087	-	ZMO0191	-	protein-disulfide isomerase
192	 48.68	0	181260..182582	-	440	56551088	-	ZMO0192	-	putative Zn-dependent protease
193	 51.00	0	182954..185692	-	912	56551089	-	ZMO0193	-	ribonuclease
194	 38.37	-1	186017..186274	+	85	56551090	-	ZMO0194	-	hypothetical protein
195	 48.04	0	186454..187242	+	262	56551091	amiA	ZMO0195	-	N-acetylmuramoyl-L-alanine amidase
196	 32.03	-2	187309..187461	+	50	56551092	-	ZMO0196	-	hypothetical protein
197	 48.99	0	187454..190033	+	859	56551093	-	ZMO0197	-	membrane carboxypeptidase
198	 51.42	0	190144..191271	+	375	56551094	rf-2	ZMO0198	-	protein chain release factor B
199	 47.25	0	191324..191977	-	217	56551095	lexA	ZMO0199	-	LexA repressor
200	 50.78	0	192143..193168	-	341	56551096	trpD	ZMO0200	-	anthranilate phosphoribosyltransferase
201	 46.03	0	193195..193824	-	209	56551097	trpG	ZMO0201	-	anthranilate/para-aminobenzoate synthase component II
202	 47.91	0	194772..196664	+	630	56551098	mcpA	ZMO0202	-	chemotaxis methyl-accepting protein
203	 44.22	0	196706..197155	-	149	56551099	pbrR	ZMO0203	-	heavy metal resistance transcriptional regulator
204	 43.98	0	197207..197854	+	215	56551100	czcD	ZMO0204	-	Co/Zn/Cd efflux system component
205	 51.62	0	197858..198781	-	307	56551101	-	ZMO0205	-	nucleoside-diphosphate-sugar epimerase
206	 51.59	0	198778..199971	-	397	56551102	proB	ZMO0206	-	gamma-glutamyl kinase
207	 52.78	+1	199956..200999	-	347	56551103	obgE	ZMO0207	-	GTPase ObgE
208	 51.23	0	201091..201699	-	202	56551104	-	ZMO0208	-	hypothetical protein
209	 49.26	0	201892..202161	-	89	56551105	rpmA	ZMO0209	-	50S ribosomal protein L27
210	 39.84	-1	202206..202328	+	40	56551106	-	ZMO0210	-	hypothetical protein
211	 54.69	+1	202294..202602	-	102	161611322	rplU	ZMO0211	-	50S ribosomal protein L21
212	 36.67	-1	202781..202900	+	39	56551108	-	ZMO0212	-	hypothetical protein
213	 50.22	0	202906..205380	-	824	56551109	sppA	ZMO0213	-	autotransporter
214	 46.12	0	206592..208046	-	484	56551110	dinF	ZMO0214	-	putative cation efflux pump
215	 47.36	0	208259..208921	+	220	56551111	-	ZMO0215	-	5-formyltetrahydrofolate cyclo-ligase
216	 47.02	0	209001..210410	-	469	56551112	-	ZMO0216	-	membrane protein
217	 49.51	0	210418..210621	-	67	56551113	-	ZMO0217	-	hypothetical protein
218	 33.33	-2	210739..210858	+	39	56551114	-	ZMO0218	-	hypothetical protein
219	 47.95	0	210925..213756	+	943	56551115	helY	ZMO0219	-	ATP-dependent helicase
220	 46.02	0	213988..214326	+	112	56551116	fdxA	ZMO0220	-	ferredoxin
221	 49.73	0	214655..215209	+	184	56551117	-	ZMO0221	-	transcriptional regulator
222	 42.33	0	215423..215722	+	99	56551118	-	ZMO0222	-	hypothetical protein
223	 40.94	-1	215802..216563	+	253	56551119	-	ZMO0223	-	hypothetical protein
224	 45.68	0	216572..217219	-	215	56551120	-	ZMO0224	-	hypothetical protein
225	 50.53	0	217219..218340	-	373	56551121	metX	ZMO0225	-	homoserine O-acetyltransferase
226	 48.53	0	218719..219468	+	249	56551122	sdh	ZMO0226	-	serine dehydrogenase
227	 47.58	0	219484..222249	+	921	56551123	polA	ZMO0227	-	DNA polymerase I
228	 51.28	0	222231..223634	+	467	56551124	-	ZMO0228	-	membrane protein
229	 48.33	0	223778..224824	+	348	56551125	-	ZMO0229	-	ABC-type Fe3+ transport system
230	 48.22	0	224821..225606	+	261	56551126	fhuC	ZMO0230	-	ABC-type cobalamin/Fe3+ transport systems
231	 49.03	0	225865..226380	+	171	56551127	-	ZMO0231	-	hypothetical protein
232	 51.87	+1	226497..227246	-	249	56551128	-	ZMO0232	-	rRNA methylase
233	 37.73	-1	227819..228205	-	128	56551129	-	ZMO0233	-	hypothetical protein
234	 51.81	+1	228298..229959	-	553	56551130	-	ZMO0234	-	trypsin-like serine protease
235	 35.71	-2	230303..230428	-	41	56551131	-	ZMO0235	-	hypothetical protein
236	 49.37	0	230409..231437	+	342	56551132	-	ZMO0236	-	ATPase
237	 37.04	-1	231450..231557	-	35	56551133	-	ZMO0237	-	hypothetical protein
238	 49.01	0	231871..232425	+	184	56551134	atpH	ZMO0238	-	ATP synthase delta subunit
239	 50.85	0	232428..233957	+	509	56551135	atpA	ZMO0239	-	F0F1 ATP synthase subunit alpha
240	 48.05	0	233991..234887	+	298	56551136	atpG	ZMO0240	-	F0F1 ATP synthase subunit gamma
241	 50.31	0	234916..236370	+	484	56551137	atpD	ZMO0241	-	F0F1 ATP synthase subunit beta
242	 46.07	0	236430..236696	+	88	56551138	atpC	ZMO0242	-	F0F1 ATP synthase subunit epsilon
243	 47.51	0	237095..237898	-	267	56551139	-	ZMO0243	-	hypothetical protein
244	 48.91	0	238193..238468	-	91	56551140	-	ZMO0244	-	HU DNA-binding protein
245	 34.78	-2	238673..238810	+	45	56551141	-	ZMO0245	-	hypothetical protein
246	 49.19	0	239003..239557	+	184	56551142	hslV	ZMO0246	-	ATP-dependent protease peptidase subunit
247	 47.02	0	239582..240874	+	430	56551143	hslU	ZMO0247	-	ATP-dependent protease ATP-binding subunit
248	 38.46	-1	240896..241090	+	64	56551144	-	ZMO0248	-	hypothetical protein
249	 41.67	0	241160..241327	+	55	56551145	rpmG	ZMO0249	-	50S ribosomal protein L33
250	 43.25	0	241443..241805	-	120	56551146	-	ZMO0250	-	two-component response regulator
251	 49.89	0	241977..242435	+	152	56551147	-	ZMO0251	-	putative translation initiation inhibitor
252	 49.02	0	242784..251738	+	2984	56551148	ompA	ZMO0252	-	RTX family exoprotein
253	 50.68	0	251743..253218	+	491	56551149	tolC	ZMO0253	-	outer membrane efflux protein
254	 49.02	0	253215..255362	+	715	56551150	cyaB	ZMO0254	-	cytoplasmic membrane export protein
255	 48.73	0	255355..256536	+	393	56551151	-	ZMO0255	-	membrane spanning export protein
256	 45.97	0	256658..258382	+	574	56551152	-	ZMO0256	-	D-lactate dehydrogenase
257	 49.85	0	258605..259282	+	225	56551153	-	ZMO0257	-	two-component response regulator
258	 48.77	0	259285..260742	+	485	56551154	-	ZMO0258	-	two-component signal transduction histidine kinase
259	 44.44	0	260873..260989	-	38	56551155	-	ZMO0259	-	hypothetical protein
260	 46.90	0	260993..261604	+	203	56551156	cycV	ZMO0260	-	ABC-type transport system ATPase component
261	 44.00	0	261573..261722	+	49	56551157	-	ZMO0261	-	hypothetical protein
262	 50.09	0	261712..262248	+	178	56551158	-	ZMO0262	-	ABC-type transport system permease component
263	 40.31	-1	262254..263657	-	467	56551159	-	ZMO0263	-	hypothetical protein
264	 37.18	-1	263712..265166	-	484	56551160	-	ZMO0264	-	hypothetical protein
265	 40.04	-1	265200..266630	-	476	56551161	-	ZMO0265	-	hypothetical protein
266	 39.71	-1	266685..268112	-	475	56551162	-	ZMO0266	-	hypothetical protein
267	 40.44	-1	268167..269615	-	482	56551163	-	ZMO0267	-	hypothetical protein
268	 40.77	-1	269649..271073	-	474	56551164	-	ZMO0268	-	hypothetical protein
269	 43.95	0	271128..272549	-	473	56551165	-	ZMO0269	-	hypothetical protein
270	 40.69	-1	272604..274085	-	493	56551166	-	ZMO0270	-	hypothetical protein
271	 49.88	0	275186..276472	+	428	56551167	lnt	ZMO0271	-	apolipoprotein N-acyltransferase
272	 35.75	-2	276469..276675	-	68	56551168	-	ZMO0272	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
