IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

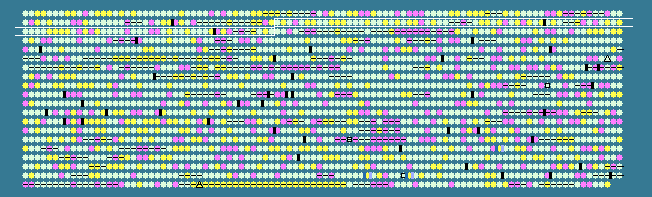

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
143	 49.08	0	129000..129977	+	325	56551039	-	ZMO0143	-	ABC-type multidrug transport system
144	 50.66	0	130042..131634	+	530	56551040	nadB	ZMO0144	-	aspartate oxidase
145	 48.75	0	131657..133330	+	557	56551041	-	ZMO0145	-	peptidase
146	 39.15	-1	133270..133458	-	62	56551042	-	ZMO0146	-	hypothetical protein
147	 44.14	0	133751..133861	-	36	56551043	-	ZMO0147	-	hypothetical protein
148	 51.30	0	133995..134801	-	268	56551044	-	ZMO0148	-	hypothetical protein
149	 51.29	0	134986..135681	-	231	56551045	trmB	ZMO0149	-	tRNA (guanine-N(7))-methyltransferase
150	 47.85	0	135761..136387	-	208	56551046	-	ZMO0150	-	hypothetical protein
151	 44.21	0	136392..136676	-	94	56551047	-	ZMO0151	-	hypothetical protein
152	 53.22	+1	136654..138081	-	475	56551048	pyk	ZMO0152	-	pyruvate kinase
153	 50.40	0	139093..139842	+	249	56551049	yebC	ZMO0153	-	hypothetical protein
154	 54.96	+1	139877..140380	+	167	56551050	ruvC	ZMO0154	-	Holliday junction resolvasome endonuclease subunit
155	 46.88	0	140422..141063	+	213	56551051	ruvA	ZMO0155	-	Holliday junction resolvasome DNA-binding subunit
156	 46.28	0	141123..141485	-	120	56551052	-	ZMO0156	-	hypothetical protein
157	 47.85	0	141694..142623	-	309	56551053	lhdA	ZMO0157	-	2-hydroxyacid dehydrogenase
158	 50.38	0	142769..143812	+	347	56551054	ruvB	ZMO0158	-	Holliday junction DNA helicase B
159	 47.29	0	143992..144120	+	42	56551055	-	ZMO0159	-	hypothetical protein
160	 46.77	0	144121..144492	+	123	56551056	-	ZMO0160	-	thioesterase
161	 50.09	0	144500..145054	+	184	56551057	-	ZMO0161	-	TolQ biopolymer transport proteins
162	 48.86	0	145216..145743	+	175	56551058	exbD	ZMO0162	-	TolR biopolymer transport protein
163	 54.66	+1	145771..146178	+	135	56551059	-	ZMO0163	-	hypothetical protein
164	 47.28	0	146153..146833	+	226	56551060	tonB	ZMO0164	-	TonB protein
165	 50.69	0	146887..148263	+	458	56551061	tolB	ZMO0165	-	translocation protein TolB
166	 50.66	0	148390..148920	+	176	56551062	-	ZMO0166	-	peptidoglycan-associated protein
167	 40.67	-1	148925..149074	-	49	56551063	-	ZMO0167	-	hypothetical protein
168	 46.08	0	149098..149505	-	135	56551064	glpQ	ZMO0168	-	glycerophosphoryl diester phosphodiesterase
169	 52.42	+1	150839..151582	-	247	56551065	-	ZMO0169	-	putative short chain oxidoreductase
170	 48.91	0	152071..152622	-	183	56551066	glpQ	ZMO0170	-	glycerophosphoryl diester phosphodiesterase
171	 45.46	0	153520..155028	-	502	56551067	-	ZMO0171	-	TonB-dependent receptor
172	 48.98	0	155420..157234	+	604	56551068	thiC	ZMO0172	-	thiamine biosynthesis protein ThiC
173	 44.78	0	157752..158153	-	133	56551069	-	ZMO0173	-	hypothetical protein
174	 42.75	0	158346..158738	-	130	56551070	-	ZMO0174	-	hypothetical protein
175	 46.81	0	158949..159230	-	93	56551071	-	ZMO0175	-	hypothetical protein
176	 49.70	0	159445..161436	+	663	56551072	tklB	ZMO0176	-	transketolase
177	 53.94	+1	161486..162499	+	337	56551073	gap	ZMO0177	-	glyceraldehyde 3-phosphate dehydrogenase
178	 51.26	0	162722..163915	+	397	56551074	pgk	ZMO0178	-	phosphoglycerate kinase
179	 46.34	0	164684..165598	+	304	56551075	fbaB	ZMO0179	-	fructose-bisphosphate aldolase
180	 53.53	+1	165755..166888	-	377	56551076	ispG	ZMO0180	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
181	 29.46	-2	166940..167068	+	42	56551077	-	ZMO0181	-	hypothetical protein
182	 48.96	0	167266..168660	+	464	56551078	ahcY	ZMO0182	-	S-adenosyl-L-homocysteine hydrolase
183	 51.10	0	168954..170636	-	560	56551079	-	ZMO0183	-	putative ABC transporter ATP-binding protein
184	 36.36	-1	171159..171290	-	43	56551081	-	ZMO0185	-	hypothetical protein
185	 50.42	0	171345..171584	+	79	56551080	-	ZMO0184	-	hypothetical protein
186	 46.16	0	171805..173355	+	516	56551082	cysS	ZMO0186	-	cysteinyl-tRNA synthetase
187	 49.96	0	173448..174776	+	442	56551083	aroH	ZMO0187	-	3-deoxy-D-arabino-heptulosonate 7-phosphate synthase
188	 45.42	0	175355..177721	+	788	56551084	pbuA	ZMO0188	-	ferric-pseudobactin receptor
189	 50.00	0	177747..179108	-	453	56551085	sdaA	ZMO0189	-	L-serine dehydratase
190	 44.34	0	179199..180116	-	305	56551086	-	ZMO0190	-	transcriptional regulator
191	 46.67	0	180450..181229	-	259	56551087	-	ZMO0191	-	protein-disulfide isomerase
192	 48.68	0	181260..182582	-	440	56551088	-	ZMO0192	-	putative Zn-dependent protease
193	 51.00	0	182954..185692	-	912	56551089	-	ZMO0193	-	ribonuclease
194	 38.37	-1	186017..186274	+	85	56551090	-	ZMO0194	-	hypothetical protein
195	 48.04	0	186454..187242	+	262	56551091	amiA	ZMO0195	-	N-acetylmuramoyl-L-alanine amidase
196	 32.03	-2	187309..187461	+	50	56551092	-	ZMO0196	-	hypothetical protein
197	 48.99	0	187454..190033	+	859	56551093	-	ZMO0197	-	membrane carboxypeptidase
198	 51.42	0	190144..191271	+	375	56551094	rf-2	ZMO0198	-	protein chain release factor B
199	 47.25	0	191324..191977	-	217	56551095	lexA	ZMO0199	-	LexA repressor
200	 50.78	0	192143..193168	-	341	56551096	trpD	ZMO0200	-	anthranilate phosphoribosyltransferase
201	 46.03	0	193195..193824	-	209	56551097	trpG	ZMO0201	-	anthranilate/para-aminobenzoate synthase component II
202	 47.91	0	194772..196664	+	630	56551098	mcpA	ZMO0202	-	chemotaxis methyl-accepting protein
203	 44.22	0	196706..197155	-	149	56551099	pbrR	ZMO0203	-	heavy metal resistance transcriptional regulator
204	 43.98	0	197207..197854	+	215	56551100	czcD	ZMO0204	-	Co/Zn/Cd efflux system component
205	 51.62	0	197858..198781	-	307	56551101	-	ZMO0205	-	nucleoside-diphosphate-sugar epimerase
206	 51.59	0	198778..199971	-	397	56551102	proB	ZMO0206	-	gamma-glutamyl kinase
207	 52.78	+1	199956..200999	-	347	56551103	obgE	ZMO0207	-	GTPase ObgE
208	 51.23	0	201091..201699	-	202	56551104	-	ZMO0208	-	hypothetical protein
209	 49.26	0	201892..202161	-	89	56551105	rpmA	ZMO0209	-	50S ribosomal protein L27
210	 39.84	-1	202206..202328	+	40	56551106	-	ZMO0210	-	hypothetical protein
211	 54.69	+1	202294..202602	-	102	161611322	rplU	ZMO0211	-	50S ribosomal protein L21
212	 36.67	-1	202781..202900	+	39	56551108	-	ZMO0212	-	hypothetical protein
213	 50.22	0	202906..205380	-	824	56551109	sppA	ZMO0213	-	autotransporter
214	 46.12	0	206592..208046	-	484	56551110	dinF	ZMO0214	-	putative cation efflux pump
215	 47.36	0	208259..208921	+	220	56551111	-	ZMO0215	-	5-formyltetrahydrofolate cyclo-ligase
216	 47.02	0	209001..210410	-	469	56551112	-	ZMO0216	-	membrane protein
217	 49.51	0	210418..210621	-	67	56551113	-	ZMO0217	-	hypothetical protein
218	 33.33	-2	210739..210858	+	39	56551114	-	ZMO0218	-	hypothetical protein
219	 47.95	0	210925..213756	+	943	56551115	helY	ZMO0219	-	ATP-dependent helicase
220	 46.02	0	213988..214326	+	112	56551116	fdxA	ZMO0220	-	ferredoxin
221	 49.73	0	214655..215209	+	184	56551117	-	ZMO0221	-	transcriptional regulator
222	 42.33	0	215423..215722	+	99	56551118	-	ZMO0222	-	hypothetical protein
223	 40.94	-1	215802..216563	+	253	56551119	-	ZMO0223	-	hypothetical protein
224	 45.68	0	216572..217219	-	215	56551120	-	ZMO0224	-	hypothetical protein
225	 50.53	0	217219..218340	-	373	56551121	metX	ZMO0225	-	homoserine O-acetyltransferase
226	 48.53	0	218719..219468	+	249	56551122	sdh	ZMO0226	-	serine dehydrogenase
227	 47.58	0	219484..222249	+	921	56551123	polA	ZMO0227	-	DNA polymerase I
228	 51.28	0	222231..223634	+	467	56551124	-	ZMO0228	-	membrane protein
229	 48.33	0	223778..224824	+	348	56551125	-	ZMO0229	-	ABC-type Fe3+ transport system
230	 48.22	0	224821..225606	+	261	56551126	fhuC	ZMO0230	-	ABC-type cobalamin/Fe3+ transport systems
231	 49.03	0	225865..226380	+	171	56551127	-	ZMO0231	-	hypothetical protein
232	 51.87	+1	226497..227246	-	249	56551128	-	ZMO0232	-	rRNA methylase
233	 37.73	-1	227819..228205	-	128	56551129	-	ZMO0233	-	hypothetical protein
234	 51.81	+1	228298..229959	-	553	56551130	-	ZMO0234	-	trypsin-like serine protease
235	 35.71	-2	230303..230428	-	41	56551131	-	ZMO0235	-	hypothetical protein
236	 49.37	0	230409..231437	+	342	56551132	-	ZMO0236	-	ATPase
237	 37.04	-1	231450..231557	-	35	56551133	-	ZMO0237	-	hypothetical protein
238	 49.01	0	231871..232425	+	184	56551134	atpH	ZMO0238	-	ATP synthase delta subunit
239	 50.85	0	232428..233957	+	509	56551135	atpA	ZMO0239	-	F0F1 ATP synthase subunit alpha
240	 48.05	0	233991..234887	+	298	56551136	atpG	ZMO0240	-	F0F1 ATP synthase subunit gamma
241	 50.31	0	234916..236370	+	484	56551137	atpD	ZMO0241	-	F0F1 ATP synthase subunit beta
242	 46.07	0	236430..236696	+	88	56551138	atpC	ZMO0242	-	F0F1 ATP synthase subunit epsilon
46.43	MEAN

5.31	STD DEV
