IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

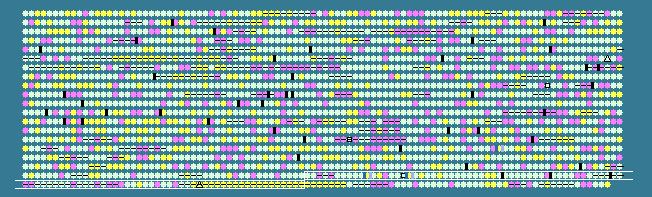

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1848	 47.19	0	1886259..1887131	-	290	56552744	-	ZMO1848	-	ABC-type Fe3+ transport system solute-binding protein
1849	 47.60	0	1888120..1889850	+	576	56552745	-	ZMO1849	-	hypothetical protein
1850	 41.60	0	1889959..1890321	-	120	56552746	-	ZMO1850	-	hypothetical protein
1851	 43.69	0	1890318..1890800	-	160	56552747	nifF	ZMO1851	-	flavodoxin FldA
1852	 21.77	-2	1890873..1891019	+	48	56552748	-	ZMO1852	-	hypothetical protein
1853	 43.92	0	1891065..1891961	-	298	56552749	dapA	ZMO1853	-	dihydrodipicolinate synthase
1854	 47.87	0	1892106..1893350	-	414	56552750	-	ZMO1854	-	transcriptional regulator
1855	 45.11	0	1893683..1894438	+	251	56552751	yfeJ	ZMO1855	-	glutamine amidotransferase
1856	 49.80	0	1894602..1895864	-	420	56552752	-	ZMO1856	-	hypothetical protein
1857	 48.10	0	1896023..1896916	+	297	56552753	-	ZMO1857	-	transcriptional regulator
1858	 53.33	+1	1902155..1902289	+	44	56552754	-	ZMO1858	-	hypothetical protein
1859	 44.62	0	1904490..1905614	+	374	56552755	rpfN	ZMO1859	-	carbohydrate-selective porin
1860	 50.21	0	1905686..1906396	-	236	56552756	-	ZMO1860	-	nodulin 21 like protein
1861	 42.19	0	1906936..1907940	-	334	56552757	-	ZMO1861	-	dioxygenase
1862	 46.85	0	1909010..1909120	-	36	56552758	-	ZMO1862	-	hypothetical protein
1863	 44.17	0	1909237..1909725	-	162	56552759	-	ZMO1863	-	putative phosphatase
1864	 48.75	0	1910097..1910576	+	159	56552760	-	ZMO1864	-	transposase
1865	 53.33	+1	1916005..1916139	+	44	56552761	-	ZMO1865	-	hypothetical protein
1866	 49.06	0	1917655..1919295	-	546	56552762	-	ZMO1866	-	metallo-beta-lactamase hydrolase subunit
1867	 50.36	0	1919343..1920170	-	275	56552763	-	ZMO1867	-	pantothenate kinase
1868	 44.53	0	1920199..1921002	-	267	56552764	birA	ZMO1868	-	biotin protein ligase
1869	 45.56	0	1920999..1921832	-	277	56552765	-	ZMO1869	-	ribonuclease I
1870	 50.81	0	1921847..1922830	-	327	56552766	nadC	ZMO1870	-	nicotinate-nucleotide pyrophosphorylase
1871	 47.05	0	1922852..1923850	-	332	56552767	nadA	ZMO1871	-	quinolinate synthetase
1872	 48.01	0	1923865..1924491	-	208	56552768	-	ZMO1872	-	hypothetical protein
1873	 43.84	0	1924527..1924859	-	110	56552769	-	ZMO1873	-	glutaredoxin-related protein
1874	 47.86	0	1924908..1925141	-	77	56552770	bolA	ZMO1874	-	stress-induced morphogen protein
1875	 49.86	0	1925146..1925514	-	122	56552771	-	ZMO1875	-	hypothetical protein
1876	 47.59	0	1925874..1926371	+	165	56552772	-	ZMO1876	-	hypothetical protein
1877	 45.19	0	1926528..1927379	-	283	56552773	-	ZMO1877	-	glutamine cyclotransferase
1878	 50.11	0	1927522..1929387	+	621	56552774	valS	ZMO1878	-	valyl-tRNA synthetase
1879	 51.60	0	1930308..1931309	+	333	56552775	hemB	ZMO1879	-	delta-aminolevulinic acid dehydratase
1880	 48.28	0	1931302..1931910	+	202	56552776	-	ZMO1880	-	hypothetical protein
1881	 45.30	0	1932660..1932776	+	38	56552777	-	ZMO1881	-	hypothetical protein
1882	 46.71	0	1932784..1933770	+	328	56552778	-	ZMO1882	-	putative transport protein
1883	 46.07	0	1933893..1934834	-	313	56552779	serA	ZMO1883	-	phosphoglycerate dehydrogenase
1884	 46.07	0	1934889..1935524	-	211	56552780	-	ZMO1884	-	hypothetical protein
1885	 49.49	0	1935705..1936781	-	358	56552781	ncr	ZMO1885	-	NADH:flavin oxidoreductase
1886	 48.74	0	1936968..1938077	-	369	56552782	-	ZMO1886	-	putative transport protein
1887	 45.86	0	1938082..1938648	-	188	56552783	entB	ZMO1887	-	isochorismatase
1888	 39.33	-1	1938976..1939125	-	49	56552784	-	ZMO1888	-	hypothetical protein
1889	 45.78	0	1939171..1940046	-	291	56552785	-	ZMO1889	-	SAM-dependent methyltransferase
1890	 47.43	0	1940073..1941299	-	408	56552786	-	ZMO1890	-	Zn-dependent peptidase
1891	 48.36	0	1941296..1942726	-	476	161611315	thrC	ZMO1891	-	threonine synthase
1892	 45.30	0	1942913..1943263	-	116	56552788	-	ZMO1892	-	hypothetical protein
1893	 40.10	-1	1943314..1943505	-	63	56552790	-	ZMO1894	-	hypothetical protein
1894	 37.25	-1	1943496..1943597	+	33	56552789	-	ZMO1893	-	hypothetical protein
1895	 45.34	0	1943628..1944635	+	335	56552791	-	ZMO1895	-	sugar kinase
1896	 43.03	0	1944756..1945673	-	305	56552792	secF	ZMO1896	-	preprotein translocase subunit
1897	 48.36	0	1945690..1947273	-	527	56552793	secD	ZMO1897	-	preprotein translocase subunit SecD
1898	 43.68	0	1947280..1947627	-	115	56552794	yajC	ZMO1898	-	preprotein translocase subunit
1899	 47.74	0	1948507..1949478	-	323	56552795	fabH	ZMO1899	-	3-oxoacyl-[acyl-carrier-protein] synthase III
1900	 47.73	0	1949475..1950530	-	351	56552796	plsX	ZMO1900	-	putative glycerol-3-phosphate acyltransferase PlsX
1901	 42.09	0	1950933..1952006	-	357	56552797	-	ZMO1901	-	hypothetical protein
1902	 40.88	-1	1952025..1952753	-	242	56552798	hemD	ZMO1902	-	uroporphyrinogen-III synthase
1903	 45.52	0	1952788..1953714	-	308	56552799	hemC	ZMO1903	-	porphobilinogen deaminase
1904	 44.23	0	1953713..1954804	+	363	56552800	-	ZMO1904	-	metal-dependent protease
1905	 43.40	0	1954805..1955827	+	340	56552801	gpsA	ZMO1905	-	glycerol-3-phosphate dehydrogenase
1906	 46.67	0	1955905..1956444	-	179	56552802	infC	ZMO1906	-	translation initiation factor IF-3
1907	 45.03	0	1956556..1959231	-	891	56552803	mutS	ZMO1907	-	DNA mismatch repair protein
1908	 45.86	0	1959293..1959787	-	164	56552804	-	ZMO1908	-	tmRNA-binding small protein A
1909	 41.85	0	1960001..1960540	+	179	56552805	-	ZMO1909	-	hypothetical protein
1910	 45.85	0	1960707..1961369	+	220	56552806	rplY	ZMO1910	-	ribosomal protein L25
1911	 44.56	0	1961444..1962013	+	189	56552807	-	ZMO1911	-	peptidyl-tRNA hydrolase
1912	 45.69	0	1962063..1963163	+	366	56552808	-	ZMO1912	-	translation-associated GTPase
1913	 41.96	0	1963494..1964444	+	316	56552809	gshB	ZMO1913	-	glutathione synthetase
1914	 45.56	0	1964449..1965372	-	307	56552810	xerC	ZMO1914	-	site-specific tyrosine recombinase XerC
1915	 40.43	-1	1965383..1966819	-	478	56552811	bioD	ZMO1915	-	putative biotin synthesis protein
1916	 42.44	0	1966807..1967454	-	215	56552812	-	ZMO1916	-	hypothetical protein
1917	 42.51	0	1967451..1968659	-	402	56552813	bioF	ZMO1917	-	putative 8-amino-7-oxononanoate synthase
1918	 44.15	0	1968726..1969991	+	421	56552814	bioA	ZMO1918	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1919	 49.58	0	1969988..1970461	-	157	56552815	-	ZMO1919	-	thiol-disulfide isomerase
1920	 56.19	+1	1970774..1971193	+	139	56552816	-	ZMO1920	-	hypothetical protein
1921	 46.15	0	1971322..1973490	+	722	56552817	priA	ZMO1921	-	primosome assembly protein PriA
1922	 47.77	0	1973493..1974974	-	493	56552818	wcbO	ZMO1922	-	capsule polysaccharide export protein
1923	 40.58	-1	1975292..1976767	+	491	56552819	rkpI	ZMO1923	-	capsular polysaccharide biosynthesis protein
1924	 45.60	0	1976779..1977732	-	317	56552820	-	ZMO1924	-	collagenase
1925	 47.71	0	1977729..1979474	-	581	56552821	-	ZMO1925	-	collagenase
1926	 34.21	-2	1979595..1979708	+	37	56552822	-	ZMO1926	-	hypothetical protein
1927	 46.97	0	1979705..1981618	-	637	56552823	sppA	ZMO1927	-	periplasmic serine protease
1928	 47.92	0	1981991..1982278	+	95	56552824	groES	ZMO1928	-	co-chaperonin GroES
1929	 50.64	0	1982385..1984025	+	546	56552825	groEL	ZMO1929	-	chaperonin GroEL
1930	 63.33	+2	1984282..1985481	+	399	56552826	intZ	ZMO1930	-	integrase
1931	 60.58	+2	1985478..1986644	+	388	56552827	-	ZMO1931	-	hypothetical protein
1932	 57.45	+2	1987548..1988339	-	263	56552828	-	ZMO1932	-	hypothetical protein
1933	 54.49	+1	1988339..1989718	-	459	56552829	-	ZMO1933	-	type I restriction-modification enzyme S subunit
1934	 54.33	+1	1989727..1991745	-	672	56552830	-	ZMO1934	-	type I restriction-modification enzyme M subunit
1935	 64.56	+2	1992721..1993431	-	236	56552831	-	ZMO1935	-	hypothetical protein
1936	 67.06	+2	1993041..1993811	+	256	56552832	-	ZMO1936	-	hypothetical protein
1937	 67.54	+2	1993866..1994207	+	113	56552833	-	ZMO1937	-	hypothetical protein
1938	 66.35	+2	1994179..1995114	+	311	56552834	-	ZMO1938	-	hypothetical protein
1939	 67.22	+2	1995513..1995872	+	119	56552835	-	ZMO1939	-	ATPase
1940	 68.94	+2	1995958..1996572	+	204	56552836	-	ZMO1940	-	hypothetical protein
1941	 71.56	+2	1996569..1997324	+	251	56552837	-	ZMO1941	-	conjugal transfer protein
1942	 70.27	+2	1996946..1998001	-	351	56552838	-	ZMO1942	-	VirD2 components relaxase
1943	 69.13	+2	1998005..1999264	+	419	56552839	-	ZMO1943	-	VirD2 components relaxase
1944	 62.15	+2	1999286..2000659	-	457	56552840	-	ZMO1944	-	transcriptional regulatory protein
1945	 62.73	+2	2000759..2001646	+	295	56552841	-	ZMO1945	-	epimerase
1946	 59.14	+2	2001676..2002419	+	247	56552842	-	ZMO1946	-	oxidoreductase
1947	 53.02	+1	2002476..2002922	+	148	56552843	-	ZMO1947	-	translational inhibitor protein
46.43	MEAN

5.31	STD DEV
