IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

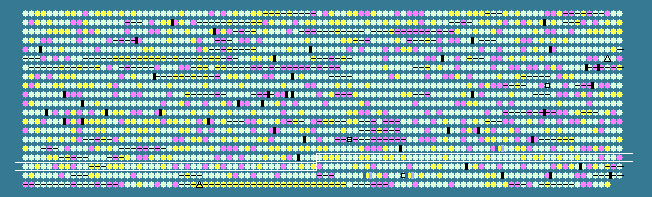

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1650	 46.75	0	1695701..1696684	+	327	56552546	-	ZMO1650	-	class C beta-lactamase
1651	 50.63	0	1696779..1699067	-	762	56552547	ptsP	ZMO1651	-	phosphoenolpyruvate-protein phosphotransferase
1652	 52.02	+1	1699084..1700073	-	329	56552548	-	ZMO1652	-	dioxygenase
1653	 51.65	0	1700160..1701431	-	423	56552549	lysC	ZMO1653	-	aspartate kinase
1654	 45.71	0	1701505..1702296	+	263	56552550	ubiG	ZMO1654	-	3-demethylubiquinone-9 3-methyltransferase
1655	 46.77	0	1702381..1702938	+	185	56552551	-	ZMO1655	-	putative bacterioferritin comigratory protein
1656	 47.02	0	1703125..1704030	+	301	56552552	-	ZMO1656	-	hypothetical protein
1657	 50.61	0	1704214..1705284	+	356	56552553	-	ZMO1657	-	hypothetical protein
1658	 50.30	0	1705340..1706329	+	329	56552554	-	ZMO1658	-	ATPase
1659	 49.48	0	1706551..1708464	+	637	56552555	ftsH	ZMO1659	-	ATP-dependent Zn protease
1660	 49.28	0	1708591..1709004	+	137	56552556	-	ZMO1660	-	hypothetical protein
1661	 50.97	0	1709055..1710341	+	428	56552557	proA	ZMO1661	-	gamma-glutamyl phosphate reductase
1662	 50.63	0	1710399..1711034	+	211	56552558	nadD	ZMO1662	-	nicotinic acid mononucleotide adenylyltransferase
1663	 46.02	0	1711043..1711444	+	133	56552559	-	ZMO1663	-	hypothetical protein
1664	 53.15	+1	1711516..1711944	+	142	56552560	-	ZMO1664	-	hypothetical protein
1665	 44.02	0	1711944..1713131	+	395	56552561	-	ZMO1665	-	membrane-bound metallopeptidase
1666	 44.44	0	1713168..1713320	-	50	56552562	-	ZMO1666	-	hypothetical protein
1667	 46.40	0	1713304..1714650	+	448	56552563	ctpA	ZMO1667	-	periplasmic protease
1668	 43.89	0	1714683..1715288	+	201	56552564	dsbB	ZMO1668	-	disulfide bond formation protein
1669	 47.67	0	1715258..1715815	+	185	56552565	-	ZMO1669	-	ubiquinone biosynthesis protein
1670	 45.83	0	1715822..1716253	+	143	56552566	-	ZMO1670	-	hypothetical protein
1671	 52.14	+1	1716363..1716782	+	139	56552567	-	ZMO1671	-	hypothetical protein
1672	 47.92	0	1716917..1717396	+	159	56552568	-	ZMO1672	-	hypothetical protein
1673	 47.69	0	1717504..1718325	-	273	56552569	-	ZMO1673	-	putative oxidoreductase
1674	 45.74	0	1718356..1718484	-	42	56552570	-	ZMO1674	-	hypothetical protein
1675	 48.25	0	1718509..1719279	-	256	56552571	-	ZMO1675	-	protein-disulfide isomerase
1676	 46.85	0	1719530..1720180	-	216	56552572	-	ZMO1676	-	hypothetical protein
1677	 48.75	0	1720215..1721336	+	373	56552573	mutY	ZMO1677	-	A/G-specific DNA glycosylase
1678	 51.37	0	1721340..1722254	-	304	56552574	pheA	ZMO1678	-	prephenate dehydratase
1679	 45.96	0	1722350..1723228	-	292	56552575	-	ZMO1679	-	Rossmann fold nucleotide-binding protein
1680	 47.51	0	1723271..1723933	-	220	56552576	-	ZMO1680	-	hypothetical protein
1681	 49.32	0	1724393..1726087	+	564	56552577	-	ZMO1681	-	aspartate:alanine antiporter
1682	 47.65	0	1726117..1727709	+	530	56552578	asdA	ZMO1682	-	aspartate aminotransferase
1683	 48.23	0	1727805..1728905	+	366	56552579	ansA	ZMO1683	-	periplasmic L-asparaginase II
1684	 50.56	0	1729367..1730527	+	386	56552580	serC	ZMO1684	-	phosphoserine aminotransferase
1685	 49.49	0	1730599..1732182	+	527	56552581	serA	ZMO1685	-	D-3-phosphoglycerate dehydrogenase
1686	 50.45	0	1732379..1733494	+	371	56552582	hisG	ZMO1686	-	ATP phosphoribosyltransferase
1687	 51.86	+1	1733559..1734848	+	429	56552583	purA	ZMO1687	-	adenylosuccinate synthetase
1688	 47.88	0	1734938..1735762	-	274	56552584	-	ZMO1688	-	aminomethyltransferase
1689	 49.14	0	1735806..1737146	+	446	56552585	pyrC	ZMO1689	-	dihydroorotase
1690	 52.12	+1	1737595..1738536	+	313	56552586	-	ZMO1690	-	DnaJ-class molecular chaperone
1691	 44.67	0	1738817..1739839	+	340	56552587	-	ZMO1691	-	hypothetical protein
1692	 48.35	0	1739850..1740668	+	272	56552588	fabI	ZMO1692	-	enoyl-[acyl-carrier-protein] reductase
1693	 53.30	+1	1740665..1741741	+	358	56552589	aroC	ZMO1693	-	chorismate synthase
1694	 48.89	0	1741820..1744300	-	826	56552590	-	ZMO1694	-	TonB-dependent receptor
1695	 46.67	0	1744564..1745103	-	179	56552591	-	ZMO1695	-	hypothetical protein
1696	 47.00	0	1745261..1746277	-	338	56552592	-	ZMO1696	-	alginate lyase
1697	 42.61	0	1746392..1746736	+	114	56552593	-	ZMO1697	-	hypothetical protein
1698	 49.33	0	1746915..1748039	-	374	56552594	ribA	ZMO1698	-	GTP cyclohydrolase II
1699	 47.41	0	1748002..1748811	-	269	56552595	ex3	ZMO1699	-	exonuclease III
1700	 36.36	-1	1749468..1749896	+	142	56552596	-	ZMO1700	-	hypothetical protein
1701	 47.68	0	1749902..1750591	-	229	56552597	-	ZMO1701	-	outer membrane lipoprotein-sorting protein
1702	 49.88	0	1750669..1753104	-	811	56552598	ftsK	ZMO1702	-	DNA segregation ATPase
1703	 50.33	0	1753261..1754478	+	405	56552599	-	ZMO1703	-	2-polyprenyl-6-methoxyphenol hydroxylase
1704	 47.04	0	1754519..1755211	-	230	56552600	lonD	ZMO1704	-	ATP-dependent proteinase
1705	 47.65	0	1755163..1756077	-	304	56552601	-	ZMO1705	-	thioredoxin
1706	 42.64	0	1756171..1756299	+	42	56552602	-	ZMO1706	-	hypothetical protein
1707	 51.87	+1	1756313..1756900	+	195	161611316	pyrE	ZMO1707	-	orotate phosphoribosyltransferase
1708	 50.32	0	1756922..1757692	+	256	56552604	-	ZMO1708	-	pyridoxal phosphate biosynthetic protein PdxJ
1709	 42.22	0	1757689..1758093	+	134	56552605	acpS	ZMO1709	-	phosphopantetheinyl transferase
1710	 45.28	0	1758149..1759027	+	292	56552606	lepB	ZMO1710	-	signal peptidase I
1711	 48.26	0	1759037..1760155	+	372	56552607	-	ZMO1711	-	permease
1712	 50.36	0	1760234..1760791	-	185	56552608	-	ZMO1712	-	peptidyl-prolyl isomerase
1713	 50.72	0	1761071..1761277	-	68	56552609	rpsU	ZMO1713	-	30S ribosomal protein S21
1714	 43.00	0	1761429..1762049	+	206	56552610	exbD2	ZMO1714	-	biopolymer transport ExbD2 protein
1715	 50.20	0	1762081..1762572	-	163	56552611	exbD1	ZMO1715	-	biopolymer transport ExbD protein
1716	 51.21	0	1762699..1763442	-	247	56552612	exbB	ZMO1716	-	biopolymer transport ExbB protein
1717	 50.82	0	1763619..1764350	-	243	56552613	-	ZMO1717	-	hypothetical protein
1718	 44.29	0	1764707..1765564	+	285	56552614	-	ZMO1718	-	hypothetical protein
1719	 48.23	0	1766273..1767178	+	301	56552615	frk	ZMO1719	-	fructokinase
1720	 51.06	0	1767383..1767760	-	125	56552616	-	ZMO1720	-	DNA-directed RNA polymerase subunit omega
1721	 45.99	0	1767941..1768327	-	128	56552617	gloA	ZMO1721	-	lactoylglutathione lyase
1722	 47.66	0	1768369..1769478	-	369	56552618	adhC	ZMO1722	-	glutathione dependent formaldehyde dehydrogenase
1723	 47.69	0	1769552..1770310	-	252	56552619	-	ZMO1723	-	hypothetical protein
1724	 51.91	+1	1770847..1772127	-	426	56552620	murA	ZMO1724	-	UDP-N-acetylglucosamine enolpyruvyl transferase
1725	 43.86	0	1772232..1772459	-	75	56552621	-	ZMO1725	-	hypothetical protein
1726	 38.49	-1	1772497..1772748	+	83	56552622	-	ZMO1726	-	hypothetical protein
1727	 49.75	0	1772893..1774104	+	403	56552623	-	ZMO1727	-	aminotransferase
1728	 41.56	0	1774108..1774593	-	161	56552624	-	ZMO1728	-	hypothetical protein
1729	 47.56	0	1774714..1774959	-	81	56552625	-	ZMO1729	-	hypothetical protein
1730	 45.48	0	1775055..1775828	-	257	56552626	cysE	ZMO1730	-	serine acetyltransferase
1731	 34.01	-2	1776030..1776176	+	48	56552627	-	ZMO1731	-	hypothetical protein
1732	 47.15	0	1776173..1776715	-	180	56552628	ahpC	ZMO1732	-	alkyl hydroperoxide reductase
1733	 50.21	0	1776907..1777848	+	313	56552629	-	ZMO1733	-	transcriptional regulator
1734	 42.59	0	1778201..1779388	+	395	56552630	-	ZMO1734	-	hypothetical protein
1735	 46.99	0	1779399..1780313	-	304	56552631	-	ZMO1735	-	LPS glycosyltransferase
1736	 44.24	0	1780408..1780572	-	54	56552632	-	ZMO1736	-	hypothetical protein
1737	 40.97	-1	1780542..1780685	+	47	56552633	-	ZMO1737	-	hypothetical protein
1738	 48.31	0	1780740..1781540	-	266	56552634	-	ZMO1738	-	two-component response regulator
1739	 46.81	0	1781542..1782780	-	412	56552635	-	ZMO1739	-	two-component signal transduction histidine kinase
1740	 52.75	+1	1782925..1783197	-	90	56552636	-	ZMO1740	-	hypothetical protein
1741	 48.31	0	1783250..1785058	-	602	56552637	-	ZMO1741	-	GTP-binding protein LepA
1742	 44.19	0	1785049..1785177	+	42	56552638	-	ZMO1742	-	hypothetical protein
1743	 48.73	0	1785164..1786072	-	302	56552639	apaH	ZMO1743	-	diadenosine tetraphosphatase
1744	 37.59	-1	1786148..1786288	+	46	56552640	-	ZMO1744	-	hypothetical protein
1745	 49.29	0	1787931..1788914	-	327	56552641	metH	ZMO1745	-	methionine synthase I methyltransferase
1746	 49.62	0	1788964..1790019	-	351	56552642	-	ZMO1746	-	methionine synthase I cobalamin-binding subunit
1747	 50.44	0	1790088..1790993	-	301	56552643	metF	ZMO1747	-	5,10-methylenetetrahydrofolate reductase
1748	 48.47	0	1790998..1791942	-	314	56552644	-	ZMO1748	-	transcriptional regulator
1749	 52.07	+1	1792197..1793306	+	369	56552645	-	ZMO1749	-	lipoprotein precursor
46.43	MEAN

5.31	STD DEV
