IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

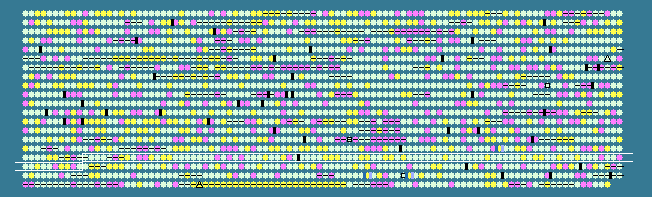

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1611	 46.43	0	1652276..1652611	+	111	56552507	-	ZMO1611	-	hypothetical protein
1612	 46.50	0	1652869..1653453	+	194	56552508	-	ZMO1612	-	hypothetical protein
1613	 44.74	0	1653595..1653708	+	37	56552509	-	ZMO1613	-	hypothetical protein
1614	 46.17	0	1653793..1654431	-	212	56552510	-	ZMO1614	-	hypothetical protein
1615	 46.76	0	1654448..1654879	-	143	56552511	greA	ZMO1615	-	transcription elongation factor
1616	 42.28	0	1654866..1654988	-	40	56552512	-	ZMO1616	-	hypothetical protein
1617	 50.76	0	1657491..1658345	-	284	56552513	carB	ZMO1617	-	carbamoyl-phosphate synthase large chain
1618	 52.51	+1	1658413..1659585	-	390	56552514	carA	ZMO1618	-	carbamoyl phosphate synthase small subunit
1619	 45.71	0	1659771..1660295	+	174	56552515	-	ZMO1619	-	hypothetical protein
1620	 27.93	-2	1660596..1660706	-	36	56552516	-	ZMO1620	-	hypothetical protein
1621	 42.64	0	1660966..1661223	+	85	56552517	-	ZMO1621	-	hypothetical protein
1622	 52.54	+1	1661223..1662284	+	353	56552518	dnaG	ZMO1622	-	DNA primase
1623	 48.26	0	1663111..1665126	+	671	56552519	rpoD	ZMO1623	-	RNA polymerase sigma factor RpoD
1624	 51.88	+1	1665211..1666725	-	504	56552520	-	ZMO1624	-	ATPase
1625	 53.98	+1	1666996..1667460	+	154	56552521	rnpA	ZMO1625	-	ribonuclease P protein component
1626	 46.03	0	1667687..1669426	+	579	56552522	-	ZMO1626	-	putative inner membrane protein translocase component YidC
1627	 46.48	0	1669435..1670073	+	212	56552523	-	ZMO1627	-	GTPase EngB
1628	 44.25	0	1670140..1671192	-	350	56552524	-	ZMO1628	-	uncharacterized iron-regulated membrane protein
1629	 47.33	0	1671708..1672007	-	99	56552525	-	ZMO1629	-	hypothetical protein
1630	 43.75	0	1672004..1672291	-	95	56552526	-	ZMO1630	-	hypothetical protein
1631	 49.30	0	1672273..1674564	-	763	56552527	-	ZMO1631	-	TonB-dependent receptor
1632	 48.72	0	1674853..1675983	+	376	56552528	dapE	ZMO1632	-	succinyl-diaminopimelate desuccinylase
1633	 39.76	-1	1676039..1676365	-	108	56552529	-	ZMO1633	-	hypothetical protein
1634	 49.05	0	1676430..1677116	-	228	56552530	-	ZMO1634	-	hypothetical protein
1635	 39.48	-1	1678390..1678698	-	102	56552531	mltA	ZMO1635	-	lytic murein transglycosylase
1636	 49.69	0	1678740..1679393	-	217	56552532	-	ZMO1636	-	hypothetical protein
1637	 38.64	-1	1679466..1679597	+	43	56552533	-	ZMO1637	-	hypothetical protein
1638	 47.47	0	1679860..1680354	+	164	56552534	secB	ZMO1638	-	preprotein translocase subunit
1639	 48.57	0	1680439..1682052	+	537	56552535	-	ZMO1639	-	uncharacterized membrane protein
1640	 47.51	0	1682076..1683098	+	340	56552536	trpS	ZMO1640	-	tryptophanyl-tRNA synthetase
1641	 53.24	+1	1683217..1683879	+	220	56552537	-	ZMO1641	-	hypothetical protein
1642	 48.34	0	1683950..1685095	-	381	56552538	anmK	ZMO1642	-	anhydro-N-acetylmuramic acid kinase
1643	 48.21	0	1685213..1686442	+	409	56552539	tyrS	ZMO1643	-	tyrosyl-tRNA synthetase
1644	 50.07	0	1686502..1688580	-	692	56552540	-	ZMO1644	-	DNA helicase
1645	 42.59	0	1688665..1688880	+	71	56552541	-	ZMO1645	-	hypothetical protein
1646	 49.28	0	1688894..1692292	+	1132	56552542	-	ZMO1646	-	transcription-repair coupling factor
1647	 47.64	0	1692548..1693099	-	183	56552543	folK	ZMO1647	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
1648	 46.61	0	1693272..1694009	+	245	56552544	ung	ZMO1648	-	uracil-DNA glycosylase
1649	 49.30	0	1694256..1695326	+	356	56552545	gnl	ZMO1649	-	gluconolactonase
1650	 46.75	0	1695701..1696684	+	327	56552546	-	ZMO1650	-	class C beta-lactamase
1651	 50.63	0	1696779..1699067	-	762	56552547	ptsP	ZMO1651	-	phosphoenolpyruvate-protein phosphotransferase
1652	 52.02	+1	1699084..1700073	-	329	56552548	-	ZMO1652	-	dioxygenase
1653	 51.65	0	1700160..1701431	-	423	56552549	lysC	ZMO1653	-	aspartate kinase
1654	 45.71	0	1701505..1702296	+	263	56552550	ubiG	ZMO1654	-	3-demethylubiquinone-9 3-methyltransferase
1655	 46.77	0	1702381..1702938	+	185	56552551	-	ZMO1655	-	putative bacterioferritin comigratory protein
1656	 47.02	0	1703125..1704030	+	301	56552552	-	ZMO1656	-	hypothetical protein
1657	 50.61	0	1704214..1705284	+	356	56552553	-	ZMO1657	-	hypothetical protein
1658	 50.30	0	1705340..1706329	+	329	56552554	-	ZMO1658	-	ATPase
1659	 49.48	0	1706551..1708464	+	637	56552555	ftsH	ZMO1659	-	ATP-dependent Zn protease
1660	 49.28	0	1708591..1709004	+	137	56552556	-	ZMO1660	-	hypothetical protein
1661	 50.97	0	1709055..1710341	+	428	56552557	proA	ZMO1661	-	gamma-glutamyl phosphate reductase
1662	 50.63	0	1710399..1711034	+	211	56552558	nadD	ZMO1662	-	nicotinic acid mononucleotide adenylyltransferase
1663	 46.02	0	1711043..1711444	+	133	56552559	-	ZMO1663	-	hypothetical protein
1664	 53.15	+1	1711516..1711944	+	142	56552560	-	ZMO1664	-	hypothetical protein
1665	 44.02	0	1711944..1713131	+	395	56552561	-	ZMO1665	-	membrane-bound metallopeptidase
1666	 44.44	0	1713168..1713320	-	50	56552562	-	ZMO1666	-	hypothetical protein
1667	 46.40	0	1713304..1714650	+	448	56552563	ctpA	ZMO1667	-	periplasmic protease
1668	 43.89	0	1714683..1715288	+	201	56552564	dsbB	ZMO1668	-	disulfide bond formation protein
1669	 47.67	0	1715258..1715815	+	185	56552565	-	ZMO1669	-	ubiquinone biosynthesis protein
1670	 45.83	0	1715822..1716253	+	143	56552566	-	ZMO1670	-	hypothetical protein
1671	 52.14	+1	1716363..1716782	+	139	56552567	-	ZMO1671	-	hypothetical protein
1672	 47.92	0	1716917..1717396	+	159	56552568	-	ZMO1672	-	hypothetical protein
1673	 47.69	0	1717504..1718325	-	273	56552569	-	ZMO1673	-	putative oxidoreductase
1674	 45.74	0	1718356..1718484	-	42	56552570	-	ZMO1674	-	hypothetical protein
1675	 48.25	0	1718509..1719279	-	256	56552571	-	ZMO1675	-	protein-disulfide isomerase
1676	 46.85	0	1719530..1720180	-	216	56552572	-	ZMO1676	-	hypothetical protein
1677	 48.75	0	1720215..1721336	+	373	56552573	mutY	ZMO1677	-	A/G-specific DNA glycosylase
1678	 51.37	0	1721340..1722254	-	304	56552574	pheA	ZMO1678	-	prephenate dehydratase
1679	 45.96	0	1722350..1723228	-	292	56552575	-	ZMO1679	-	Rossmann fold nucleotide-binding protein
1680	 47.51	0	1723271..1723933	-	220	56552576	-	ZMO1680	-	hypothetical protein
1681	 49.32	0	1724393..1726087	+	564	56552577	-	ZMO1681	-	aspartate:alanine antiporter
1682	 47.65	0	1726117..1727709	+	530	56552578	asdA	ZMO1682	-	aspartate aminotransferase
1683	 48.23	0	1727805..1728905	+	366	56552579	ansA	ZMO1683	-	periplasmic L-asparaginase II
1684	 50.56	0	1729367..1730527	+	386	56552580	serC	ZMO1684	-	phosphoserine aminotransferase
1685	 49.49	0	1730599..1732182	+	527	56552581	serA	ZMO1685	-	D-3-phosphoglycerate dehydrogenase
1686	 50.45	0	1732379..1733494	+	371	56552582	hisG	ZMO1686	-	ATP phosphoribosyltransferase
1687	 51.86	+1	1733559..1734848	+	429	56552583	purA	ZMO1687	-	adenylosuccinate synthetase
1688	 47.88	0	1734938..1735762	-	274	56552584	-	ZMO1688	-	aminomethyltransferase
1689	 49.14	0	1735806..1737146	+	446	56552585	pyrC	ZMO1689	-	dihydroorotase
1690	 52.12	+1	1737595..1738536	+	313	56552586	-	ZMO1690	-	DnaJ-class molecular chaperone
1691	 44.67	0	1738817..1739839	+	340	56552587	-	ZMO1691	-	hypothetical protein
1692	 48.35	0	1739850..1740668	+	272	56552588	fabI	ZMO1692	-	enoyl-[acyl-carrier-protein] reductase
1693	 53.30	+1	1740665..1741741	+	358	56552589	aroC	ZMO1693	-	chorismate synthase
1694	 48.89	0	1741820..1744300	-	826	56552590	-	ZMO1694	-	TonB-dependent receptor
1695	 46.67	0	1744564..1745103	-	179	56552591	-	ZMO1695	-	hypothetical protein
1696	 47.00	0	1745261..1746277	-	338	56552592	-	ZMO1696	-	alginate lyase
1697	 42.61	0	1746392..1746736	+	114	56552593	-	ZMO1697	-	hypothetical protein
1698	 49.33	0	1746915..1748039	-	374	56552594	ribA	ZMO1698	-	GTP cyclohydrolase II
1699	 47.41	0	1748002..1748811	-	269	56552595	ex3	ZMO1699	-	exonuclease III
1700	 36.36	-1	1749468..1749896	+	142	56552596	-	ZMO1700	-	hypothetical protein
1701	 47.68	0	1749902..1750591	-	229	56552597	-	ZMO1701	-	outer membrane lipoprotein-sorting protein
1702	 49.88	0	1750669..1753104	-	811	56552598	ftsK	ZMO1702	-	DNA segregation ATPase
1703	 50.33	0	1753261..1754478	+	405	56552599	-	ZMO1703	-	2-polyprenyl-6-methoxyphenol hydroxylase
1704	 47.04	0	1754519..1755211	-	230	56552600	lonD	ZMO1704	-	ATP-dependent proteinase
1705	 47.65	0	1755163..1756077	-	304	56552601	-	ZMO1705	-	thioredoxin
1706	 42.64	0	1756171..1756299	+	42	56552602	-	ZMO1706	-	hypothetical protein
1707	 51.87	+1	1756313..1756900	+	195	161611316	pyrE	ZMO1707	-	orotate phosphoribosyltransferase
1708	 50.32	0	1756922..1757692	+	256	56552604	-	ZMO1708	-	pyridoxal phosphate biosynthetic protein PdxJ
1709	 42.22	0	1757689..1758093	+	134	56552605	acpS	ZMO1709	-	phosphopantetheinyl transferase
1710	 45.28	0	1758149..1759027	+	292	56552606	lepB	ZMO1710	-	signal peptidase I
46.43	MEAN

5.31	STD DEV
