IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

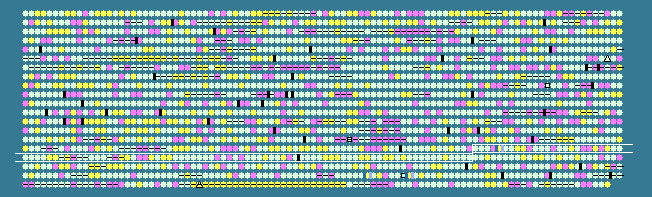

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1576	 47.26	0	1607748..1608494	+	248	56552472	-	ZMO1576	-	short-chain alcohol dehydrogenase
1577	 46.68	0	1608752..1609972	+	406	56552473	opdE	ZMO1577	-	arabinose efflux permease
1578	 47.58	0	1610019..1610783	+	254	56552474	-	ZMO1578	-	dehydrogenase
1579	 41.71	0	1610847..1611968	+	373	56552475	-	ZMO1579	-	alpha/beta hydrolase superfamily protein
1580	 53.33	+1	1616983..1617117	+	44	56552476	-	ZMO1580	-	hypothetical protein
1581	 48.82	0	1618669..1618965	+	98	56552477	-	ZMO1581	-	hypothetical protein
1582	 45.33	0	1619013..1619504	-	163	56552478	-	ZMO1582	-	G:T/U mismatch-specific DNA glycosylase
1583	 50.10	0	1619888..1622326	-	812	56552479	gyrB	ZMO1583	-	type IIA topoisomerase B subunit
1584	 51.11	0	1622469..1623599	-	376	56552480	recF	ZMO1584	-	recombination protein F
1585	 34.03	-2	1623571..1623714	-	47	56552481	-	ZMO1585	-	hypothetical protein
1586	 44.73	0	1623714..1624187	+	157	56552482	bfr	ZMO1586	-	bacterioferritin
1587	 46.33	0	1624274..1624627	+	117	56552483	-	ZMO1587	-	hypothetical protein
1588	 48.47	0	1624785..1627625	+	946	56552484	uvrA	ZMO1588	-	excinuclease ABC subunit A
1589	 33.66	-2	1627796..1628725	+	309	56552485	-	ZMO1589	-	hypothetical protein
1590	 49.21	0	1628836..1629597	-	253	56552486	-	ZMO1590	-	ABC-type transport system ATPase component
1591	 49.48	0	1629606..1630367	-	253	56552487	-	ZMO1591	-	ABC-type transport system permease component
1592	 50.48	0	1630428..1631477	-	349	56552488	alr	ZMO1592	-	alanine racemase
1593	 48.68	0	1631561..1633495	-	644	56552489	-	ZMO1593	-	protease
1594	 32.88	-2	1633543..1633764	-	73	56552490	-	ZMO1594	-	hypothetical protein
1595	 42.53	0	1633821..1633994	+	57	56552491	-	ZMO1595	-	hypothetical protein
1596	 50.00	0	1634679..1635830	+	383	56552492	adhB	ZMO1596	-	alcohol dehydrogenase II
1597	 42.69	0	1635986..1636156	+	56	56552493	-	ZMO1597	-	hypothetical protein
1598	 52.04	+1	1636224..1638206	+	660	56552494	dxs	ZMO1598	-	1-deoxy-D-xylulose-5-phosphate synthase
1599	 49.43	0	1638299..1640908	+	869	56552495	-	ZMO1599	-	RND superfamily multidrug efflux system protein
1600	 46.63	0	1641142..1642104	+	320	56552496	thrB	ZMO1600	-	homoserine kinase
1601	 49.47	0	1642109..1642579	+	156	56552497	rnhA	ZMO1601	-	ribonuclease H
1602	 44.86	0	1642720..1644177	+	485	56552498	-	ZMO1602	-	hypothetical protein
1603	 49.44	0	1644461..1644907	+	148	56552499	-	ZMO1603	-	hypothetical protein
1604	 49.15	0	1644943..1646232	-	429	56552500	-	ZMO1604	-	phosphodiesterase-nucleotide pyrophosphatase
1605	 50.76	0	1646347..1647735	-	462	56552501	pdhB	ZMO1605	-	pyruvate dehydrogenase subunit beta
1606	 50.99	0	1647737..1648801	-	354	56552502	pdhA	ZMO1606	-	pyruvate dehydrogenase E1 component alpha subunit
1607	 48.24	0	1649168..1649536	-	122	56552503	-	ZMO1607	-	hypothetical protein
1608	 51.09	0	1649577..1650866	-	429	56552504	eno	ZMO1608	-	enolase
1609	 42.86	0	1651068..1651697	+	209	56552505	-	ZMO1609	-	hypothetical protein
1610	 49.04	0	1651700..1652221	+	173	56552506	-	ZMO1610	-	hypothetical protein
1611	 46.43	0	1652276..1652611	+	111	56552507	-	ZMO1611	-	hypothetical protein
1612	 46.50	0	1652869..1653453	+	194	56552508	-	ZMO1612	-	hypothetical protein
1613	 44.74	0	1653595..1653708	+	37	56552509	-	ZMO1613	-	hypothetical protein
1614	 46.17	0	1653793..1654431	-	212	56552510	-	ZMO1614	-	hypothetical protein
1615	 46.76	0	1654448..1654879	-	143	56552511	greA	ZMO1615	-	transcription elongation factor
1616	 42.28	0	1654866..1654988	-	40	56552512	-	ZMO1616	-	hypothetical protein
1617	 50.76	0	1657491..1658345	-	284	56552513	carB	ZMO1617	-	carbamoyl-phosphate synthase large chain
1618	 52.51	+1	1658413..1659585	-	390	56552514	carA	ZMO1618	-	carbamoyl phosphate synthase small subunit
1619	 45.71	0	1659771..1660295	+	174	56552515	-	ZMO1619	-	hypothetical protein
1620	 27.93	-2	1660596..1660706	-	36	56552516	-	ZMO1620	-	hypothetical protein
1621	 42.64	0	1660966..1661223	+	85	56552517	-	ZMO1621	-	hypothetical protein
1622	 52.54	+1	1661223..1662284	+	353	56552518	dnaG	ZMO1622	-	DNA primase
1623	 48.26	0	1663111..1665126	+	671	56552519	rpoD	ZMO1623	-	RNA polymerase sigma factor RpoD
1624	 51.88	+1	1665211..1666725	-	504	56552520	-	ZMO1624	-	ATPase
1625	 53.98	+1	1666996..1667460	+	154	56552521	rnpA	ZMO1625	-	ribonuclease P protein component
1626	 46.03	0	1667687..1669426	+	579	56552522	-	ZMO1626	-	putative inner membrane protein translocase component YidC
1627	 46.48	0	1669435..1670073	+	212	56552523	-	ZMO1627	-	GTPase EngB
1628	 44.25	0	1670140..1671192	-	350	56552524	-	ZMO1628	-	uncharacterized iron-regulated membrane protein
1629	 47.33	0	1671708..1672007	-	99	56552525	-	ZMO1629	-	hypothetical protein
1630	 43.75	0	1672004..1672291	-	95	56552526	-	ZMO1630	-	hypothetical protein
1631	 49.30	0	1672273..1674564	-	763	56552527	-	ZMO1631	-	TonB-dependent receptor
1632	 48.72	0	1674853..1675983	+	376	56552528	dapE	ZMO1632	-	succinyl-diaminopimelate desuccinylase
1633	 39.76	-1	1676039..1676365	-	108	56552529	-	ZMO1633	-	hypothetical protein
1634	 49.05	0	1676430..1677116	-	228	56552530	-	ZMO1634	-	hypothetical protein
1635	 39.48	-1	1678390..1678698	-	102	56552531	mltA	ZMO1635	-	lytic murein transglycosylase
1636	 49.69	0	1678740..1679393	-	217	56552532	-	ZMO1636	-	hypothetical protein
1637	 38.64	-1	1679466..1679597	+	43	56552533	-	ZMO1637	-	hypothetical protein
1638	 47.47	0	1679860..1680354	+	164	56552534	secB	ZMO1638	-	preprotein translocase subunit
1639	 48.57	0	1680439..1682052	+	537	56552535	-	ZMO1639	-	uncharacterized membrane protein
1640	 47.51	0	1682076..1683098	+	340	56552536	trpS	ZMO1640	-	tryptophanyl-tRNA synthetase
1641	 53.24	+1	1683217..1683879	+	220	56552537	-	ZMO1641	-	hypothetical protein
1642	 48.34	0	1683950..1685095	-	381	56552538	anmK	ZMO1642	-	anhydro-N-acetylmuramic acid kinase
1643	 48.21	0	1685213..1686442	+	409	56552539	tyrS	ZMO1643	-	tyrosyl-tRNA synthetase
1644	 50.07	0	1686502..1688580	-	692	56552540	-	ZMO1644	-	DNA helicase
1645	 42.59	0	1688665..1688880	+	71	56552541	-	ZMO1645	-	hypothetical protein
1646	 49.28	0	1688894..1692292	+	1132	56552542	-	ZMO1646	-	transcription-repair coupling factor
1647	 47.64	0	1692548..1693099	-	183	56552543	folK	ZMO1647	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
1648	 46.61	0	1693272..1694009	+	245	56552544	ung	ZMO1648	-	uracil-DNA glycosylase
1649	 49.30	0	1694256..1695326	+	356	56552545	gnl	ZMO1649	-	gluconolactonase
1650	 46.75	0	1695701..1696684	+	327	56552546	-	ZMO1650	-	class C beta-lactamase
1651	 50.63	0	1696779..1699067	-	762	56552547	ptsP	ZMO1651	-	phosphoenolpyruvate-protein phosphotransferase
1652	 52.02	+1	1699084..1700073	-	329	56552548	-	ZMO1652	-	dioxygenase
1653	 51.65	0	1700160..1701431	-	423	56552549	lysC	ZMO1653	-	aspartate kinase
1654	 45.71	0	1701505..1702296	+	263	56552550	ubiG	ZMO1654	-	3-demethylubiquinone-9 3-methyltransferase
1655	 46.77	0	1702381..1702938	+	185	56552551	-	ZMO1655	-	putative bacterioferritin comigratory protein
1656	 47.02	0	1703125..1704030	+	301	56552552	-	ZMO1656	-	hypothetical protein
1657	 50.61	0	1704214..1705284	+	356	56552553	-	ZMO1657	-	hypothetical protein
1658	 50.30	0	1705340..1706329	+	329	56552554	-	ZMO1658	-	ATPase
1659	 49.48	0	1706551..1708464	+	637	56552555	ftsH	ZMO1659	-	ATP-dependent Zn protease
1660	 49.28	0	1708591..1709004	+	137	56552556	-	ZMO1660	-	hypothetical protein
1661	 50.97	0	1709055..1710341	+	428	56552557	proA	ZMO1661	-	gamma-glutamyl phosphate reductase
1662	 50.63	0	1710399..1711034	+	211	56552558	nadD	ZMO1662	-	nicotinic acid mononucleotide adenylyltransferase
1663	 46.02	0	1711043..1711444	+	133	56552559	-	ZMO1663	-	hypothetical protein
1664	 53.15	+1	1711516..1711944	+	142	56552560	-	ZMO1664	-	hypothetical protein
1665	 44.02	0	1711944..1713131	+	395	56552561	-	ZMO1665	-	membrane-bound metallopeptidase
1666	 44.44	0	1713168..1713320	-	50	56552562	-	ZMO1666	-	hypothetical protein
1667	 46.40	0	1713304..1714650	+	448	56552563	ctpA	ZMO1667	-	periplasmic protease
1668	 43.89	0	1714683..1715288	+	201	56552564	dsbB	ZMO1668	-	disulfide bond formation protein
1669	 47.67	0	1715258..1715815	+	185	56552565	-	ZMO1669	-	ubiquinone biosynthesis protein
1670	 45.83	0	1715822..1716253	+	143	56552566	-	ZMO1670	-	hypothetical protein
1671	 52.14	+1	1716363..1716782	+	139	56552567	-	ZMO1671	-	hypothetical protein
1672	 47.92	0	1716917..1717396	+	159	56552568	-	ZMO1672	-	hypothetical protein
1673	 47.69	0	1717504..1718325	-	273	56552569	-	ZMO1673	-	putative oxidoreductase
1674	 45.74	0	1718356..1718484	-	42	56552570	-	ZMO1674	-	hypothetical protein
1675	 48.25	0	1718509..1719279	-	256	56552571	-	ZMO1675	-	protein-disulfide isomerase
46.43	MEAN

5.31	STD DEV
