IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

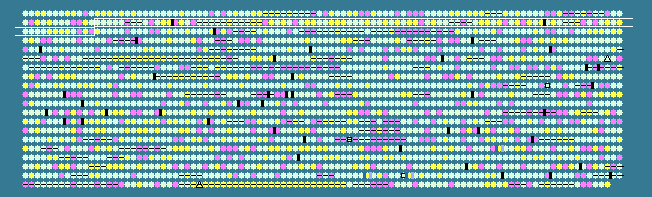

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
113	 45.56	0	100982..102388	+	468	56551009	pabB	ZMO0113	-	para-aminobenzoate synthase component I
114	 46.57	0	102405..103016	+	203	56551010	trpGD	ZMO0114	-	anthranilate synthase component II
115	 47.79	0	102961..103818	+	285	56551011	pabC	ZMO0115	-	branched-chain amino acid aminotransferase
116	 48.86	0	104018..104455	+	145	56551012	-	ZMO0116	-	hypothetical protein
117	 49.33	0	104522..106159	+	545	56551013	hcp	ZMO0117	-	hydroxylamine reductase
118	 41.30	0	106299..106436	+	45	56551014	-	ZMO0118	-	hypothetical protein
119	 44.57	0	106417..107484	+	355	56551015	nhaA	ZMO0119	-	Na+/H+ antiporter
120	 47.72	0	107594..108712	+	372	56551016	-	ZMO0120	-	hypothetical protein
121	 47.78	0	108980..110329	+	449	56551017	-	ZMO0121	-	recombination factor protein RarA
122	 42.11	0	110510..110851	+	113	56551018	-	ZMO0122	-	hypothetical protein
123	 43.75	0	110972..111115	+	47	56551019	-	ZMO0123	-	hypothetical protein
124	 50.82	0	111118..112701	-	527	56551020	-	ZMO0124	-	ATPase
125	 50.00	0	112714..113187	-	157	56551021	-	ZMO0125	-	hypothetical protein
126	 33.33	-2	114284..114433	+	49	56551022	-	ZMO0126	-	hypothetical protein
127	 50.73	0	114594..115553	-	319	56551023	-	ZMO0127	-	nuclease S1
128	 48.52	0	115571..117961	-	796	56551024	-	ZMO0128	-	TonB-dependent receptor
129	 35.56	-2	117948..118127	+	59	56551025	-	ZMO0129	-	hypothetical protein
130	 49.43	0	118386..119180	-	264	56551026	phoC	ZMO0130	-	acid phosphatase precursor
131	 48.34	0	119338..120363	-	341	56551027	-	ZMO0131	-	hypothetical protein
132	 48.09	0	120850..121608	+	252	56551028	-	ZMO0132	-	hypothetical protein
133	 47.23	0	121929..122669	+	246	56551029	-	ZMO0133	-	hypothetical protein
134	 47.70	0	122852..123352	+	166	56551030	-	ZMO0134	-	hypothetical protein
135	 50.08	0	123511..124161	+	216	56551031	-	ZMO0135	-	hypothetical protein
136	 46.03	0	124255..124971	+	238	56551032	-	ZMO0136	-	hypothetical protein
137	 48.21	0	125171..126427	+	418	56551033	-	ZMO0137	-	hypothetical protein
138	 49.59	0	126496..126618	+	40	56551034	-	ZMO0138	-	hypothetical protein
139	 51.68	0	126525..127418	-	297	56551035	-	ZMO0139	-	fructosamine-3-kinase
140	 51.46	0	127484..127963	-	159	56551036	ptpA	ZMO0140	-	protein-tyrosine-phosphatase
141	 38.78	-1	128159..128305	+	48	56551037	-	ZMO0141	-	hypothetical protein
142	 51.40	0	128320..129000	+	226	56551038	-	ZMO0142	-	hypothetical protein
143	 49.08	0	129000..129977	+	325	56551039	-	ZMO0143	-	ABC-type multidrug transport system
144	 50.66	0	130042..131634	+	530	56551040	nadB	ZMO0144	-	aspartate oxidase
145	 48.75	0	131657..133330	+	557	56551041	-	ZMO0145	-	peptidase
146	 39.15	-1	133270..133458	-	62	56551042	-	ZMO0146	-	hypothetical protein
147	 44.14	0	133751..133861	-	36	56551043	-	ZMO0147	-	hypothetical protein
148	 51.30	0	133995..134801	-	268	56551044	-	ZMO0148	-	hypothetical protein
149	 51.29	0	134986..135681	-	231	56551045	trmB	ZMO0149	-	tRNA (guanine-N(7))-methyltransferase
150	 47.85	0	135761..136387	-	208	56551046	-	ZMO0150	-	hypothetical protein
151	 44.21	0	136392..136676	-	94	56551047	-	ZMO0151	-	hypothetical protein
152	 53.22	+1	136654..138081	-	475	56551048	pyk	ZMO0152	-	pyruvate kinase
153	 50.40	0	139093..139842	+	249	56551049	yebC	ZMO0153	-	hypothetical protein
154	 54.96	+1	139877..140380	+	167	56551050	ruvC	ZMO0154	-	Holliday junction resolvasome endonuclease subunit
155	 46.88	0	140422..141063	+	213	56551051	ruvA	ZMO0155	-	Holliday junction resolvasome DNA-binding subunit
156	 46.28	0	141123..141485	-	120	56551052	-	ZMO0156	-	hypothetical protein
157	 47.85	0	141694..142623	-	309	56551053	lhdA	ZMO0157	-	2-hydroxyacid dehydrogenase
158	 50.38	0	142769..143812	+	347	56551054	ruvB	ZMO0158	-	Holliday junction DNA helicase B
159	 47.29	0	143992..144120	+	42	56551055	-	ZMO0159	-	hypothetical protein
160	 46.77	0	144121..144492	+	123	56551056	-	ZMO0160	-	thioesterase
161	 50.09	0	144500..145054	+	184	56551057	-	ZMO0161	-	TolQ biopolymer transport proteins
162	 48.86	0	145216..145743	+	175	56551058	exbD	ZMO0162	-	TolR biopolymer transport protein
163	 54.66	+1	145771..146178	+	135	56551059	-	ZMO0163	-	hypothetical protein
164	 47.28	0	146153..146833	+	226	56551060	tonB	ZMO0164	-	TonB protein
165	 50.69	0	146887..148263	+	458	56551061	tolB	ZMO0165	-	translocation protein TolB
166	 50.66	0	148390..148920	+	176	56551062	-	ZMO0166	-	peptidoglycan-associated protein
167	 40.67	-1	148925..149074	-	49	56551063	-	ZMO0167	-	hypothetical protein
168	 46.08	0	149098..149505	-	135	56551064	glpQ	ZMO0168	-	glycerophosphoryl diester phosphodiesterase
169	 52.42	+1	150839..151582	-	247	56551065	-	ZMO0169	-	putative short chain oxidoreductase
170	 48.91	0	152071..152622	-	183	56551066	glpQ	ZMO0170	-	glycerophosphoryl diester phosphodiesterase
171	 45.46	0	153520..155028	-	502	56551067	-	ZMO0171	-	TonB-dependent receptor
172	 48.98	0	155420..157234	+	604	56551068	thiC	ZMO0172	-	thiamine biosynthesis protein ThiC
173	 44.78	0	157752..158153	-	133	56551069	-	ZMO0173	-	hypothetical protein
174	 42.75	0	158346..158738	-	130	56551070	-	ZMO0174	-	hypothetical protein
175	 46.81	0	158949..159230	-	93	56551071	-	ZMO0175	-	hypothetical protein
176	 49.70	0	159445..161436	+	663	56551072	tklB	ZMO0176	-	transketolase
177	 53.94	+1	161486..162499	+	337	56551073	gap	ZMO0177	-	glyceraldehyde 3-phosphate dehydrogenase
178	 51.26	0	162722..163915	+	397	56551074	pgk	ZMO0178	-	phosphoglycerate kinase
179	 46.34	0	164684..165598	+	304	56551075	fbaB	ZMO0179	-	fructose-bisphosphate aldolase
180	 53.53	+1	165755..166888	-	377	56551076	ispG	ZMO0180	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
181	 29.46	-2	166940..167068	+	42	56551077	-	ZMO0181	-	hypothetical protein
182	 48.96	0	167266..168660	+	464	56551078	ahcY	ZMO0182	-	S-adenosyl-L-homocysteine hydrolase
183	 51.10	0	168954..170636	-	560	56551079	-	ZMO0183	-	putative ABC transporter ATP-binding protein
184	 36.36	-1	171159..171290	-	43	56551081	-	ZMO0185	-	hypothetical protein
185	 50.42	0	171345..171584	+	79	56551080	-	ZMO0184	-	hypothetical protein
186	 46.16	0	171805..173355	+	516	56551082	cysS	ZMO0186	-	cysteinyl-tRNA synthetase
187	 49.96	0	173448..174776	+	442	56551083	aroH	ZMO0187	-	3-deoxy-D-arabino-heptulosonate 7-phosphate synthase
188	 45.42	0	175355..177721	+	788	56551084	pbuA	ZMO0188	-	ferric-pseudobactin receptor
189	 50.00	0	177747..179108	-	453	56551085	sdaA	ZMO0189	-	L-serine dehydratase
190	 44.34	0	179199..180116	-	305	56551086	-	ZMO0190	-	transcriptional regulator
191	 46.67	0	180450..181229	-	259	56551087	-	ZMO0191	-	protein-disulfide isomerase
192	 48.68	0	181260..182582	-	440	56551088	-	ZMO0192	-	putative Zn-dependent protease
193	 51.00	0	182954..185692	-	912	56551089	-	ZMO0193	-	ribonuclease
194	 38.37	-1	186017..186274	+	85	56551090	-	ZMO0194	-	hypothetical protein
195	 48.04	0	186454..187242	+	262	56551091	amiA	ZMO0195	-	N-acetylmuramoyl-L-alanine amidase
196	 32.03	-2	187309..187461	+	50	56551092	-	ZMO0196	-	hypothetical protein
197	 48.99	0	187454..190033	+	859	56551093	-	ZMO0197	-	membrane carboxypeptidase
198	 51.42	0	190144..191271	+	375	56551094	rf-2	ZMO0198	-	protein chain release factor B
199	 47.25	0	191324..191977	-	217	56551095	lexA	ZMO0199	-	LexA repressor
200	 50.78	0	192143..193168	-	341	56551096	trpD	ZMO0200	-	anthranilate phosphoribosyltransferase
201	 46.03	0	193195..193824	-	209	56551097	trpG	ZMO0201	-	anthranilate/para-aminobenzoate synthase component II
202	 47.91	0	194772..196664	+	630	56551098	mcpA	ZMO0202	-	chemotaxis methyl-accepting protein
203	 44.22	0	196706..197155	-	149	56551099	pbrR	ZMO0203	-	heavy metal resistance transcriptional regulator
204	 43.98	0	197207..197854	+	215	56551100	czcD	ZMO0204	-	Co/Zn/Cd efflux system component
205	 51.62	0	197858..198781	-	307	56551101	-	ZMO0205	-	nucleoside-diphosphate-sugar epimerase
206	 51.59	0	198778..199971	-	397	56551102	proB	ZMO0206	-	gamma-glutamyl kinase
207	 52.78	+1	199956..200999	-	347	56551103	obgE	ZMO0207	-	GTPase ObgE
208	 51.23	0	201091..201699	-	202	56551104	-	ZMO0208	-	hypothetical protein
209	 49.26	0	201892..202161	-	89	56551105	rpmA	ZMO0209	-	50S ribosomal protein L27
210	 39.84	-1	202206..202328	+	40	56551106	-	ZMO0210	-	hypothetical protein
211	 54.69	+1	202294..202602	-	102	161611322	rplU	ZMO0211	-	50S ribosomal protein L21
212	 36.67	-1	202781..202900	+	39	56551108	-	ZMO0212	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
