IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

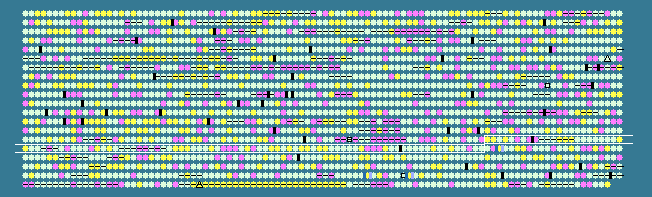

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1478	 51.26	0	1499110..1499862	-	250	56552374	pgl	ZMO1478	-	6-phosphogluconolactonase
1479	 50.59	0	1500150..1501082	-	310	56552375	etfA	ZMO1479	-	electron transfer flavoprotein alpha-subunit
1480	 46.67	0	1501079..1501828	-	249	56552376	etfB	ZMO1480	-	electron transfer flavoprotein beta-subunit
1481	 50.04	0	1501891..1503087	-	398	56552377	sucC	ZMO1481	-	succinyl-CoA synthetase beta subunit
1482	 47.52	0	1503619..1506819	-	1066	56552378	-	ZMO1482	-	serine protease
1483	 17.22	-2	1506915..1507094	-	59	56552379	-	ZMO1483	-	hypothetical protein
1484	 47.14	0	1507125..1510268	-	1047	56552380	-	ZMO1484	-	DNA and RNA helicase
1485	 42.80	0	1510373..1511713	+	446	56552381	-	ZMO1485	-	dGTP triphosphohydrolase
1486	 34.88	-2	1511889..1512017	+	42	56552382	-	ZMO1486	-	hypothetical protein
1487	 44.02	0	1512033..1512809	-	258	56552383	-	ZMO1487	-	hypothetical protein
1488	 49.37	0	1512942..1513820	-	292	56552384	kdsA	ZMO1488	-	2-dehydro-3-deoxyphosphooctonate aldolase
1489	 48.56	0	1513837..1514637	-	266	56552385	kdsB	ZMO1489	-	3-deoxy-manno-octulosonate cytidylyltransferase
1490	 51.54	0	1515030..1515644	+	204	56552386	-	ZMO1490	-	putative outer membrane protein
1491	 52.24	+1	1515939..1516742	+	267	56552387	-	ZMO1491	-	putative outer membrane protein
1492	 67.76	+2	1517027..1517209	-	60	56552388	-	ZMO1492	-	hypothetical protein
1493	 45.77	0	1517546..1518124	-	192	56552389	-	ZMO1493	-	hypothetical protein
1494	 47.90	0	1518145..1519050	-	301	56552390	argB	ZMO1494	-	acetylglutamate kinase
1495	 43.86	0	1519196..1519765	-	189	56552391	-	ZMO1495	-	hypothetical protein
1496	 48.83	0	1520273..1522930	+	885	56552392	ppc	ZMO1496	-	phosphoenolpyruvate carboxylase
1497	 46.69	0	1523074..1524570	-	498	56552393	-	ZMO1497	-	amino acid transporter
1498	 44.44	0	1524902..1525279	-	125	56552394	apaH	ZMO1498	-	diadenosine tetraphosphate hydrolase
1499	 45.68	0	1525425..1525748	-	107	56552395	hisE	ZMO1499	-	phosphoribosyl-ATP pyrophosphohydrolase
1500	 53.26	+1	1525853..1526620	-	255	56552396	hisF	ZMO1500	-	imidazole glycerol phosphate synthase subunit HisF
1501	 51.06	0	1526617..1527417	-	266	56552397	hisA	ZMO1501	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1502	 49.42	0	1527474..1528163	-	229	56552398	hisH	ZMO1502	-	imidazole glycerol phosphate synthase subunit HisH
1503	 46.70	0	1528117..1528737	-	206	56552399	hisB	ZMO1503	-	imidazoleglycerol-phosphate dehydratase
1504	 47.56	0	1528795..1529286	+	163	56552400	-	ZMO1504	-	hypothetical protein
1505	 38.17	-1	1529317..1529502	+	61	56552401	-	ZMO1505	-	hypothetical protein
1506	 49.26	0	1529509..1529847	+	112	56552402	-	ZMO1506	-	hypothetical protein
1507	 46.63	0	1529918..1530451	-	177	56552403	ppa	ZMO1507	-	inorganic pyrophosphatase
1508	 38.78	-1	1530657..1530803	+	48	56552404	hisS	ZMO1508	-	histidyl-tRNA synthetase
1509	 49.30	0	1531912..1532988	+	358	56552405	prfA	ZMO1509	-	protein chain release factor A
1510	 46.27	0	1532945..1533841	+	298	56552406	-	ZMO1510	-	protein chain release factors methylase subunit
1511	 49.63	0	1534152..1535225	+	357	56552407	-	ZMO1511	-	hypothetical protein
1512	 42.51	0	1535287..1537074	-	595	56552408	-	ZMO1512	-	ABC-type transport system ATPase components
1513	 50.00	0	1537151..1539520	-	789	56552409	pheT	ZMO1513	-	phenylalanyl-tRNA synthetase subunit beta
1514	 49.77	0	1539517..1540617	-	366	56552410	pheS	ZMO1514	-	phenylalanyl-tRNA synthetase alpha subunit
1515	 50.79	0	1540906..1541283	-	125	56552411	rplT	ZMO1515	-	50S ribosomal protein L20
1516	 48.04	0	1541297..1541500	-	67	56552412	rpmI	ZMO1516	-	50S ribosomal protein L35
1517	 46.91	0	1541457..1541618	-	53	56552413	-	ZMO1517	-	hypothetical protein
1518	 47.44	0	1541646..1542425	-	259	56552414	cbbF	ZMO1518	-	fructose-1,6-bisphosphatase
1519	 48.61	0	1542471..1543406	-	311	56552415	prsA	ZMO1519	-	ribose-phosphate pyrophosphokinase
1520	 41.56	0	1543611..1543841	-	76	56552416	-	ZMO1520	-	hypothetical protein
1521	 38.69	-1	1543990..1544568	-	192	56552417	-	ZMO1521	-	hypothetical protein
1522	 44.42	0	1544960..1548106	+	1048	56552418	-	ZMO1522	-	hypothetical protein
1523	 41.67	0	1548378..1548485	-	35	56552419	-	ZMO1523	-	hypothetical protein
1524	 43.87	0	1548492..1549421	+	309	56552420	-	ZMO1524	-	hypothetical protein
1525	 48.64	0	1549489..1552584	-	1031	56552421	-	ZMO1525	-	outer membrane protein
1526	 52.85	+1	1552675..1552797	-	40	56552422	-	ZMO1526	-	hypothetical protein
1527	 50.09	0	1552727..1556026	-	1099	56552423	-	ZMO1527	-	cation/multidrug efflux pump
1528	 50.53	0	1556023..1559121	-	1032	56552424	-	ZMO1528	-	cation/multidrug efflux pump
1529	 49.77	0	1559161..1560456	-	431	56552425	-	ZMO1529	-	RND efflux membrane fusion protein
1530	 49.36	0	1560938..1561948	+	336	56552426	-	ZMO1530	-	hypothetical protein
1531	 47.44	0	1562121..1562354	+	77	56552427	purS	ZMO1531	-	phosphoribosylformylglycinamidine synthase small subunit
1532	 50.45	0	1562354..1563019	+	221	56552428	purQ	ZMO1532	-	phosphoribosylformylglycinamidine synthase large subunit
1533	 45.81	0	1563462..1564046	+	194	56552429	-	ZMO1533	-	hypothetical protein
1534	 39.17	-1	1564166..1564285	-	39	56552430	-	ZMO1534	-	hypothetical protein
1535	 42.57	0	1564380..1564682	+	100	56552431	-	ZMO1535	-	hypothetical protein
1536	 27.76	-2	1565172..1566839	-	555	56552432	-	ZMO1536	-	ATPase
1537	 44.44	0	1567590..1567697	-	35	56552433	-	ZMO1537	-	hypothetical protein
1538	 51.20	0	1567772..1571146	-	1124	56552434	dnaE	ZMO1538	-	DNA polymerase III alpha subunit
1539	 33.33	-2	1571503..1571634	+	43	56552435	-	ZMO1539	-	hypothetical protein
1540	 49.17	0	1571649..1571951	+	100	56552436	feoA	ZMO1540	-	Fe2+ transport system protein A
1541	 49.53	0	1571957..1573882	+	641	56552437	feoB	ZMO1541	-	Fe2+ transport system protein B
1542	 50.52	0	1573978..1574559	+	193	56552438	ssb	ZMO1542	-	single-strand DNA binding protein
1543	 50.78	0	1574633..1576495	-	620	56552439	cobT	ZMO1543	-	cobalamin biosynthesis protein
1544	 49.49	0	1576502..1577485	-	327	56552440	cobS	ZMO1544	-	MoxR-like ATPase
1545	 51.92	+1	1577514..1578137	-	207	56552441	-	ZMO1545	-	DnaJ-class molecular chaperone
1546	 49.85	0	1577687..1578334	-	215	56552442	-	ZMO1546	-	DnaJ-class molecular chaperone
1547	 50.26	0	1578272..1578838	+	188	56552443	-	ZMO1547	-	transcriptional regulator
1548	 50.05	0	1578854..1581031	+	725	56552444	shc	ZMO1548	-	squalene--hopene cyclase
1549	 49.35	0	1581396..1581701	+	101	56552445	bolA	ZMO1549	-	hypothetical protein
1550	 51.57	0	1581790..1582458	+	222	56552446	hisG	ZMO1550	-	ATP phosphoribosyltransferase catalytic subunit
1551	 52.35	+1	1582700..1583740	+	346	56552447	hisD	ZMO1551	-	histidinol dehydrogenase
1552	 45.64	0	1583824..1584213	+	129	56552448	-	ZMO1552	-	transcription termination factor
1553	 49.38	0	1584226..1585197	+	323	56552449	thiL	ZMO1553	-	thiamine-monophosphate kinase
1554	 48.77	0	1585506..1586276	+	256	56552450	-	ZMO1554	-	hypothetical protein
1555	 47.01	0	1586326..1586442	-	38	56552451	-	ZMO1555	-	hypothetical protein
1556	 46.36	0	1586582..1587970	+	462	56552452	gsh	ZMO1556	-	gamma-glutamylcysteine synthetase
1557	 50.29	0	1588393..1589919	+	508	56552453	purF	ZMO1557	-	amidophosphoribosyltransferase
1558	 30.08	-2	1590247..1590369	+	40	56552454	-	ZMO1558	-	hypothetical protein
1559	 35.96	-1	1590908..1591021	-	37	56552455	-	ZMO1559	-	hypothetical protein
1560	 33.33	-2	1591103..1591222	-	39	56552456	-	ZMO1560	-	hypothetical protein
1561	 51.06	0	1591364..1592068	+	234	56552457	-	ZMO1561	-	dehydrogenase
1562	 43.16	0	1592135..1592602	+	155	56552458	-	ZMO1562	-	NTP pyrophosphohydrolase
1563	 46.99	0	1592747..1593610	+	287	56552459	-	ZMO1563	-	putative salt-induced outer membrane protein
1564	 43.56	0	1593835..1594401	-	188	56552460	-	ZMO1564	-	putative nicotinamide mononucleotide transporter
1565	 48.04	0	1594481..1594582	+	33	56552461	-	ZMO1565	-	hypothetical protein
1566	 46.91	0	1594871..1595194	+	107	56552462	-	ZMO1566	-	hypothetical protein
1567	 45.30	0	1596024..1596374	-	116	56552463	-	ZMO1567	-	hypothetical protein
1568	 47.59	0	1596387..1598126	-	579	56552464	-	ZMO1568	-	TonB-dependent receptor
1569	 50.68	0	1598969..1599781	-	270	56552465	pflA	ZMO1569	-	pyruvate-formate lyase activating enzyme
1570	 49.57	0	1599744..1602059	-	771	56552466	pfl	ZMO1570	-	formate acetyltransferase
1571	 49.62	0	1602823..1604253	+	476	56552467	cydA	ZMO1571	-	cytochrome bd-type quinol oxidase subunit 1
1572	 50.83	0	1604260..1605282	+	340	56552468	cydB	ZMO1572	-	cytochrome bd-type quinol oxidase subunit 2
1573	 44.95	0	1605592..1606521	+	309	56552469	-	ZMO1573	-	iron-dependent peroxidase
1574	 43.23	0	1606647..1607555	+	302	56552470	-	ZMO1574	-	transcriptional regulatory protein
1575	 38.46	-1	1607654..1607770	+	38	56552471	-	ZMO1575	-	hypothetical protein
1576	 47.26	0	1607748..1608494	+	248	56552472	-	ZMO1576	-	short-chain alcohol dehydrogenase
1577	 46.68	0	1608752..1609972	+	406	56552473	opdE	ZMO1577	-	arabinose efflux permease
46.43	MEAN

5.31	STD DEV
