IslandPathversion 1.0

IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

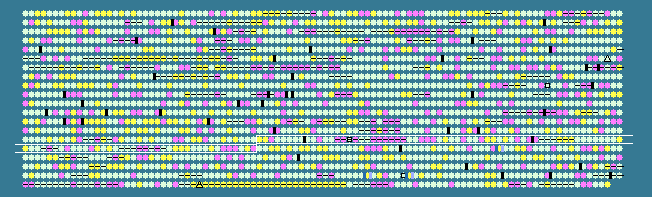

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1440	 50.30	0	1456294..1457124	-	276	56552336	-	ZMO1440	-	hypothetical protein
1441	 51.39	0	1457593..1458711	+	372	56552337	-	ZMO1441	-	glycine oxidase
1442	 41.89	0	1458759..1459658	-	299	56552338	-	ZMO1442	-	hypothetical protein
1443	 43.04	0	1459840..1461168	+	442	56552339	-	ZMO1443	-	hypothetical protein
1444	 49.83	0	1461544..1463592	-	682	56552340	glyS	ZMO1444	-	glycyl-tRNA synthetase beta subunit
1445	 48.80	0	1463596..1464468	-	290	56552342	glyQ	ZMO1446	-	glycyl-tRNA synthetase subunit alpha
1446	 43.24	0	1464445..1464555	+	36	56552341	-	ZMO1445	-	hypothetical protein
1447	 44.07	0	1464799..1465860	+	353	56552343	-	ZMO1447	-	hypothetical protein
1448	 43.00	0	1466065..1466457	-	130	56552344	-	ZMO1448	-	hypothetical protein
1449	 46.49	0	1466692..1468203	-	503	56552345	sorE	ZMO1449	-	L-sorbose reductase
1450	 42.77	0	1468622..1470031	+	469	56552346	phrB	ZMO1450	-	DNA photolyase
1451	 46.27	0	1470129..1471226	-	365	56552347	-	ZMO1451	-	putative purine nucleoside permease
1452	 48.21	0	1471381..1472610	-	409	56552348	araJ	ZMO1452	-	arabinose efflux permease
1453	 35.19	-2	1472592..1472699	+	35	56552349	-	ZMO1453	-	hypothetical protein
1454	 30.77	-2	1472611..1472766	-	51	56552350	-	ZMO1454	-	hypothetical protein
1455	 46.90	0	1472781..1473377	+	198	56552351	-	ZMO1455	-	transposase
1456	 42.77	0	1473684..1474340	+	218	56552352	-	ZMO1456	-	LysE family efflux protein
1457	 44.68	0	1474414..1475832	+	472	56552353	-	ZMO1457	-	MFS permease
1458	 47.03	0	1475864..1477645	+	593	56552354	-	ZMO1458	-	hypothetical protein
1459	 29.49	-2	1477661..1478284	-	207	56552355	-	ZMO1459	-	putative transport protein
1460	 38.11	-1	1478239..1479117	-	292	56552356	sseA	ZMO1460	-	thiosulfate sulfurtransferase
1461	 40.35	-1	1479119..1480273	-	384	56552357	-	ZMO1461	-	hypothetical protein
1462	 39.55	-1	1480266..1481198	-	310	56552358	-	ZMO1462	-	hypothetical protein
1463	 37.76	-1	1481213..1483021	-	602	56552359	-	ZMO1463	-	TonB-dependent receptor
1464	 40.79	-1	1483757..1483984	-	75	56552360	-	ZMO1464	-	hypothetical protein
1465	 46.20	0	1484217..1485545	-	442	56552361	-	ZMO1465	-	putative transport protein
1466	 45.71	0	1485749..1486540	-	263	56552362	-	ZMO1466	-	oxidoreductase
1467	 41.94	0	1486762..1487586	+	274	56552363	-	ZMO1467	-	ABC-2 transporter
1468	 31.35	-2	1487628..1490051	-	807	56552364	-	ZMO1468	-	hypothetical protein
1469	 28.95	-2	1490405..1490518	+	37	56552365	-	ZMO1469	-	hypothetical protein
1470	 49.82	0	1490501..1491337	-	278	56552366	-	ZMO1470	-	hypothetical protein
1471	 50.72	0	1491624..1493441	-	605	56552367	-	ZMO1471	-	membrane GTPase
1472	 43.33	0	1493400..1493519	+	39	56552368	-	ZMO1472	-	hypothetical protein
1473	 43.22	0	1493885..1494622	+	245	56552369	-	ZMO1473	-	hypothetical protein
1474	 29.71	-2	1494640..1494777	+	45	56552370	-	ZMO1474	-	hypothetical protein
1475	 47.83	0	1495116..1497578	+	820	56552371	-	ZMO1475	-	TonB dependent receptor
1476	 44.75	0	1497814..1498137	+	107	56552372	-	ZMO1476	-	hypothetical protein
1477	 29.42	-2	1498159..1499052	-	297	56552373	-	ZMO1477	-	hypothetical protein
1478	 51.26	0	1499110..1499862	-	250	56552374	pgl	ZMO1478	-	6-phosphogluconolactonase
1479	 50.59	0	1500150..1501082	-	310	56552375	etfA	ZMO1479	-	electron transfer flavoprotein alpha-subunit
1480	 46.67	0	1501079..1501828	-	249	56552376	etfB	ZMO1480	-	electron transfer flavoprotein beta-subunit
1481	 50.04	0	1501891..1503087	-	398	56552377	sucC	ZMO1481	-	succinyl-CoA synthetase beta subunit
1482	 47.52	0	1503619..1506819	-	1066	56552378	-	ZMO1482	-	serine protease
1483	 17.22	-2	1506915..1507094	-	59	56552379	-	ZMO1483	-	hypothetical protein
1484	 47.14	0	1507125..1510268	-	1047	56552380	-	ZMO1484	-	DNA and RNA helicase
1485	 42.80	0	1510373..1511713	+	446	56552381	-	ZMO1485	-	dGTP triphosphohydrolase
1486	 34.88	-2	1511889..1512017	+	42	56552382	-	ZMO1486	-	hypothetical protein
1487	 44.02	0	1512033..1512809	-	258	56552383	-	ZMO1487	-	hypothetical protein
1488	 49.37	0	1512942..1513820	-	292	56552384	kdsA	ZMO1488	-	2-dehydro-3-deoxyphosphooctonate aldolase
1489	 48.56	0	1513837..1514637	-	266	56552385	kdsB	ZMO1489	-	3-deoxy-manno-octulosonate cytidylyltransferase
1490	 51.54	0	1515030..1515644	+	204	56552386	-	ZMO1490	-	putative outer membrane protein
1491	 52.24	+1	1515939..1516742	+	267	56552387	-	ZMO1491	-	putative outer membrane protein
1492	 67.76	+2	1517027..1517209	-	60	56552388	-	ZMO1492	-	hypothetical protein
1493	 45.77	0	1517546..1518124	-	192	56552389	-	ZMO1493	-	hypothetical protein
1494	 47.90	0	1518145..1519050	-	301	56552390	argB	ZMO1494	-	acetylglutamate kinase
1495	 43.86	0	1519196..1519765	-	189	56552391	-	ZMO1495	-	hypothetical protein
1496	 48.83	0	1520273..1522930	+	885	56552392	ppc	ZMO1496	-	phosphoenolpyruvate carboxylase
1497	 46.69	0	1523074..1524570	-	498	56552393	-	ZMO1497	-	amino acid transporter
1498	 44.44	0	1524902..1525279	-	125	56552394	apaH	ZMO1498	-	diadenosine tetraphosphate hydrolase
1499	 45.68	0	1525425..1525748	-	107	56552395	hisE	ZMO1499	-	phosphoribosyl-ATP pyrophosphohydrolase
1500	 53.26	+1	1525853..1526620	-	255	56552396	hisF	ZMO1500	-	imidazole glycerol phosphate synthase subunit HisF
1501	 51.06	0	1526617..1527417	-	266	56552397	hisA	ZMO1501	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1502	 49.42	0	1527474..1528163	-	229	56552398	hisH	ZMO1502	-	imidazole glycerol phosphate synthase subunit HisH
1503	 46.70	0	1528117..1528737	-	206	56552399	hisB	ZMO1503	-	imidazoleglycerol-phosphate dehydratase
1504	 47.56	0	1528795..1529286	+	163	56552400	-	ZMO1504	-	hypothetical protein
1505	 38.17	-1	1529317..1529502	+	61	56552401	-	ZMO1505	-	hypothetical protein
1506	 49.26	0	1529509..1529847	+	112	56552402	-	ZMO1506	-	hypothetical protein
1507	 46.63	0	1529918..1530451	-	177	56552403	ppa	ZMO1507	-	inorganic pyrophosphatase
1508	 38.78	-1	1530657..1530803	+	48	56552404	hisS	ZMO1508	-	histidyl-tRNA synthetase
1509	 49.30	0	1531912..1532988	+	358	56552405	prfA	ZMO1509	-	protein chain release factor A
1510	 46.27	0	1532945..1533841	+	298	56552406	-	ZMO1510	-	protein chain release factors methylase subunit
1511	 49.63	0	1534152..1535225	+	357	56552407	-	ZMO1511	-	hypothetical protein
1512	 42.51	0	1535287..1537074	-	595	56552408	-	ZMO1512	-	ABC-type transport system ATPase components
1513	 50.00	0	1537151..1539520	-	789	56552409	pheT	ZMO1513	-	phenylalanyl-tRNA synthetase subunit beta
1514	 49.77	0	1539517..1540617	-	366	56552410	pheS	ZMO1514	-	phenylalanyl-tRNA synthetase alpha subunit
1515	 50.79	0	1540906..1541283	-	125	56552411	rplT	ZMO1515	-	50S ribosomal protein L20
1516	 48.04	0	1541297..1541500	-	67	56552412	rpmI	ZMO1516	-	50S ribosomal protein L35
1517	 46.91	0	1541457..1541618	-	53	56552413	-	ZMO1517	-	hypothetical protein
1518	 47.44	0	1541646..1542425	-	259	56552414	cbbF	ZMO1518	-	fructose-1,6-bisphosphatase
1519	 48.61	0	1542471..1543406	-	311	56552415	prsA	ZMO1519	-	ribose-phosphate pyrophosphokinase
1520	 41.56	0	1543611..1543841	-	76	56552416	-	ZMO1520	-	hypothetical protein
1521	 38.69	-1	1543990..1544568	-	192	56552417	-	ZMO1521	-	hypothetical protein
1522	 44.42	0	1544960..1548106	+	1048	56552418	-	ZMO1522	-	hypothetical protein
1523	 41.67	0	1548378..1548485	-	35	56552419	-	ZMO1523	-	hypothetical protein
1524	 43.87	0	1548492..1549421	+	309	56552420	-	ZMO1524	-	hypothetical protein
1525	 48.64	0	1549489..1552584	-	1031	56552421	-	ZMO1525	-	outer membrane protein
1526	 52.85	+1	1552675..1552797	-	40	56552422	-	ZMO1526	-	hypothetical protein
1527	 50.09	0	1552727..1556026	-	1099	56552423	-	ZMO1527	-	cation/multidrug efflux pump
1528	 50.53	0	1556023..1559121	-	1032	56552424	-	ZMO1528	-	cation/multidrug efflux pump
1529	 49.77	0	1559161..1560456	-	431	56552425	-	ZMO1529	-	RND efflux membrane fusion protein
1530	 49.36	0	1560938..1561948	+	336	56552426	-	ZMO1530	-	hypothetical protein
1531	 47.44	0	1562121..1562354	+	77	56552427	purS	ZMO1531	-	phosphoribosylformylglycinamidine synthase small subunit
1532	 50.45	0	1562354..1563019	+	221	56552428	purQ	ZMO1532	-	phosphoribosylformylglycinamidine synthase large subunit
1533	 45.81	0	1563462..1564046	+	194	56552429	-	ZMO1533	-	hypothetical protein
1534	 39.17	-1	1564166..1564285	-	39	56552430	-	ZMO1534	-	hypothetical protein
1535	 42.57	0	1564380..1564682	+	100	56552431	-	ZMO1535	-	hypothetical protein
1536	 27.76	-2	1565172..1566839	-	555	56552432	-	ZMO1536	-	ATPase
1537	 44.44	0	1567590..1567697	-	35	56552433	-	ZMO1537	-	hypothetical protein
1538	 51.20	0	1567772..1571146	-	1124	56552434	dnaE	ZMO1538	-	DNA polymerase III alpha subunit
1539	 33.33	-2	1571503..1571634	+	43	56552435	-	ZMO1539	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
