IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

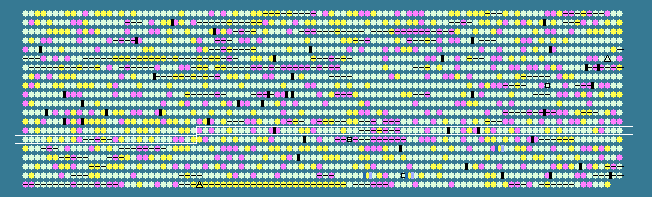

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.43   STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1330	 32.64	-2	1345700..1345843	-	47	56552226	-	ZMO1330	-	hypothetical protein
1331	 47.46	0	1345922..1348732	+	936	56552227	-	ZMO1331	-	small-conductance mechanosensitive channel
1332	 35.09	-2	1348878..1348991	+	37	56552228	-	ZMO1332	-	hypothetical protein
1333	 44.72	0	1349332..1349454	-	40	56552229	-	ZMO1333	-	hypothetical protein
1334	 44.39	0	1349455..1350069	+	204	56552230	-	ZMO1334	-	hypothetical protein
1335	 53.57	+1	1350349..1350951	+	200	56552231	wrbA	ZMO1335	-	TrpR binding protein WrbA
1336	 47.81	0	1351092..1352003	-	303	56552232	-	ZMO1336	-	transcriptional regulator
1337	 47.88	0	1352135..1352842	+	235	56552233	-	ZMO1337	-	hypothetical protein
1338	 47.15	0	1352846..1353460	-	204	56552234	-	ZMO1338	-	LysE family efflux protein
1339	 31.53	-2	1353459..1353569	+	36	56552235	-	ZMO1339	-	hypothetical protein
1340	 46.08	0	1354639..1354842	-	67	56552236	-	ZMO1340	-	MFS permease
1341	 49.74	0	1355504..1356088	-	194	56552237	-	ZMO1341	-	metalloprotease
1342	 40.00	-1	1356078..1356197	-	39	56552238	-	ZMO1342	-	hypothetical protein
1343	 37.04	-1	1356711..1356818	-	35	56552239	-	ZMO1343	-	hypothetical protein
1344	 47.94	0	1356974..1357822	+	282	56552240	dkg	ZMO1344	-	2,5-diketo-D-gluconate reductase
1345	 48.92	0	1357946..1360549	-	867	56552241	pepN	ZMO1345	-	aminopeptidase N
1346	 46.19	0	1360617..1361573	-	318	56552242	-	ZMO1346	-	drug/metabolite transporter
1347	 50.10	0	1361611..1362624	-	337	56552243	ltaE	ZMO1347	-	threonine aldolase
1348	 50.06	0	1362690..1363520	-	276	56552244	map	ZMO1348	-	methionine aminopeptidase
1349	 42.11	0	1363529..1363642	-	37	56552245	-	ZMO1349	-	hypothetical protein
1350	 48.16	0	1363633..1364394	+	253	56552246	-	ZMO1350	-	nucleotide-utilizing enzyme
1351	 47.56	0	1364407..1365411	+	334	56552247	clcD	ZMO1351	-	putative carboxymethylenebutenolidase
1352	 49.08	0	1365503..1366207	-	234	56552248	-	ZMO1352	-	integral membrane protein
1353	 45.81	0	1366463..1367023	-	186	56552249	-	ZMO1353	-	hypothetical protein
1354	 55.34	+1	1367207..1367983	-	258	56552250	-	ZMO1354	-	peptidoglycan-associated protein
1355	 48.55	0	1368723..1370588	-	621	56552251	-	ZMO1355	-	ABC transporter
1356	 48.59	0	1370683..1372137	-	484	56552252	dnaA	ZMO1356	-	chromosomal replication initiator protein
1357	 43.65	0	1372549..1372800	+	83	56552253	-	ZMO1357	-	hypothetical protein
1358	 48.48	0	1372804..1373067	-	87	56552254	rpsT	ZMO1358	-	30S ribosomal protein S20
1359	 33.33	-2	1373148..1373264	+	38	56552255	-	ZMO1359	-	hypothetical protein
1360	 52.37	+1	1373405..1375111	-	568	56552256	pdc	ZMO1360	-	pyruvate decarboxylase
1361	 36.51	-1	1375186..1375374	-	62	56552257	-	ZMO1361	-	hypothetical protein
1362	 46.39	0	1375358..1375648	-	96	56552258	-	ZMO1362	-	hypothetical protein
1363	 36.49	-1	1375810..1376031	+	73	56552259	-	ZMO1363	-	hypothetical protein
1364	 45.67	0	1376059..1377420	+	453	56552260	hemN	ZMO1364	-	coproporphyrinogen III oxidase
1365	 43.56	0	1379200..1380891	+	563	56552261	-	ZMO1365	-	hypothetical protein
1366	 48.78	0	1381072..1381686	+	204	56552262	rpsD	ZMO1366	-	30S ribosomal protein S4
1367	 43.33	0	1381820..1382059	+	79	56552263	-	ZMO1367	-	hypothetical protein
1368	 35.96	-1	1381951..1382064	-	37	56552264	-	ZMO1368	-	hypothetical protein
1369	 49.03	0	1382194..1383174	+	326	56552265	-	ZMO1369	-	peptidylarginine deiminase
1370	 47.70	0	1383186..1384034	+	282	56552266	-	ZMO1370	-	hydrolase
1371	 43.27	0	1384005..1384175	-	56	56552267	-	ZMO1371	-	hypothetical protein
1372	 46.10	0	1384622..1385467	-	281	56552268	-	ZMO1372	-	short chain dehydrogenase
1373	 44.44	0	1385910..1386422	+	170	56552269	-	ZMO1373	-	hypothetical protein
1374	 42.56	0	1386585..1387538	-	317	56552270	-	ZMO1374	-	hypothetical protein
1375	 51.49	0	1387670..1388341	-	223	56552271	rnc	ZMO1375	-	ribonuclease III
1376	 35.04	-2	1388469..1388585	+	38	56552272	-	ZMO1376	-	hypothetical protein
1377	 49.28	0	1388708..1389886	-	392	56552273	-	ZMO1377	-	hypothetical protein
1378	 50.00	0	1390186..1391595	-	469	56552274	eutP	ZMO1378	-	amino acid transporter
1379	 35.09	-2	1391558..1391785	-	75	56552275	-	ZMO1379	-	hypothetical protein
1380	 47.90	0	1391915..1392985	-	356	56552276	-	ZMO1380	-	transcriptional regulatory protein
1381	 48.69	0	1393189..1394373	-	394	56552277	-	ZMO1381	-	hypothetical protein
1382	 49.92	0	1394440..1395759	+	439	56552278	-	ZMO1382	-	putative aminotransferase
1383	 40.20	-1	1395857..1395958	+	33	56552279	-	ZMO1383	-	hypothetical protein
1384	 48.75	0	1395955..1396875	+	306	56552280	era	ZMO1384	-	GTP-binding protein Era
1385	 47.76	0	1396959..1398233	+	424	56552281	-	ZMO1385	-	hypothetical protein
1386	 47.27	0	1398243..1398938	+	231	56552282	-	ZMO1386	-	hypothetical protein
1387	 43.26	0	1399125..1399829	+	234	56552283	-	ZMO1387	-	two-component response regulator
1388	 51.10	0	1399964..1401730	-	588	56552284	ggt	ZMO1388	-	gamma-glutamyltransferase
1389	 48.05	0	1401890..1404070	+	726	56552285	dsbD1	ZMO1389	-	thiol:disulfide interchange protein
1390	 50.44	0	1404125..1405030	-	301	56552286	-	ZMO1390	-	hypothetical protein
1391	 48.36	0	1405104..1406081	-	325	56552287	-	ZMO1391	-	sphingosine kinase
1392	 46.63	0	1406078..1406581	-	167	56552288	-	ZMO1392	-	hypothetical protein
1393	 44.63	0	1407222..1407956	+	244	56552289	-	ZMO1393	-	permease
1394	 46.48	0	1407953..1409047	+	364	56552290	-	ZMO1394	-	permease
1395	 48.26	0	1409049..1409912	-	287	56552291	hutG	ZMO1395	-	N-formylglutamate amidohydrolase
1396	 50.37	0	1409897..1410571	-	224	56552292	-	ZMO1396	-	hypothetical protein
1397	 34.26	-2	1410688..1410795	+	35	56552293	-	ZMO1397	-	hypothetical protein
1398	 44.18	0	1410900..1411148	-	82	56552294	-	ZMO1398	-	hypothetical protein
1399	 45.04	0	1411450..1412124	+	224	56552295	-	ZMO1399	-	hypothetical protein
1400	 45.16	0	1412260..1413417	+	385	56552296	-	ZMO1400	-	hypothetical protein
1401	 45.67	0	1413496..1414281	-	261	56552297	-	ZMO1401	-	nuclease
1402	 45.98	0	1414281..1414628	-	115	56552298	-	ZMO1402	-	hypothetical protein
1403	 48.82	0	1414720..1415733	-	337	56552299	-	ZMO1403	-	membrane protein
1404	 48.07	0	1415947..1416645	-	232	56552300	rpoE	ZMO1404	-	RNA polymerase sigma-24 factor
1405	 51.07	0	1416713..1417507	-	264	56552301	-	ZMO1405	-	two-component response regulator
1406	 47.01	0	1417737..1418489	-	250	56552302	-	ZMO1406	-	hydrolase
1407	 50.19	0	1418707..1419732	-	341	56552303	asd	ZMO1407	-	aspartate-semialdehyde dehydrogenase
1408	 48.64	0	1419839..1422001	-	720	56552304	pepX	ZMO1408	-	dipeptidyl aminopeptidase
1409	 51.89	+1	1422224..1423042	-	272	56552305	cbbF	ZMO1409	-	fructose-1,6-bisphosphatase
1410	 42.28	0	1423567..1424058	+	163	56552306	bfr	ZMO1410	-	bacterioferritin
1411	 44.91	0	1424178..1424609	-	143	56552307	fur	ZMO1411	-	Fe2+/Zn2+ uptake regulation protein
1412	 49.28	0	1424857..1425270	-	137	56552308	-	ZMO1412	-	transcriptional regulator
1413	 41.09	-1	1425446..1425922	-	158	56552309	-	ZMO1413	-	acetyltransferase
1414	 52.95	+1	1425919..1426545	-	208	56552310	-	ZMO1414	-	metal-dependent protease
1415	 44.64	0	1426545..1427048	-	167	56552311	-	ZMO1415	-	thioredoxin-like protein
1416	 37.98	-1	1427040..1427168	+	42	56552312	-	ZMO1416	-	hypothetical protein
1417	 52.94	+1	1427547..1428923	+	458	56552313	-	ZMO1417	-	DNA and RNA helicase
1418	 46.81	0	1429259..1429399	-	46	56552314	-	ZMO1418	-	hypothetical protein
1419	 48.07	0	1429482..1430438	-	318	56552315	ubiA	ZMO1419	-	prenyltransferase
1420	 50.56	0	1430675..1431214	+	179	56552316	purE	ZMO1420	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
1421	 47.11	0	1431211..1432299	+	362	56552317	purK	ZMO1421	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1422	 50.19	0	1432377..1435283	-	968	56552318	-	ZMO1422	-	Zn-dependent peptidase
1423	 48.34	0	1435414..1438191	-	925	56552319	-	ZMO1423	-	Zn-dependent peptidase
1424	 49.87	0	1438454..1441048	+	864	56552320	clpB	ZMO1424	-	ATP-dependent Clp protease
1425	 45.01	0	1441155..1441745	-	196	56552321	thiE	ZMO1425	-	thiamine monophosphate synthase
1426	 40.38	-1	1441905..1442330	+	141	56552322	-	ZMO1426	-	DNA repair protein
1427	 34.69	-2	1442441..1442587	-	48	56552323	-	ZMO1427	-	hypothetical protein
1428	 43.18	0	1442587..1443480	+	297	56552324	-	ZMO1428	-	sphingosine kinase
1429	 50.70	0	1443606..1445309	-	567	56552325	oprM	ZMO1429	-	multidrug efflux pump outer membrane component
46.43	MEAN

5.31	STD DEV
