IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

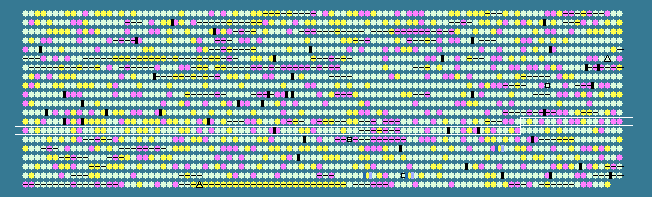

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1284	 49.62	0	1296344..1297786	-	480	56552180	sldC	ZMO1284	-	sorbitol dehydrogenase cytochrome c subunit
1285	 50.67	0	1297779..1299416	-	545	56552181	sldL	ZMO1285	-	solbitol dehydrogenase large subunit
1286	 47.64	0	1299435..1300028	-	197	56552182	sldS	ZMO1286	-	sorbitol dehydrogenase small subunit
1287	 40.09	-1	1300474..1301568	-	364	56552183	-	ZMO1287	-	LPS glycosyltransferase
1288	 48.22	0	1301964..1303085	+	373	56552184	-	ZMO1288	-	MFS permease
1289	 46.99	0	1303193..1303441	-	82	56552185	-	ZMO1289	-	transglycosylase associated protein
1290	 39.32	-1	1303544..1303660	+	38	56552186	-	ZMO1290	-	hypothetical protein
1291	 47.36	0	1303635..1305245	-	536	56552187	-	ZMO1291	-	carboxypeptidase-related protein
1292	 35.15	-2	1305697..1305861	-	54	56552188	-	ZMO1292	-	hypothetical protein
1293	 39.46	-1	1305786..1305932	+	48	56552189	-	ZMO1293	-	hypothetical protein
1294	 51.36	0	1305913..1306866	+	317	56552190	murQ	ZMO1294	-	N-acetylmuramic acid-6-phosphate etherase
1295	 45.41	0	1306863..1307516	+	217	56552191	-	ZMO1295	-	organic radical activating enzyme
1296	 42.99	0	1309332..1310087	-	251	56552192	-	ZMO1296	-	hypothetical protein
1297	 29.66	-2	1310218..1310544	+	108	56552193	-	ZMO1297	-	hypothetical protein
1298	 45.04	0	1310721..1313138	+	805	56552194	-	ZMO1298	-	TonB-dependent receptor
1299	 38.56	-1	1314028..1315653	+	541	56552195	bcbG	ZMO1299	-	capsular polysaccharide biosynthesis protein
1300	 35.68	-2	1315650..1316372	+	240	56552196	bcbE	ZMO1300	-	capsular polysaccharide biosynthesis protein
1301	 30.03	-2	1316403..1317491	-	362	56552197	-	ZMO1301	-	hypothetical protein
1302	 47.00	0	1317728..1318378	+	216	56552198	lipB	ZMO1302	-	lipoyltransferase
1303	 50.99	0	1318505..1319359	-	284	56552199	proC	ZMO1303	-	pyrroline-5-carboxylate reductase
1304	 47.65	0	1319410..1319919	-	169	56552200	-	ZMO1304	-	hypothetical protein
1305	 46.76	0	1320048..1320263	-	71	56552201	-	ZMO1305	-	hypothetical protein
1306	 48.27	0	1320469..1321218	-	249	56552202	-	ZMO1306	-	rRNA methylase
1307	 48.36	0	1321511..1323034	+	507	56552203	fumA	ZMO1307	-	fumarate hydratase
1308	 47.65	0	1323127..1323573	-	148	56552204	holC	ZMO1308	-	DNA polymerase III subunit chi
1309	 50.87	0	1323585..1325084	-	499	56552205	pepA	ZMO1309	-	leucyl aminopeptidase
1310	 33.33	-2	1325183..1325290	-	35	56552206	-	ZMO1310	-	hypothetical protein
1311	 47.29	0	1325487..1327778	+	763	56552207	ostA	ZMO1311	-	organic solvent tolerance protein
1312	 46.54	0	1327897..1329312	+	471	56552208	-	ZMO1312	-	peptidyl-prolyl isomerase
1313	 50.30	0	1329354..1330361	+	335	56552209	pdxA	ZMO1313	-	4-hydroxythreonine-4-phosphate dehydrogenase
1314	 50.54	0	1330372..1331208	+	278	56552210	ksgA	ZMO1314	-	dimethyladenosine transferase
1315	 44.25	0	1331220..1332089	-	289	56552211	-	ZMO1315	-	hypothetical protein
1316	 48.01	0	1332106..1333440	-	444	56552212	-	ZMO1316	-	hypothetical protein
1317	 47.73	0	1333526..1334296	-	256	56552213	-	ZMO1317	-	hypothetical protein
1318	 50.76	0	1334301..1335023	-	240	56552214	-	ZMO1318	-	hypothetical protein
1319	 47.94	0	1335527..1336156	-	209	56552215	-	ZMO1319	-	hypothetical protein
1320	 50.85	0	1336326..1337558	-	410	56552216	-	ZMO1320	-	tRNA and rRNA cytosine-C5-methylase
1321	 52.81	+1	1337588..1339045	-	485	56552217	guaB	ZMO1321	-	IMP dehydrogenase
1322	 48.45	0	1339322..1340029	+	235	56552218	-	ZMO1322	-	two-component response regulator
1323	 51.34	0	1339998..1341635	+	545	56552219	-	ZMO1323	-	two-component signal transduction histidine kinase
1324	 45.53	0	1341778..1342269	+	163	56552220	-	ZMO1324	-	HPr protein serine kinase
1325	 48.77	0	1342292..1343263	+	323	56552221	-	ZMO1325	-	hypothetical protein
1326	 49.63	0	1343271..1343675	+	134	56552222	nagE	ZMO1326	-	PTS system mannose/fructose-specific component IIA
1327	 50.92	0	1343672..1343944	+	90	56552223	-	ZMO1327	-	PTS system phosphocarrier protein HPr
1328	 50.93	0	1343962..1344768	+	268	56552224	-	ZMO1328	-	rRNA methylase
1329	 49.03	0	1344821..1345597	+	258	56552225	ppnK	ZMO1329	-	inorganic polyphosphate/ATP-NAD kinase
1330	 32.64	-2	1345700..1345843	-	47	56552226	-	ZMO1330	-	hypothetical protein
1331	 47.46	0	1345922..1348732	+	936	56552227	-	ZMO1331	-	small-conductance mechanosensitive channel
1332	 35.09	-2	1348878..1348991	+	37	56552228	-	ZMO1332	-	hypothetical protein
1333	 44.72	0	1349332..1349454	-	40	56552229	-	ZMO1333	-	hypothetical protein
1334	 44.39	0	1349455..1350069	+	204	56552230	-	ZMO1334	-	hypothetical protein
1335	 53.57	+1	1350349..1350951	+	200	56552231	wrbA	ZMO1335	-	TrpR binding protein WrbA
1336	 47.81	0	1351092..1352003	-	303	56552232	-	ZMO1336	-	transcriptional regulator
1337	 47.88	0	1352135..1352842	+	235	56552233	-	ZMO1337	-	hypothetical protein
1338	 47.15	0	1352846..1353460	-	204	56552234	-	ZMO1338	-	LysE family efflux protein
1339	 31.53	-2	1353459..1353569	+	36	56552235	-	ZMO1339	-	hypothetical protein
1340	 46.08	0	1354639..1354842	-	67	56552236	-	ZMO1340	-	MFS permease
1341	 49.74	0	1355504..1356088	-	194	56552237	-	ZMO1341	-	metalloprotease
1342	 40.00	-1	1356078..1356197	-	39	56552238	-	ZMO1342	-	hypothetical protein
1343	 37.04	-1	1356711..1356818	-	35	56552239	-	ZMO1343	-	hypothetical protein
1344	 47.94	0	1356974..1357822	+	282	56552240	dkg	ZMO1344	-	2,5-diketo-D-gluconate reductase
1345	 48.92	0	1357946..1360549	-	867	56552241	pepN	ZMO1345	-	aminopeptidase N
1346	 46.19	0	1360617..1361573	-	318	56552242	-	ZMO1346	-	drug/metabolite transporter
1347	 50.10	0	1361611..1362624	-	337	56552243	ltaE	ZMO1347	-	threonine aldolase
1348	 50.06	0	1362690..1363520	-	276	56552244	map	ZMO1348	-	methionine aminopeptidase
1349	 42.11	0	1363529..1363642	-	37	56552245	-	ZMO1349	-	hypothetical protein
1350	 48.16	0	1363633..1364394	+	253	56552246	-	ZMO1350	-	nucleotide-utilizing enzyme
1351	 47.56	0	1364407..1365411	+	334	56552247	clcD	ZMO1351	-	putative carboxymethylenebutenolidase
1352	 49.08	0	1365503..1366207	-	234	56552248	-	ZMO1352	-	integral membrane protein
1353	 45.81	0	1366463..1367023	-	186	56552249	-	ZMO1353	-	hypothetical protein
1354	 55.34	+1	1367207..1367983	-	258	56552250	-	ZMO1354	-	peptidoglycan-associated protein
1355	 48.55	0	1368723..1370588	-	621	56552251	-	ZMO1355	-	ABC transporter
1356	 48.59	0	1370683..1372137	-	484	56552252	dnaA	ZMO1356	-	chromosomal replication initiator protein
1357	 43.65	0	1372549..1372800	+	83	56552253	-	ZMO1357	-	hypothetical protein
1358	 48.48	0	1372804..1373067	-	87	56552254	rpsT	ZMO1358	-	30S ribosomal protein S20
1359	 33.33	-2	1373148..1373264	+	38	56552255	-	ZMO1359	-	hypothetical protein
1360	 52.37	+1	1373405..1375111	-	568	56552256	pdc	ZMO1360	-	pyruvate decarboxylase
1361	 36.51	-1	1375186..1375374	-	62	56552257	-	ZMO1361	-	hypothetical protein
1362	 46.39	0	1375358..1375648	-	96	56552258	-	ZMO1362	-	hypothetical protein
1363	 36.49	-1	1375810..1376031	+	73	56552259	-	ZMO1363	-	hypothetical protein
1364	 45.67	0	1376059..1377420	+	453	56552260	hemN	ZMO1364	-	coproporphyrinogen III oxidase
1365	 43.56	0	1379200..1380891	+	563	56552261	-	ZMO1365	-	hypothetical protein
1366	 48.78	0	1381072..1381686	+	204	56552262	rpsD	ZMO1366	-	30S ribosomal protein S4
1367	 43.33	0	1381820..1382059	+	79	56552263	-	ZMO1367	-	hypothetical protein
1368	 35.96	-1	1381951..1382064	-	37	56552264	-	ZMO1368	-	hypothetical protein
1369	 49.03	0	1382194..1383174	+	326	56552265	-	ZMO1369	-	peptidylarginine deiminase
1370	 47.70	0	1383186..1384034	+	282	56552266	-	ZMO1370	-	hydrolase
1371	 43.27	0	1384005..1384175	-	56	56552267	-	ZMO1371	-	hypothetical protein
1372	 46.10	0	1384622..1385467	-	281	56552268	-	ZMO1372	-	short chain dehydrogenase
1373	 44.44	0	1385910..1386422	+	170	56552269	-	ZMO1373	-	hypothetical protein
1374	 42.56	0	1386585..1387538	-	317	56552270	-	ZMO1374	-	hypothetical protein
1375	 51.49	0	1387670..1388341	-	223	56552271	rnc	ZMO1375	-	ribonuclease III
1376	 35.04	-2	1388469..1388585	+	38	56552272	-	ZMO1376	-	hypothetical protein
1377	 49.28	0	1388708..1389886	-	392	56552273	-	ZMO1377	-	hypothetical protein
1378	 50.00	0	1390186..1391595	-	469	56552274	eutP	ZMO1378	-	amino acid transporter
1379	 35.09	-2	1391558..1391785	-	75	56552275	-	ZMO1379	-	hypothetical protein
1380	 47.90	0	1391915..1392985	-	356	56552276	-	ZMO1380	-	transcriptional regulatory protein
1381	 48.69	0	1393189..1394373	-	394	56552277	-	ZMO1381	-	hypothetical protein
1382	 49.92	0	1394440..1395759	+	439	56552278	-	ZMO1382	-	putative aminotransferase
1383	 40.20	-1	1395857..1395958	+	33	56552279	-	ZMO1383	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
