IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

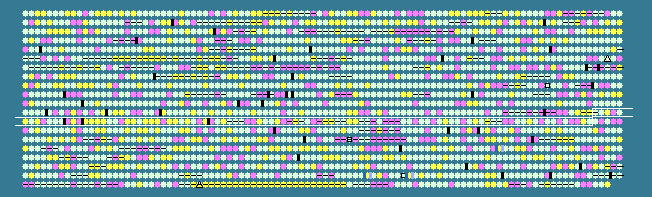

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1196	 46.99	0	1220894..1222306	+	470	56552092	-	ZMO1196	-	permease
1197	 48.26	0	1222331..1223161	+	276	56552093	murI	ZMO1197	-	glutamate racemase
1198	 50.29	0	1223297..1224511	+	404	161611318	hemA	ZMO1198	-	5-aminolevulinate synthase
1199	 35.80	-2	1224533..1224694	+	53	56552095	-	ZMO1199	-	hypothetical protein
1200	 46.62	0	1224730..1225203	+	157	56552096	rpiA	ZMO1200	-	ribose 5-phosphate isomerase
1201	 52.56	+1	1225223..1226512	+	429	56552097	glyA	ZMO1201	-	serine hydroxymethyltransferase
1202	 48.20	0	1226517..1226987	+	156	161611317	-	ZMO1202	-	transcriptional regulator NrdR
1203	 50.27	0	1226984..1227715	+	243	56552099	-	ZMO1203	-	rRNA methylase
1204	 42.05	0	1227843..1228037	-	64	56552100	-	ZMO1204	-	hypothetical protein
1205	 43.08	0	1228091..1228408	-	105	56552101	-	ZMO1205	-	hypothetical protein
1206	 46.58	0	1228898..1229848	-	316	56552102	-	ZMO1206	-	transcriptional regulator
1207	 48.48	0	1229918..1230907	+	329	56552103	-	ZMO1207	-	nitrilase
1208	 40.67	-1	1231254..1231580	-	108	56552104	-	ZMO1208	-	hypothetical protein
1209	 49.92	0	1231838..1233796	-	652	56552105	kup	ZMO1209	-	K+ transporter
1210	 39.84	-1	1233845..1234090	-	81	56552106	-	ZMO1210	-	hypothetical protein
1211	 50.19	0	1234263..1235609	-	448	56552107	gor	ZMO1211	-	pyruvate/2-oxoglutarate dehydrogenase complex
1212	 50.66	0	1235772..1237295	-	507	56552108	pgi	ZMO1212	-	glucose-6-phosphate isomerase
1213	 51.40	0	1237660..1238052	+	130	56552109	-	ZMO1213	-	hypothetical protein
1214	 50.17	0	1238222..1239700	+	492	56552110	-	ZMO1214	-	DNA and RNA helicase
1215	 46.95	0	1240045..1240257	+	70	56552111	-	ZMO1215	-	hypothetical protein
1216	 44.89	0	1240284..1241936	+	550	56552112	-	ZMO1216	-	two-component signal transduction histidine kinase
1217	 42.82	0	1242240..1242629	-	129	56552113	-	ZMO1217	-	hypothetical protein
1218	 50.32	0	1243598..1244386	-	262	56552114	tatC	ZMO1218	-	Sec-independent protein secretion pathway component
1219	 52.51	+1	1244383..1244841	-	152	56552115	tatB	ZMO1219	-	Sec-independent protein secretion pathway component
1220	 48.48	0	1244926..1245189	-	87	56552116	tatA	ZMO1220	-	Sec-independent protein secretion pathway component
1221	 51.99	+1	1245342..1246043	-	233	56552117	-	ZMO1221	-	hypothetical protein
1222	 51.49	0	1246156..1246893	-	245	56552118	-	ZMO1222	-	dehydrogenase
1223	 52.99	+1	1246963..1247898	-	311	56552119	fabD	ZMO1223	-	acyl-carrier-protein S-malonyltransferase
1224	 39.26	-1	1247925..1248059	+	44	56552120	-	ZMO1224	-	hypothetical protein
1225	 53.60	+1	1248419..1248793	+	124	56552121	rpsF	ZMO1225	-	30S ribosomal protein S6
1226	 52.44	+1	1248814..1249038	+	74	56552122	rpsR	ZMO1226	-	30S ribosomal protein S18
1227	 48.89	0	1249053..1249682	+	209	56552123	rplI	ZMO1227	-	50S ribosomal protein L9
1228	 51.10	0	1249762..1250757	-	331	56552124	ykfB	ZMO1228	-	mandelate racemase
1229	 48.87	0	1250845..1251507	-	220	56552125	folE	ZMO1229	-	GTP cyclohydrolase I
1230	 42.62	0	1251496..1251678	+	60	56552126	-	ZMO1230	-	hypothetical protein
1231	 50.00	0	1251782..1253359	+	525	56552127	recJ	ZMO1231	-	single-stranded DNA-specific exonuclease
1232	 38.46	-1	1253711..1255036	+	441	56552128	-	ZMO1232	-	glycosyltransferase
1233	 46.92	0	1255086..1256498	-	470	56552129	pmi	ZMO1233	-	mannose-6-phosphate isomerase
1234	 52.56	+1	1256550..1258499	-	649	56552130	dxs	ZMO1234	-	1-deoxy-D-xylulose-5-phosphate synthase
1235	 47.53	0	1258677..1259162	-	161	56552131	-	ZMO1235	-	transcriptional regulator
1236	 49.21	0	1259409..1260422	-	337	56552132	adhA	ZMO1236	-	alcohol dehydrogenase
1237	 46.39	0	1261124..1262119	-	331	56552133	ldhA	ZMO1237	-	D-lactate dehydrogenase
1238	 33.33	-2	1262094..1262210	+	38	56552134	-	ZMO1238	-	hypothetical protein
1239	 39.64	-1	1262273..1262383	+	36	56552135	-	ZMO1239	-	hypothetical protein
1240	 50.95	0	1262589..1263275	-	228	56552136	gpm	ZMO1240	-	phosphoglycerate mutase
1241	 44.93	0	1263379..1263516	+	45	56552137	-	ZMO1241	-	hypothetical protein
1242	 49.69	0	1263525..1264667	-	380	56552138	-	ZMO1242	-	carboxypeptidase
1243	 55.23	+1	1264664..1265476	-	270	56552139	-	ZMO1243	-	hypothetical protein
1244	 32.54	-2	1265495..1265620	+	41	56552140	-	ZMO1244	-	hypothetical protein
1245	 34.06	-2	1265601..1265738	+	45	56552141	-	ZMO1245	-	hypothetical protein
1246	 51.59	0	1265756..1265881	+	41	56552142	-	ZMO1246	-	ribosomal protein L36
1247	 47.15	0	1266432..1266554	+	40	56552143	-	ZMO1247	-	hypothetical protein
1248	 48.06	0	1266591..1267079	-	162	56552144	-	ZMO1248	-	hypothetical protein
1249	 42.86	0	1267369..1267620	-	83	56552145	-	ZMO1249	-	hypothetical protein
1250	 42.33	0	1267757..1267945	-	62	56552146	-	ZMO1250	-	hypothetical protein
1251	 50.10	0	1268042..1268530	-	162	56552147	-	ZMO1251	-	hypothetical protein
1252	 52.02	+1	1268562..1269203	-	213	56552148	-	ZMO1252	-	cytochrome c biogenesis factor
1253	 49.18	0	1269200..1269628	-	142	56552149	-	ZMO1253	-	cytochrome c biogenesis protein
1254	 49.89	0	1269625..1270065	-	146	56552150	-	ZMO1254	-	cytochrome c biogenesis protein
1255	 50.39	0	1270152..1272098	-	648	56552151	cycK	ZMO1255	-	cytochrome c biogenesis factor
1256	 54.65	+1	1272100..1272540	-	146	56552152	cycJ	ZMO1256	-	cytochrome c biogenesis protein
1257	 49.09	0	1272564..1272728	-	54	56552153	-	ZMO1257	-	hypothetical protein
1258	 48.54	0	1272725..1273441	-	238	56552154	cycZ	ZMO1258	-	ABC-type transport system heme exporter
1259	 35.66	-2	1273598..1273726	+	42	56552155	-	ZMO1259	-	hypothetical protein
1260	 43.28	0	1274039..1276291	+	750	56552156	-	ZMO1260	-	TonB-dependent receptor
1261	 41.74	0	1276477..1277535	+	352	56552157	ssuA	ZMO1261	-	ABC-type nitrate/sulfonate/bicarbonate transport system periplasmic components
1262	 41.85	0	1277480..1278313	+	277	56552158	ssuC	ZMO1262	-	ABC-type nitrate/sulfonate/bicarbonate transport system permease component
1263	 42.88	0	1278314..1279036	+	240	56552159	ssuB	ZMO1263	-	ABC-type nitrate/sulfonate/bicarbonate transport system ATPase component
1264	 44.42	0	1279074..1280255	+	393	56552160	rspA	ZMO1264	-	putative mandelate racemase
1265	 43.99	0	1280266..1280922	+	218	56552161	-	ZMO1265	-	metal-binding protein
1266	 42.01	0	1280950..1281168	+	72	56552162	-	ZMO1266	-	hypothetical protein
1267	 49.72	0	1281143..1282723	+	526	56552163	guaA	ZMO1267	-	bifunctional GMP synthase/glutamine amidotransferase protein
1268	 49.14	0	1282800..1283843	-	347	56552164	-	ZMO1268	-	hypothetical protein
1269	 41.27	0	1284042..1284419	-	125	56552165	-	ZMO1269	-	hypothetical protein
1270	 48.68	0	1284395..1285606	+	403	56552166	-	ZMO1270	-	serine palmitoyltransferase
1271	 49.94	0	1285737..1286603	-	288	56552167	cysG	ZMO1271	-	siroheme synthase
1272	 48.43	0	1286815..1288245	+	476	56552168	astD	ZMO1272	-	succinylglutamic semialdehyde dehydrogenase
1273	 46.97	0	1288295..1289878	-	527	56552169	-	ZMO1273	-	metal-dependent hydrolase
1274	 37.96	-1	1289962..1290069	-	35	56552170	-	ZMO1274	-	hypothetical protein
1275	 49.15	0	1290233..1291471	+	412	56552171	tdcB	ZMO1275	-	threonine dehydratase
1276	 55.42	+1	1291504..1291743	+	79	56552172	-	ZMO1276	-	hypothetical protein
1277	 47.90	0	1291947..1292948	-	333	56552173	-	ZMO1277	-	hypothetical protein
1278	 50.81	0	1292952..1294250	-	432	56552174	fabF	ZMO1278	-	3-oxoacyl-(acyl-carrier-protein) synthase
1279	 47.68	0	1294404..1294640	-	78	56552175	acpP	ZMO1279	-	acyl carrier protein
1280	 46.38	0	1294413..1294688	+	91	56552176	acpP	ZMO1280	-	acyl carrier protein
1281	 36.67	-1	1294828..1294977	+	49	56552177	-	ZMO1281	-	hypothetical protein
1282	 32.50	-2	1295081..1295200	+	39	56552178	-	ZMO1282	-	hypothetical protein
1283	 49.47	0	1295281..1296321	+	346	56552179	-	ZMO1283	-	LacI family transcriptional regulator
1284	 49.62	0	1296344..1297786	-	480	56552180	sldC	ZMO1284	-	sorbitol dehydrogenase cytochrome c subunit
1285	 50.67	0	1297779..1299416	-	545	56552181	sldL	ZMO1285	-	solbitol dehydrogenase large subunit
1286	 47.64	0	1299435..1300028	-	197	56552182	sldS	ZMO1286	-	sorbitol dehydrogenase small subunit
1287	 40.09	-1	1300474..1301568	-	364	56552183	-	ZMO1287	-	LPS glycosyltransferase
1288	 48.22	0	1301964..1303085	+	373	56552184	-	ZMO1288	-	MFS permease
1289	 46.99	0	1303193..1303441	-	82	56552185	-	ZMO1289	-	transglycosylase associated protein
1290	 39.32	-1	1303544..1303660	+	38	56552186	-	ZMO1290	-	hypothetical protein
1291	 47.36	0	1303635..1305245	-	536	56552187	-	ZMO1291	-	carboxypeptidase-related protein
1292	 35.15	-2	1305697..1305861	-	54	56552188	-	ZMO1292	-	hypothetical protein
1293	 39.46	-1	1305786..1305932	+	48	56552189	-	ZMO1293	-	hypothetical protein
1294	 51.36	0	1305913..1306866	+	317	56552190	murQ	ZMO1294	-	N-acetylmuramic acid-6-phosphate etherase
1295	 45.41	0	1306863..1307516	+	217	56552191	-	ZMO1295	-	organic radical activating enzyme
46.43	MEAN

5.31	STD DEV
