IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

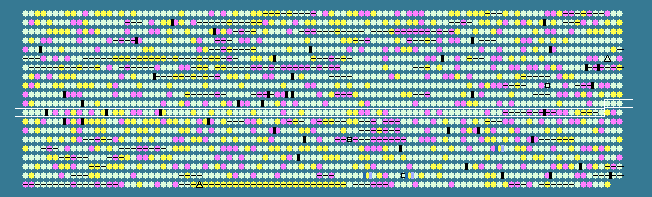

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1098	 48.52	0	1109545..1113033	-	1162	56551994	addA	ZMO1098	-	ATP-dependent exoDNAse beta subunit
1099	 49.16	0	1113043..1116024	-	993	56551995	-	ZMO1099	-	helicase
1100	 48.16	0	1116033..1116794	-	253	56551996	-	ZMO1100	-	nucleotidyl pyrophosphorylase
1101	 48.76	0	1116870..1117394	-	174	56551997	-	ZMO1101	-	ATPase
1102	 47.86	0	1117378..1119387	-	669	56551998	-	ZMO1102	-	two-component signal transduction histidine kinase
1103	 46.45	0	1119614..1119796	-	60	56551999	-	ZMO1103	-	hypothetical protein
1104	 48.78	0	1119821..1119943	-	40	56552000	-	ZMO1104	-	hypothetical protein
1105	 46.93	0	1120062..1122377	-	771	56552001	-	ZMO1105	-	two-component signal transduction histidine kinase
1106	 25.76	-2	1122400..1122531	+	43	56552002	-	ZMO1106	-	hypothetical protein
1107	 47.41	0	1122623..1123105	+	160	56552003	-	ZMO1107	-	transcriptional regulator
1108	 37.82	-1	1123174..1123329	-	51	56552004	-	ZMO1108	-	hypothetical protein
1109	 50.49	0	1123339..1124661	-	440	56552005	-	ZMO1109	-	hypothetical protein
1110	 32.43	-2	1124870..1124980	-	36	56552006	-	ZMO1110	-	hypothetical protein
1111	 44.87	0	1124998..1126245	+	415	56552007	-	ZMO1111	-	ABC transporter
1112	 42.45	0	1126250..1126852	-	200	56552008	ispZ	ZMO1112	-	intracellular septation protein A
1113	 49.55	0	1127117..1128442	+	441	56552009	ndh	ZMO1113	-	NADH dehydrogenase
1114	 50.56	0	1128573..1129193	+	206	56552010	ung	ZMO1114	-	uracil-DNA glycosylase
1115	 45.90	0	1129615..1130418	+	267	56552011	bacA	ZMO1115	-	putative undecaprenol kinase
1116	 50.37	0	1130576..1132048	+	490	56552012	gltD	ZMO1116	-	putative oxidoreductase
1117	 50.24	0	1132150..1136745	+	1531	56552013	gltB	ZMO1117	-	glutamate synthase [NADPH] large chain precursor
1118	 47.17	0	1136825..1137496	+	223	56552014	-	ZMO1118	-	glutathione S-transferase family protein
1119	 39.05	-1	1137540..1137644	+	34	56552015	-	ZMO1119	-	hypothetical protein
1120	 36.26	-1	1137551..1137721	-	56	56552016	-	ZMO1120	-	hypothetical protein
1121	 45.49	0	1137746..1138222	-	158	56552017	-	ZMO1121	-	transcriptional regulator
1122	 46.78	0	1138224..1138565	-	113	56552018	himA	ZMO1122	-	integration host factor alpha-subunit
1123	 35.00	-2	1138626..1138745	-	39	56552019	-	ZMO1123	-	hypothetical protein
1124	 51.05	0	1139378..1140805	-	475	56552020	-	ZMO1124	-	two-component response regulator
1125	 48.24	0	1140805..1143111	-	768	56552021	-	ZMO1125	-	two-component signal transduction histidine kinase
1126	 48.57	0	1143242..1143556	-	104	56552022	ntrC	ZMO1126	-	nitrogen assimilation regulatory protein
1127	 47.95	0	1143569..1144594	-	341	56552023	dus	ZMO1127	-	tRNA-dihydrouridine synthase
1128	 49.35	0	1144746..1145906	+	386	56552024	ispDF	ZMO1128	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1129	 50.56	0	1145918..1146457	+	179	56552025	-	ZMO1129	-	hypothetical protein
1130	 48.58	0	1146408..1147148	+	246	56552026	-	ZMO1130	-	competence-damaged protein
1131	 43.02	0	1147335..1147778	-	147	56552027	-	ZMO1131	-	oligoketide cyclase
1132	 50.21	0	1147778..1148749	-	323	56552028	lipA	ZMO1132	-	lipoyl synthase
1133	 47.94	0	1148850..1149479	+	209	56552029	-	ZMO1133	-	carbonic anhydrase
1134	 45.48	0	1149495..1150391	+	298	56552030	-	ZMO1134	-	hypothetical protein
1135	 50.71	0	1150446..1151792	-	448	56552031	-	ZMO1135	-	Zn-dependent peptidase
1136	 46.96	0	1151917..1153362	-	481	56552032	cytC	ZMO1136	-	cytochrome c peroxidase
1137	 46.62	0	1153786..1154703	-	305	56552033	serB	ZMO1137	-	phosphoserine phosphatase
1138	 43.66	0	1154660..1155598	+	312	56552034	miaA	ZMO1138	-	isopentenyl-diphosphate:tRNA isopentenyltransferase
1139	 51.06	0	1155752..1157539	+	595	56552035	ilvI	ZMO1139	-	acetolactate synthase large subunit
1140	 48.93	0	1157561..1158073	+	170	56552036	ilvH	ZMO1140	-	acetolactate synthase 3 regulatory subunit
1141	 48.24	0	1158119..1159138	+	339	56552037	ilvC	ZMO1141	-	ketol-acid reductoisomerase
1142	 48.48	0	1159852..1160808	-	318	56552038	trxB	ZMO1142	-	thioredoxin reductase
1143	 43.73	0	1161120..1161773	-	217	56552039	cat3	ZMO1143	-	chloramphenicol acetyltransferase
1144	 42.37	0	1161849..1162202	-	117	56552040	-	ZMO1144	-	hypothetical protein
1145	 48.25	0	1162262..1162489	-	75	56552041	rpmE	ZMO1145	-	50S ribosomal protein L31
1146	 47.59	0	1162618..1163094	-	158	56552042	mad	ZMO1146	-	(3R)-hydroxymyristoyl-[acyl carrier protein] dehydratase
1147	 53.42	+1	1163101..1163772	-	223	56552043	-	ZMO1147	-	hypothetical protein
1148	 46.52	0	1163772..1166942	-	1056	56552044	-	ZMO1148	-	outer membrane protein
1149	 45.71	0	1167128..1168024	-	298	56552045	-	ZMO1149	-	Zn-dependent peptidase
1150	 48.67	0	1168255..1169421	-	388	56552046	dxr	ZMO1150	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1151	 49.37	0	1169421..1170050	-	209	56552047	cdsA	ZMO1151	-	CDP-diglyceride synthetase
1152	 46.04	0	1170047..1170715	-	222	56552048	uppS	ZMO1152	-	undecaprenyl pyrophosphate synthetase
1153	 47.85	0	1170790..1171347	-	185	56552049	frr	ZMO1153	-	ribosome recycling factor
1154	 49.25	0	1171347..1172081	-	244	56552050	pyrH	ZMO1154	-	uridylate kinase
1155	 51.73	0	1172212..1173135	-	307	56552051	tsf	ZMO1155	-	elongation factor Ts
1156	 51.53	0	1173243..1173995	-	250	56552052	rpsB	ZMO1156	-	30S ribosomal protein S2
1157	 34.20	-2	1174250..1174597	+	115	56552053	-	ZMO1157	-	hypothetical protein
1158	 37.63	-1	1174638..1175336	+	232	56552054	asr	ZMO1158	-	aspartate racemase
1159	 45.44	0	1175491..1176291	-	266	56552055	pssA	ZMO1159	-	phosphatidylserine synthase
1160	 50.20	0	1176288..1177028	-	246	56552056	psd	ZMO1160	-	phosphatidylserine decarboxylase
1161	 26.67	-2	1177077..1177226	-	49	56552057	-	ZMO1161	-	hypothetical protein
1162	 44.39	0	1177232..1178497	+	421	56552058	-	ZMO1162	-	two-component signal transduction histidine kinase
1163	 45.66	0	1178704..1179417	+	237	56552059	phoU	ZMO1163	-	phosphate transport system protein
1164	 46.98	0	1179417..1180112	+	231	56552060	phoB	ZMO1164	-	phosphate regulon response regulator
1165	 44.80	0	1180198..1181043	-	281	56552061	comF	ZMO1165	-	amidophosphoribosyltransferase
1166	 46.86	0	1181121..1182140	-	339	56552062	recA	ZMO1166	-	recombinase A
1167	 47.49	0	1182403..1184358	-	651	56552063	gaa	ZMO1167	-	glutaryl-7-ACA acylase precursor
1168	 31.48	-2	1184415..1184522	-	35	56552064	-	ZMO1168	-	hypothetical protein
1169	 46.57	0	1184558..1185418	+	286	56552065	-	ZMO1169	-	hypothetical protein
1170	 42.39	0	1185465..1185773	+	102	56552066	-	ZMO1170	-	hypothetical protein
1171	 44.35	0	1185770..1186804	-	344	56552067	-	ZMO1171	-	glycosyl hydrolase
1172	 45.88	0	1186930..1188204	+	424	56552068	astB	ZMO1172	-	succinylarginine dihydrolase
1173	 43.88	0	1188201..1192370	-	1389	56552069	-	ZMO1173	-	hypothetical protein
1174	 44.97	0	1192370..1194586	-	738	56552070	-	ZMO1174	-	outer membrane protein
1175	 45.16	0	1194586..1195608	-	340	56552071	-	ZMO1175	-	two-component signal transduction histidine kinase
1176	 45.08	0	1195661..1195924	-	87	56552072	-	ZMO1176	-	hypothetical protein
1177	 47.52	0	1195999..1196724	-	241	56552073	-	ZMO1177	-	two-component response regulator
1178	 41.07	-1	1196752..1197126	-	124	56552074	hisI	ZMO1178	-	phosphoribosyl-AMP cyclohydrolase
1179	 45.64	0	1197181..1198374	-	397	56552075	ygcA	ZMO1179	-	putative RNA methyltransferase
1180	 49.69	0	1198371..1199825	-	484	56552076	-	ZMO1180	-	sugar kinase
1181	 41.73	0	1200184..1200921	-	245	56552077	hutG	ZMO1181	-	N-formylglutamate amidohydrolase
1182	 44.17	0	1201082..1201930	-	282	56552078	ispE	ZMO1182	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1183	 43.80	0	1202225..1203868	-	547	56552079	-	ZMO1183	-	hypothetical protein
1184	 44.44	0	1203986..1205641	-	551	56552080	yjcC	ZMO1184	-	electrotransfer ubiquinone oxidoreductase
1185	 35.22	-2	1205936..1206730	+	264	56552081	-	ZMO1185	-	phage SPO1 DNA polymerase-related protein
1186	 43.49	0	1207593..1208645	+	350	56552082	mltB	ZMO1186	-	lytic murein transglycosylase
1187	 36.90	-1	1208657..1209469	-	270	56552083	mutM	ZMO1187	-	formamidopyrimidine-DNA glycosylase
1188	 39.23	-1	1209779..1210507	+	242	56552084	ubiE	ZMO1188	-	ubiquinone methyltransferase
1189	 40.94	-1	1210511..1212049	+	512	56552085	-	ZMO1189	-	ubiquinone biosynthesis protein
1190	 40.59	-1	1212076..1213329	+	417	56552086	dfp	ZMO1190	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1191	 42.86	0	1213361..1213801	+	146	56552087	dut	ZMO1191	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1192	 43.61	0	1213798..1214556	+	252	56552088	moeB	ZMO1192	-	molybdopterin biosynthesis protein
1193	 51.92	+1	1214965..1218618	-	1217	56552089	topA	ZMO1193	-	DNA topoisomerase I
1194	 51.38	0	1218755..1219912	-	385	56552090	-	ZMO1194	-	DNA processing chain A
1195	 51.45	0	1219962..1220618	-	218	56552091	-	ZMO1195	-	hypothetical protein
1196	 46.99	0	1220894..1222306	+	470	56552092	-	ZMO1196	-	permease
1197	 48.26	0	1222331..1223161	+	276	56552093	murI	ZMO1197	-	glutamate racemase
46.43	MEAN

5.31	STD DEV
