IslandPathversion 1.0

IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

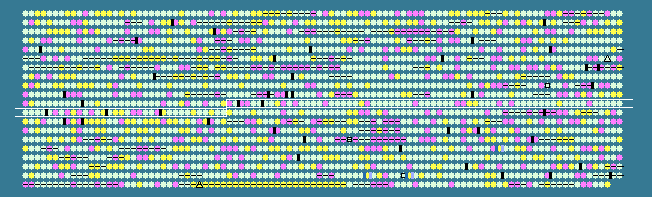

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1035	 39.87	-1	1048513..1048665	-	50	56551931	-	ZMO1035	-	hypothetical protein
1036	 49.31	0	1048664..1049890	+	408	56551932	argG	ZMO1036	-	argininosuccinate synthase
1037	 26.13	-2	1050125..1050235	+	36	56551933	-	ZMO1037	-	hypothetical protein
1038	 41.09	-1	1050196..1050324	+	42	56551934	-	ZMO1038	-	hypothetical protein
1039	 47.62	0	1051409..1052248	-	279	56551935	nrdA	ZMO1039	-	ribonucleotide reductase alpha subunit
1040	 45.86	0	1052996..1056211	+	1071	56551936	-	ZMO1040	-	TonB-dependent receptor
1041	 44.44	0	1056452..1057009	-	185	56551937	-	ZMO1041	-	NTP pyrophosphohydrolase
1042	 46.33	0	1057094..1058224	-	376	56551938	-	ZMO1042	-	hypothetical protein
1043	 50.40	0	1058154..1058780	-	208	56551939	-	ZMO1043	-	hypothetical protein
1044	 42.58	0	1059012..1059476	+	154	56551940	-	ZMO1044	-	mechanosensitive channel
1045	 45.37	0	1059562..1061148	-	528	56551941	-	ZMO1045	-	hypothetical protein
1046	 34.21	-2	1061127..1061354	+	75	56551942	-	ZMO1046	-	hypothetical protein
1047	 49.38	0	1061414..1062454	+	346	56551943	pstS	ZMO1047	-	ABC transporter phosphate-binding protein
1048	 47.50	0	1062549..1063508	+	319	56551944	-	ZMO1048	-	hypothetical protein
1049	 46.95	0	1063517..1064353	+	278	56551945	pstA	ZMO1049	-	phosphate transporter
1050	 45.66	0	1064269..1065225	+	318	56551946	pstB	ZMO1050	-	phosphate transporter ATP-binding protein
1051	 34.11	-2	1065205..1065333	-	42	56551947	-	ZMO1051	-	hypothetical protein
1052	 46.15	0	1065560..1066339	+	259	56551948	purC	ZMO1052	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1053	 45.19	0	1066436..1066570	-	44	56551949	-	ZMO1053	-	hypothetical protein
1054	 46.02	0	1066743..1068989	+	748	56551950	parC	ZMO1054	-	DNA topoisomerase IV subunit A
1055	 44.54	0	1069238..1070977	+	579	56551951	-	ZMO1055	-	hypothetical protein
1056	 48.98	0	1070974..1072194	-	406	56551952	cca	ZMO1056	-	tRNA nucleotidyltransferase
1057	 50.94	0	1072199..1072732	-	177	56551953	-	ZMO1057	-	putative acetyltransferase
1058	 33.96	-2	1072752..1072910	+	52	56551954	-	ZMO1058	-	hypothetical protein
1059	 45.63	0	1073129..1073551	+	140	56551955	-	ZMO1059	-	hypothetical protein
1060	 48.17	0	1073614..1074240	-	208	56551956	sod	ZMO1060	-	superoxide dismutase
1061	 48.47	0	1074455..1075531	-	358	56551957	-	ZMO1061	-	transcriptional regulator
1062	 43.93	0	1075707..1076225	+	172	56551958	-	ZMO1062	-	hypothetical protein
1063	 45.74	0	1076228..1076896	+	222	56551959	pspA	ZMO1063	-	sigma54-dependent transcription suppressor
1064	 43.96	0	1076896..1077168	+	90	56551960	-	ZMO1064	-	hypothetical protein
1065	 47.40	0	1077186..1077569	+	127	56551961	pspC	ZMO1065	-	putative stress-responsive transcriptional regulator
1066	 39.15	-1	1077706..1077894	+	62	56551962	-	ZMO1066	-	hypothetical protein
1067	 44.20	0	1078027..1078431	+	134	56551963	sufE	ZMO1067	-	Fe-S center assembly protein
1068	 45.06	0	1078428..1078862	+	144	56551964	-	ZMO1068	-	hypothetical protein
1069	 45.52	0	1078905..1079429	-	174	56551965	-	ZMO1069	-	DnaJ-class molecular chaperone
1070	 49.62	0	1080003..1080935	-	310	56551966	-	ZMO1070	-	signal recognition particle GTPase
1071	 47.54	0	1080932..1082191	-	419	56551967	-	ZMO1071	-	hypothetical protein
1072	 49.38	0	1082188..1082997	-	269	56551968	dapF	ZMO1072	-	diaminopimelate epimerase
1073	 41.11	-1	1082971..1083150	+	59	56551969	-	ZMO1073	-	hypothetical protein
1074	 42.74	0	1083227..1083343	-	38	56551970	-	ZMO1074	-	hypothetical protein
1075	 50.74	0	1083359..1084783	+	474	56551971	-	ZMO1075	-	signal recognition particle GTPase
1076	 53.94	+1	1084814..1085245	+	143	56551972	rpsP	ZMO1076	-	30S ribosomal protein S16
1077	 48.98	0	1085249..1085740	+	163	56551973	rimM	ZMO1077	-	16S rRNA processing protein
1078	 49.73	0	1085737..1086486	+	249	56551974	trmD	ZMO1078	-	tRNA-(guanine-N1)-methyltransferase
1079	 47.73	0	1086483..1086857	+	124	56551975	rplS	ZMO1079	-	50S ribosomal protein L19
1080	 38.17	-1	1087000..1087185	+	61	56551976	-	ZMO1080	-	hypothetical protein
1081	 44.12	0	1087238..1087858	+	206	56551977	-	ZMO1081	-	hypothetical protein
1082	 41.44	0	1087830..1088051	+	73	56551978	-	ZMO1082	-	hypothetical protein
1083	 44.59	0	1088029..1090026	+	665	56551979	-	ZMO1083	-	glycosyltransferase
1084	 46.80	0	1090023..1092338	+	771	56551980	-	ZMO1084	-	cellulose synthase regulator protein
1085	 47.69	0	1092335..1096345	+	1336	56551981	bcsC	ZMO1085	-	cellulose synthase subunit C
1086	 45.20	0	1096501..1097520	+	339	56551982	celA	ZMO1086	-	endoglucanase Y
1087	 45.58	0	1097599..1098684	+	361	56551983	mltA	ZMO1087	-	lytic murein transglycosylase
1088	 48.70	0	1098641..1099141	+	166	56551984	-	ZMO1088	-	putative rare lipoprotein A
1089	 48.46	0	1099193..1100395	+	400	56551985	dacC	ZMO1089	-	D-alanyl-D-alanine carboxypeptidase
1090	 49.92	0	1100374..1101024	+	216	56551986	tmk	ZMO1090	-	thymidylate kinase
1091	 46.53	0	1101024..1102016	+	330	56551987	holB	ZMO1091	-	DNA polymerase III delta prime subunit
1092	 46.55	0	1102034..1103599	+	521	56551988	metG	ZMO1092	-	methionyl-tRNA synthetase
1093	 46.20	0	1103599..1104375	+	258	56551989	-	ZMO1093	-	Mg-dependent DNase
1094	 44.58	0	1104372..1105136	+	254	56551990	-	ZMO1094	-	metal-dependent hydrolase
1095	 40.88	-1	1105488..1106309	+	273	56551991	-	ZMO1095	-	pyrophosphatase
1096	 46.40	0	1106750..1109038	-	762	56551992	rnr	ZMO1096	-	exoribonuclease R
1097	 47.98	0	1109140..1109460	-	106	56551993	-	ZMO1097	-	thiol-disulfide isomerase
1098	 48.52	0	1109545..1113033	-	1162	56551994	addA	ZMO1098	-	ATP-dependent exoDNAse beta subunit
1099	 49.16	0	1113043..1116024	-	993	56551995	-	ZMO1099	-	helicase
1100	 48.16	0	1116033..1116794	-	253	56551996	-	ZMO1100	-	nucleotidyl pyrophosphorylase
1101	 48.76	0	1116870..1117394	-	174	56551997	-	ZMO1101	-	ATPase
1102	 47.86	0	1117378..1119387	-	669	56551998	-	ZMO1102	-	two-component signal transduction histidine kinase
1103	 46.45	0	1119614..1119796	-	60	56551999	-	ZMO1103	-	hypothetical protein
1104	 48.78	0	1119821..1119943	-	40	56552000	-	ZMO1104	-	hypothetical protein
1105	 46.93	0	1120062..1122377	-	771	56552001	-	ZMO1105	-	two-component signal transduction histidine kinase
1106	 25.76	-2	1122400..1122531	+	43	56552002	-	ZMO1106	-	hypothetical protein
1107	 47.41	0	1122623..1123105	+	160	56552003	-	ZMO1107	-	transcriptional regulator
1108	 37.82	-1	1123174..1123329	-	51	56552004	-	ZMO1108	-	hypothetical protein
1109	 50.49	0	1123339..1124661	-	440	56552005	-	ZMO1109	-	hypothetical protein
1110	 32.43	-2	1124870..1124980	-	36	56552006	-	ZMO1110	-	hypothetical protein
1111	 44.87	0	1124998..1126245	+	415	56552007	-	ZMO1111	-	ABC transporter
1112	 42.45	0	1126250..1126852	-	200	56552008	ispZ	ZMO1112	-	intracellular septation protein A
1113	 49.55	0	1127117..1128442	+	441	56552009	ndh	ZMO1113	-	NADH dehydrogenase
1114	 50.56	0	1128573..1129193	+	206	56552010	ung	ZMO1114	-	uracil-DNA glycosylase
1115	 45.90	0	1129615..1130418	+	267	56552011	bacA	ZMO1115	-	putative undecaprenol kinase
1116	 50.37	0	1130576..1132048	+	490	56552012	gltD	ZMO1116	-	putative oxidoreductase
1117	 50.24	0	1132150..1136745	+	1531	56552013	gltB	ZMO1117	-	glutamate synthase [NADPH] large chain precursor
1118	 47.17	0	1136825..1137496	+	223	56552014	-	ZMO1118	-	glutathione S-transferase family protein
1119	 39.05	-1	1137540..1137644	+	34	56552015	-	ZMO1119	-	hypothetical protein
1120	 36.26	-1	1137551..1137721	-	56	56552016	-	ZMO1120	-	hypothetical protein
1121	 45.49	0	1137746..1138222	-	158	56552017	-	ZMO1121	-	transcriptional regulator
1122	 46.78	0	1138224..1138565	-	113	56552018	himA	ZMO1122	-	integration host factor alpha-subunit
1123	 35.00	-2	1138626..1138745	-	39	56552019	-	ZMO1123	-	hypothetical protein
1124	 51.05	0	1139378..1140805	-	475	56552020	-	ZMO1124	-	two-component response regulator
1125	 48.24	0	1140805..1143111	-	768	56552021	-	ZMO1125	-	two-component signal transduction histidine kinase
1126	 48.57	0	1143242..1143556	-	104	56552022	ntrC	ZMO1126	-	nitrogen assimilation regulatory protein
1127	 47.95	0	1143569..1144594	-	341	56552023	dus	ZMO1127	-	tRNA-dihydrouridine synthase
1128	 49.35	0	1144746..1145906	+	386	56552024	ispDF	ZMO1128	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1129	 50.56	0	1145918..1146457	+	179	56552025	-	ZMO1129	-	hypothetical protein
1130	 48.58	0	1146408..1147148	+	246	56552026	-	ZMO1130	-	competence-damaged protein
1131	 43.02	0	1147335..1147778	-	147	56552027	-	ZMO1131	-	oligoketide cyclase
1132	 50.21	0	1147778..1148749	-	323	56552028	lipA	ZMO1132	-	lipoyl synthase
1133	 47.94	0	1148850..1149479	+	209	56552029	-	ZMO1133	-	carbonic anhydrase
1134	 45.48	0	1149495..1150391	+	298	56552030	-	ZMO1134	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
