IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

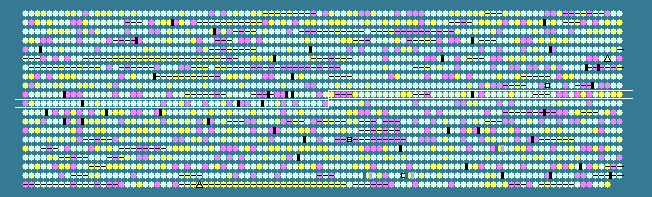

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
952	 52.07	+1	969435..969893	-	152	56551848	-	ZMO0952	-	RNA methyltransferase
953	 31.67	-2	969917..970036	+	39	56551849	-	ZMO0953	-	hypothetical protein
954	 39.64	-1	970001..970111	-	36	56551850	-	ZMO0954	-	hypothetical protein
955	 39.86	-1	970808..971083	-	91	56551851	-	ZMO0955	-	hypothetical protein
956	 51.97	+1	972065..972697	+	210	56551852	-	ZMO0956	-	ubiquinol-cytochrome-c reductase
957	 45.27	0	972705..973961	+	418	56551853	-	ZMO0957	-	cytochrome b subunit
958	 48.10	0	973963..974802	+	279	56551854	petC	ZMO0958	-	cytochrome c1
959	 48.15	0	974732..975298	-	188	56551855	-	ZMO0959	-	membrane carboxypeptidase
960	 44.27	0	975315..975506	-	63	56551856	-	ZMO0960	-	hypothetical protein
961	 49.78	0	975661..976110	+	149	56551857	cyc_c552	ZMO0961	-	cytochrome c-552 precursor
962	 47.73	0	976118..977263	-	381	56551858	nagA	ZMO0962	-	N-acetylglucosamine-6-phosphate deacetylase
963	 43.32	0	977339..977959	-	206	56551859	-	ZMO0963	-	TetR family transcriptional regulator
964	 52.09	+1	978061..979494	+	477	56551860	-	ZMO0964	-	multidrug resistance lipoprotein
965	 50.00	0	979516..980721	+	401	56551861	-	ZMO0965	-	putative aromatic efflux pump membrane protein
966	 46.84	0	980699..981712	+	337	56551862	emrB	ZMO0966	-	multidrug resistance protein
967	 48.79	0	982393..983589	+	398	56551863	-	ZMO0967	-	nucleoside permease
968	 32.02	-2	983593..983820	+	75	56551864	-	ZMO0968	-	hypothetical protein
969	 48.13	0	983792..985129	+	445	56551865	-	ZMO0969	-	xanthine/uracil permease family protein
970	 49.19	0	985203..986255	+	350	56551866	-	ZMO0970	-	putative purine nucleoside permease
971	 44.28	0	986292..987305	+	337	56551867	add	ZMO0971	-	adenosine deaminase
972	 46.06	0	987394..988548	+	384	56551868	-	ZMO0972	-	glycosyltransferase
973	 47.41	0	988566..989993	+	475	56551869	-	ZMO0973	-	Fe-S oxidoreductase
974	 50.12	0	990009..990854	+	281	56551870	-	ZMO0974	-	hypothetical protein
975	 46.46	0	991056..992045	+	329	56551871	-	ZMO0975	-	hypothetical protein
976	 48.19	0	992239..993261	-	340	56551872	-	ZMO0976	-	putative oxidoreductase
977	 35.37	-2	993254..993400	+	48	56551873	-	ZMO0977	-	hypothetical protein
978	 47.09	0	993402..994586	-	394	56551874	-	ZMO0978	-	Fe ABC transporter
979	 45.74	0	994636..996747	+	703	56551875	-	ZMO0979	-	TonB-dependent receptor
980	 47.30	0	996814..997923	-	369	56551876	dnaN	ZMO0980	-	DNA polymerase III subunit beta
981	 46.77	0	998028..999620	-	530	56551877	-	ZMO0981	-	ABC-type uncharacterized transport system
982	 50.43	0	999617..1000435	-	272	56551878	-	ZMO0982	-	oligopeptide ABC transporter
983	 46.87	0	1002417..1002911	-	164	56551879	-	ZMO0983	-	ABC transporter dipeptide-binding protein
984	 48.06	0	1003042..1003917	-	291	56551880	nlpD	ZMO0984	-	membrane protein
985	 48.70	0	1003914..1004681	-	255	56551881	-	ZMO0985	-	stationary-phase survival protein
986	 49.69	0	1004681..1005958	-	425	56551882	serS	ZMO0986	-	seryl-tRNA synthetase
987	 49.79	0	1006255..1006740	+	161	56551883	-	ZMO0987	-	DnaK suppressor protein
988	 44.44	0	1007148..1007345	+	65	56551884	-	ZMO0988	-	hypothetical protein
989	 46.01	0	1007441..1007929	-	162	56551885	hspD	ZMO0989	-	molecular chaperone
990	 40.65	-1	1008083..1008205	-	40	56551886	-	ZMO0990	-	hypothetical protein
991	 40.43	-1	1008117..1008257	+	46	56551887	-	ZMO0991	-	hypothetical protein
992	 47.10	0	1008338..1009870	-	510	56551888	-	ZMO0992	-	carboxypeptidase C
993	 34.21	-2	1010071..1010184	+	37	56551889	-	ZMO0993	-	hypothetical protein
994	 50.85	0	1010308..1010838	-	176	56551890	-	ZMO0994	-	hypothetical protein
995	 26.67	-2	1011023..1011127	+	34	56551891	-	ZMO0995	-	hypothetical protein
996	 46.90	0	1011165..1012262	+	365	56551892	-	ZMO0996	-	small-conductance mechanosensitive channel
997	 51.36	0	1012264..1012890	+	208	56551893	eda	ZMO0997	-	2-dehydro-3-deoxy-phosphogluconate aldolase
998	 43.65	0	1013229..1013771	+	180	56551894	msrA	ZMO0998	-	peptide methionine sulfoxide reductase
999	 50.30	0	1013800..1014789	-	329	56551895	-	ZMO0999	-	putative translation factor
1000	 51.14	0	1015219..1017498	+	759	56551896	metE	ZMO1000	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1001	 42.37	0	1017751..1019244	+	497	56551897	-	ZMO1001	-	peptide ABC transporter
1002	 50.45	0	1019317..1020654	+	445	56551898	mrsA	ZMO1002	-	phosphomannomutase
1003	 48.58	0	1020617..1021495	+	292	56551899	thiD	ZMO1003	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
1004	 46.76	0	1021495..1022142	+	215	56551900	rnhB	ZMO1004	-	ribonuclease HII
1005	 43.94	0	1022339..1023460	+	373	56551901	babI	ZMO1005	-	adenine-specific methyltransferase
1006	 46.87	0	1023496..1024566	+	356	56551902	sul	ZMO1006	-	dihydropteroate synthase
1007	 43.87	0	1024688..1025551	+	287	56551903	-	ZMO1007	-	hypothetical protein
1008	 47.10	0	1025677..1027122	+	481	56551904	-	ZMO1008	-	FAD/FMN-containing dehydrogenase
1009	 46.51	0	1027261..1028049	+	262	56551905	-	ZMO1009	-	hypothetical protein
1010	 45.83	0	1028150..1028605	+	151	56551906	-	ZMO1010	-	hypothetical protein
1011	 47.31	0	1028827..1029012	-	61	56551907	-	ZMO1011	-	hypothetical protein
1012	 49.90	0	1029035..1030048	-	337	56551908	-	ZMO1012	-	ribonuclease
1013	 51.07	0	1030049..1030657	-	202	56551909	-	ZMO1013	-	nucleotide-binding protein
1014	 44.70	0	1030663..1030926	-	87	56551910	infA	ZMO1014	-	translation initiation factor 1
1015	 49.44	0	1031099..1031725	-	208	56551911	-	ZMO1015	-	hypothetical protein
1016	 47.57	0	1031731..1032678	-	315	56551912	-	ZMO1016	-	ABC-type transport system periplasmic component
1017	 48.23	0	1032689..1033480	-	263	56551913	-	ZMO1017	-	ABC-type transport system ATP-binding protein
1018	 48.59	0	1033477..1034577	-	366	56551914	-	ZMO1018	-	ABC-type transport system permease component
1019	 48.62	0	1034760..1035812	-	350	56551915	dys	ZMO1019	-	deoxyhypusine synthase-like protein
1020	 49.41	0	1035894..1037075	-	393	56551916	lysA	ZMO1020	-	diaminopimelate/ornithine decarboxylase
1021	 48.47	0	1037395..1038048	-	217	56551917	-	ZMO1021	-	hydrolase
1022	 47.95	0	1038181..1039227	+	348	56551918	nifS	ZMO1022	-	cysteine desulfurase
1023	 49.02	0	1039279..1040043	+	254	56551919	-	ZMO1023	-	ATPase
1024	 38.89	-1	1040325..1040432	-	35	56551920	-	ZMO1024	-	hypothetical protein
1025	 47.80	0	1040392..1042410	+	672	56551921	nrdD	ZMO1025	-	anaerobic ribonucleoside triphosphate reductase
1026	 47.09	0	1042447..1042635	+	62	56551922	-	ZMO1026	-	hypothetical protein
1027	 49.92	0	1042622..1043224	+	200	56551923	pflA	ZMO1027	-	pyruvate-formate lyase-activating enzyme
1028	 41.44	0	1043221..1043331	-	36	56551924	-	ZMO1028	-	hypothetical protein
1029	 45.53	0	1043305..1044222	+	305	56551925	-	ZMO1029	-	ABC-type multidrug transport system ATPase component
1030	 43.45	0	1044231..1045031	+	266	56551926	-	ZMO1030	-	hypothetical protein
1031	 40.74	-1	1045052..1045213	+	53	56551927	-	ZMO1031	-	hypothetical protein
1032	 47.96	0	1045191..1046366	+	391	56551928	-	ZMO1032	-	Fe-S-cluster redox protein
1033	 45.99	0	1046422..1047669	+	415	56551929	cfa	ZMO1033	-	cyclopropane fatty acid synthase
1034	 49.92	0	1047790..1048404	-	204	56551930	-	ZMO1034	-	hypothetical protein
1035	 39.87	-1	1048513..1048665	-	50	56551931	-	ZMO1035	-	hypothetical protein
1036	 49.31	0	1048664..1049890	+	408	56551932	argG	ZMO1036	-	argininosuccinate synthase
1037	 26.13	-2	1050125..1050235	+	36	56551933	-	ZMO1037	-	hypothetical protein
1038	 41.09	-1	1050196..1050324	+	42	56551934	-	ZMO1038	-	hypothetical protein
1039	 47.62	0	1051409..1052248	-	279	56551935	nrdA	ZMO1039	-	ribonucleotide reductase alpha subunit
1040	 45.86	0	1052996..1056211	+	1071	56551936	-	ZMO1040	-	TonB-dependent receptor
1041	 44.44	0	1056452..1057009	-	185	56551937	-	ZMO1041	-	NTP pyrophosphohydrolase
1042	 46.33	0	1057094..1058224	-	376	56551938	-	ZMO1042	-	hypothetical protein
1043	 50.40	0	1058154..1058780	-	208	56551939	-	ZMO1043	-	hypothetical protein
1044	 42.58	0	1059012..1059476	+	154	56551940	-	ZMO1044	-	mechanosensitive channel
1045	 45.37	0	1059562..1061148	-	528	56551941	-	ZMO1045	-	hypothetical protein
1046	 34.21	-2	1061127..1061354	+	75	56551942	-	ZMO1046	-	hypothetical protein
1047	 49.38	0	1061414..1062454	+	346	56551943	pstS	ZMO1047	-	ABC transporter phosphate-binding protein
1048	 47.50	0	1062549..1063508	+	319	56551944	-	ZMO1048	-	hypothetical protein
1049	 46.95	0	1063517..1064353	+	278	56551945	pstA	ZMO1049	-	phosphate transporter
1050	 45.66	0	1064269..1065225	+	318	56551946	pstB	ZMO1050	-	phosphate transporter ATP-binding protein
1051	 34.11	-2	1065205..1065333	-	42	56551947	-	ZMO1051	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
