IslandPath Analysis: Yersinia pestis Pestoides F

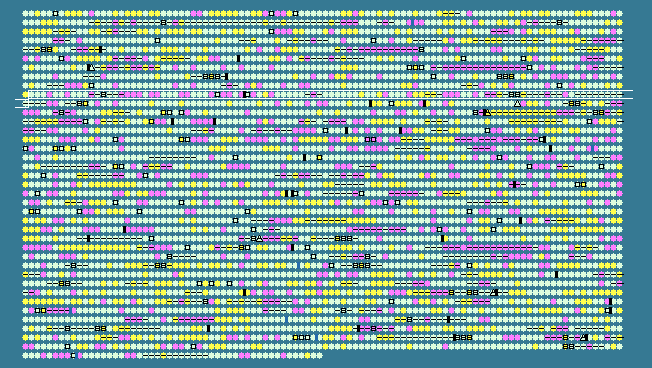

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
902	 50.98	0	1055872..1057299	+	475	145598225	-	YPDSF_0928	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
903	 48.95	0	1057456..1058646	+	396	145598226	-	YPDSF_0929	-	tryptophan synthase subunit beta
904	 50.19	0	1058646..1059452	+	268	145598227	trpA	YPDSF_0930	-	tryptophan synthase subunit alpha
905	 37.33	-2	1059466..1059615	+	49	145598228	-	YPDSF_0931	-	hypothetical protein
906	 46.03	0	1059795..1060109	+	104	145598229	-	YPDSF_0932	-	lipoprotein
907	 45.99	0	1060256..1060903	-	215	145598230	-	YPDSF_0933	-	outer membrane protein W
908	 37.50	-2	1061000..1061215	-	71	145598231	-	YPDSF_0934	-	hypothetical protein
909	 45.01	0	1061377..1062147	+	256	145598232	-	YPDSF_0935	-	hypothetical protein
910	 45.53	0	1062268..1062882	-	204	145598233	-	YPDSF_0936	-	sulfate permease family protein
911	 49.22	0	1062914..1063996	-	360	145598234	-	YPDSF_0937	-	hypothetical protein
912	 41.25	-1	1064227..1064769	+	180	145598235	-	YPDSF_0938	-	intracellular septation protein A
913	 47.56	0	1064849..1065298	+	149	145598236	-	YPDSF_0939	-	acyl-CoA thioester hydrolase
914	 49.63	0	1065446..1066654	+	402	145598237	-	YPDSF_0940	-	transposase for the IS285 insertion element
915	 49.28	0	1066690..1067448	-	252	145598238	-	YPDSF_0941	-	transport protein TonB
916	 47.47	0	1067749..1068045	+	98	145598239	-	YPDSF_0942	-	YciI-like protein
917	 39.84	-1	1068268..1068513	+	81	145598240	-	YPDSF_0943	-	hypothetical protein
918	 40.15	-1	1068629..1068892	-	87	145598241	-	YPDSF_0944	-	hypothetical protein
919	 36.43	-2	1069010..1069138	-	42	145598242	-	YPDSF_0945	-	hypothetical protein
920	 42.96	-1	1069113..1069652	-	179	145598243	-	YPDSF_0946	-	attachment invasion locus protein precursor
921	 46.54	0	1070699..1072159	+	486	145598244	cls	YPDSF_0947	-	cardiolipin synthetase
922	 44.35	0	1072294..1072647	+	117	145598245	-	YPDSF_0948	-	dsDNA-mimic protein
923	 34.26	-2	1072946..1073161	-	71	145598246	-	YPDSF_0949	-	hypothetical protein
924	 45.31	0	1073722..1074723	-	333	145598247	-	YPDSF_0950	-	oligopeptide transport ATP-binding protein
925	 46.51	0	1074720..1075721	-	333	145598248	oppD	YPDSF_0951	-	oligopeptide transporter ATP-binding component
926	 47.02	0	1075733..1076638	-	301	145598249	-	YPDSF_0952	-	oligopeptide transport system permease protein
927	 43.87	0	1076657..1077577	-	306	145598250	oppB	YPDSF_0953	-	oligopeptide transporter permease
928	 42.74	-1	1077664..1079301	-	545	145598251	-	YPDSF_0954	-	periplasmic oligopeptide-binding protein precursor
929	 45.27	0	1080138..1080782	-	214	145598252	-	YPDSF_0955	-	hypothetical protein
930	 46.90	0	1081589..1084264	+	891	145598253	-	YPDSF_0956	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
931	 45.85	0	1085015..1085605	-	196	145598254	-	YPDSF_0957	-	thymidine kinase
932	 44.06	0	1086355..1086783	+	142	145598255	-	YPDSF_0958	-	global DNA-binding transcriptional dual regulator H-NS
933	 49.55	0	1086795..1088003	-	402	145598256	-	YPDSF_0959	-	transposase for the IS285 insertion element
934	 42.76	-1	1088520..1089866	-	448	145598257	-	YPDSF_0960	-	nucleotide sugar dehydrogenase
935	 43.85	0	1090173..1091189	-	338	145598258	-	YPDSF_0961	-	response regulator of RpoS
936	 47.53	0	1092523..1092987	+	154	145598259	-	YPDSF_0962	-	hypothetical protein
937	 42.87	-1	1093071..1093919	+	282	145598260	purU	YPDSF_0963	-	formyltetrahydrofolate deformylase
938	 49.55	0	1094556..1095764	+	402	145598261	-	YPDSF_0964	-	transposase for the IS285 insertion element
939	 29.27	-2	1095983..1096843	-	286	145598262	-	YPDSF_0965	-	LysR family transcriptional regulator
940	 47.58	0	1097653..1098459	+	268	145598263	-	YPDSF_0966	-	exonuclease III
941	 54.01	+1	1098557..1098943	+	128	145598264	-	YPDSF_0967	-	pyrimidine (deoxy)nucleoside triphosphate pyrophosphohydrolase
942	 43.64	0	1098956..1099246	-	96	145598265	-	YPDSF_0968	-	hypothetical protein
943	 49.30	0	1099243..1101171	-	642	145598266	-	YPDSF_0969	-	DNA topoisomerase III
944	 47.65	0	1101246..1102160	-	304	145598267	-	YPDSF_0970	-	selenide, water dikinase
945	 50.72	0	1102385..1102936	-	183	145598268	-	YPDSF_0971	-	hypothetical protein
946	 48.03	0	1103099..1104949	+	616	145598269	-	YPDSF_0972	-	protease 4
947	 47.69	0	1105066..1106082	+	338	145598270	ansA	YPDSF_0973	-	cytoplasmic asparaginase I
948	 49.69	0	1106097..1106744	+	215	145598271	-	YPDSF_0974	-	nicotinamidase/pyrazinamidase
949	 44.27	0	1106878..1107252	-	124	145598272	-	YPDSF_0975	-	hypothetical protein
950	 45.41	0	1107221..1107634	-	137	145598273	-	YPDSF_0976	-	methionine sulfoxide reductase B
951	 47.49	0	1107982..1108977	+	331	145598274	-	YPDSF_0977	-	glyceraldehyde 3-phosphate dehydrogenase A
952	 48.17	0	1109291..1110166	+	291	145598275	-	YPDSF_0978	-	hypothetical protein
953	 46.56	0	1110239..1111009	-	256	145598276	-	YPDSF_0979	-	hypothetical protein
954	 45.06	0	1111432..1113366	+	644	145598277	-	YPDSF_0980	-	hypothetical protein
955	 48.00	0	1113516..1114790	+	424	145598278	-	YPDSF_0981	-	hypothetical protein
956	 51.03	0	1114898..1116016	+	372	145598279	-	YPDSF_0982	-	membrane protein
957	 53.53	+1	1116051..1116956	-	301	145598280	-	YPDSF_0983	-	LysR family transcriptional regulator
958	 48.62	0	1117154..1118023	+	289	145598281	-	YPDSF_0984	-	hypothetical protein
959	 50.04	0	1118288..1119490	+	400	145598282	-	YPDSF_0985	-	multidrug resistance protein
960	 52.64	0	1119506..1120810	-	434	145598283	-	YPDSF_0986	-	D-amino acid dehydrogenase small subunit
961	 44.47	0	1121276..1122811	+	511	145598284	-	YPDSF_0987	-	hypothetical protein
962	 46.25	0	1123029..1123748	-	239	145598285	-	YPDSF_0988	-	fatty acid metabolism regulator
963	 46.54	0	1123992..1125566	+	524	145598286	nhaB	YPDSF_0989	-	sodium/proton antiporter
964	 45.79	0	1125787..1126332	+	181	145598287	-	YPDSF_0990	-	disulfide bond formation protein B
965	 43.98	0	1126749..1127105	-	118	145598288	-	YPDSF_0991	-	hypothetical protein
966	 51.82	0	1128197..1128937	+	246	145598289	-	YPDSF_0992	-	hypothetical protein
967	 52.33	0	1128954..1130153	+	399	145598290	-	YPDSF_0993	-	aminotransferase
968	 54.81	+1	1130157..1131101	+	314	145598291	-	YPDSF_0994	-	hypothetical protein
969	 51.92	0	1131174..1131329	+	51	145598292	-	YPDSF_0995	-	hypothetical protein
970	 51.28	0	1131588..1131743	-	51	145598293	-	YPDSF_0996	-	hypothetical protein
971	 41.43	-1	1131740..1132159	-	139	145598294	-	YPDSF_0997	-	phage tail fiber assembly protein
972	 44.34	0	1132170..1133087	-	305	145598295	-	YPDSF_0998	-	hypothetical protein
973	 44.28	0	1133104..1134117	-	337	145598296	-	YPDSF_0999	-	hypothetical protein
974	 47.63	0	1134102..1137305	-	1067	145598297	-	YPDSF_1000	-	phage host specificity protein
975	 49.92	0	1137877..1138497	-	206	145598298	-	YPDSF_1001	-	phage tail assembly protein
976	 37.32	-2	1138911..1139462	-	183	145598299	-	YPDSF_1002	-	phage-related membrane protein
977	 45.04	0	1139561..1140568	-	335	145598300	-	YPDSF_1003	-	hypothetical protein
978	 40.56	-1	1140825..1141364	+	179	145598301	-	YPDSF_1004	-	phage regulatory protein
979	 42.71	-1	1141443..1141634	-	63	145598302	-	YPDSF_1005	-	hypothetical protein
980	 52.46	0	1142347..1143057	-	236	145598303	-	YPDSF_1006	-	phage minor tail protein
981	 50.60	0	1143060..1143812	-	250	145598304	-	YPDSF_1007	-	hypothetical protein
982	 45.97	0	1143932..1144390	-	152	145598305	-	YPDSF_1008	-	transposase for the IS1541 insertion element
983	 45.75	0	1144642..1145100	-	152	145598306	-	YPDSF_1009	-	transposase for the IS1541 insertion element
984	 52.92	+1	1145406..1145747	-	113	145598307	-	YPDSF_1010	-	hypothetical protein
985	 46.67	0	1145750..1149265	-	1171	145598308	-	YPDSF_1011	-	phage tail protein
986	 46.47	0	1149574..1149885	-	103	145598309	-	YPDSF_1012	-	hypothetical protein
987	 50.05	0	1149898..1150818	-	306	145598310	-	YPDSF_1013	-	hypothetical protein
988	 44.36	0	1150884..1151291	-	135	145598311	-	YPDSF_1014	-	hypothetical protein
989	 46.32	0	1151288..1151872	-	194	145598312	-	YPDSF_1015	-	hypothetical protein
990	 48.48	0	1151874..1152170	-	98	145598313	-	YPDSF_1016	-	hypothetical protein
991	 41.57	-1	1152227..1152481	-	84	145598314	-	YPDSF_1017	-	hypothetical protein
992	 46.52	0	1152478..1153008	-	176	145598315	-	YPDSF_1018	-	hypothetical protein
993	 49.42	0	1153008..1154213	-	401	145598316	-	YPDSF_1019	-	hypothetical protein
994	 50.78	0	1154227..1155000	-	257	145598317	-	YPDSF_1020	-	hypothetical protein
995	 49.06	0	1155122..1156234	-	370	145598318	-	YPDSF_1021	-	hypothetical protein
996	 50.78	0	1156235..1156876	-	213	145598319	-	YPDSF_1022	-	hypothetical protein
997	 48.15	0	1156895..1157623	-	242	145598320	-	YPDSF_1023	-	hypothetical protein
998	 48.29	0	1157623..1159113	-	496	145598321	-	YPDSF_1024	-	hypothetical protein
999	 47.33	0	1159123..1159572	-	149	145598322	-	YPDSF_1025	-	hypothetical protein
1000	 47.96	0	1159603..1160238	-	211	145598323	-	YPDSF_1026	-	hypothetical protein
1001	 47.76	0	1160695..1161408	-	237	145598324	-	YPDSF_1027	-	phage regulatory protein
48.06	MEAN

4.80	STD DEV
