IslandPath Analysis: Yersinia pestis Pestoides F

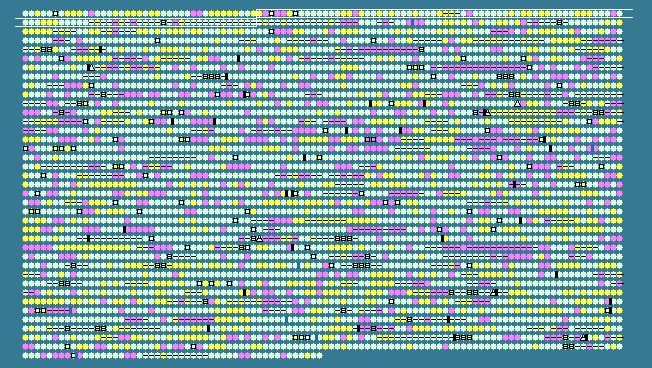

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
40	 55.71	+1	48255..50207	+	650	145597364	-	YPDSF_0040	-	selenocysteinyl-tRNA-specific translation factor
41	 35.90	-2	50967..51083	+	38	145597365	-	YPDSF_0042	-	membrane protein
42	 49.55	0	51105..52313	-	402	145597366	-	YPDSF_0043	-	transposase for the IS285 insertion element
43	 37.97	-2	52636..53217	-	193	145597367	-	YPDSF_0044	-	hypothetical protein
44	 28.49	-2	53296..53481	-	61	145597368	-	YPDSF_0045	-	hypothetical protein
45	 51.79	0	53927..55156	-	409	145597369	-	YPDSF_0046	-	multidrug translocase
46	 46.44	0	55629..56414	-	261	145597370	-	YPDSF_0047	-	transposase for insertion sequence IS1661
47	 49.14	0	57176..57934	-	252	145597371	-	YPDSF_0048	-	DNA-binding transcriptional repressor GlpR
48	 50.30	0	57969..58805	-	278	145597372	-	YPDSF_0049	-	intramembrane serine protease GlpG
49	 48.18	0	58823..59152	-	109	145597373	glpE	YPDSF_0050	-	thiosulfate sulfurtransferase
50	 51.03	0	59527..62238	-	903	145597374	-	YPDSF_0051	-	transcriptional regulator MalT
51	 49.46	0	62556..64961	+	801	145597375	-	YPDSF_0052	-	glycogen/starch/alpha-glucan phosphorylase
52	 51.22	0	64974..67070	+	698	145597376	malQ	YPDSF_0053	-	4-alpha-glucanotransferase
53	 46.70	0	67399..67974	-	191	145597377	-	YPDSF_0054	-	putative DNA uptake protein
54	 55.27	+1	68034..68735	-	233	145597378	-	YPDSF_0055	-	gluconate periplasmic binding protein
55	 52.01	0	68801..69598	+	265	145597379	-	YPDSF_0056	-	biotin biosynthesis protein
56	 44.07	0	69768..70037	+	89	145597380	-	YPDSF_0057	-	hypothetical protein
57	 52.33	0	70175..70432	-	85	145597381	-	YPDSF_0058	-	hypothetical protein
58	 51.08	0	70468..72783	-	771	145597382	feoB	YPDSF_0059	-	ferrous iron transport protein B
59	 48.68	0	72875..73102	-	75	145597383	feoA	YPDSF_0060	-	ferrous iron transport protein A
60	 54.17	+1	73626..76001	-	791	145597384	-	YPDSF_0061	-	hypothetical protein
61	 49.22	0	76535..77050	+	171	145597385	greB	YPDSF_0062	-	transcription elongation factor GreB
62	 52.22	0	77186..77905	+	239	145597386	ompR	YPDSF_0063	-	osmolarity response regulator
63	 51.52	0	77902..79254	+	450	145597387	envZ	YPDSF_0064	-	osmolarity sensor protein
64	 49.57	0	79409..81028	-	539	145597388	-	YPDSF_0065	-	phosphoenolpyruvate carboxykinase
65	 49.21	0	81225..82106	-	293	145597389	hslO	YPDSF_0066	-	Hsp33-like chaperonin
66	 52.21	0	82269..82676	-	135	145597390	-	YPDSF_0067	-	heat shock protein 15
67	 48.02	0	82705..83385	-	226	145597391	-	YPDSF_0068	-	hypothetical protein
68	 48.37	0	83529..85676	-	715	145597392	-	YPDSF_0069	-	membrane protein
69	 47.44	0	86263..86808	+	181	145597393	nudE	YPDSF_0070	-	ADP-ribose diphosphatase NudE
70	 51.76	0	86944..89499	-	851	145597394	mrcA	YPDSF_0071	-	peptidoglycan synthetase
71	 52.06	0	89619..90515	+	298	145597395	-	YPDSF_0072	-	hypothetical protein
72	 51.82	0	90515..91120	+	201	145597396	-	YPDSF_0073	-	hypothetical protein
73	 49.44	0	91068..91694	+	208	145597397	-	YPDSF_0074	-	hypothetical protein
74	 47.09	0	91660..92088	+	142	145597398	-	YPDSF_0075	-	membrane protein
75	 41.79	-1	92091..92480	-	129	145597399	-	YPDSF_0076	-	hypothetical protein
76	 48.12	0	92287..93639	+	450	145597400	-	YPDSF_0077	-	putative outer membrane porin HofQ
77	 47.89	0	93988..94509	+	173	145597401	aroK	YPDSF_0078	-	shikimate kinase I
78	 49.77	0	94566..95654	+	362	145597402	aroB	YPDSF_0079	-	3-dehydroquinate synthase
79	 48.59	0	95908..96897	+	329	145597403	-	YPDSF_0080	-	hypothetical protein
80	 45.71	0	96981..97796	+	271	145597404	-	YPDSF_0081	-	DNA adenine methylase
81	 49.71	0	98099..98776	+	225	145597405	-	YPDSF_0082	-	ribulose-phosphate 3-epimerase
82	 51.79	0	98769..99467	+	232	162202303	-	YPDSF_0083	-	phosphoglycolate phosphatase
83	 48.41	0	99469..100509	+	346	145597407	-	YPDSF_0084	-	tryptophanyl-tRNA synthetase
84	 53.16	+1	100628..102049	-	473	145597408	cysG	YPDSF_0085	-	siroheme synthase
85	 53.78	+1	102137..102943	-	268	145597409	-	YPDSF_0086	-	nitrite transporter NirC
86	 51.38	0	103122..103448	-	108	145597410	nirD	YPDSF_0087	-	nitrite reductase small subunit
87	 51.63	0	103445..105991	-	848	145597411	-	YPDSF_0088	-	nitrite reductase
88	 51.66	0	106313..107611	+	432	145597412	-	YPDSF_0089	-	cytosine deaminase
89	 47.76	0	107696..108880	-	394	145597413	-	YPDSF_0090	-	hypothetical protein
90	 50.51	0	109366..111426	+	686	145597414	-	YPDSF_0091	-	membrane receptor protein
91	 51.37	0	111539..112525	-	328	145597415	-	YPDSF_0092	-	LacI family transcriptional regulator
92	 45.26	0	114596..115165	+	189	145597416	-	YPDSF_0095	-	peptidyl-prolyl cis-trans isomerase A (rotamase A)
93	 51.95	0	115491..117032	+	513	145597417	-	YPDSF_0096	-	hypothetical protein
94	 51.91	0	117275..117850	+	191	145597418	-	YPDSF_0097	-	para-aminobenzoate synthase component II
95	 52.87	+1	117983..119200	+	405	145597419	argD	YPDSF_0098	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
96	 48.37	0	119426..121546	-	706	145597420	-	YPDSF_0099	-	hypothetical protein
97	 46.76	0	121632..122264	-	210	145597421	-	YPDSF_0100	-	cAMP-regulatory protein
98	 49.26	0	122600..123007	+	135	145597422	-	YPDSF_0101	-	hypothetical protein
99	 33.80	-2	123079..123510	+	143	145597423	-	YPDSF_0102	-	hypothetical protein
100	 49.54	0	123688..124557	-	289	145597424	-	YPDSF_0103	-	phosphoribulokinase 1
101	 49.37	0	124706..124942	-	78	145597425	-	YPDSF_0104	-	hypothetical protein
102	 51.27	0	124939..125919	-	326	145597426	-	YPDSF_0105	-	putative hydrolase
103	 48.92	0	126021..126623	+	200	145597427	-	YPDSF_0106	-	ABC-transport protein
104	 51.98	0	126826..127887	+	353	145597428	tauA	YPDSF_0107	-	taurine transporter substrate binding subunit
105	 53.65	+1	127896..128663	+	255	145597429	tauB	YPDSF_0108	-	taurine transporter ATP-binding subunit
106	 54.62	+1	128660..129514	+	284	145597430	-	YPDSF_0109	-	taurine transporter subunit
107	 51.00	0	129511..130359	+	282	145597431	tauD	YPDSF_0110	-	taurine dioxygenase
108	 49.39	0	131446..132435	-	329	145597432	-	YPDSF_0113	-	glycosyl transferase
109	 51.27	0	132570..134492	-	640	145597433	-	YPDSF_0114	-	putative ABC transporter ATP-binding protein
110	 49.18	0	134743..135291	+	182	145597434	-	YPDSF_0115	-	glutathione-regulated potassium-efflux system ancillary protein KefG
111	 51.41	0	135295..137103	+	602	145597435	-	YPDSF_0116	-	glutathione-regulated potassium-efflux system protein KefB
112	 45.95	0	137119..137340	+	73	145597436	-	YPDSF_0117	-	hypothetical protein
113	 52.55	0	137435..138022	+	195	145597437	-	YPDSF_0118	-	FKBP-type peptidyl-prolyl cis-trans isomerase
114	 48.86	0	138243..138461	-	72	145597438	-	YPDSF_0119	-	hypothetical protein
115	 45.82	0	138776..139576	+	266	145597439	-	YPDSF_0120	-	FKBP-type peptidyl-prolyl cis-trans isomerase
116	 44.40	0	139830..140552	+	240	145597440	-	YPDSF_0121	-	DNA-binding protein
117	 52.53	0	140552..140947	+	131	145597441	-	YPDSF_0122	-	hypothetical protein
118	 45.36	0	140947..141312	+	121	145597442	-	YPDSF_0123	-	hypothetical protein
119	 43.06	-1	141332..141619	+	95	145597443	-	YPDSF_0124	-	tRNA 2-thiouridine synthesizing protein B
120	 50.40	0	141757..142131	+	124	145597444	rpsL	YPDSF_0125	-	30S ribosomal protein S12
121	 47.98	0	142228..142698	+	156	145597445	-	YPDSF_0126	-	30S ribosomal protein S7
122	 48.08	0	142792..144900	+	702	145597446	-	YPDSF_0127	-	elongation factor G
123	 48.19	0	144973..146157	+	394	145597447	-	YPDSF_0128	-	elongation factor Tu
124	 45.97	0	146360..146818	+	152	145597448	-	YPDSF_0129	-	transposase for the IS1541 insertion element
125	 44.93	0	146994..147200	+	68	145597449	-	YPDSF_0130	-	bacterioferritin-associated ferredoxin
126	 38.61	-1	147279..147752	+	157	145597450	-	YPDSF_0131	-	bacterioferritin, iron storage and detoxification protein
127	 52.56	0	148166..148477	+	103	145597451	-	YPDSF_0132	-	30S ribosomal protein S10
128	 48.89	0	148510..149139	+	209	145597452	rplC	YPDSF_0133	-	50S ribosomal protein L3
129	 50.17	0	149156..149761	+	201	145597453	rplD	YPDSF_0134	-	50S ribosomal protein L4
130	 48.51	0	149758..150060	+	100	145597454	rplW	YPDSF_0135	-	50S ribosomal protein L23
131	 51.52	0	150077..150901	+	274	145597455	rplB	YPDSF_0136	-	50S ribosomal protein L2
132	 50.54	0	150916..151194	+	92	145597456	rpsS	YPDSF_0137	-	30S ribosomal protein S19
133	 50.15	0	151209..151541	+	110	145597457	rplV	YPDSF_0138	-	50S ribosomal protein L22
134	 49.36	0	151559..152257	+	232	145597458	rpsC	YPDSF_0139	-	30S ribosomal protein S3
135	 50.85	0	152270..152680	+	136	145597459	rplP	YPDSF_0140	-	50S ribosomal protein L16
136	 50.00	0	152680..152871	+	63	145597460	-	YPDSF_0141	-	50S ribosomal protein L29
137	 46.67	0	152871..153125	+	84	145597461	rpsQ	YPDSF_0142	-	30S ribosomal protein S17
138	 50.27	0	153306..153677	+	123	145597462	rplN	YPDSF_0143	-	50S ribosomal protein L14
139	 46.03	0	153688..154002	+	104	145597463	rplX	YPDSF_0144	-	50S ribosomal protein L24
48.06	MEAN

4.80	STD DEV
