IslandPath Analysis: Yersinia pestis Pestoides F

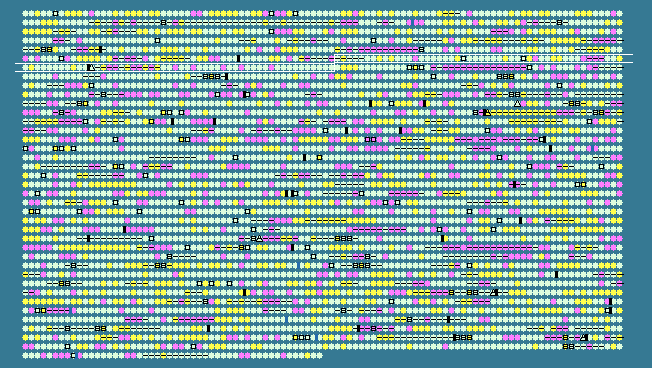

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.06   STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
553	 49.26	0	645191..646333	-	380	145597876	-	YPDSF_0569	-	coproporphyrinogen III oxidase
554	 53.20	+1	646314..646907	-	197	145597877	-	YPDSF_0570	-	putative deoxyribonucleotide triphosphate pyrophosphatase
555	 50.52	0	647007..647297	-	96	145597878	-	YPDSF_0571	-	hypothetical protein
556	 46.31	0	647294..647848	-	184	145597879	-	YPDSF_0572	-	membrane protein
557	 50.97	0	648136..648957	-	273	145597880	-	YPDSF_0573	-	pyrroline-5-carboxylate reductase
558	 48.93	0	649090..649788	-	232	145597881	-	YPDSF_0574	-	hypothetical protein
559	 47.73	0	649808..650932	+	374	145597882	-	YPDSF_0575	-	hypothetical protein
560	 52.60	0	651041..652156	-	371	145597883	-	YPDSF_0576	-	agmatine deiminase
561	 50.40	0	652160..653044	-	294	145597884	-	YPDSF_0577	-	carbon-nitrogen hydrolase
562	 53.19	+1	653224..653646	-	140	145597885	-	YPDSF_0578	-	Holliday junction resolvase-like protein
563	 46.45	0	653646..654209	-	187	145597886	-	YPDSF_0579	-	hypothetical protein
564	 49.17	0	654325..655284	-	319	145597887	-	YPDSF_0580	-	glutathione synthetase
565	 50.00	0	655310..656041	-	243	145597888	-	YPDSF_0581	-	hypothetical protein
566	 43.45	0	656082..656249	+	55	145597889	-	YPDSF_0582	-	hypothetical protein
567	 47.88	0	656293..657000	-	235	145597890	-	YPDSF_0583	-	endonuclease I
568	 48.39	0	657098..657655	-	185	145597891	-	YPDSF_0584	-	hypothetical protein
569	 49.78	0	657803..658957	-	384	145597892	-	YPDSF_0585	-	S-adenosylmethionine synthetase
570	 50.10	0	660164..662143	+	659	145597893	-	YPDSF_0586	-	arginine decarboxylase
571	 47.35	0	662303..662623	+	106	145597894	-	YPDSF_0587	-	Rieske protein
572	 48.87	0	662913..663665	-	250	145597895	-	YPDSF_0588	-	lipoprotein
573	 52.08	0	664156..666150	+	664	145597896	-	YPDSF_0589	-	transketolase
574	 45.75	0	666458..666916	+	152	145597897	-	YPDSF_0590	-	transposase for the IS1541 insertion element
575	 49.46	0	667257..668273	+	338	145597898	-	YPDSF_0591	-	erythrose 4-phosphate dehydrogenase
576	 50.95	0	668376..669539	+	387	145597899	pgk	YPDSF_0592	-	phosphoglycerate kinase
577	 47.22	0	669659..670738	+	359	145597900	-	YPDSF_0593	-	fructose-bisphosphate aldolase
578	 50.11	0	671176..672045	+	289	145597901	-	YPDSF_0594	-	membrane protein
579	 50.81	0	672308..672925	+	205	145597902	-	YPDSF_0595	-	arginine exporter protein
580	 49.44	0	673094..673894	+	266	145597903	-	YPDSF_0596	-	hypothetical protein
581	 53.91	+1	673905..674813	-	302	145597904	-	YPDSF_0597	-	chromosome replication initiation inhibitor protein
582	 47.95	0	675155..675811	+	218	145597905	-	YPDSF_0598	-	ribose-5-phosphate isomerase A
583	 48.87	0	676118..677359	+	413	145597906	-	YPDSF_0599	-	D-3-phosphoglycerate dehydrogenase
584	 45.97	0	677748..678206	+	152	145597907	-	YPDSF_0600	-	transposase for the IS1541 insertion element
585	 51.76	0	678335..678931	-	198	145597908	-	YPDSF_0601	-	5-formyltetrahydrofolate cyclo-ligase-family protein
586	 42.12	-1	679295..679624	-	109	145597909	-	YPDSF_0602	-	Z-ring-associated protein
587	 46.98	0	679961..680539	+	192	145597910	-	YPDSF_0603	-	hypothetical protein
588	 51.45	0	680627..681940	+	437	145597911	-	YPDSF_0604	-	proline aminopeptidase P II
589	 55.05	+1	682026..683204	+	392	145597912	-	YPDSF_0605	-	2-octaprenyl-6-methoxyphenyl hydroxylase
590	 53.94	+1	683254..684597	+	447	145597913	-	YPDSF_0606	-	hypothetical protein
591	 50.55	0	685318..686415	+	365	145597914	gcvT	YPDSF_0607	-	glycine cleavage system aminomethyltransferase T
592	 49.35	0	686484..686870	+	128	145597915	-	YPDSF_0608	-	glycine cleavage system protein H
593	 51.46	0	687082..689961	+	959	145597916	-	YPDSF_0609	-	glycine dehydrogenase
594	 42.24	-1	690339..690776	+	145	145597917	-	YPDSF_0610	-	hypothetical protein
595	 30.16	-2	691147..691272	+	41	145597918	-	YPDSF_0611	-	hypothetical protein
596	 30.30	-2	691824..691988	+	54	145597919	-	YPDSF_0612	-	hypothetical protein
597	 43.21	-1	694065..695168	+	367	145597920	-	YPDSF_0614	-	hypothetical protein
598	 50.28	0	695370..696071	+	233	145597921	-	YPDSF_0615	-	hemolysin III
599	 45.18	0	696329..696826	+	165	145597922	-	YPDSF_0616	-	hypothetical protein
600	 51.96	0	696899..697891	-	330	145597923	-	YPDSF_0617	-	putative global regulator
601	 45.32	0	698208..698474	+	88	145597924	-	YPDSF_0618	-	hypothetical protein
602	 52.11	0	698455..698880	+	141	145597925	-	YPDSF_0619	-	hypothetical protein
603	 49.64	0	698880..699578	+	232	145597926	-	YPDSF_0620	-	DNA-binding response regulator CreB
604	 50.88	0	699603..701021	+	472	145597927	-	YPDSF_0621	-	sensory histidine kinase CreC
605	 45.77	0	701121..702599	+	492	145597928	-	YPDSF_0622	-	hypothetical protein
606	 45.53	0	702689..703270	-	193	145597929	-	YPDSF_0623	-	flavodoxin FldB
607	 50.22	0	703314..704213	+	299	145597930	xerD	YPDSF_0624	-	site-specific tyrosine recombinase XerD
608	 45.61	0	704244..704960	+	238	145597931	-	YPDSF_0625	-	thiol:disulfide interchange protein DsbC
609	 52.88	+1	704967..706700	+	577	145597932	-	YPDSF_0626	-	ssDNA exonuclease RecJ
610	 46.73	0	707045..707977	+	310	145597933	prfB	YPDSF_0627	-	peptide chain release factor 2
611	 47.96	0	707987..709504	+	505	145597934	lysS	YPDSF_0628	-	lysyl-tRNA synthetase
612	 48.56	0	709937..711151	+	404	145597935	-	YPDSF_0629	-	integrase
613	 46.77	0	711233..711418	-	61	145597936	-	YPDSF_0630	-	hypothetical protein
614	 57.14	+1	711519..711644	-	41	145597937	-	YPDSF_0631	-	hypothetical protein
615	 44.08	0	712339..712701	+	120	145597938	-	YPDSF_0632	-	DNA binding protein
616	 39.06	-1	712865..713161	+	98	145597939	-	YPDSF_0633	-	hypothetical protein
617	 45.61	0	713161..713559	+	132	145597940	-	YPDSF_0634	-	hypothetical protein
618	 55.15	+1	713959..716250	-	763	145597941	-	YPDSF_0635	-	primase
619	 43.12	-1	716550..716876	+	108	145597942	-	YPDSF_0636	-	hypothetical protein
620	 41.79	-1	717035..717235	-	66	145597943	-	YPDSF_0637	-	regulatory protein
621	 57.06	+1	717417..717749	-	110	145597944	-	YPDSF_0638	-	hypothetical protein
622	 32.49	-2	717755..717991	-	78	145597945	-	YPDSF_0639	-	hypothetical protein
623	 51.64	0	718004..718369	-	121	145597946	-	YPDSF_0640	-	hypothetical protein
624	 45.58	0	718638..719780	+	380	145597947	-	YPDSF_0641	-	hypothetical protein
625	 49.45	0	720287..721825	+	512	145597948	-	YPDSF_0642	-	hypothetical protein
626	 38.97	-1	721822..722016	+	64	145597949	-	YPDSF_0643	-	hypothetical protein
627	 46.04	0	723297..725492	+	731	145597950	-	YPDSF_0644	-	hypothetical protein
628	 51.17	0	725462..726229	+	255	145597951	-	YPDSF_0645	-	hypothetical protein
629	 35.13	-2	726834..727613	+	259	145597952	-	YPDSF_0646	-	hypothetical protein
630	 46.73	0	727830..728135	+	101	145597953	-	YPDSF_0647	-	hypothetical protein
631	 49.53	0	728234..728554	-	106	145597954	-	YPDSF_0648	-	hypothetical protein
632	 51.10	0	728554..729234	-	226	145597955	-	YPDSF_0649	-	hypothetical protein
633	 48.83	0	729658..730515	-	285	145597956	-	YPDSF_0650	-	hypothetical protein
634	 31.41	-2	730891..731409	-	172	145597957	-	YPDSF_0651	-	hypothetical protein
635	 47.50	0	732188..733189	-	333	145597958	-	YPDSF_0652	-	sugar-binding periplasmic protein
636	 48.56	0	733624..734628	-	334	145597959	-	YPDSF_0653	-	sugar transport system permease
637	 44.33	0	734700..736208	-	502	145597960	-	YPDSF_0654	-	sugar transport ATP-binding protein
638	 48.32	0	736747..737847	-	366	145597961	-	YPDSF_0655	-	sugar transport ATP-binding protein
639	 47.57	0	738204..739439	+	411	145597962	-	YPDSF_0656	-	sugar-binding protein
640	 51.06	0	739599..739739	+	46	145597963	-	YPDSF_0657	-	ABC maltodextrin transporter, permease subunit
641	 45.03	0	739712..740908	+	398	145597964	-	YPDSF_0658	-	maltodextrin transport permease
642	 43.54	0	740920..741771	+	283	145597965	-	YPDSF_0659	-	maltodextrin permease protein
643	 45.97	0	741776..742978	+	400	145597966	-	YPDSF_0660	-	galactosidase
644	 47.30	0	745896..747155	-	419	145597967	-	YPDSF_0664	-	maltoporin
645	 48.32	0	747427..748500	+	357	145597968	lacI	YPDSF_0665	-	lac repressor
646	 50.38	0	748813..751188	-	791	145597969	-	YPDSF_0666	-	glucosidase
647	 49.46	0	751339..752646	-	435	145597970	-	YPDSF_0667	-	sugar transporter
648	 48.11	0	753040..754122	+	360	145597971	-	YPDSF_0668	-	LacI-family regulatory protein
649	 49.74	0	754363..754941	-	192	145597972	-	YPDSF_0669	-	ThiJ/PfpI-family thiamine biogenesis protein
650	 50.18	0	754965..755819	-	284	145597973	gatY	YPDSF_0670	-	tagatose-bisphosphate aldolase
651	 49.60	0	755930..757417	-	495	145597974	-	YPDSF_0671	-	hypothetical protein
652	 48.63	0	757540..759147	-	535	145597975	-	YPDSF_0672	-	sulfatase
48.06	MEAN

4.80	STD DEV
