IslandPath Analysis: Yersinia pestis Pestoides F

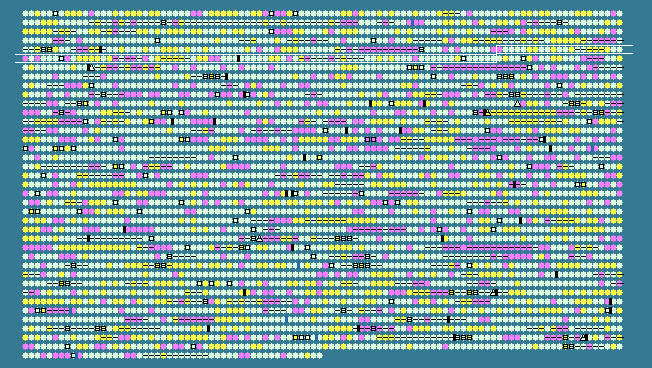

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
480	 37.56	-2	553077..553976	-	299	145597803	-	YPDSF_0495	-	flagellar motor switch protein
481	 44.61	0	554491..555519	+	342	145597804	-	YPDSF_0496	-	sigma-54 transcriptional regulatory protein
482	 51.44	0	555536..555916	+	126	145597805	-	YPDSF_0497	-	flagellar hook-basal body complex protein
483	 50.21	0	555926..557566	+	546	145597806	fliF	YPDSF_0498	-	flagellar MS-ring protein
484	 50.29	0	557538..558581	+	347	145597807	fliG	YPDSF_0499	-	flagellar motor switch protein G
485	 53.84	+1	558586..559302	+	238	145597808	fliH	YPDSF_0500	-	flagellar assembly protein H
486	 57.94	+2	559295..560623	+	442	145597809	fliI	YPDSF_0501	-	flagellum-specific ATP synthase
487	 50.23	0	560627..561064	+	145	145597810	-	YPDSF_0502	-	hypothetical protein
488	 47.89	0	561392..561817	-	141	145597811	-	YPDSF_0503	-	hypothetical protein
489	 52.06	0	561824..562090	-	88	145597812	-	YPDSF_0504	-	flagellar regulatory protein
490	 48.80	0	562319..563236	-	305	145597813	flgA	YPDSF_0505	-	flagellar basal body P-ring biosynthesis protein FlgA
491	 45.83	0	563264..563671	+	135	145597814	flgB	YPDSF_0506	-	flagellar basal body rod protein FlgB
492	 52.82	0	563674..564099	+	141	145597815	flgC	YPDSF_0507	-	flagellar basal body rod protein FlgC
493	 51.29	0	564102..564758	+	218	145597816	flgD	YPDSF_0508	-	flagellar basal body rod modification protein
494	 50.97	0	564813..566054	+	413	145597817	flgE	YPDSF_0509	-	flagellar hook protein FlgE
495	 55.46	+1	566054..566785	+	243	145597818	flgF	YPDSF_0510	-	flagellar basal body rod protein FlgF
496	 52.29	0	566853..567638	+	261	145597819	flgG	YPDSF_0511	-	flagellar basal body rod protein FlgG
497	 53.00	+1	567673..568338	+	221	145597820	flgH	YPDSF_0512	-	flagellar basal body L-ring protein
498	 54.25	+1	568352..569527	+	391	145597821	flgI	YPDSF_0513	-	flagellar basal body P-ring protein
499	 50.34	0	569537..569830	+	97	145597822	flgJ	YPDSF_0514	-	peptidoglycan hydrolase
500	 45.15	0	569943..571304	+	453	145597823	flgK	YPDSF_0515	-	flagellar hook-associated protein FlgK
501	 40.26	-1	571333..572256	+	307	145597824	flgL	YPDSF_0516	-	flagellar hook-associated protein FlgL
502	 50.79	0	572268..573281	+	337	145597825	-	YPDSF_0517	-	hypothetical protein
503	 42.73	-1	573445..573891	-	148	145597826	-	YPDSF_0518	-	hypothetical protein
504	 45.27	0	573872..574918	-	348	145597827	-	YPDSF_0519	-	regulatory protein
505	 49.75	0	575544..576749	+	401	145597828	-	YPDSF_0520	-	flagellin
506	 48.37	0	577308..578504	+	398	145597829	-	YPDSF_0521	-	flagellin
507	 46.44	0	579165..579950	+	261	145597830	-	YPDSF_0522	-	transposase for insertion sequence IS1661
508	 44.35	0	580198..581622	+	474	145597831	-	YPDSF_0523	-	Sodium:galactoside symporter
509	 50.30	0	581881..584061	-	726	145597832	-	YPDSF_0524	-	ferric siderophore receptor
510	 53.65	+1	584133..585461	-	442	145597833	-	YPDSF_0525	-	siderophore biosynthesis protein IucD
511	 53.92	+1	585458..587206	-	582	145597834	-	YPDSF_0526	-	siderophore biosynthesis protein IucC
512	 55.42	+1	587203..588153	-	316	145597835	-	YPDSF_0527	-	siderophore biosynthesis protein IucB
513	 54.62	+1	588137..589207	-	356	145597836	-	YPDSF_0528	-	siderophore biosynthesis protein, IucA familly
514	 50.41	0	589300..589908	-	202	145597837	-	YPDSF_0529	-	hypothetical protein
515	 55.15	+1	590048..591271	+	407	145597838	-	YPDSF_0530	-	hypothetical protein
516	 38.37	-2	591561..592394	-	277	145597839	-	YPDSF_0531	-	hypothetical protein
517	 49.37	0	592771..594129	-	452	145597840	-	YPDSF_0532	-	hypothetical protein
518	 38.44	-2	594691..595434	+	247	145597841	-	YPDSF_0533	-	quorum-sensing transcriptional regulator
519	 41.17	-1	595415..596065	-	216	145597842	-	YPDSF_0534	-	N-acylhomoserine lactone synthase YspI
520	 49.29	0	597610..597891	+	93	145597843	-	YPDSF_0535	-	membrane protein
521	 38.13	-2	598342..598737	+	131	145597844	-	YPDSF_0536	-	putative lipoprotein
522	 47.73	0	598805..599068	+	87	145597845	-	YPDSF_0537	-	insertion element protein
523	 51.70	0	601013..601513	+	166	145597846	-	YPDSF_0538	-	hypothetical protein
524	 55.28	+1	601562..603106	+	514	145597847	-	YPDSF_0539	-	hypothetical protein
525	 59.79	+2	603118..604470	+	450	145597848	-	YPDSF_0540	-	hypothetical protein
526	 61.28	+2	604467..605153	+	228	145597849	-	YPDSF_0541	-	membrane protein
527	 62.64	+2	605153..606889	+	578	145597850	-	YPDSF_0542	-	OmpA-family membrane protein
528	 49.38	0	606866..607351	-	161	145597851	-	YPDSF_0543	-	hypothetical protein
529	 50.41	0	606893..607384	+	163	145597852	-	YPDSF_0544	-	hypothetical protein
530	 58.51	+2	607802..610450	+	882	145597853	-	YPDSF_0545	-	Clp ATPase
531	 56.70	+1	610447..612795	+	782	145597854	-	YPDSF_0546	-	Rhs element Vgr protein
532	 43.73	0	612811..615108	+	765	145597855	-	YPDSF_0547	-	kinase
533	 33.46	-2	615095..615862	+	255	145597856	-	YPDSF_0548	-	hypothetical protein
534	 51.45	0	615958..616233	+	91	145597857	-	YPDSF_0549	-	insertion sequence protein
535	 46.34	0	616287..616655	+	122	145597858	-	YPDSF_0550	-	insertion sequence protein
536	 51.10	0	617263..617898	+	211	145597859	-	YPDSF_0551	-	hypothetical protein
537	 49.67	0	619055..619207	+	50	145597860	-	YPDSF_0553	-	hypothetical protein
538	 45.58	0	619062..621389	+	775	145597861	-	YPDSF_0554	-	ornithine decarboxylase
539	 47.08	0	621945..622904	+	319	145597862	-	YPDSF_0555	-	sugar ABC transporter periplasmic binding protein
540	 48.67	0	622950..624449	+	499	145597863	-	YPDSF_0556	-	sugar transport ATP-binding protein
541	 47.36	0	624482..625465	+	327	145597864	-	YPDSF_0557	-	sugar transport system permease protein
542	 53.05	+1	625548..627692	-	714	145597865	-	YPDSF_0558	-	hydroxamate-type ferrisiderophore receptor
543	 54.31	+1	627685..628785	-	366	145597866	-	YPDSF_0559	-	hypothetical protein
544	 46.19	0	629084..630172	-	362	145597867	mltC	YPDSF_0560	-	murein transglycosylase C
545	 41.39	-1	630343..630615	-	90	145597868	-	YPDSF_0561	-	hypothetical protein
546	 50.40	0	630793..631911	-	372	145597869	-	YPDSF_0562	-	adenine DNA glycosylase
547	 51.67	0	632246..632965	+	239	145597870	trmB	YPDSF_0563	-	tRNA (guanine-N(7))-methyltransferase
548	 42.81	-1	632965..633291	+	108	145597871	-	YPDSF_0564	-	hypothetical protein
549	 48.76	0	633402..634328	+	308	145597872	-	YPDSF_0565	-	glutaminase
550	 49.15	0	634440..634970	+	176	145597873	-	YPDSF_0566	-	hypothetical protein
551	 51.22	0	634928..635173	+	81	145597874	-	YPDSF_0567	-	hypothetical protein
552	 37.22	-2	635669..645001	+	3110	145597875	-	YPDSF_0568	-	virulence determinant
553	 49.26	0	645191..646333	-	380	145597876	-	YPDSF_0569	-	coproporphyrinogen III oxidase
554	 53.20	+1	646314..646907	-	197	145597877	-	YPDSF_0570	-	putative deoxyribonucleotide triphosphate pyrophosphatase
555	 50.52	0	647007..647297	-	96	145597878	-	YPDSF_0571	-	hypothetical protein
556	 46.31	0	647294..647848	-	184	145597879	-	YPDSF_0572	-	membrane protein
557	 50.97	0	648136..648957	-	273	145597880	-	YPDSF_0573	-	pyrroline-5-carboxylate reductase
558	 48.93	0	649090..649788	-	232	145597881	-	YPDSF_0574	-	hypothetical protein
559	 47.73	0	649808..650932	+	374	145597882	-	YPDSF_0575	-	hypothetical protein
560	 52.60	0	651041..652156	-	371	145597883	-	YPDSF_0576	-	agmatine deiminase
561	 50.40	0	652160..653044	-	294	145597884	-	YPDSF_0577	-	carbon-nitrogen hydrolase
562	 53.19	+1	653224..653646	-	140	145597885	-	YPDSF_0578	-	Holliday junction resolvase-like protein
563	 46.45	0	653646..654209	-	187	145597886	-	YPDSF_0579	-	hypothetical protein
564	 49.17	0	654325..655284	-	319	145597887	-	YPDSF_0580	-	glutathione synthetase
565	 50.00	0	655310..656041	-	243	145597888	-	YPDSF_0581	-	hypothetical protein
566	 43.45	0	656082..656249	+	55	145597889	-	YPDSF_0582	-	hypothetical protein
567	 47.88	0	656293..657000	-	235	145597890	-	YPDSF_0583	-	endonuclease I
568	 48.39	0	657098..657655	-	185	145597891	-	YPDSF_0584	-	hypothetical protein
569	 49.78	0	657803..658957	-	384	145597892	-	YPDSF_0585	-	S-adenosylmethionine synthetase
570	 50.10	0	660164..662143	+	659	145597893	-	YPDSF_0586	-	arginine decarboxylase
571	 47.35	0	662303..662623	+	106	145597894	-	YPDSF_0587	-	Rieske protein
572	 48.87	0	662913..663665	-	250	145597895	-	YPDSF_0588	-	lipoprotein
573	 52.08	0	664156..666150	+	664	145597896	-	YPDSF_0589	-	transketolase
574	 45.75	0	666458..666916	+	152	145597897	-	YPDSF_0590	-	transposase for the IS1541 insertion element
575	 49.46	0	667257..668273	+	338	145597898	-	YPDSF_0591	-	erythrose 4-phosphate dehydrogenase
576	 50.95	0	668376..669539	+	387	145597899	pgk	YPDSF_0592	-	phosphoglycerate kinase
577	 47.22	0	669659..670738	+	359	145597900	-	YPDSF_0593	-	fructose-bisphosphate aldolase
578	 50.11	0	671176..672045	+	289	145597901	-	YPDSF_0594	-	membrane protein
579	 50.81	0	672308..672925	+	205	145597902	-	YPDSF_0595	-	arginine exporter protein
48.06	MEAN

4.80	STD DEV
