IslandPath Analysis: Yersinia pestis Pestoides F

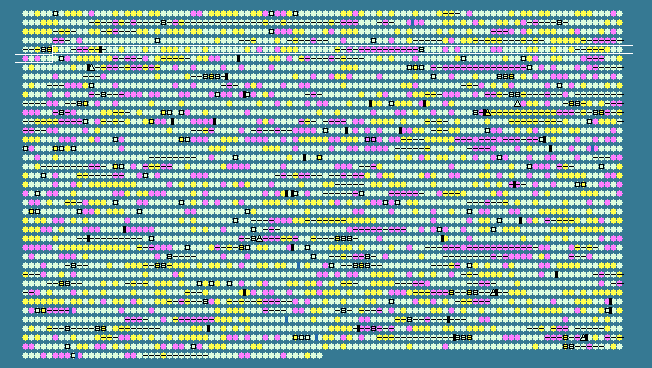

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
406	 52.45	0	476110..476313	+	67	145597729	-	YPDSF_0419	-	hypothetical protein
407	 50.93	0	476247..476621	+	124	145597730	-	YPDSF_0420	-	hypothetical protein
408	 47.80	0	476618..476776	-	52	145597731	-	YPDSF_0421	-	hypothetical protein
409	 48.81	0	477695..479077	+	460	145597732	-	YPDSF_0422	-	hypothetical protein
410	 42.25	-1	479086..479556	+	156	145597733	-	YPDSF_0423	-	hypothetical protein
411	 41.45	-1	479583..480038	+	151	145597734	-	YPDSF_0424	-	hypothetical protein
412	 51.55	0	480055..480345	+	96	145597735	-	YPDSF_0425	-	hypothetical protein
413	 52.21	0	480323..480661	+	112	145597736	-	YPDSF_0426	-	hypothetical protein
414	 48.55	0	481179..483005	-	608	145597737	-	YPDSF_0427	-	RNA polymerase sigma factor RpoD
415	 48.08	0	483163..484911	-	582	145597738	dnaG	YPDSF_0428	-	DNA primase
416	 46.30	0	485047..485262	-	71	145597739	rpsU	YPDSF_0429	-	30S ribosomal protein S21
417	 51.87	0	485668..486681	+	337	145597740	-	YPDSF_0430	-	O-sialoglycoprotein endopeptidase
418	 48.85	0	486798..487448	-	216	145597741	-	YPDSF_0431	-	putative glycerol-3-phosphate acyltransferase PlsY
419	 50.00	0	487556..487915	+	119	145597742	folB	YPDSF_0432	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
420	 48.23	0	488189..489007	+	272	145597743	-	YPDSF_0433	-	undecaprenyl pyrophosphate phosphatase
421	 53.35	+1	489243..490481	-	412	145597744	cca	YPDSF_0434	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
422	 45.99	0	490641..491264	-	207	145597745	-	YPDSF_0435	-	putative signal transduction protein
423	 50.61	0	491568..492875	+	435	145597746	-	YPDSF_0436	-	hypothetical protein
424	 52.80	0	493046..495901	+	951	145597747	-	YPDSF_0437	-	bifunctional glutamine-synthetase adenylyltransferase/deadenyltransferase
425	 52.97	+1	496036..497466	+	476	145597748	-	YPDSF_0438	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
426	 52.60	0	497503..498753	+	416	145597749	-	YPDSF_0439	-	inner membrane protein YjeH
427	 48.23	0	499078..499359	-	93	145597750	-	YPDSF_0440	-	hypothetical protein
428	 52.45	0	499928..500581	+	217	145597751	ribB	YPDSF_0441	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
429	 50.83	0	501023..501805	+	260	145597752	-	YPDSF_0442	-	hypothetical protein
430	 46.34	0	501966..503126	-	386	145597753	-	YPDSF_0443	-	hypothetical protein
431	 53.42	+1	503136..503822	-	228	145597754	-	YPDSF_0444	-	hypothetical protein
432	 47.21	0	504123..505520	-	465	145597755	tolC	YPDSF_0445	-	outer membrane channel protein
433	 49.61	0	505916..506548	+	210	145597756	nudF	YPDSF_0446	-	ADP-ribose pyrophosphatase NudF
434	 46.48	0	506582..507007	+	141	145597757	-	YPDSF_0447	-	hypothetical protein
435	 50.00	0	507016..507915	+	299	145597758	-	YPDSF_0448	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
436	 46.39	0	507915..508496	+	193	145597759	-	YPDSF_0449	-	esterase YqiA
437	 50.95	0	508598..510493	+	631	145597760	-	YPDSF_0450	-	DNA topoisomerase IV subunit B
438	 53.07	+1	510497..511408	+	303	145597761	-	YPDSF_0451	-	LysR family regulatory protein
439	 46.84	0	511466..512050	-	194	145597762	-	YPDSF_0452	-	modulator of drug activity
440	 42.97	-1	512123..512371	-	82	145597763	-	YPDSF_0453	-	hypothetical protein
441	 51.23	0	512354..514627	+	757	145597764	-	YPDSF_0454	-	DNA topoisomerase IV subunit A
442	 47.54	0	514916..515647	+	243	145597765	-	YPDSF_0455	-	acyltransferase
443	 44.44	0	515637..515816	-	59	145597766	-	YPDSF_0456	-	hypothetical protein
444	 52.42	0	515826..517250	+	474	145597767	-	YPDSF_0457	-	repressor protein for FtsI
445	 51.74	0	517558..519105	+	515	145597768	-	YPDSF_0458	-	hypothetical protein
446	 51.91	0	519090..519902	+	270	145597769	-	YPDSF_0459	-	hypothetical protein
447	 48.92	0	519924..520757	-	277	145597770	dkgA	YPDSF_0460	-	2,5-diketo-D-gluconate reductase A
448	 45.71	0	520904..521113	+	69	145597771	-	YPDSF_0461	-	hypothetical protein
449	 51.38	0	521176..522333	-	385	145597772	-	YPDSF_0462	-	iron-containing alcohol dehydrogenase
450	 48.55	0	522731..523624	+	297	145597773	-	YPDSF_0463	-	AraC family transcription regulator
451	 48.72	0	523716..524378	-	220	145597774	-	YPDSF_0464	-	DedA family membrane protein
452	 48.43	0	524571..525782	-	403	145597775	-	YPDSF_0465	-	cystathionine beta-lyase
453	 52.02	0	526261..527298	+	345	145597776	-	YPDSF_0466	-	MotA/TolQ/ExbB proton channel family protein
454	 48.36	0	527308..527733	+	141	145597777	-	YPDSF_0467	-	biopolymer transport protein ExbD
455	 35.47	-2	527830..529371	-	513	145597778	-	YPDSF_0468	-	hypothetical protein
456	 46.07	0	529410..529982	-	190	145597779	-	YPDSF_0469	-	hypothetical protein
457	 37.55	-2	529966..530439	-	157	145597780	-	YPDSF_0470	-	hypothetical protein
458	 35.67	-2	530436..531206	-	256	145597781	-	YPDSF_0471	-	hypothetical protein
459	 30.22	-2	531190..532023	-	277	145597782	-	YPDSF_0472	-	hypothetical protein
460	 33.22	-2	532020..532895	-	291	145597783	-	YPDSF_0473	-	hypothetical protein
461	 42.58	-1	532892..534178	-	428	145597784	-	YPDSF_0474	-	type II secretion protein
462	 33.69	-2	534190..535317	-	375	145597785	-	YPDSF_0475	-	hypothetical protein
463	 43.56	0	535615..536064	-	149	145597786	-	YPDSF_0476	-	outer membrane secretin family protein
464	 35.79	-2	536079..536933	-	284	145597787	-	YPDSF_0477	-	hypothetical protein
465	 35.52	-2	536930..537796	-	288	145597788	-	YPDSF_0478	-	hypothetical protein
466	 38.53	-1	537848..538270	-	140	145597789	-	YPDSF_0479	-	hypothetical protein
467	 45.75	0	538470..538928	+	152	145597790	-	YPDSF_0480	-	transposase for the IS1541 insertion element
468	 50.34	0	539281..541761	+	826	145597791	-	YPDSF_0481	-	outer membrane usher protein
469	 48.89	0	541779..542498	+	239	145597792	-	YPDSF_0482	-	fimbrial chaperone protein
470	 46.39	0	543840..544919	-	359	145597793	-	YPDSF_0485	-	iron-enterobactin transporter periplasmic binding protein
471	 42.77	-1	545775..546770	+	331	145597794	-	YPDSF_0486	-	hypothetical protein
472	 47.67	0	546862..547440	-	192	145597795	-	YPDSF_0487	-	lipoprotein
473	 37.40	-2	547443..547565	+	40	145597796	-	YPDSF_0488	-	hypothetical protein
474	 44.92	0	547634..549730	-	698	145597797	flhA	YPDSF_0489	-	flagellar biosynthesis protein FlhA
475	 44.62	0	549717..550850	-	377	145597798	flhB	YPDSF_0490	-	flagellar biosynthesis protein FlhB
476	 47.42	0	550850..551623	-	257	145597799	-	YPDSF_0491	-	flagellar assembly protein
477	 45.05	0	551630..551902	-	90	145597800	-	YPDSF_0492	-	flagellar assembly protein
478	 51.49	0	551904..552674	-	256	145597801	fliP	YPDSF_0493	-	flagellar biosynthesis protein FliP
479	 44.44	0	552671..553084	-	137	145597802	-	YPDSF_0494	-	flagellar switch protein
480	 37.56	-2	553077..553976	-	299	145597803	-	YPDSF_0495	-	flagellar motor switch protein
481	 44.61	0	554491..555519	+	342	145597804	-	YPDSF_0496	-	sigma-54 transcriptional regulatory protein
482	 51.44	0	555536..555916	+	126	145597805	-	YPDSF_0497	-	flagellar hook-basal body complex protein
483	 50.21	0	555926..557566	+	546	145597806	fliF	YPDSF_0498	-	flagellar MS-ring protein
484	 50.29	0	557538..558581	+	347	145597807	fliG	YPDSF_0499	-	flagellar motor switch protein G
485	 53.84	+1	558586..559302	+	238	145597808	fliH	YPDSF_0500	-	flagellar assembly protein H
486	 57.94	+2	559295..560623	+	442	145597809	fliI	YPDSF_0501	-	flagellum-specific ATP synthase
487	 50.23	0	560627..561064	+	145	145597810	-	YPDSF_0502	-	hypothetical protein
488	 47.89	0	561392..561817	-	141	145597811	-	YPDSF_0503	-	hypothetical protein
489	 52.06	0	561824..562090	-	88	145597812	-	YPDSF_0504	-	flagellar regulatory protein
490	 48.80	0	562319..563236	-	305	145597813	flgA	YPDSF_0505	-	flagellar basal body P-ring biosynthesis protein FlgA
491	 45.83	0	563264..563671	+	135	145597814	flgB	YPDSF_0506	-	flagellar basal body rod protein FlgB
492	 52.82	0	563674..564099	+	141	145597815	flgC	YPDSF_0507	-	flagellar basal body rod protein FlgC
493	 51.29	0	564102..564758	+	218	145597816	flgD	YPDSF_0508	-	flagellar basal body rod modification protein
494	 50.97	0	564813..566054	+	413	145597817	flgE	YPDSF_0509	-	flagellar hook protein FlgE
495	 55.46	+1	566054..566785	+	243	145597818	flgF	YPDSF_0510	-	flagellar basal body rod protein FlgF
496	 52.29	0	566853..567638	+	261	145597819	flgG	YPDSF_0511	-	flagellar basal body rod protein FlgG
497	 53.00	+1	567673..568338	+	221	145597820	flgH	YPDSF_0512	-	flagellar basal body L-ring protein
498	 54.25	+1	568352..569527	+	391	145597821	flgI	YPDSF_0513	-	flagellar basal body P-ring protein
499	 50.34	0	569537..569830	+	97	145597822	flgJ	YPDSF_0514	-	peptidoglycan hydrolase
500	 45.15	0	569943..571304	+	453	145597823	flgK	YPDSF_0515	-	flagellar hook-associated protein FlgK
501	 40.26	-1	571333..572256	+	307	145597824	flgL	YPDSF_0516	-	flagellar hook-associated protein FlgL
502	 50.79	0	572268..573281	+	337	145597825	-	YPDSF_0517	-	hypothetical protein
503	 42.73	-1	573445..573891	-	148	145597826	-	YPDSF_0518	-	hypothetical protein
504	 45.27	0	573872..574918	-	348	145597827	-	YPDSF_0519	-	regulatory protein
505	 49.75	0	575544..576749	+	401	145597828	-	YPDSF_0520	-	flagellin
48.06	MEAN

4.80	STD DEV
