IslandPathversion 1.0

IslandPath Analysis: Yersinia pestis Pestoides F

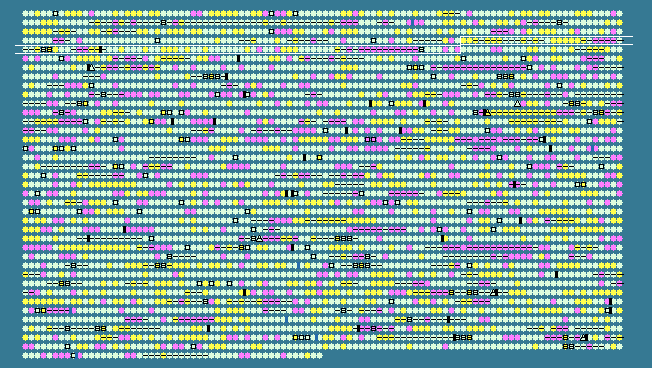

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
374	 54.17	+1	429542..431230	+	562	145597697	-	YPDSF_0385	-	hemolysin activator protein
375	 57.22	+1	431275..441162	+	3295	145597698	-	YPDSF_0386	-	adhesin
376	 52.00	0	441454..441603	+	49	145597699	-	YPDSF_0387	-	hypothetical protein
377	 46.49	0	441658..441885	+	75	145597700	-	YPDSF_0388	-	hypothetical protein
378	 59.26	+2	442430..443185	+	251	145597701	-	YPDSF_0389	-	hemagglutinin/hemolysin
379	 58.18	+2	443249..443413	+	54	145597702	-	YPDSF_0390	-	hypothetical protein
380	 54.68	+1	443681..445966	-	761	145597703	-	YPDSF_0391	-	putative autotransporter protein
381	 48.39	0	446026..447021	-	331	145597704	-	YPDSF_0392	-	hypothetical protein
382	 48.04	0	447123..448502	-	459	145597705	-	YPDSF_0393	-	hypothetical protein
383	 48.55	0	448840..449943	+	367	145597706	-	YPDSF_0394	-	transporter ATP-binding protein
384	 53.07	+1	450026..453379	+	1117	145597707	-	YPDSF_0395	-	hypothetical protein
385	 47.92	0	453488..454474	+	328	145597708	-	YPDSF_0396	-	LacI-family regulatory protein
386	 52.05	0	454551..455795	+	414	145597709	-	YPDSF_0397	-	sugar binding protein
387	 46.94	0	455849..456730	+	293	145597710	-	YPDSF_0398	-	permease protein
388	 46.64	0	456730..457548	+	272	145597711	-	YPDSF_0399	-	permease
389	 55.62	+1	457545..458060	+	171	145597712	-	YPDSF_0400	-	hypothetical protein
390	 57.83	+2	458111..460294	+	727	145597713	-	YPDSF_0401	-	glycosyl hydrolase
391	 52.13	0	460358..461884	-	508	145597714	-	YPDSF_0402	-	hypothetical protein
392	 53.15	+1	461889..463790	-	633	145597715	-	YPDSF_0403	-	membrane protein
393	 54.00	+1	463774..464823	-	349	145597716	-	YPDSF_0404	-	multidrug resistance protein MdtN
394	 51.79	0	464833..465168	-	111	145597717	-	YPDSF_0405	-	hypothetical protein
395	 45.77	0	465165..465365	-	66	145597718	-	YPDSF_0406	-	hypothetical protein
396	 42.58	-1	466131..467363	+	410	145597719	-	YPDSF_0407	-	aminotransferase
397	 34.68	-2	468822..469268	+	148	145597720	-	YPDSF_0410	-	hypothetical protein
398	 35.41	-2	469402..470028	+	208	145597721	-	YPDSF_0411	-	hypothetical protein
399	 35.43	-2	470044..470424	+	126	145597722	-	YPDSF_0412	-	translational inhibitor protein
400	 51.11	0	470709..471113	+	134	145597723	-	YPDSF_0413	-	translational inhibitor protein
401	 45.21	0	471328..471630	-	100	145597724	-	YPDSF_0414	-	hypothetical protein
402	 49.23	0	471890..472606	-	238	145597725	-	YPDSF_0415	-	hypothetical protein
403	 55.41	+1	472768..473700	+	310	145597726	-	YPDSF_0416	-	LysR family regulatory protein
404	 50.38	0	473902..474681	-	259	145597727	-	YPDSF_0417	-	transposase/IS protein
405	 52.79	0	474681..475703	-	340	145597728	-	YPDSF_0418	-	transposase for insertion sequence IS100
406	 52.45	0	476110..476313	+	67	145597729	-	YPDSF_0419	-	hypothetical protein
407	 50.93	0	476247..476621	+	124	145597730	-	YPDSF_0420	-	hypothetical protein
408	 47.80	0	476618..476776	-	52	145597731	-	YPDSF_0421	-	hypothetical protein
409	 48.81	0	477695..479077	+	460	145597732	-	YPDSF_0422	-	hypothetical protein
410	 42.25	-1	479086..479556	+	156	145597733	-	YPDSF_0423	-	hypothetical protein
411	 41.45	-1	479583..480038	+	151	145597734	-	YPDSF_0424	-	hypothetical protein
412	 51.55	0	480055..480345	+	96	145597735	-	YPDSF_0425	-	hypothetical protein
413	 52.21	0	480323..480661	+	112	145597736	-	YPDSF_0426	-	hypothetical protein
414	 48.55	0	481179..483005	-	608	145597737	-	YPDSF_0427	-	RNA polymerase sigma factor RpoD
415	 48.08	0	483163..484911	-	582	145597738	dnaG	YPDSF_0428	-	DNA primase
416	 46.30	0	485047..485262	-	71	145597739	rpsU	YPDSF_0429	-	30S ribosomal protein S21
417	 51.87	0	485668..486681	+	337	145597740	-	YPDSF_0430	-	O-sialoglycoprotein endopeptidase
418	 48.85	0	486798..487448	-	216	145597741	-	YPDSF_0431	-	putative glycerol-3-phosphate acyltransferase PlsY
419	 50.00	0	487556..487915	+	119	145597742	folB	YPDSF_0432	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
420	 48.23	0	488189..489007	+	272	145597743	-	YPDSF_0433	-	undecaprenyl pyrophosphate phosphatase
421	 53.35	+1	489243..490481	-	412	145597744	cca	YPDSF_0434	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
422	 45.99	0	490641..491264	-	207	145597745	-	YPDSF_0435	-	putative signal transduction protein
423	 50.61	0	491568..492875	+	435	145597746	-	YPDSF_0436	-	hypothetical protein
424	 52.80	0	493046..495901	+	951	145597747	-	YPDSF_0437	-	bifunctional glutamine-synthetase adenylyltransferase/deadenyltransferase
425	 52.97	+1	496036..497466	+	476	145597748	-	YPDSF_0438	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
426	 52.60	0	497503..498753	+	416	145597749	-	YPDSF_0439	-	inner membrane protein YjeH
427	 48.23	0	499078..499359	-	93	145597750	-	YPDSF_0440	-	hypothetical protein
428	 52.45	0	499928..500581	+	217	145597751	ribB	YPDSF_0441	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
429	 50.83	0	501023..501805	+	260	145597752	-	YPDSF_0442	-	hypothetical protein
430	 46.34	0	501966..503126	-	386	145597753	-	YPDSF_0443	-	hypothetical protein
431	 53.42	+1	503136..503822	-	228	145597754	-	YPDSF_0444	-	hypothetical protein
432	 47.21	0	504123..505520	-	465	145597755	tolC	YPDSF_0445	-	outer membrane channel protein
433	 49.61	0	505916..506548	+	210	145597756	nudF	YPDSF_0446	-	ADP-ribose pyrophosphatase NudF
434	 46.48	0	506582..507007	+	141	145597757	-	YPDSF_0447	-	hypothetical protein
435	 50.00	0	507016..507915	+	299	145597758	-	YPDSF_0448	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
436	 46.39	0	507915..508496	+	193	145597759	-	YPDSF_0449	-	esterase YqiA
437	 50.95	0	508598..510493	+	631	145597760	-	YPDSF_0450	-	DNA topoisomerase IV subunit B
438	 53.07	+1	510497..511408	+	303	145597761	-	YPDSF_0451	-	LysR family regulatory protein
439	 46.84	0	511466..512050	-	194	145597762	-	YPDSF_0452	-	modulator of drug activity
440	 42.97	-1	512123..512371	-	82	145597763	-	YPDSF_0453	-	hypothetical protein
441	 51.23	0	512354..514627	+	757	145597764	-	YPDSF_0454	-	DNA topoisomerase IV subunit A
442	 47.54	0	514916..515647	+	243	145597765	-	YPDSF_0455	-	acyltransferase
443	 44.44	0	515637..515816	-	59	145597766	-	YPDSF_0456	-	hypothetical protein
444	 52.42	0	515826..517250	+	474	145597767	-	YPDSF_0457	-	repressor protein for FtsI
445	 51.74	0	517558..519105	+	515	145597768	-	YPDSF_0458	-	hypothetical protein
446	 51.91	0	519090..519902	+	270	145597769	-	YPDSF_0459	-	hypothetical protein
447	 48.92	0	519924..520757	-	277	145597770	dkgA	YPDSF_0460	-	2,5-diketo-D-gluconate reductase A
448	 45.71	0	520904..521113	+	69	145597771	-	YPDSF_0461	-	hypothetical protein
449	 51.38	0	521176..522333	-	385	145597772	-	YPDSF_0462	-	iron-containing alcohol dehydrogenase
450	 48.55	0	522731..523624	+	297	145597773	-	YPDSF_0463	-	AraC family transcription regulator
451	 48.72	0	523716..524378	-	220	145597774	-	YPDSF_0464	-	DedA family membrane protein
452	 48.43	0	524571..525782	-	403	145597775	-	YPDSF_0465	-	cystathionine beta-lyase
453	 52.02	0	526261..527298	+	345	145597776	-	YPDSF_0466	-	MotA/TolQ/ExbB proton channel family protein
454	 48.36	0	527308..527733	+	141	145597777	-	YPDSF_0467	-	biopolymer transport protein ExbD
455	 35.47	-2	527830..529371	-	513	145597778	-	YPDSF_0468	-	hypothetical protein
456	 46.07	0	529410..529982	-	190	145597779	-	YPDSF_0469	-	hypothetical protein
457	 37.55	-2	529966..530439	-	157	145597780	-	YPDSF_0470	-	hypothetical protein
458	 35.67	-2	530436..531206	-	256	145597781	-	YPDSF_0471	-	hypothetical protein
459	 30.22	-2	531190..532023	-	277	145597782	-	YPDSF_0472	-	hypothetical protein
460	 33.22	-2	532020..532895	-	291	145597783	-	YPDSF_0473	-	hypothetical protein
461	 42.58	-1	532892..534178	-	428	145597784	-	YPDSF_0474	-	type II secretion protein
462	 33.69	-2	534190..535317	-	375	145597785	-	YPDSF_0475	-	hypothetical protein
463	 43.56	0	535615..536064	-	149	145597786	-	YPDSF_0476	-	outer membrane secretin family protein
464	 35.79	-2	536079..536933	-	284	145597787	-	YPDSF_0477	-	hypothetical protein
465	 35.52	-2	536930..537796	-	288	145597788	-	YPDSF_0478	-	hypothetical protein
466	 38.53	-1	537848..538270	-	140	145597789	-	YPDSF_0479	-	hypothetical protein
467	 45.75	0	538470..538928	+	152	145597790	-	YPDSF_0480	-	transposase for the IS1541 insertion element
468	 50.34	0	539281..541761	+	826	145597791	-	YPDSF_0481	-	outer membrane usher protein
469	 48.89	0	541779..542498	+	239	145597792	-	YPDSF_0482	-	fimbrial chaperone protein
470	 46.39	0	543840..544919	-	359	145597793	-	YPDSF_0485	-	iron-enterobactin transporter periplasmic binding protein
471	 42.77	-1	545775..546770	+	331	145597794	-	YPDSF_0486	-	hypothetical protein
472	 47.67	0	546862..547440	-	192	145597795	-	YPDSF_0487	-	lipoprotein
473	 37.40	-2	547443..547565	+	40	145597796	-	YPDSF_0488	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
