IslandPath Analysis: Yersinia pestis Pestoides F

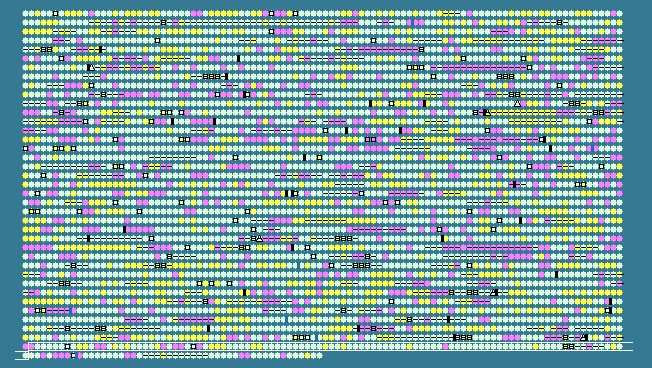

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3702	 42.71	-1	4350435..4351202	-	255	145601025	-	YPDSF_3783	-	fimbrial chaperone
3703	 49.06	0	4351295..4351930	-	211	145601026	-	YPDSF_3784	-	outer membrane fimbrial usher porin
3704	 44.81	0	4351956..4353785	-	609	145601027	-	YPDSF_3785	-	hypothetical protein
3705	 46.06	0	4353861..4354418	-	185	145601028	-	YPDSF_3786	-	fimbrial protein
3706	 46.42	0	4355295..4356287	-	330	145601029	-	YPDSF_3787	-	hypothetical protein
3707	 49.19	0	4356491..4357165	+	224	145601030	-	YPDSF_3788	-	insertion element IS1661 DNA-binding protein
3708	 46.44	0	4357219..4358004	+	261	145601031	-	YPDSF_3789	-	transposase for insertion sequence IS1661
3709	 49.94	0	4358174..4359058	-	294	145601032	metF	YPDSF_3790	-	5,10-methylenetetrahydrofolate reductase
3710	 52.59	0	4359291..4361726	-	811	145601033	metL	YPDSF_3791	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
3711	 52.11	0	4361729..4362889	-	386	145601034	-	YPDSF_3792	-	cystathionine gamma-synthase
3712	 49.37	0	4363267..4363584	+	105	145601035	-	YPDSF_3793	-	transcriptional repressor protein MetJ
3713	 40.35	-1	4363556..4363726	+	56	145601036	-	YPDSF_3794	-	hypothetical protein
3714	 42.95	-1	4363921..4364388	+	155	145601037	-	YPDSF_3795	-	hypothetical protein
3715	 49.07	0	4364914..4365129	-	71	145601038	rpmE	YPDSF_3796	-	50S ribosomal protein L31
3716	 52.89	+1	4365382..4367580	+	732	145601039	-	YPDSF_3797	-	primosome assembly protein PriA
3717	 48.66	0	4367957..4368961	+	334	145601040	-	YPDSF_3798	-	DNA-binding transcriptional regulator CytR
3718	 53.07	+1	4369027..4369872	+	281	145601041	-	YPDSF_3799	-	cell division protein FtsN
3719	 48.76	0	4369972..4370496	+	174	145601042	-	YPDSF_3800	-	ATP-dependent protease peptidase subunit
3720	 48.80	0	4370567..4371898	+	443	145601043	hslU	YPDSF_3801	-	ATP-dependent protease ATP-binding subunit
3721	 48.82	0	4372122..4373051	+	309	145601044	-	YPDSF_3802	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3722	 47.53	0	4373193..4373678	+	161	145601045	-	YPDSF_3803	-	ribonuclease activity regulator protein RraA
3723	 53.16	+1	4373795..4374379	-	194	145601046	-	YPDSF_3804	-	hypothetical protein
3724	 29.33	-2	4374685..4374834	-	49	145601047	-	YPDSF_3805	-	hypothetical protein
3725	 45.83	0	4375009..4375248	-	79	145601048	-	YPDSF_3806	-	hypothetical protein
3726	 39.13	-1	4375461..4376753	+	430	145601049	-	YPDSF_3807	-	hypothetical protein
3727	 43.83	0	4376746..4378860	+	704	145601050	-	YPDSF_3808	-	hypothetical protein
3728	 50.00	0	4378869..4379054	-	61	145601051	-	YPDSF_3809	-	hypothetical protein
3729	 45.75	0	4379231..4379689	+	152	145601052	-	YPDSF_3810	-	transposase for the IS1541 insertion element
3730	 42.92	-1	4379897..4380136	-	79	145601053	-	YPDSF_3811	-	hypothetical protein
3731	 50.88	0	4380796..4381644	+	282	145601054	-	YPDSF_3812	-	glycerol uptake facilitator protein
3732	 52.03	0	4381821..4383344	+	507	145601055	-	YPDSF_3813	-	hypothetical protein
3733	 52.42	0	4383581..4384591	+	336	145601056	glpX	YPDSF_3814	-	fructose 1,6-bisphosphatase II
3734	 52.07	0	4384746..4385492	+	248	145601057	-	YPDSF_3815	-	ferredoxin-NADP reductase
3735	 51.08	0	4385833..4386294	-	153	145601058	-	YPDSF_3816	-	hypothetical protein
3736	 45.13	0	4386415..4387050	+	211	145601059	-	YPDSF_3817	-	hypothetical protein
3737	 48.96	0	4387179..4387946	+	255	145601060	tpiA	YPDSF_3818	-	triosephosphate isomerase
3738	 50.08	0	4388178..4389413	-	411	145601061	-	YPDSF_3819	-	transcriptional regulator
3739	 51.63	0	4389550..4390287	+	245	145601062	-	YPDSF_3820	-	hypothetical protein
3740	 54.06	+1	4390284..4390997	+	237	145601063	-	YPDSF_3821	-	hypothetical protein
3741	 48.65	0	4392607..4393383	+	258	145601064	-	YPDSF_3824	-	hypothetical protein
3742	 46.16	0	4393633..4394622	-	329	145601065	-	YPDSF_3825	-	sulfate transporter subunit
3743	 47.15	0	4394843..4395826	-	327	145601066	-	YPDSF_3826	-	6-phosphofructokinase
3744	 48.50	0	4396044..4396946	-	300	145601067	fieF	YPDSF_3827	-	ferrous iron efflux protein F
3745	 51.04	0	4397508..4398467	-	319	145601068	-	YPDSF_3828	-	hypothetical protein
3746	 46.33	0	4398512..4398688	-	58	145601069	-	YPDSF_3829	-	hypothetical protein
3747	 46.08	0	4398784..4398987	+	67	145601070	-	YPDSF_3830	-	hypothetical protein
3748	 46.63	0	4399145..4399633	-	162	145601071	cpxP	YPDSF_3831	-	periplasmic stress adaptor protein CpxP
3749	 49.93	0	4399807..4400505	+	232	145601072	-	YPDSF_3832	-	DNA-binding transcriptional regulator CpxR
3750	 49.89	0	4400502..4401878	+	458	145601073	cpxA	YPDSF_3833	-	two-component sensor protein
3751	 52.02	0	4401927..4402991	-	354	145601074	-	YPDSF_3834	-	bifunctional regulatory protein/DNA repair protein
3752	 49.08	0	4403180..4403668	+	162	145601075	-	YPDSF_3835	-	methyltransferase
3753	 49.76	0	4403791..4404612	-	273	145601076	cysE	YPDSF_3836	-	serine acetyltransferase
3754	 51.57	0	4404878..4405897	-	339	145601077	gpsA	YPDSF_3837	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
3755	 48.43	0	4405897..4406373	-	158	145601078	-	YPDSF_3838	-	preprotein translocase subunit SecB
3756	 51.41	0	4406461..4406709	-	82	145601079	-	YPDSF_3839	-	glutaredoxin 3
3757	 45.06	0	4406828..4407262	-	144	145601080	-	YPDSF_3840	-	hypothetical protein
3758	 50.13	0	4407659..4409206	+	515	145601081	-	YPDSF_3841	-	phosphoglyceromutase
3759	 50.04	0	4409216..4410586	+	456	145601082	-	YPDSF_3842	-	hypothetical protein
3760	 50.46	0	4410610..4411047	+	145	145601083	-	YPDSF_3843	-	hypothetical protein
3761	 47.50	0	4411044..4411544	+	166	145601084	-	YPDSF_3844	-	hypothetical protein
3762	 48.15	0	4411682..4412707	-	341	145601085	tdh	YPDSF_3845	-	L-threonine 3-dehydrogenase
3763	 50.08	0	4412717..4413928	-	403	145601086	-	YPDSF_3846	-	2-amino-3-ketobutyrate coenzyme A ligase
3764	 45.12	0	4414174..4415106	+	310	145601087	rfaD	YPDSF_3847	-	ADP-L-glycero-D-mannoheptose-6-epimerase
3765	 51.74	0	4415137..4416201	+	354	145601088	-	YPDSF_3848	-	ADP-heptose:LPS heptosyltransferase II
3766	 50.72	0	4416201..4417166	+	321	145601089	-	YPDSF_3849	-	ADP-heptose:LPS heptosyl transferase I
3767	 49.71	0	4417478..4418863	+	461	145601090	-	YPDSF_3850	-	3-deoxy-D-manno-octulosonic-acid transferase
3768	 46.62	0	4418864..4419646	+	260	145601091	-	YPDSF_3851	-	lipopolysaccharide core biosynthesis glycosyl transferase
3769	 46.25	0	4419643..4420122	+	159	145601092	coaD	YPDSF_3852	-	phosphopantetheine adenylyltransferase
3770	 48.51	0	4420091..4420927	-	278	145601093	-	YPDSF_3853	-	formamidopyrimidine-DNA glycosylase
3771	 39.29	-1	4421010..4421177	-	55	145601094	rpmG	YPDSF_3854	-	50S ribosomal protein L33
3772	 50.63	0	4421189..4421425	-	78	145601095	rpmB	YPDSF_3855	-	50S ribosomal protein L28
3773	 45.44	0	4421688..4422356	-	222	145601096	radC	YPDSF_3856	-	DNA repair protein RadC
3774	 47.67	0	4422436..4423767	+	443	145601097	-	YPDSF_3857	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
3775	 49.02	0	4423745..4424203	+	152	145601098	dut	YPDSF_3858	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3776	 47.91	0	4424325..4424921	+	198	145601099	slmA	YPDSF_3859	-	nucleoid occlusion protein
3777	 50.77	0	4425056..4425703	-	215	145601100	pyrE	YPDSF_3860	-	orotate phosphoribosyltransferase
3778	 51.32	0	4425870..4426586	-	238	145601101	rph	YPDSF_3861	-	ribonuclease PH
3779	 48.50	0	4426713..4427576	+	287	145601102	-	YPDSF_3862	-	hypothetical protein
3780	 47.28	0	4427979..4428602	+	207	145601103	-	YPDSF_3863	-	membrane protein
3781	 48.12	0	4428615..4430318	-	567	145601104	ligB	YPDSF_3864	-	NAD-dependent DNA ligase LigB
3782	 46.47	0	4430719..4431342	+	207	145601105	gmk	YPDSF_3865	-	guanylate kinase
3783	 51.31	0	4431397..4431663	+	88	145601106	-	YPDSF_3866	-	DNA-directed RNA polymerase, omega chain
3784	 48.93	0	4431683..4433791	+	702	145601107	-	YPDSF_3867	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
3785	 49.64	0	4433797..4434489	+	230	145601108	-	YPDSF_3868	-	tRNA guanosine-2'-O-methyltransferase
3786	 51.63	0	4434490..4436571	+	693	145601109	-	YPDSF_3869	-	ATP-dependent DNA helicase RecG
3787	 50.04	0	4436937..4438151	-	404	145601110	-	YPDSF_3870	-	sodium/glutamate symport carrier protein
3788	 50.67	0	4438356..4439774	+	472	145601111	-	YPDSF_3871	-	membrane permease
3789	 48.30	0	4439922..4441631	+	569	145601112	-	YPDSF_3872	-	exported protein
3790	 50.97	0	4441766..4442689	-	307	145601113	-	YPDSF_3873	-	hypothetical protein
3791	 52.79	0	4442959..4443981	+	340	145601114	-	YPDSF_3874	-	transposase
3792	 50.38	0	4443981..4444760	+	259	145601115	-	YPDSF_3875	-	transposase/IS protein
3793	 48.86	0	4444834..4445271	-	145	145601116	-	YPDSF_3876	-	D-tyrosyl-tRNA deacylase
3794	 48.36	0	4445278..4446222	-	314	145601117	rbn	YPDSF_3877	-	ribonuclease BN
3795	 44.16	0	4446259..4446849	-	196	145601118	-	YPDSF_3878	-	phosphatase
3796	 49.01	0	4447171..4448994	-	607	145601119	-	YPDSF_3879	-	GTPase
3797	 50.78	0	4449556..4450965	+	469	145601120	glnA	YPDSF_3880	-	glutamine synthetase
3798	 49.26	0	4451188..4452267	+	359	145601121	glnL	YPDSF_3881	-	nitrogen regulation protein NR(II)
3799	 52.65	0	4452275..4453687	+	470	145601122	glnG	YPDSF_3882	-	nitrogen regulation protein NR(I)
3800	 47.74	0	4453741..4455114	-	457	145601123	-	YPDSF_3883	-	coproporphyrinogen III oxidase
3801	 48.50	0	4455297..4455863	-	188	145601124	-	YPDSF_3884	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
