IslandPath Analysis: Yersinia pestis Pestoides F

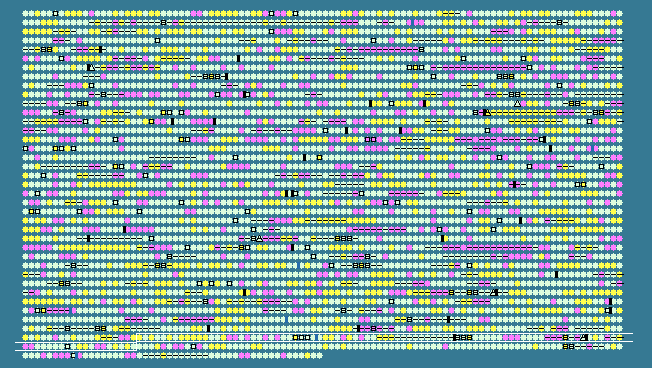

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3620	 52.59	0	4248330..4249544	-	404	145600943	-	YPDSF_3696	-	putative inner membrane protein
3621	 48.97	0	4249927..4250994	-	355	145600944	-	YPDSF_3697	-	secretion system apparatus protein SsaU
3622	 51.57	0	4250984..4251778	-	264	145600945	-	YPDSF_3698	-	type III secretion apparatus protein
3623	 47.62	0	4251780..4252073	-	97	145600946	-	YPDSF_3699	-	type III secretion apparatus protein
3624	 45.15	0	4252070..4252780	-	236	145600947	-	YPDSF_3700	-	type III secretion system protein
3625	 54.62	+1	4252847..4253809	-	320	145600948	-	YPDSF_3701	-	type III secretion system protein
3626	 50.13	0	4253787..4254185	-	132	145600949	-	YPDSF_3702	-	hypothetical protein
3627	 56.72	+1	4254166..4254567	-	133	145600950	-	YPDSF_3703	-	type III secretion system apparatus protein
3628	 57.39	+1	4254564..4255910	-	448	145600951	-	YPDSF_3704	-	type III secretion system ATPase
3629	 51.98	0	4255888..4257903	-	671	145600952	-	YPDSF_3705	-	secretion system apparatus protein SsaV
3630	 55.09	+1	4257929..4258576	-	215	145600953	-	YPDSF_3706	-	type III secretion system apparatus protein
3631	 54.44	+1	4258573..4259169	-	198	145600954	-	YPDSF_3707	-	hypothetical protein
3632	 49.04	0	4259341..4260072	-	243	145600955	-	YPDSF_3708	-	type III secretion system apparatus lipoprotein
3633	 49.60	0	4260069..4260320	-	83	145600956	-	YPDSF_3709	-	type III secretion apparatus
3634	 55.42	+1	4260418..4260666	-	82	145600957	-	YPDSF_3710	-	type III secretion apparatus
3635	 41.67	-1	4260888..4261595	-	235	145600958	-	YPDSF_3711	-	AraC family transcription regulator
3636	 39.64	-1	4261702..4261923	-	73	145600959	-	YPDSF_3712	-	type III secretion apparatus
3637	 46.83	0	4261942..4263156	-	404	145600960	-	YPDSF_3713	-	type-III secretion protein
3638	 43.74	0	4263158..4264675	-	505	145600961	-	YPDSF_3714	-	type III secretion protein
3639	 46.99	0	4264901..4267720	+	939	145600962	-	YPDSF_3715	-	two-component sensor/regulator
3640	 45.02	0	4267733..4268365	+	210	145600963	-	YPDSF_3716	-	two-component response regulator
3641	 43.36	0	4268543..4269859	-	438	145600964	gltP	YPDSF_3717	-	glutamate/aspartate:proton symporter
3642	 47.73	0	4270714..4272672	+	652	145600965	-	YPDSF_3718	-	acetyl-CoA synthetase
3643	 41.67	-1	4272729..4273040	+	103	145600966	-	YPDSF_3719	-	hypothetical protein
3644	 47.10	0	4273037..4274692	+	551	145600967	actP	YPDSF_3720	-	acetate permease
3645	 45.49	0	4274766..4275752	-	328	145600968	-	YPDSF_3721	-	hypothetical protein
3646	 52.79	0	4275811..4276833	+	340	145600969	-	YPDSF_3722	-	transposase
3647	 50.38	0	4276833..4277612	+	259	145600970	-	YPDSF_3723	-	transposase/IS protein
3648	 49.34	0	4278277..4279032	-	251	145600971	-	YPDSF_3724	-	transposase
3649	 47.94	0	4279110..4279376	-	88	145600972	-	YPDSF_3725	-	helix-turn-helix, Fis-type
3650	 51.38	0	4285640..4287229	+	529	145600973	purH	YPDSF_3726	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
3651	 51.67	0	4287289..4288575	+	428	145600974	-	YPDSF_3727	-	phosphoribosylamine--glycine ligase
3652	 53.21	+1	4288742..4289395	-	217	145600975	-	YPDSF_3728	-	hypothetical protein
3653	 45.29	0	4289445..4289720	-	91	145600976	-	YPDSF_3729	-	transcriptional regulator HU subunit alpha
3654	 44.16	0	4289909..4290499	-	196	145600977	-	YPDSF_3730	-	hypothetical protein
3655	 51.96	0	4290545..4291285	-	246	145600978	-	YPDSF_3731	-	endonuclease V
3656	 51.22	0	4291315..4292382	-	355	145600979	hemE	YPDSF_3732	-	uroporphyrinogen decarboxylase
3657	 41.40	-1	4292501..4293244	-	247	145600980	-	YPDSF_3733	-	hypothetical protein
3658	 49.68	0	4293379..4294161	-	260	145600981	nudC	YPDSF_3734	-	NADH pyrophosphatase
3659	 45.02	0	4294246..4294767	+	173	145600982	-	YPDSF_3735	-	anti-RNA polymerase sigma 70 factor
3660	 51.81	0	4295143..4297188	+	681	145600983	-	YPDSF_3736	-	thiamine biosynthesis protein ThiC
3661	 53.33	+1	4297175..4297849	+	224	145600984	-	YPDSF_3737	-	thiamine-phosphate pyrophosphorylase
3662	 54.01	+1	4297839..4298636	+	265	145600985	-	YPDSF_3738	-	thiamine biosynthesis protein ThiF
3663	 49.54	0	4298633..4298848	+	71	145600986	-	YPDSF_3739	-	sulfur carrier protein ThiS
3664	 51.19	0	4301082..4305338	-	1418	145600987	-	YPDSF_3744	-	DNA-directed RNA polymerase subunit beta'
3665	 49.37	0	4305431..4309459	-	1342	145600988	rpoB	YPDSF_3745	-	DNA-directed RNA polymerase subunit beta
3666	 46.88	0	4309802..4310170	-	122	145600989	rplL	YPDSF_3746	-	50S ribosomal protein L7/L12
3667	 49.40	0	4310237..4310734	-	165	145600990	rplJ	YPDSF_3747	-	50S ribosomal protein L10
3668	 47.23	0	4311099..4311803	-	234	145600991	rplA	YPDSF_3748	-	50S ribosomal protein L1
3669	 48.72	0	4311807..4312235	-	142	145600992	rplK	YPDSF_3749	-	50S ribosomal protein L11
3670	 48.72	0	4312426..4312971	-	181	145600993	nusG	YPDSF_3750	-	transcription antitermination protein NusG
3671	 48.70	0	4312973..4313356	-	127	145600994	secE	YPDSF_3751	-	preprotein translocase subunit SecE
3672	 48.02	0	4313607..4314791	-	394	145600995	-	YPDSF_3752	-	elongation factor Tu
3673	 50.00	0	4315848..4316033	-	61	145600996	-	YPDSF_3753	-	IS100 transposase
3674	 51.27	0	4316116..4316628	-	170	145600997	-	YPDSF_3754	-	IS100 transposase
3675	 52.79	0	4316628..4317650	-	340	145600998	-	YPDSF_3755	-	transposase for insertion sequence IS100
3676	 47.75	0	4318267..4319730	-	487	145600999	-	YPDSF_3756	-	hypothetical protein
3677	 48.26	0	4319942..4320142	+	66	145601000	-	YPDSF_3757	-	hypothetical protein
3678	 49.00	0	4320198..4321601	-	467	145601001	-	YPDSF_3758	-	amino acid permease
3679	 50.75	0	4322019..4323551	-	510	145601002	-	YPDSF_3759	-	histidine ammonia-lyase
3680	 51.24	0	4323548..4325239	-	563	145601003	-	YPDSF_3760	-	urocanate hydratase
3681	 37.57	-2	4325966..4326910	+	314	145601004	-	YPDSF_3761	-	pyridoxal-phosphate dependent protein
3682	 36.33	-2	4326907..4327473	+	188	145601005	-	YPDSF_3762	-	adenine phosphoribosyltransferase
3683	 41.08	-1	4327556..4328485	+	309	145601006	-	YPDSF_3763	-	hypothetical protein
3684	 45.54	0	4328487..4329731	+	414	145601007	-	YPDSF_3764	-	hypothetical protein
3685	 47.69	0	4330254..4331207	+	317	145601008	-	YPDSF_3765	-	iron transport protein
3686	 49.90	0	4331217..4332176	+	319	145601009	-	YPDSF_3766	-	iron transport permease
3687	 46.23	0	4332166..4333173	+	335	145601010	-	YPDSF_3767	-	iron transport permease
3688	 44.01	0	4333170..4333928	+	252	145601011	-	YPDSF_3768	-	iron ABC transporter, ATP-binding protein
3689	 39.78	-1	4334661..4334846	-	61	145601012	-	YPDSF_3770	-	hypothetical protein
3690	 43.80	0	4335778..4336140	+	120	145601013	-	YPDSF_3771	-	regulator
3691	 53.29	+1	4336333..4336818	+	161	145601014	-	YPDSF_3772	-	transposase
3692	 49.66	0	4336818..4337111	+	97	145601015	-	YPDSF_3773	-	hypothetical protein
3693	 31.43	-2	4337798..4339270	-	490	145601016	-	YPDSF_3774	-	hypothetical protein
3694	 45.98	0	4339164..4340357	-	397	145601017	-	YPDSF_3775	-	phage integrase
3695	 48.41	0	4340743..4341936	-	397	145601018	-	YPDSF_3776	-	AraC family transcription regulator
3696	 52.07	0	4342026..4343210	-	394	145601019	-	YPDSF_3777	-	sugar transport system permease protein
3697	 48.40	0	4343197..4344729	-	510	145601020	-	YPDSF_3778	-	xylose transporter ATP-binding subunit
3698	 41.97	-1	4344937..4345932	-	331	145601021	xylF	YPDSF_3779	-	D-xylose transporter subunit XylF
3699	 48.79	0	4346395..4347714	+	439	145601022	-	YPDSF_3780	-	xylose isomerase
3700	 52.99	+1	4347838..4349292	+	484	145601023	-	YPDSF_3781	-	xylulose kinase
3701	 41.54	-1	4349410..4350396	-	328	145601024	-	YPDSF_3782	-	hypothetical protein
3702	 42.71	-1	4350435..4351202	-	255	145601025	-	YPDSF_3783	-	fimbrial chaperone
3703	 49.06	0	4351295..4351930	-	211	145601026	-	YPDSF_3784	-	outer membrane fimbrial usher porin
3704	 44.81	0	4351956..4353785	-	609	145601027	-	YPDSF_3785	-	hypothetical protein
3705	 46.06	0	4353861..4354418	-	185	145601028	-	YPDSF_3786	-	fimbrial protein
3706	 46.42	0	4355295..4356287	-	330	145601029	-	YPDSF_3787	-	hypothetical protein
3707	 49.19	0	4356491..4357165	+	224	145601030	-	YPDSF_3788	-	insertion element IS1661 DNA-binding protein
3708	 46.44	0	4357219..4358004	+	261	145601031	-	YPDSF_3789	-	transposase for insertion sequence IS1661
3709	 49.94	0	4358174..4359058	-	294	145601032	metF	YPDSF_3790	-	5,10-methylenetetrahydrofolate reductase
3710	 52.59	0	4359291..4361726	-	811	145601033	metL	YPDSF_3791	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
3711	 52.11	0	4361729..4362889	-	386	145601034	-	YPDSF_3792	-	cystathionine gamma-synthase
3712	 49.37	0	4363267..4363584	+	105	145601035	-	YPDSF_3793	-	transcriptional repressor protein MetJ
3713	 40.35	-1	4363556..4363726	+	56	145601036	-	YPDSF_3794	-	hypothetical protein
3714	 42.95	-1	4363921..4364388	+	155	145601037	-	YPDSF_3795	-	hypothetical protein
3715	 49.07	0	4364914..4365129	-	71	145601038	rpmE	YPDSF_3796	-	50S ribosomal protein L31
3716	 52.89	+1	4365382..4367580	+	732	145601039	-	YPDSF_3797	-	primosome assembly protein PriA
3717	 48.66	0	4367957..4368961	+	334	145601040	-	YPDSF_3798	-	DNA-binding transcriptional regulator CytR
3718	 53.07	+1	4369027..4369872	+	281	145601041	-	YPDSF_3799	-	cell division protein FtsN
3719	 48.76	0	4369972..4370496	+	174	145601042	-	YPDSF_3800	-	ATP-dependent protease peptidase subunit
48.06	MEAN

4.80	STD DEV
