IslandPath Analysis: Yersinia pestis Pestoides F

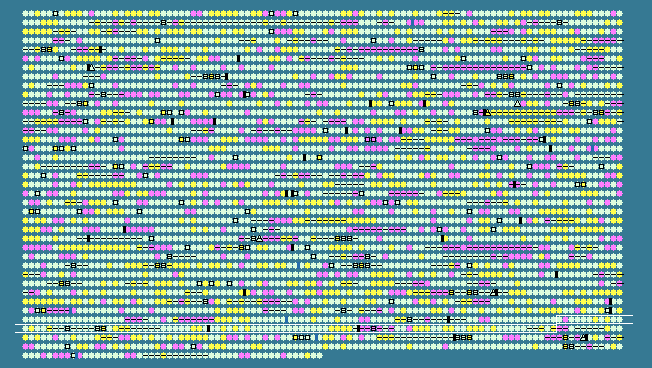

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3490	 45.22	0	4097641..4098111	+	156	145600813	-	YPDSF_3566	-	arginine repressor
3491	 40.91	-1	4098500..4098763	+	87	145600814	-	YPDSF_3567	-	hypothetical protein
3492	 50.04	0	4099059..4100441	-	460	145600815	-	YPDSF_3568	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl- meso-diaminopimelate ligase
3493	 46.55	0	4100612..4101625	+	337	145600816	-	YPDSF_3569	-	fructose-1,6-bisphosphatase
3494	 46.78	0	4101825..4102352	+	175	145600817	-	YPDSF_3570	-	inorganic pyrophosphatase
3495	 45.94	0	4102470..4102826	-	118	145600818	-	YPDSF_3571	-	hypothetical protein
3496	 52.35	0	4102829..4106725	-	1298	145600819	-	YPDSF_3572	-	hypothetical protein
3497	 51.35	0	4106722..4108458	-	578	145600820	-	YPDSF_3573	-	hypothetical protein
3498	 53.21	+1	4108733..4109371	+	212	145600821	-	YPDSF_3574	-	methionine sulfoxide reductase A
3499	 46.25	0	4109630..4110961	+	443	145600822	-	YPDSF_3575	-	hypothetical protein
3500	 45.54	0	4111069..4111281	-	70	145600823	-	YPDSF_3576	-	hypothetical protein
3501	 45.92	0	4111617..4112180	+	187	145600824	-	YPDSF_3577	-	hypothetical protein
3502	 53.71	+1	4112183..4112923	-	246	145600825	-	YPDSF_3578	-	PAPS (adenosine 3'-phosphate 5'-phosphosulfate) 3'(2'),5'-bisphosphate nucleotidase
3503	 48.39	0	4113370..4115328	+	652	145600826	cpdB	YPDSF_3579	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
3504	 48.80	0	4115483..4116148	+	221	145600827	-	YPDSF_3580	-	cell morphogenesis/cell wall metabolism regulator
3505	 52.01	0	4116246..4116866	-	206	145600828	-	YPDSF_3581	-	peptidyl-prolyl cis-trans isomerase
3506	 51.28	0	4117224..4117964	+	246	145600829	-	YPDSF_3582	-	hypothetical protein
3507	 45.18	0	4118104..4118559	+	151	145600830	-	YPDSF_3583	-	hypothetical protein
3508	 45.97	0	4118681..4119139	-	152	145600831	-	YPDSF_3584	-	transposase for the IS1541 insertion element
3509	 49.45	0	4119335..4119787	-	150	145600832	rplI	YPDSF_3585	-	50S ribosomal protein L9
3510	 47.37	0	4119827..4120054	-	75	145600833	rpsR	YPDSF_3586	-	30S ribosomal protein S18
3511	 51.15	0	4120385..4120777	-	130	145600834	rpsF	YPDSF_3587	-	30S ribosomal protein S6
3512	 50.27	0	4121144..4121887	-	247	145600835	-	YPDSF_3588	-	esterase
3513	 50.38	0	4121926..4122705	-	259	145600836	-	YPDSF_3589	-	transposase/IS protein
3514	 52.79	0	4122705..4123727	-	340	145600837	-	YPDSF_3590	-	transposase
3515	 50.64	0	4124044..4124355	+	103	145600838	-	YPDSF_3591	-	lipoprotein
3516	 53.10	+1	4124427..4126070	-	547	145600839	-	YPDSF_3592	-	isovaleryl CoA dehydrogenase
3517	 53.85	+1	4126478..4127218	-	246	145600840	-	YPDSF_3593	-	23S rRNA (guanosine-2'-O-)-methyltransferase
3518	 52.34	0	4127347..4129872	-	841	145600841	-	YPDSF_3594	-	exoribonuclease R
3519	 44.73	0	4130113..4130577	-	154	145600842	-	YPDSF_3595	-	transcriptional repressor NsrR
3520	 50.96	0	4130887..4132185	-	432	145600843	-	YPDSF_3596	-	adenylosuccinate synthetase
3521	 48.76	0	4132285..4132485	-	66	145600844	-	YPDSF_3597	-	membrane protein
3522	 50.25	0	4132657..4133661	-	334	145600845	-	YPDSF_3598	-	FtsH protease regulator HflC
3523	 50.32	0	4133665..4134924	-	419	145600846	-	YPDSF_3599	-	FtsH protease regulator HflK
3524	 49.26	0	4135165..4136451	-	428	145600847	-	YPDSF_3600	-	putative GTPase HflX
3525	 46.08	0	4136550..4136855	-	101	145600848	hfq	YPDSF_3601	-	RNA-binding protein Hfq
3526	 51.06	0	4136971..4137912	-	313	145600849	miaA	YPDSF_3602	-	tRNA delta(2)-isopentenylpyrophosphate transferase
3527	 50.37	0	4137905..4139812	-	635	145600850	mutL	YPDSF_3603	-	DNA mismatch repair protein
3528	 50.94	0	4139828..4141741	-	637	145600851	-	YPDSF_3604	-	N-acetylmuramoyl-L-alanine amidase-family protein
3529	 53.72	+1	4141749..4142219	-	156	145600852	-	YPDSF_3605	-	putative ATPase
3530	 53.00	+1	4142230..4143744	-	504	145600853	-	YPDSF_3606	-	hypothetical protein
3531	 51.21	0	4143743..4144978	+	411	145600854	-	YPDSF_3607	-	iron-sulfur cluster-binding protein
3532	 45.91	0	4145923..4146606	-	227	145600855	-	YPDSF_3608	-	oligoribonuclease
3533	 50.33	0	4146668..4147720	+	350	145600856	-	YPDSF_3609	-	ribosome-associated GTPase
3534	 51.94	0	4147907..4148035	-	42	145600857	-	YPDSF_3610	-	hypothetical protein
3535	 50.34	0	4148045..4148926	+	293	145600858	-	YPDSF_3611	-	phosphatidylserine decarboxylase
3536	 52.24	0	4148968..4152309	+	1113	145600859	-	YPDSF_3612	-	hypothetical protein
3537	 49.28	0	4152430..4153407	-	325	145600860	-	YPDSF_3613	-	lysyl-tRNA synthetase
3538	 52.91	+1	4153865..4155688	+	607	145600861	-	YPDSF_3614	-	fumarate reductase flavoprotein subunit
3539	 49.39	0	4155681..4156415	+	244	145600862	-	YPDSF_3615	-	fumarate reductase iron-sulfur subunit
3540	 48.09	0	4156432..4156824	+	130	145600863	-	YPDSF_3616	-	fumarate reductase subunit C
3541	 49.86	0	4156841..4157197	+	118	145600864	-	YPDSF_3617	-	fumarate reductase subunit D
3542	 51.52	0	4157362..4157823	-	153	145600865	-	YPDSF_3618	-	chaperone
3543	 48.50	0	4157923..4158489	-	188	145600866	-	YPDSF_3619	-	elongation factor P
3544	 47.42	0	4158525..4159553	+	342	145600867	-	YPDSF_3620	-	hypothetical protein
3545	 46.62	0	4159838..4160236	-	132	145600868	-	YPDSF_3621	-	lipoprotein
3546	 50.46	0	4160860..4162506	-	548	145600869	groEL	YPDSF_3622	-	chaperonin GroEL
3547	 48.98	0	4162553..4162846	-	97	145600870	groES	YPDSF_3623	-	co-chaperonin GroES
3548	 45.27	0	4163101..4163703	-	200	145600871	fxsA	YPDSF_3624	-	FxsA
3549	 47.32	0	4164127..4165563	+	478	145600872	aspA	YPDSF_3625	-	aspartate ammonia-lyase
3550	 50.92	0	4165683..4166984	+	433	145600873	-	YPDSF_3626	-	anaerobic C4-dicarboxylate transporter
3551	 49.72	0	4167169..4167528	+	119	145600874	-	YPDSF_3627	-	divalent-cation tolerance protein CutA
3552	 52.24	0	4167504..4169291	+	595	145600875	dipZ	YPDSF_3628	-	thiol:disulfide interchange protein precursor
3553	 53.35	+1	4169353..4171500	-	715	145600876	-	YPDSF_3629	-	formate dehydrogenase H
3554	 56.09	+1	4171523..4172080	-	185	145600877	-	YPDSF_3630	-	4Fe-4S ferrodoxin
3555	 52.93	+1	4172103..4174118	-	671	145600878	-	YPDSF_3631	-	putative oxidoreductase Fe-S binding subunit
3556	 49.83	0	4174538..4175113	+	191	145600879	-	YPDSF_3632	-	putative transcriptional regulator
3557	 34.12	-2	4175767..4178322	-	851	145600880	-	YPDSF_3633	-	enhancing factor
3558	 26.19	-2	4178352..4178519	-	55	145600881	-	YPDSF_3634	-	hypothetical protein
3559	 43.23	-1	4179237..4179539	-	100	145600882	-	YPDSF_3635	-	transposase
3560	 42.80	-1	4179610..4179852	-	80	145600883	-	YPDSF_3636	-	hypothetical protein
3561	 48.70	0	4180006..4181040	+	344	145600884	-	YPDSF_3637	-	rhamnose-proton symporter
3562	 37.33	-2	4181015..4181164	+	49	145600885	-	YPDSF_3638	-	hypothetical protein
3563	 49.03	0	4181189..4182061	-	290	145600886	-	YPDSF_3639	-	transcriptional activator RhaR
3564	 47.81	0	4182194..4183015	-	273	145600887	-	YPDSF_3640	-	transcriptional activator RhaS
3565	 43.09	-1	4183019..4183141	+	40	145600888	-	YPDSF_3641	-	hypothetical protein
3566	 52.85	+1	4183271..4184899	+	542	145600889	rhaB	YPDSF_3642	-	rhamnulokinase
3567	 52.90	+1	4184896..4186152	+	418	145600890	-	YPDSF_3643	-	L-rhamnose isomerase
3568	 53.09	+1	4186165..4186989	+	274	145600891	-	YPDSF_3644	-	rhamnulose-1-phosphate aldolase
3569	 51.09	0	4187056..4188204	+	382	145600892	-	YPDSF_3645	-	alcohol dehydrogenase
3570	 50.48	0	4188218..4188532	+	104	145600893	-	YPDSF_3646	-	hypothetical protein
3571	 56.83	+1	4188779..4189327	-	182	145600894	-	YPDSF_3647	-	single-strand DNA-binding protein
3572	 51.97	0	4189785..4192628	+	947	145600895	uvrA	YPDSF_3648	-	excinuclease ABC subunit A
3573	 46.94	0	4192721..4193080	-	119	145600896	-	YPDSF_3649	-	hypothetical protein
3574	 50.50	0	4193607..4194800	-	397	145600897	-	YPDSF_3650	-	aromatic amino acid aminotransferase
3575	 54.63	+1	4194986..4196065	-	359	145600898	alr	YPDSF_3651	-	alanine racemase
3576	 52.10	0	4196162..4197568	-	468	145600899	-	YPDSF_3652	-	replicative DNA helicase
3577	 54.27	+1	4197900..4198883	+	327	145600900	-	YPDSF_3653	-	quinone oxidoreductase, NADPH-dependent
3578	 44.75	0	4199228..4199446	-	72	145600901	pspG	YPDSF_3654	-	phage shock protein G
3579	 51.93	0	4199962..4200999	-	345	145600902	-	YPDSF_3655	-	tRNA-dihydrouridine synthase A
3580	 48.15	0	4201251..4201763	+	170	145600903	-	YPDSF_3656	-	zinc uptake transcriptional repressor
3581	 50.57	0	4201944..4202552	-	202	145600904	-	YPDSF_3657	-	LexA repressor
3582	 47.58	0	4202677..4203048	-	123	145600905	-	YPDSF_3658	-	diacylglycerol kinase
3583	 50.16	0	4203176..4205653	+	825	145600906	-	YPDSF_3659	-	glycerol-3-phosphate acyltransferase
3584	 48.44	0	4205834..4206700	-	288	145600907	ubiA	YPDSF_3660	-	4-hydroxybenzoate octaprenyltransferase
3585	 50.86	0	4206866..4207390	-	174	145600908	ubiC	YPDSF_3661	-	chorismate pyruvate lyase
3586	 50.27	0	4208222..4210777	+	851	145600909	-	YPDSF_3662	-	hypothetical protein
3587	 59.09	+2	4210777..4212030	+	417	145600910	-	YPDSF_3663	-	Outer membrane autotransporter barrel
3588	 48.06	0	4212374..4214431	-	685	145600911	-	YPDSF_3664	-	oxidoreductase
3589	 53.11	+1	4215440..4216759	-	439	145600912	-	YPDSF_3665	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
