IslandPath Analysis: Yersinia pestis Pestoides F

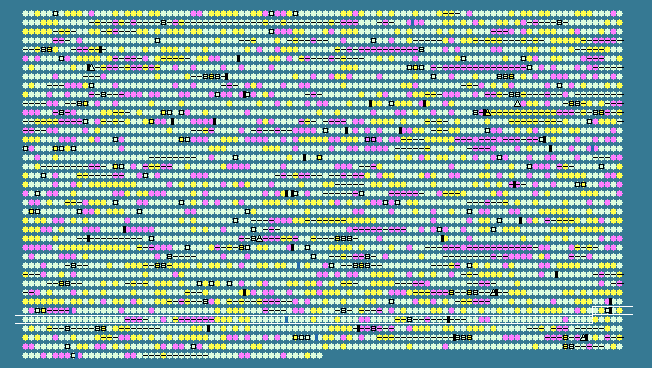

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3396	 50.67	0	3977413..3978537	+	374	145600719	-	YPDSF_3469	-	putative uroporphyrinogen III C-methyltransferase
3397	 52.58	0	3978540..3979760	+	406	145600720	-	YPDSF_3470	-	putative protoheme IX biogenesis protein
3398	 45.75	0	3979953..3980411	-	152	145600721	-	YPDSF_3471	-	transposase for the IS1541 insertion element
3399	 49.71	0	3981917..3983308	-	463	145600722	-	YPDSF_3472	-	putative transport protein YifK
3400	 51.55	0	3983832..3984572	-	246	145600723	-	YPDSF_3473	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3401	 48.21	0	3984581..3985945	-	454	145600724	-	YPDSF_3474	-	putative entero common antigen polymerase
3402	 50.37	0	3985942..3987027	-	361	145600725	-	YPDSF_3475	-	4-alpha-L-fucosyltransferase
3403	 50.12	0	3987050..3988306	-	418	145600726	-	YPDSF_3476	-	lipopolysaccharide biosynthesis protein
3404	 48.81	0	3988308..3989438	-	376	145600727	-	YPDSF_3477	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3405	 50.59	0	3989440..3990204	-	254	145600728	-	YPDSF_3478	-	TDP-fucosamine acetyltransferase
3406	 49.32	0	3990155..3991036	-	293	145600729	-	YPDSF_3479	-	glucose-1-phosphate thymidylyltransferase
3407	 51.30	0	3991314..3992387	-	357	145600730	-	YPDSF_3480	-	dTDP-D-glucose-4,6-dehydratase
3408	 49.80	0	3992378..3993640	-	420	145600731	wecC	YPDSF_3481	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3409	 50.30	0	3993637..3994821	-	394	145600732	-	YPDSF_3482	-	UDP-N-acetylglucosamine 2-epimerase
3410	 48.38	0	3995099..3996175	-	358	145600733	-	YPDSF_3483	-	lipopolysaccharide biosynthesis protein WzzE
3411	 46.91	0	3996196..3997278	-	360	145600734	-	YPDSF_3484	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
3412	 45.87	0	3997828..3999087	-	419	145600735	rho	YPDSF_3485	-	transcription termination factor Rho
3413	 45.87	0	3999567..3999893	-	108	145600736	-	YPDSF_3486	-	thioredoxin 1
3414	 48.64	0	4000012..4001298	+	428	145600737	-	YPDSF_3487	-	ATP-dependent RNA helicase RhlB
3415	 50.63	0	4001302..4002798	+	498	145600738	-	YPDSF_3488	-	guanosine pentaphosphate phosphohydrolase
3416	 48.71	0	4002966..4004987	-	673	145600739	-	YPDSF_3489	-	ATP-dependent DNA helicase Rep
3417	 45.04	0	4005191..4005472	+	93	145600740	-	YPDSF_3490	-	peptidyl-prolyl cis-trans isomerase C
3418	 34.09	-2	4005711..4006502	+	263	145600741	-	YPDSF_3491	-	hypothetical protein
3419	 43.69	0	4007294..4007824	+	176	145600742	-	YPDSF_3492	-	fimbrial protein
3420	 42.21	-1	4007888..4008619	+	243	145600743	-	YPDSF_3493	-	fimbrial chaperone
3421	 47.11	0	4008647..4011274	+	875	145600744	-	YPDSF_3494	-	outer membrane usher protein
3422	 49.13	0	4011279..4012658	+	459	145600745	-	YPDSF_3495	-	hypothetical protein
3423	 48.23	0	4012624..4013442	+	272	145600746	-	YPDSF_3496	-	chaperone protein
3424	 42.79	-1	4016741..4016941	-	66	145600747	-	YPDSF_3500	-	hypothetical protein
3425	 50.30	0	4017122..4018600	-	492	145600748	-	YPDSF_3501	-	ketol-acid reductoisomerase
3426	 52.72	0	4018886..4019767	+	293	145600749	-	YPDSF_3502	-	DNA-binding transcriptional regulator IlvY
3427	 38.57	-1	4019822..4020031	-	69	145600750	-	YPDSF_3503	-	hypothetical protein
3428	 36.46	-2	4020643..4020834	+	63	145600751	-	YPDSF_3504	-	hypothetical protein
3429	 39.29	-1	4020927..4021598	+	223	145600752	-	YPDSF_3505	-	hypothetical protein
3430	 34.20	-2	4021582..4022043	+	153	145600753	-	YPDSF_3506	-	membrane protein
3431	 34.20	-2	4022123..4022584	+	153	145600754	-	YPDSF_3507	-	membrane protein
3432	 33.12	-2	4022664..4023128	+	154	145600755	-	YPDSF_3508	-	membrane protein
3433	 53.66	+1	4023259..4024803	-	514	145600756	-	YPDSF_3509	-	threonine dehydratase
3434	 53.11	+1	4024809..4026659	-	616	145600757	-	YPDSF_3510	-	dihydroxy-acid dehydratase
3435	 51.56	0	4026970..4027896	-	308	145600758	-	YPDSF_3511	-	branched-chain amino acid aminotransferase
3436	 49.22	0	4027919..4028176	-	85	145600759	ilvM	YPDSF_3512	-	acetolactate synthase 2 regulatory subunit
3437	 53.25	+1	4028173..4029819	-	548	145600760	-	YPDSF_3513	-	acetolactate synthase 2 catalytic subunit
3438	 53.41	+1	4030442..4031965	+	507	145600761	-	YPDSF_3514	-	magnesium chelatase family protein
3439	 48.94	0	4032222..4032644	-	140	145600762	-	YPDSF_3515	-	hypothetical protein
3440	 47.51	0	4032679..4033560	+	293	145600763	-	YPDSF_3516	-	transcriptional regulator HdfR
3441	 45.12	0	4033547..4034539	-	330	145600764	-	YPDSF_3517	-	inner membrane ABC transporter permease protein YjfF
3442	 48.82	0	4034539..4035558	-	339	145600765	-	YPDSF_3518	-	sugar transport system permease
3443	 45.88	0	4035570..4037060	-	496	145600766	-	YPDSF_3519	-	sugar transport system ATP-binding protein
3444	 46.50	0	4037146..4038102	-	318	145600767	-	YPDSF_3520	-	periplasmic protein precursor
3445	 48.73	0	4044968..4045831	-	287	162202299	-	YPDSF_3521	-	glutamate racemase
3446	 46.52	0	4045776..4047671	-	631	145600769	btuB	YPDSF_3522	-	vitamin B12/cobalamin outer membrane transporter
3447	 47.74	0	4048133..4049236	+	367	145600770	-	YPDSF_3523	-	tRNA (uracil-5-)-methyltransferase
3448	 46.81	0	4049370..4049777	-	135	145600771	-	YPDSF_3524	-	hypothetical protein
3449	 51.57	0	4049790..4050425	-	211	145600772	-	YPDSF_3525	-	DNA-binding transcriptional repressor FabR
3450	 48.47	0	4050643..4052043	+	466	145600773	-	YPDSF_3526	-	soluble pyridine nucleotide transhydrogenase
3451	 48.80	0	4052026..4052943	-	305	145600774	-	YPDSF_3527	-	DNA-binding transcriptional regulator OxyR
3452	 46.31	0	4053090..4053821	+	243	145600775	-	YPDSF_3528	-	peroxiredoxin/glutaredoxin family protein
3453	 51.78	0	4053916..4055379	+	487	145600776	-	YPDSF_3529	-	dihydrolipoamide dehydrogenase
3454	 47.26	0	4055495..4056298	-	267	145600777	-	YPDSF_3530	-	membrane protein
3455	 48.68	0	4056363..4057691	-	442	145600778	-	YPDSF_3531	-	HlyD family secretion protein
3456	 49.06	0	4057767..4059584	-	605	145600779	-	YPDSF_3532	-	ABC transporter protein
3457	 42.23	-1	4059741..4060358	-	205	145600780	-	YPDSF_3533	-	hemophore HasA
3458	 44.36	0	4060580..4063072	-	830	145600781	-	YPDSF_3534	-	TonB dependent receptor protein
3459	 50.66	0	4063671..4065044	-	457	145600782	-	YPDSF_3535	-	argininosuccinate lyase
3460	 50.97	0	4065211..4065987	-	258	145600783	-	YPDSF_3536	-	acetylglutamate kinase
3461	 50.45	0	4066153..4067157	-	334	145600784	argC	YPDSF_3537	-	N-acetyl-gamma-glutamyl-phosphate reductase
3462	 50.43	0	4067408..4068571	+	387	145600785	-	YPDSF_3538	-	acetylornithine deacetylase
3463	 52.56	0	4068945..4071581	+	878	145600786	-	YPDSF_3539	-	phosphoenolpyruvate carboxylase
3464	 62.96	+2	4071733..4071948	-	71	145600787	-	YPDSF_3540	-	hypothetical protein
3465	 46.44	0	4072892..4073677	+	261	145600788	-	YPDSF_3541	-	transposase for insertion sequence IS1661
3466	 48.52	0	4073740..4074009	-	89	145600789	rpsO	YPDSF_3542	-	30S ribosomal protein S15
3467	 49.44	0	4074132..4075106	-	324	145600790	truB	YPDSF_3543	-	tRNA pseudouridine synthase B
3468	 44.53	0	4075106..4075516	-	136	145600791	rbfA	YPDSF_3544	-	ribosome-binding factor A
3469	 49.72	0	4075582..4078260	-	892	145600792	infB	YPDSF_3545	-	translation initiation factor IF-2
3470	 49.13	0	4078285..4079772	-	495	145600793	nusA	YPDSF_3546	-	transcription elongation factor NusA
3471	 46.80	0	4079794..4080246	-	150	145600794	-	YPDSF_3547	-	hypothetical protein
3472	 48.21	0	4080778..4081113	-	111	145600795	secG	YPDSF_3548	-	preprotein translocase subunit SecG
3473	 47.65	0	4081336..4082676	-	446	145600796	glmM	YPDSF_3549	-	phosphoglucosamine mutase
3474	 47.60	0	4082686..4083519	-	277	145600797	folP	YPDSF_3550	-	dihydropteroate synthase
3475	 46.98	0	4083639..4085573	-	644	145600798	hflB	YPDSF_3551	-	ATP-dependent metalloprotease
3476	 45.56	0	4085630..4086259	-	209	145600799	rrmJ	YPDSF_3552	-	23S rRNA methyltransferase J
3477	 43.54	0	4086406..4086699	+	97	145600800	-	YPDSF_3553	-	hypothetical protein
3478	 42.35	-1	4086827..4087303	-	158	145600801	greA	YPDSF_3554	-	transcription elongation factor GreA
3479	 48.24	0	4087561..4089009	+	482	145600802	-	YPDSF_3555	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
3480	 49.32	0	4089015..4089677	+	220	145600803	-	YPDSF_3556	-	DNA-binding transcriptional regulator BasR
3481	 46.82	0	4089674..4090741	+	355	145600804	-	YPDSF_3557	-	sensor protein BasS/PmrB
3482	 48.93	0	4090836..4092008	-	390	145600805	obgE	YPDSF_3558	-	GTPase ObgE
3483	 48.63	0	4092009..4092995	-	328	145600806	-	YPDSF_3559	-	hypothetical protein
3484	 48.84	0	4093083..4093340	-	85	145600807	rpmA	YPDSF_3560	-	50S ribosomal protein L27
3485	 45.51	0	4093360..4093671	-	103	145600808	rplU	YPDSF_3561	-	50S ribosomal protein L21
3486	 48.97	0	4093931..4094902	+	323	145600809	-	YPDSF_3562	-	octaprenyl diphosphate synthase
3487	 46.84	0	4094999..4095346	-	115	145600810	-	YPDSF_3563	-	hypothetical protein
3488	 49.64	0	4095530..4095805	+	91	145600811	-	YPDSF_3564	-	DNA-binding protein
3489	 47.71	0	4096239..4097177	-	312	145600812	-	YPDSF_3565	-	malate dehydrogenase
3490	 45.22	0	4097641..4098111	+	156	145600813	-	YPDSF_3566	-	arginine repressor
3491	 40.91	-1	4098500..4098763	+	87	145600814	-	YPDSF_3567	-	hypothetical protein
3492	 50.04	0	4099059..4100441	-	460	145600815	-	YPDSF_3568	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl- meso-diaminopimelate ligase
3493	 46.55	0	4100612..4101625	+	337	145600816	-	YPDSF_3569	-	fructose-1,6-bisphosphatase
3494	 46.78	0	4101825..4102352	+	175	145600817	-	YPDSF_3570	-	inorganic pyrophosphatase
3495	 45.94	0	4102470..4102826	-	118	145600818	-	YPDSF_3571	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
