IslandPath Analysis: Yersinia pestis Pestoides F

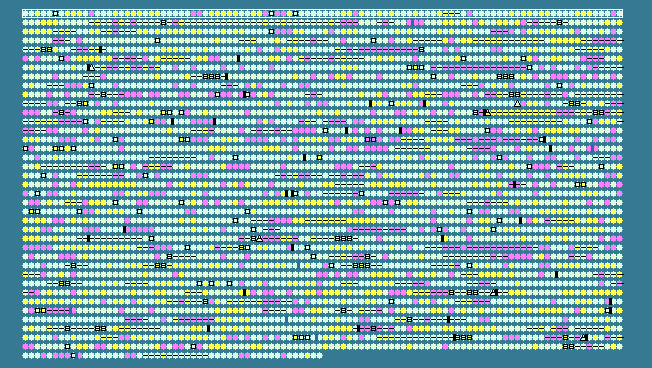

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 47.80	0	34..1422	+	462	145597325	dnaA	YPDSF_0001	-	chromosomal replication initiation protein
2	 50.32	0	1427..2527	+	366	145597326	-	YPDSF_0002	-	DNA polymerase III subunit beta
3	 52.82	0	2502..3779	+	425	145597327	recF	YPDSF_0003	-	recombination protein F
4	 49.44	0	3805..6219	+	804	145597328	gyrB	YPDSF_0004	-	DNA gyrase subunit B
5	 47.78	0	6435..7244	+	269	145597329	-	YPDSF_0005	-	sugar phosphatase
6	 46.44	0	7638..8423	-	261	145597330	-	YPDSF_0006	-	transposase for insertion sequence IS1661
7	 50.52	0	9199..10152	-	317	145597331	-	YPDSF_0007	-	ornithine cyclodeaminase
8	 52.96	+1	10146..11108	-	320	145597332	-	YPDSF_0008	-	hypothetical protein
9	 52.56	0	11316..11627	+	103	145597333	-	YPDSF_0009	-	hypothetical protein
10	 52.06	0	11617..11931	+	104	145597334	-	YPDSF_0010	-	hypothetical protein
11	 50.15	0	11971..12309	-	112	145597335	-	YPDSF_0011	-	hypothetical protein
12	 42.51	-1	12677..13090	+	137	145597336	-	YPDSF_0012	-	heat shock protein IbpA
13	 48.82	0	13371..13835	+	154	145597337	-	YPDSF_0013	-	heat shock chaperone IbpB
14	 51.18	0	14208..15866	+	552	145597338	-	YPDSF_0014	-	hypothetical protein
15	 47.85	0	15979..17349	-	456	145597339	avtA	YPDSF_0015	-	valine--pyruvate transaminase
16	 52.52	0	18557..20620	-	687	145597340	malS	YPDSF_0016	-	periplasmic alpha-amylase precursor
17	 51.17	0	20909..21889	-	326	145597341	-	YPDSF_0017	-	D-isomer specific 2-hydroxyacid dehydrogenase
18	 53.49	+1	22408..23052	+	214	145597342	-	YPDSF_0018	-	hypothetical protein
19	 54.24	+1	23183..23842	-	219	145597343	-	YPDSF_0019	-	putative outer membrane lipoprotein
20	 51.97	0	24200..24655	-	151	145597344	-	YPDSF_0020	-	hypothetical protein
21	 47.99	0	24652..25224	-	190	145597345	-	YPDSF_0021	-	DNA-3-methyladenine glycosylase
22	 52.79	0	25552..26466	+	304	145597346	glyQ	YPDSF_0022	-	glycyl-tRNA synthetase subunit alpha
23	 52.32	0	26476..28545	+	689	145597347	glyS	YPDSF_0023	-	glycyl-tRNA synthetase subunit beta
24	 49.31	0	29018..29737	+	239	145597348	-	YPDSF_0024	-	hypothetical protein
25	 51.35	0	30387..32318	+	643	145597349	-	YPDSF_0025	-	PTS system, mannitol-specific IIABC component
26	 51.20	0	32455..33618	+	387	145597350	-	YPDSF_0026	-	mannitol-1-phosphate 5-dehydrogenase
27	 48.47	0	33825..34379	+	184	145597351	mtlR	YPDSF_0027	-	mannitol repressor protein
28	 46.78	0	34628..34984	+	118	145597352	-	YPDSF_0028	-	hypothetical protein
29	 40.46	-1	35153..35629	-	158	145597353	-	YPDSF_0029	-	hypothetical protein
30	 38.96	-1	36262..36492	-	76	145597354	-	YPDSF_0030	-	membrane protein
31	 49.23	0	36682..38631	-	649	145597355	-	YPDSF_0031	-	methyl-accepting chemotaxis protein II
32	 51.76	0	38975..39598	-	207	145597356	-	YPDSF_0032	-	superoxide dismutase
33	 53.82	+1	40034..40858	-	274	145597357	-	YPDSF_0033	-	formate dehydrogenase accessory protein
34	 52.38	0	41055..41642	+	195	145597358	-	YPDSF_0034	-	twin-arginine translocation pathway signal
35	 51.66	0	41691..44102	+	803	145597359	-	YPDSF_0035	-	hypothetical protein
36	 53.91	+1	44115..45086	+	323	145597360	-	YPDSF_0036	-	formate dehydrogenase-O, iron-sulfur subunit
37	 50.52	0	45083..45757	+	224	145597361	-	YPDSF_0037	-	formate dehydrogenase-O subunit gamma
38	 49.57	0	45757..46686	+	309	145597362	-	YPDSF_0038	-	formate dehydrogenase accessory protein FdhE
39	 54.79	+1	46870..48258	+	462	145597363	-	YPDSF_0039	-	selenocysteine synthase
40	 55.71	+1	48255..50207	+	650	145597364	-	YPDSF_0040	-	selenocysteinyl-tRNA-specific translation factor
41	 35.90	-2	50967..51083	+	38	145597365	-	YPDSF_0042	-	membrane protein
42	 49.55	0	51105..52313	-	402	145597366	-	YPDSF_0043	-	transposase for the IS285 insertion element
43	 37.97	-2	52636..53217	-	193	145597367	-	YPDSF_0044	-	hypothetical protein
44	 28.49	-2	53296..53481	-	61	145597368	-	YPDSF_0045	-	hypothetical protein
45	 51.79	0	53927..55156	-	409	145597369	-	YPDSF_0046	-	multidrug translocase
46	 46.44	0	55629..56414	-	261	145597370	-	YPDSF_0047	-	transposase for insertion sequence IS1661
47	 49.14	0	57176..57934	-	252	145597371	-	YPDSF_0048	-	DNA-binding transcriptional repressor GlpR
48	 50.30	0	57969..58805	-	278	145597372	-	YPDSF_0049	-	intramembrane serine protease GlpG
49	 48.18	0	58823..59152	-	109	145597373	glpE	YPDSF_0050	-	thiosulfate sulfurtransferase
50	 51.03	0	59527..62238	-	903	145597374	-	YPDSF_0051	-	transcriptional regulator MalT
51	 49.46	0	62556..64961	+	801	145597375	-	YPDSF_0052	-	glycogen/starch/alpha-glucan phosphorylase
52	 51.22	0	64974..67070	+	698	145597376	malQ	YPDSF_0053	-	4-alpha-glucanotransferase
53	 46.70	0	67399..67974	-	191	145597377	-	YPDSF_0054	-	putative DNA uptake protein
54	 55.27	+1	68034..68735	-	233	145597378	-	YPDSF_0055	-	gluconate periplasmic binding protein
55	 52.01	0	68801..69598	+	265	145597379	-	YPDSF_0056	-	biotin biosynthesis protein
56	 44.07	0	69768..70037	+	89	145597380	-	YPDSF_0057	-	hypothetical protein
57	 52.33	0	70175..70432	-	85	145597381	-	YPDSF_0058	-	hypothetical protein
58	 51.08	0	70468..72783	-	771	145597382	feoB	YPDSF_0059	-	ferrous iron transport protein B
59	 48.68	0	72875..73102	-	75	145597383	feoA	YPDSF_0060	-	ferrous iron transport protein A
60	 54.17	+1	73626..76001	-	791	145597384	-	YPDSF_0061	-	hypothetical protein
61	 49.22	0	76535..77050	+	171	145597385	greB	YPDSF_0062	-	transcription elongation factor GreB
62	 52.22	0	77186..77905	+	239	145597386	ompR	YPDSF_0063	-	osmolarity response regulator
63	 51.52	0	77902..79254	+	450	145597387	envZ	YPDSF_0064	-	osmolarity sensor protein
64	 49.57	0	79409..81028	-	539	145597388	-	YPDSF_0065	-	phosphoenolpyruvate carboxykinase
65	 49.21	0	81225..82106	-	293	145597389	hslO	YPDSF_0066	-	Hsp33-like chaperonin
66	 52.21	0	82269..82676	-	135	145597390	-	YPDSF_0067	-	heat shock protein 15
67	 48.02	0	82705..83385	-	226	145597391	-	YPDSF_0068	-	hypothetical protein
68	 48.37	0	83529..85676	-	715	145597392	-	YPDSF_0069	-	membrane protein
69	 47.44	0	86263..86808	+	181	145597393	nudE	YPDSF_0070	-	ADP-ribose diphosphatase NudE
70	 51.76	0	86944..89499	-	851	145597394	mrcA	YPDSF_0071	-	peptidoglycan synthetase
71	 52.06	0	89619..90515	+	298	145597395	-	YPDSF_0072	-	hypothetical protein
72	 51.82	0	90515..91120	+	201	145597396	-	YPDSF_0073	-	hypothetical protein
73	 49.44	0	91068..91694	+	208	145597397	-	YPDSF_0074	-	hypothetical protein
74	 47.09	0	91660..92088	+	142	145597398	-	YPDSF_0075	-	membrane protein
75	 41.79	-1	92091..92480	-	129	145597399	-	YPDSF_0076	-	hypothetical protein
76	 48.12	0	92287..93639	+	450	145597400	-	YPDSF_0077	-	putative outer membrane porin HofQ
77	 47.89	0	93988..94509	+	173	145597401	aroK	YPDSF_0078	-	shikimate kinase I
78	 49.77	0	94566..95654	+	362	145597402	aroB	YPDSF_0079	-	3-dehydroquinate synthase
79	 48.59	0	95908..96897	+	329	145597403	-	YPDSF_0080	-	hypothetical protein
80	 45.71	0	96981..97796	+	271	145597404	-	YPDSF_0081	-	DNA adenine methylase
81	 49.71	0	98099..98776	+	225	145597405	-	YPDSF_0082	-	ribulose-phosphate 3-epimerase
82	 51.79	0	98769..99467	+	232	162202303	-	YPDSF_0083	-	phosphoglycolate phosphatase
83	 48.41	0	99469..100509	+	346	145597407	-	YPDSF_0084	-	tryptophanyl-tRNA synthetase
84	 53.16	+1	100628..102049	-	473	145597408	cysG	YPDSF_0085	-	siroheme synthase
85	 53.78	+1	102137..102943	-	268	145597409	-	YPDSF_0086	-	nitrite transporter NirC
86	 51.38	0	103122..103448	-	108	145597410	nirD	YPDSF_0087	-	nitrite reductase small subunit
87	 51.63	0	103445..105991	-	848	145597411	-	YPDSF_0088	-	nitrite reductase
88	 51.66	0	106313..107611	+	432	145597412	-	YPDSF_0089	-	cytosine deaminase
89	 47.76	0	107696..108880	-	394	145597413	-	YPDSF_0090	-	hypothetical protein
90	 50.51	0	109366..111426	+	686	145597414	-	YPDSF_0091	-	membrane receptor protein
91	 51.37	0	111539..112525	-	328	145597415	-	YPDSF_0092	-	LacI family transcriptional regulator
92	 45.26	0	114596..115165	+	189	145597416	-	YPDSF_0095	-	peptidyl-prolyl cis-trans isomerase A (rotamase A)
93	 51.95	0	115491..117032	+	513	145597417	-	YPDSF_0096	-	hypothetical protein
94	 51.91	0	117275..117850	+	191	145597418	-	YPDSF_0097	-	para-aminobenzoate synthase component II
95	 52.87	+1	117983..119200	+	405	145597419	argD	YPDSF_0098	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
96	 48.37	0	119426..121546	-	706	145597420	-	YPDSF_0099	-	hypothetical protein
97	 46.76	0	121632..122264	-	210	145597421	-	YPDSF_0100	-	cAMP-regulatory protein
98	 49.26	0	122600..123007	+	135	145597422	-	YPDSF_0101	-	hypothetical protein
99	 33.80	-2	123079..123510	+	143	145597423	-	YPDSF_0102	-	hypothetical protein
100	 49.54	0	123688..124557	-	289	145597424	-	YPDSF_0103	-	phosphoribulokinase 1
48.06	MEAN

4.80	STD DEV
