IslandPath Analysis: Yersinia pestis Pestoides F

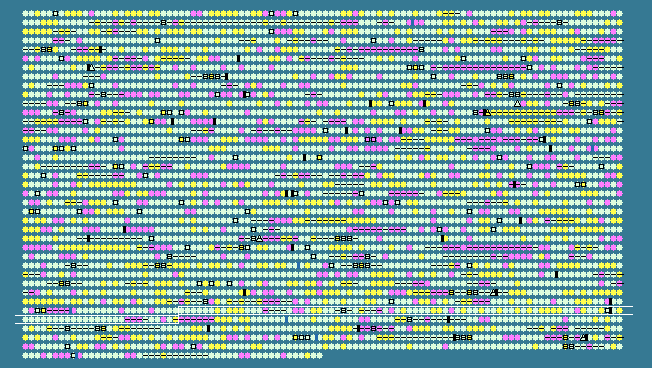

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3327	 49.53	0	3902026..3902556	-	176	145600650	-	YPDSF_3400	-	hypothetical protein
3328	 48.68	0	3902828..3904639	-	603	145600651	-	YPDSF_3401	-	carbon starvation protein
3329	 46.81	0	3905003..3905833	-	276	145600652	-	YPDSF_3402	-	hypothetical protein
3330	 50.79	0	3905954..3906715	-	253	145600653	-	YPDSF_3403	-	uridine phosphorylase
3331	 49.83	0	3907143..3908015	+	290	145600654	-	YPDSF_3404	-	carboxymethylenebutenolidase
3332	 49.89	0	3908070..3910346	-	758	145600655	-	YPDSF_3405	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
3333	 53.04	+1	3910452..3911405	+	317	145600656	-	YPDSF_3406	-	LysR family transcriptional regulator
3334	 50.27	0	3911293..3912225	-	310	145600657	-	YPDSF_3407	-	membrane protein
3335	 53.08	+1	3912545..3913501	-	318	145600658	-	YPDSF_3408	-	membrane protein
3336	 54.53	+1	3913602..3914351	-	249	145600659	ugpQ	YPDSF_3409	-	cytoplasmic glycerophosphodiester phosphodiesterase
3337	 52.42	0	3914348..3915421	-	357	145600660	ugpC	YPDSF_3410	-	glycerol-3-phosphate transporter ATP-binding subunit
3338	 48.94	0	3915428..3916273	-	281	145600661	-	YPDSF_3411	-	glycerol-3-phosphate transporter membrane protein
3339	 50.23	0	3916270..3917157	-	295	145600662	-	YPDSF_3412	-	glycerol-3-phosphate transporter permease
3340	 46.89	0	3917455..3918774	-	439	145600663	-	YPDSF_3413	-	glycerol-3-phosphate transporter periplasmic binding protein
3341	 40.07	-1	3919212..3919820	+	202	145600664	-	YPDSF_3414	-	hypothetical protein
3342	 47.94	0	3920087..3922420	+	777	145600665	-	YPDSF_3415	-	hypothetical protein
3343	 51.38	0	3922438..3923124	+	228	145600666	-	YPDSF_3416	-	hypothetical protein
3344	 50.15	0	3923096..3923743	+	215	145600667	-	YPDSF_3417	-	hypothetical protein
3345	 49.71	0	3923805..3924323	+	172	145600668	-	YPDSF_3418	-	hypothetical protein
3346	 43.72	0	3924387..3925493	+	368	145600669	-	YPDSF_3419	-	hypothetical protein
3347	 35.93	-2	3925608..3926069	-	153	145600670	-	YPDSF_3420	-	hypothetical protein
3348	 49.04	0	3926297..3927028	-	243	145600671	livF	YPDSF_3421	-	leucine/isoleucine/valine transporter ATP-binding subunit
3349	 53.52	+1	3927043..3927810	-	255	145600672	livG	YPDSF_3422	-	leucine/isoleucine/valine transporter ATP-binding subunit
3350	 52.53	0	3927807..3929093	-	428	145600673	livM	YPDSF_3423	-	leucine/isoleucine/valine transporter permease subunit
3351	 50.16	0	3929090..3930016	-	308	145600674	-	YPDSF_3424	-	branched-chain amino acid transporter permease subunit LivH
3352	 50.09	0	3930197..3931312	-	371	145600675	-	YPDSF_3425	-	branched-chain amino acid-binding protein
3353	 48.40	0	3931689..3932126	+	145	145600676	-	YPDSF_3426	-	acetyltransferase
3354	 45.75	0	3932372..3932830	-	152	145600677	-	YPDSF_3427	-	transposase for the IS1541 insertion element
3355	 50.35	0	3933044..3933901	-	285	145600678	-	YPDSF_3428	-	RNA polymerase factor sigma-32
3356	 51.05	0	3934212..3935165	-	317	145600679	ftsX	YPDSF_3429	-	cell division protein FtsX
3357	 53.51	+1	3935155..3935823	-	222	145600680	-	YPDSF_3430	-	cell division protein FtsE
3358	 47.86	0	3935829..3937508	-	559	145600681	-	YPDSF_3431	-	cell division protein
3359	 50.53	0	3937790..3938452	+	220	145600682	-	YPDSF_3432	-	16S rRNA m(2)G966-methyltransferase
3360	 41.03	-1	3938442..3938714	+	90	145600683	-	YPDSF_3433	-	hypothetical protein
3361	 49.05	0	3938901..3939320	-	139	145600684	-	YPDSF_3434	-	hypothetical protein
3362	 37.69	-2	3939532..3939852	-	106	145600685	-	YPDSF_3435	-	hypothetical protein
3363	 50.88	0	3940142..3940768	+	208	145600686	-	YPDSF_3436	-	hypothetical protein
3364	 52.72	0	3941182..3943548	+	788	145600687	zntA	YPDSF_3437	-	zinc/cadmium/mercury/lead-transporting ATPase
3365	 46.72	0	3943648..3944043	-	131	145600688	-	YPDSF_3438	-	cell developmental protein SirA
3366	 48.58	0	3944186..3944854	+	222	145600689	-	YPDSF_3439	-	hypothetical protein
3367	 47.73	0	3944984..3945511	+	175	145600690	-	YPDSF_3440	-	hypothetical protein
3368	 48.92	0	3945673..3946968	-	431	145600691	glpC	YPDSF_3441	-	sn-glycerol-3-phosphate dehydrogenase subunit C
3369	 52.39	0	3946965..3948239	-	424	145600692	-	YPDSF_3442	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
3370	 53.99	+1	3948229..3949884	-	551	145600693	glpA	YPDSF_3443	-	sn-glycerol-3-phosphate dehydrogenase subunit A
3371	 45.34	0	3950509..3951624	+	371	145600694	glpQ	YPDSF_3444	-	glycerophosphodiester phosphodiesterase
3372	 39.17	-1	3951698..3952897	-	399	145600695	-	YPDSF_3445	-	hypothetical protein
3373	 48.88	0	3953174..3954151	-	325	145600696	-	YPDSF_3446	-	putative sugar phosphatase
3374	 51.81	0	3954018..3955013	-	331	145600697	-	YPDSF_3447	-	lysophospholipase L2
3375	 48.15	0	3955227..3955847	+	206	145600698	rhtB	YPDSF_3448	-	homoserine/homoserine lactone efflux protein
3376	 51.53	0	3955898..3956518	-	206	145600699	-	YPDSF_3449	-	threonine efflux system
3377	 52.59	0	3956625..3958457	-	610	145600700	-	YPDSF_3450	-	ATP-dependent DNA helicase RecQ
3378	 45.96	0	3958535..3959413	-	292	145600701	-	YPDSF_3451	-	phospholipase A
3379	 48.41	0	3959635..3960105	+	156	145600702	-	YPDSF_3452	-	hypothetical protein
3380	 51.85	0	3960192..3961082	+	296	145600703	-	YPDSF_3453	-	hypothetical protein
3381	 50.47	0	3961180..3962130	-	316	145600704	-	YPDSF_3454	-	magnesium/nickel/cobalt transporter CorA
3382	 50.77	0	3962779..3963621	-	280	145600705	-	YPDSF_3455	-	hypothetical protein
3383	 51.81	0	3963635..3964852	-	405	145600706	-	YPDSF_3456	-	hypothetical protein
3384	 49.20	0	3965280..3965966	+	228	145600707	-	YPDSF_3457	-	TetR family transcriptional regulator
3385	 54.60	+1	3966080..3968242	-	720	145600708	uvrD	YPDSF_3458	-	DNA-dependent helicase II
3386	 50.91	0	3968344..3969060	-	238	145600709	-	YPDSF_3459	-	flavin mononucleotide phosphatase
3387	 53.62	+1	3969060..3969971	-	303	145600710	xerC	YPDSF_3460	-	site-specific tyrosine recombinase XerC
3388	 53.05	+1	3969968..3970672	-	234	145600711	-	YPDSF_3461	-	hypothetical protein
3389	 53.09	+1	3970737..3971561	-	274	145600712	dapF	YPDSF_3462	-	diaminopimelate epimerase
3390	 52.91	+1	3971745..3971933	-	62	145600713	-	YPDSF_3463	-	lipoprotein
3391	 48.29	0	3972085..3972405	+	106	145600714	cyaY	YPDSF_3464	-	frataxin-like protein
3392	 49.28	0	3972649..3975201	-	850	145600715	cyaA	YPDSF_3465	-	adenylate cyclase
3393	 39.05	-1	3975265..3975474	+	69	145600716	-	YPDSF_3466	-	hypothetical protein
3394	 54.78	+1	3975695..3976636	+	313	145600717	hemC	YPDSF_3467	-	porphobilinogen deaminase
3395	 51.20	0	3976633..3977382	+	249	145600718	hemD	YPDSF_3468	-	uroporphyrinogen-III synthase
3396	 50.67	0	3977413..3978537	+	374	145600719	-	YPDSF_3469	-	putative uroporphyrinogen III C-methyltransferase
3397	 52.58	0	3978540..3979760	+	406	145600720	-	YPDSF_3470	-	putative protoheme IX biogenesis protein
3398	 45.75	0	3979953..3980411	-	152	145600721	-	YPDSF_3471	-	transposase for the IS1541 insertion element
3399	 49.71	0	3981917..3983308	-	463	145600722	-	YPDSF_3472	-	putative transport protein YifK
3400	 51.55	0	3983832..3984572	-	246	145600723	-	YPDSF_3473	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3401	 48.21	0	3984581..3985945	-	454	145600724	-	YPDSF_3474	-	putative entero common antigen polymerase
3402	 50.37	0	3985942..3987027	-	361	145600725	-	YPDSF_3475	-	4-alpha-L-fucosyltransferase
3403	 50.12	0	3987050..3988306	-	418	145600726	-	YPDSF_3476	-	lipopolysaccharide biosynthesis protein
3404	 48.81	0	3988308..3989438	-	376	145600727	-	YPDSF_3477	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3405	 50.59	0	3989440..3990204	-	254	145600728	-	YPDSF_3478	-	TDP-fucosamine acetyltransferase
3406	 49.32	0	3990155..3991036	-	293	145600729	-	YPDSF_3479	-	glucose-1-phosphate thymidylyltransferase
3407	 51.30	0	3991314..3992387	-	357	145600730	-	YPDSF_3480	-	dTDP-D-glucose-4,6-dehydratase
3408	 49.80	0	3992378..3993640	-	420	145600731	wecC	YPDSF_3481	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3409	 50.30	0	3993637..3994821	-	394	145600732	-	YPDSF_3482	-	UDP-N-acetylglucosamine 2-epimerase
3410	 48.38	0	3995099..3996175	-	358	145600733	-	YPDSF_3483	-	lipopolysaccharide biosynthesis protein WzzE
3411	 46.91	0	3996196..3997278	-	360	145600734	-	YPDSF_3484	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
3412	 45.87	0	3997828..3999087	-	419	145600735	rho	YPDSF_3485	-	transcription termination factor Rho
3413	 45.87	0	3999567..3999893	-	108	145600736	-	YPDSF_3486	-	thioredoxin 1
3414	 48.64	0	4000012..4001298	+	428	145600737	-	YPDSF_3487	-	ATP-dependent RNA helicase RhlB
3415	 50.63	0	4001302..4002798	+	498	145600738	-	YPDSF_3488	-	guanosine pentaphosphate phosphohydrolase
3416	 48.71	0	4002966..4004987	-	673	145600739	-	YPDSF_3489	-	ATP-dependent DNA helicase Rep
3417	 45.04	0	4005191..4005472	+	93	145600740	-	YPDSF_3490	-	peptidyl-prolyl cis-trans isomerase C
3418	 34.09	-2	4005711..4006502	+	263	145600741	-	YPDSF_3491	-	hypothetical protein
3419	 43.69	0	4007294..4007824	+	176	145600742	-	YPDSF_3492	-	fimbrial protein
3420	 42.21	-1	4007888..4008619	+	243	145600743	-	YPDSF_3493	-	fimbrial chaperone
3421	 47.11	0	4008647..4011274	+	875	145600744	-	YPDSF_3494	-	outer membrane usher protein
3422	 49.13	0	4011279..4012658	+	459	145600745	-	YPDSF_3495	-	hypothetical protein
3423	 48.23	0	4012624..4013442	+	272	145600746	-	YPDSF_3496	-	chaperone protein
3424	 42.79	-1	4016741..4016941	-	66	145600747	-	YPDSF_3500	-	hypothetical protein
3425	 50.30	0	4017122..4018600	-	492	145600748	-	YPDSF_3501	-	ketol-acid reductoisomerase
3426	 52.72	0	4018886..4019767	+	293	145600749	-	YPDSF_3502	-	DNA-binding transcriptional regulator IlvY
48.06	MEAN

4.80	STD DEV
