IslandPath Analysis: Yersinia pestis Pestoides F

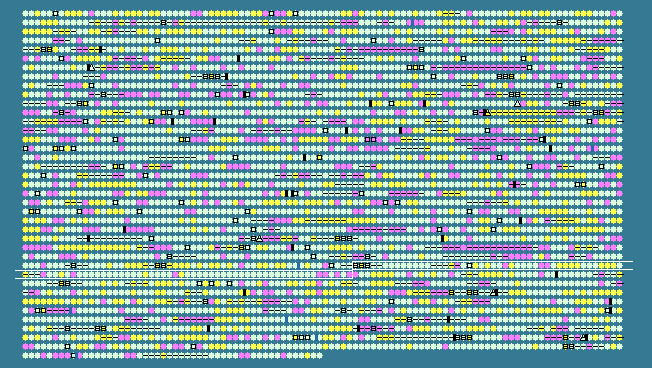

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2856	 50.38	0	3316153..3316932	-	259	145600179	-	YPDSF_2920	-	transposase/IS protein
2857	 52.79	0	3316932..3317954	-	340	145600180	-	YPDSF_2921	-	transposase
2858	 45.75	0	3318064..3318522	+	152	145600181	-	YPDSF_2922	-	transposase for the IS1541 insertion element
2859	 46.38	0	3318712..3318918	-	68	145600182	-	YPDSF_2923	-	zinc-binding protein
2860	 45.29	0	3319104..3319856	-	250	145600183	-	YPDSF_2924	-	hypothetical protein
2861	 47.02	0	3319853..3320473	-	206	145600184	coaE	YPDSF_2925	-	dephospho-CoA kinase
2862	 47.22	0	3320769..3321812	+	347	145600185	-	YPDSF_2926	-	guanosine 5'-monophosphate oxidoreductase
2863	 45.21	0	3322207..3323343	-	378	145600186	-	YPDSF_2927	-	type IV pilin biogenesis protein
2864	 46.05	0	3323403..3324959	-	518	145600187	-	YPDSF_2928	-	hypothetical protein
2865	 44.73	0	3324934..3325398	-	154	145600188	-	YPDSF_2929	-	putative major pilin subunit
2866	 48.31	0	3325601..3326548	-	315	145600189	-	YPDSF_2930	-	quinolinate phosphoribosyltransferase
2867	 48.73	0	3326622..3327173	+	183	145600190	-	YPDSF_2931	-	N-acetyl-anhydromuranmyl-L-alanine amidase
2868	 48.19	0	3327463..3328317	+	284	145600191	-	YPDSF_2932	-	regulatory protein AmpE
2869	 48.43	0	3328750..3330147	-	465	145600192	-	YPDSF_2933	-	aromatic amino acid transport protein
2870	 51.11	0	3331010..3331774	+	254	145600193	pdhR	YPDSF_2934	-	transcriptional regulator PdhR
2871	 49.59	0	3331970..3334633	+	887	145600194	aceE	YPDSF_2935	-	pyruvate dehydrogenase subunit E1
2872	 51.63	0	3334647..3336176	+	509	145600195	-	YPDSF_2936	-	dihydrolipoamide acetyltransferase
2873	 42.59	-1	3336194..3336355	+	53	145600196	-	YPDSF_2937	-	hypothetical protein
2874	 48.84	0	3336482..3337906	+	474	145600197	-	YPDSF_2938	-	dihydrolipoamide dehydrogenase
2875	 45.97	0	3338149..3338607	+	152	145600198	-	YPDSF_2939	-	transposase for the IS1541 insertion element
2876	 51.90	0	3339255..3341774	+	839	145600199	-	YPDSF_2940	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
2877	 46.11	0	3342073..3342432	+	119	145600200	-	YPDSF_2941	-	hypothetical protein
2878	 54.02	+1	3342543..3343451	-	302	145600201	-	YPDSF_2942	-	hypothetical protein
2879	 45.91	0	3343889..3344683	-	264	145600202	-	YPDSF_2943	-	S-adenosylmethionine decarboxylase
2880	 48.48	0	3344761..3345651	-	296	145600203	-	YPDSF_2944	-	spermidine synthase
2881	 42.82	-1	3345768..3346115	-	115	145600204	-	YPDSF_2945	-	hypothetical protein
2882	 53.25	+1	3346432..3348033	+	533	145600205	-	YPDSF_2946	-	multicopper oxidase
2883	 47.62	0	3348244..3348789	+	181	145600206	-	YPDSF_2947	-	hypoxanthine phosphoribosyltransferase
2884	 44.63	0	3348943..3349818	-	291	145600207	-	YPDSF_2948	-	carbonic anhydrase
2885	 47.68	0	3349841..3350767	+	308	145600208	-	YPDSF_2949	-	ABC transporter, ATP-binding protein
2886	 48.12	0	3350764..3351534	+	256	145600209	-	YPDSF_2950	-	ABC transporter, integral membrane protein
2887	 40.12	-1	3351741..3352079	+	112	145600210	-	YPDSF_2951	-	hypothetical protein
2888	 43.24	-1	3351976..3353055	+	359	145600211	-	YPDSF_2952	-	hypothetical protein
2889	 47.77	0	3353204..3353584	-	126	145600212	-	YPDSF_2953	-	aspartate alpha-decarboxylase
2890	 53.10	+1	3353995..3354849	-	284	145600213	panC	YPDSF_2954	-	pantoate--beta-alanine ligase
2891	 52.13	0	3354937..3355734	-	265	145600214	panB	YPDSF_2955	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2892	 52.92	+1	3356003..3356482	-	159	145600215	-	YPDSF_2956	-	2-amino-4-hydroxy-6- hydroxymethyldihydropteridine pyrophosphokinase
2893	 52.37	0	3356490..3357965	-	491	145600216	pcnB	YPDSF_2957	-	poly(A) polymerase I
2894	 50.13	0	3358054..3359208	-	384	145600217	-	YPDSF_2958	-	glutamyl-Q tRNA(Asp) synthetase
2895	 49.78	0	3359316..3359771	-	151	145600218	-	YPDSF_2959	-	DnaK transcriptional regulator DksA
2896	 46.23	0	3359941..3360801	-	286	145600219	-	YPDSF_2960	-	sugar fermentation stimulation protein A
2897	 56.60	+1	3360791..3361366	-	191	145600220	-	YPDSF_2961	-	2'-5' RNA ligase
2898	 56.79	+1	3361458..3363947	+	829	145600221	-	YPDSF_2962	-	ATP-dependent RNA helicase HrpB
2899	 53.37	+1	3364056..3366530	+	824	145600222	mrcB	YPDSF_2963	-	penicillin-binding protein 1b
2900	 50.41	0	3367647..3368735	+	362	145600223	-	YPDSF_2966	-	iron-hydroxamate transporter substrate-binding subunit
2901	 54.90	+1	3368732..3370729	+	665	145600224	-	YPDSF_2967	-	iron-hydroxamate transporter permease subunit
2902	 50.90	0	3371103..3372383	-	426	145600225	-	YPDSF_2968	-	glutamate-1-semialdehyde aminotransferase
2903	 50.31	0	3372764..3374200	+	478	145600226	-	YPDSF_2969	-	chloride channel protein
2904	 44.06	0	3374336..3374680	+	114	145600227	-	YPDSF_2970	-	iron-sulfur cluster insertion protein ErpA
2905	 45.10	0	3374735..3374836	-	33	145600228	-	YPDSF_2971	-	hypothetical protein
2906	 50.57	0	3374982..3375596	-	204	145600229	-	YPDSF_2972	-	hypothetical protein
2907	 53.62	+1	3375596..3376438	-	280	145600230	-	YPDSF_2973	-	vitamin B12-transporter protein BtuF
2908	 51.00	0	3376438..3377139	-	233	145600231	-	YPDSF_2974	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
2909	 43.13	-1	3377433..3378953	+	506	145600232	dgt	YPDSF_2975	-	deoxyguanosinetriphosphate triphosphohydrolase
2910	 49.86	0	3379151..3380596	+	481	145600233	-	YPDSF_2976	-	serine endoprotease
2911	 47.40	0	3380755..3383547	-	930	145600234	-	YPDSF_2977	-	hybrid sensory histidine kinase BarA
2912	 49.18	0	3383658..3383840	+	60	145600235	-	YPDSF_2978	-	hypothetical protein
2913	 50.79	0	3383856..3383981	+	41	145600236	-	YPDSF_2979	-	hypothetical protein
2914	 50.92	0	3383991..3386225	+	744	145600237	relA	YPDSF_2980	-	GDP/GTP pyrophosphokinase
2915	 50.42	0	3386427..3387269	+	280	145600238	mazG	YPDSF_2981	-	nucleoside triphosphate pyrophosphohydrolase
2916	 48.66	0	3387481..3389118	+	545	145600239	-	YPDSF_2982	-	CTP synthetase
2917	 48.77	0	3389193..3390488	+	431	145600240	eno	YPDSF_2983	-	phosphopyruvate hydratase
2918	 50.50	0	3390860..3391465	+	201	145600241	-	YPDSF_2984	-	superoxide dismutase (Cu-Zn) precursor
2919	 49.11	0	3391569..3392240	+	223	145600242	-	YPDSF_2985	-	hypothetical protein
2920	 47.50	0	3392474..3392833	-	119	145600243	-	YPDSF_2986	-	6-pyruvoyl tetrahydrobiopterin synthase family protein
2921	 52.20	0	3393226..3395064	+	612	145600244	cysJ	YPDSF_2987	-	sulfite reductase subunit alpha
2922	 50.55	0	3395064..3396794	+	576	145600245	-	YPDSF_2988	-	sulfite reductase subunit beta
2923	 50.64	0	3396791..3397258	+	155	145600246	-	YPDSF_2989	-	hypothetical protein
2924	 49.47	0	3397233..3397517	+	94	145600247	-	YPDSF_2990	-	phosphoadenylyl-sulfate reductase (thioredoxin)
2925	 45.07	0	3397576..3398052	-	158	145600248	-	YPDSF_2991	-	hypothetical protein
2926	 43.28	0	3398158..3398358	-	66	145600249	-	YPDSF_2992	-	hypothetical protein
2927	 55.67	+1	3398949..3400367	+	472	145600250	-	YPDSF_2993	-	siroheme synthase
2928	 49.17	0	3400378..3401286	+	302	145600251	-	YPDSF_2994	-	sulfate adenylyltransferase subunit 2
2929	 50.40	0	3401298..3402815	+	505	145600252	cysN	YPDSF_2995	-	sulfate adenylyltransferase subunit 1
2930	 50.16	0	3402817..3403458	+	213	145600253	-	YPDSF_2996	-	adenylylsulfate kinase
2931	 50.00	0	3403649..3403966	+	105	145600254	-	YPDSF_2997	-	hypothetical protein
2932	 46.11	0	3404281..3404601	+	106	145600255	ftsB	YPDSF_2998	-	cell division protein FtsB
2933	 50.69	0	3404605..3405330	+	241	145600256	ispD	YPDSF_2999	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2934	 48.26	0	3405469..3405957	+	162	145600257	ispF	YPDSF_3000	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2935	 49.43	0	3405968..3407017	+	349	145600258	truD	YPDSF_3001	-	tRNA pseudouridine synthase D
2936	 50.72	0	3406995..3407759	+	254	145600259	surE	YPDSF_3002	-	stationary phase survival protein SurE
2937	 49.60	0	3407753..3408379	+	208	145600260	pcm	YPDSF_3003	-	protein-L-isoaspartate O-methyltransferase
2938	 47.80	0	3408483..3409484	+	333	145600261	-	YPDSF_3004	-	lipoprotein NlpD
2939	 47.45	0	3409539..3410537	+	332	145600262	-	YPDSF_3005	-	RNA polymerase sigma factor RpoS
2940	 50.94	0	3410865..3413420	-	851	145600263	-	YPDSF_3006	-	DNA mismatch repair protein
2941	 45.93	0	3413917..3414051	+	44	145600264	-	YPDSF_3007	-	hypothetical protein
2942	 46.27	0	3414214..3414669	-	151	145600265	-	YPDSF_3008	-	ribose-5-phosphate isomerase B
2943	 48.92	0	3415152..3416267	+	371	145600266	-	YPDSF_3009	-	Zinc-binding dehydrogenase
2944	 49.94	0	3416331..3417101	+	256	145600267	-	YPDSF_3010	-	short chain dehydrogenase
2945	 49.70	0	3417188..3418189	+	333	145600268	-	YPDSF_3011	-	dihydroxyacetone kinase
2946	 50.67	0	3418196..3418870	+	224	145600269	-	YPDSF_3012	-	hypothetical protein
2947	 50.00	0	3418991..3419962	-	323	145600270	-	YPDSF_3013	-	transcriptional regulatory protein
2948	 50.47	0	3420517..3421806	-	429	145600271	-	YPDSF_3014	-	arsenical pump membrane protein
2949	 48.54	0	3421891..3422232	-	113	145600272	-	YPDSF_3015	-	DNA-binding transcriptional repressor ArsR
2950	 31.88	-2	3422953..3423159	-	68	145600273	-	YPDSF_3016	-	hypothetical protein
2951	 43.27	0	3423580..3424344	-	254	145600274	-	YPDSF_3017	-	extracellular solute-binding protein
2952	 46.59	0	3424415..3425794	-	459	145600275	-	YPDSF_3018	-	cytochrome C peroxidase
2953	 40.85	-1	3426031..3426336	-	101	145600276	-	YPDSF_3019	-	hypothetical protein
2954	 47.45	0	3426455..3428551	+	698	145600277	-	YPDSF_3020	-	hypothetical protein
2955	 40.07	-1	3428984..3430171	+	395	145600278	-	YPDSF_3021	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
