IslandPath Analysis: Yersinia pestis Pestoides F

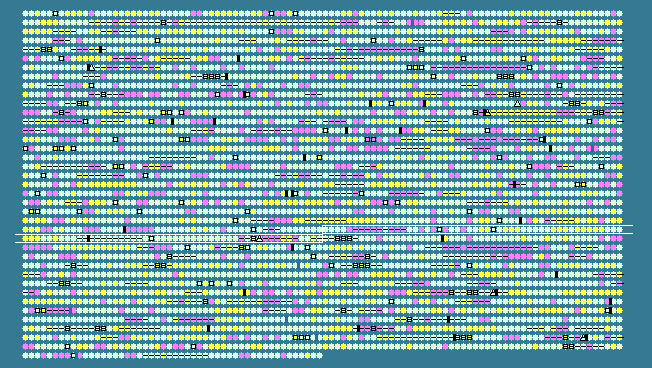

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2451	 48.51	0	2853040..2853876	-	278	145599774	-	YPDSF_2505	-	ABC transport ATP-binding subunit
2452	 50.23	0	2853873..2854949	-	358	145599775	-	YPDSF_2506	-	branched chain amino acid ABC transporter permease
2453	 50.00	0	2854949..2856550	-	533	145599776	-	YPDSF_2507	-	branched chain amino acid ABC transporter permease
2454	 49.96	0	2856674..2857942	-	422	145599777	-	YPDSF_2508	-	substrate-binding periplasmic transport protein
2455	 42.41	-1	2858370..2858843	-	157	145599778	-	YPDSF_2509	-	hypothetical protein
2456	 41.84	-1	2859089..2859970	-	293	145599779	-	YPDSF_2510	-	ABC transport membrane permease
2457	 44.02	0	2859973..2860833	-	286	145599780	-	YPDSF_2511	-	ABC transport membrane permease
2458	 41.29	-1	2860936..2861865	-	309	145599781	-	YPDSF_2512	-	substrate-binding periplasmic transport protein
2459	 41.24	-1	2861902..2862774	-	290	145599782	-	YPDSF_2513	-	ABC transport ATP-binding subunit
2460	 43.37	0	2862946..2863194	-	82	145599783	-	YPDSF_2514	-	hypothetical protein
2461	 47.55	0	2863379..2864482	-	367	145599784	-	YPDSF_2515	-	hypothetical protein
2462	 40.35	-1	2864624..2864794	-	56	145599785	-	YPDSF_2516	-	hypothetical protein
2463	 42.40	-1	2864795..2865136	+	113	145599786	-	YPDSF_2517	-	hypothetical protein
2464	 43.33	0	2865162..2865701	-	179	145599787	-	YPDSF_2518	-	adenylate cyclase 2
2465	 45.59	0	2865911..2867623	+	570	145599788	-	YPDSF_2519	-	D-lactate dehydrogenase
2466	 45.37	0	2867744..2868715	-	323	145599789	pbpG	YPDSF_2520	-	D-alanyl-D-alanine endopeptidase
2467	 37.22	-2	2869018..2869197	+	59	145599790	-	YPDSF_2521	-	hypothetical protein
2468	 48.68	0	2869271..2870215	-	314	145599791	-	YPDSF_2522	-	tRNA-dihydrouridine synthase C
2469	 34.30	-2	2870509..2871438	-	309	145599792	-	YPDSF_2523	-	hypothetical protein
2470	 45.75	0	2871853..2872311	-	152	145599793	-	YPDSF_2524	-	transposase for the IS1541 insertion element
2471	 43.70	0	2872301..2873101	-	266	145599794	-	YPDSF_2525	-	hypothetical protein
2472	 45.02	0	2873240..2874103	-	287	145599795	-	YPDSF_2526	-	purine nucleoside phosphorylase
2473	 45.46	0	2874416..2875297	+	293	145599796	-	YPDSF_2527	-	membrane protein
2474	 43.29	0	2875335..2876228	-	297	145599797	-	YPDSF_2528	-	DNA-binding transcriptional activator XapR
2475	 49.44	0	2876460..2878508	-	682	145599798	-	YPDSF_2529	-	choline transport protein BetT
2476	 50.08	0	2878873..2879469	+	198	145599799	-	YPDSF_2530	-	transcriptional regulator BetI
2477	 54.04	+1	2879527..2880999	+	490	145599800	-	YPDSF_2531	-	betaine aldehyde dehydrogenase
2478	 53.17	+1	2881022..2882725	+	567	145599801	-	YPDSF_2532	-	choline dehydrogenase
2479	 45.75	0	2882954..2883412	-	152	145599802	-	YPDSF_2533	-	transposase for the IS1541 insertion element
2480	 47.40	0	2883647..2884357	-	236	145599803	-	YPDSF_2534	-	membrane protein
2481	 54.30	+1	2884500..2884952	-	150	145599804	MoaE	YPDSF_2535	-	molybdopterin synthase large subunit
2482	 52.85	0	2884955..2885200	-	81	145599805	moaD	YPDSF_2536	-	molybdopterin synthase small subunit
2483	 53.33	+1	2885197..2885676	-	159	145599806	moaC	YPDSF_2537	-	molybdenum cofactor biosynthesis protein C
2484	 49.12	0	2885777..2886802	-	341	145599807	moaA	YPDSF_2538	-	molybdenum cofactor biosynthesis protein A
2485	 50.32	0	2887289..2888212	+	307	145599808	-	YPDSF_2539	-	hypothetical protein
2486	 45.53	0	2888343..2888588	-	81	145599809	-	YPDSF_2540	-	hypothetical protein
2487	 49.95	0	2888880..2890895	-	671	145599810	-	YPDSF_2541	-	excinuclease ABC subunit B
2488	 50.21	0	2891986..2892696	+	236	145599811	-	YPDSF_2542	-	amino acid transporter
2489	 54.22	+1	2892848..2893570	-	240	145599812	bioD	YPDSF_2543	-	dithiobiotin synthetase
2490	 53.86	+1	2893563..2894366	-	267	145599813	-	YPDSF_2544	-	biotin synthesis protein BioC
2491	 58.07	+2	2894350..2895501	-	383	145599814	-	YPDSF_2545	-	8-amino-7-oxononanoate synthase
2492	 51.06	0	2895501..2896538	-	345	145599815	-	YPDSF_2546	-	biotin synthase
2493	 53.40	+1	2896637..2897917	+	426	145599816	-	YPDSF_2547	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
2494	 51.84	0	2898102..2899106	-	334	145599817	-	YPDSF_2548	-	6-phosphogluconolactonase
2495	 52.07	0	2899397..2900218	+	273	145599818	-	YPDSF_2549	-	phosphotransferase
2496	 54.26	+1	2900274..2901353	-	359	145599819	modC	YPDSF_2550	-	molybdate transporter ATP-binding protein
2497	 54.17	+1	2901347..2902042	-	231	145599820	modB	YPDSF_2551	-	molybdate ABC transporter permease protein
2498	 50.77	0	2902042..2902821	-	259	145599821	modA	YPDSF_2552	-	molybdate transporter periplasmic protein
2499	 47.06	0	2903056..2903208	-	50	145599822	-	YPDSF_2553	-	hypothetical protein
2500	 51.01	0	2903474..2904265	+	263	145599823	-	YPDSF_2554	-	DNA-binding transcriptional regulator ModE
2501	 51.98	0	2904375..2905865	+	496	145599824	-	YPDSF_2555	-	putative molybdenum transport ATP-binding protein ModF
2502	 52.41	0	2907255..2908271	+	338	145599825	-	YPDSF_2558	-	UDP-galactose-4-epimerase
2503	 52.04	0	2908281..2909333	+	350	145599826	-	YPDSF_2559	-	galactose-1-phosphate uridylyltransferase
2504	 51.22	0	2909330..2910481	+	383	145599827	-	YPDSF_2560	-	galactokinase
2505	 49.02	0	2910475..2910627	+	50	145599828	-	YPDSF_2561	-	hypothetical protein
2506	 52.29	0	2910648..2911544	+	298	145599829	galM	YPDSF_2562	-	aldose 1-epimerase
2507	 50.00	0	2911837..2912172	+	111	145599830	-	YPDSF_2563	-	starvation-inducible protein
2508	 47.14	0	2912519..2913271	+	250	145599831	-	YPDSF_2564	-	phosphoglycerate mutase 1
2509	 47.39	0	2914928..2915866	+	312	145599832	-	YPDSF_2567	-	zinc transporter ZitB
2510	 46.14	0	2915981..2916706	-	241	145599833	-	YPDSF_2568	-	intergral membrane NMN transport protein PnuC
2511	 50.75	0	2916828..2917889	-	353	145599834	-	YPDSF_2569	-	quinolinate synthetase
2512	 47.28	0	2918892..2919701	-	269	145599835	-	YPDSF_2570	-	hypothetical protein
2513	 48.13	0	2919711..2920217	-	168	145599836	-	YPDSF_2571	-	peptidoglycan-associated outer membrane lipoprotein
2514	 49.42	0	2920268..2921560	-	430	145599837	tolB	YPDSF_2572	-	translocation protein TolB
2515	 50.76	0	2921680..2922861	-	393	145599838	tolA	YPDSF_2573	-	cell envelope integrity inner membrane protein TolA
2516	 46.85	0	2922958..2923386	-	142	145599839	-	YPDSF_2574	-	colicin uptake protein TolR
2517	 48.76	0	2923399..2924085	-	228	145599840	-	YPDSF_2575	-	colicin uptake protein TolQ
2518	 47.51	0	2924085..2924486	-	133	145599841	-	YPDSF_2576	-	acyl-CoA thioester hydrolase YbgC
2519	 51.05	0	2924618..2924950	-	110	145599842	-	YPDSF_2577	-	hypothetical protein
2520	 48.42	0	2925042..2926181	-	379	145599843	-	YPDSF_2578	-	cytochrome D ubiquinol oxidase subunit II
2521	 47.48	0	2926196..2927764	-	522	145599844	-	YPDSF_2579	-	cytochrome D ubiquinol oxidase subunit I
2522	 45.97	0	2928570..2929028	-	152	145599845	-	YPDSF_2580	-	transposase for the IS1541 insertion element
2523	 48.11	0	2929242..2930114	-	290	145599846	-	YPDSF_2581	-	succinyl-CoA synthetase subunit alpha
2524	 50.99	0	2930114..2931280	-	388	145599847	sucC	YPDSF_2582	-	succinyl-CoA synthetase subunit beta
2525	 48.77	0	2931393..2932616	-	407	145599848	-	YPDSF_2583	-	dihydrolipoamide acetyltransferase
2526	 49.36	0	2932646..2935453	-	935	145599849	kgd	YPDSF_2584	-	alpha-ketoglutarate decarboxylase
2527	 46.72	0	2935809..2936525	-	238	145599850	sdhB	YPDSF_2585	-	succinate dehydrogenase iron-sulfur subunit
2528	 51.22	0	2936575..2938341	-	588	145599851	sdhA	YPDSF_2586	-	succinate dehydrogenase flavoprotein subunit
2529	 45.69	0	2938342..2938689	-	115	145599852	sdhD	YPDSF_2587	-	succinate dehydrogenase cytochrome b556 small membrane subunit
2530	 45.90	0	2938683..2939072	-	129	145599853	sdhC	YPDSF_2588	-	succinate dehydrogenase cytochrome b556 large membrane subunit
2531	 48.56	0	2939782..2941062	+	426	145599854	gltA	YPDSF_2589	-	type II citrate synthase
2532	 47.50	0	2941170..2941748	-	192	145599855	-	YPDSF_2590	-	heat shock protein GrpE
2533	 47.05	0	2941872..2942753	+	293	145599856	ppnK	YPDSF_2591	-	inorganic polyphosphate/ATP-NAD kinase
2534	 46.21	0	2942840..2944501	+	553	145599857	-	YPDSF_2592	-	recombination and repair protein
2535	 45.91	0	2944615..2944956	+	113	145599858	-	YPDSF_2593	-	hypothetical protein
2536	 47.37	0	2945106..2945390	-	94	145599859	-	YPDSF_2594	-	hypothetical protein
2537	 43.45	0	2945383..2945817	-	144	145599860	-	YPDSF_2595	-	hypothetical protein
2538	 45.86	0	2945966..2946460	+	164	145599861	smpB	YPDSF_2596	-	SsrA-binding protein
2539	 45.75	0	2947095..2947553	+	152	145599862	-	YPDSF_2597	-	transposase for the IS1541 insertion element
2540	 45.92	0	2947777..2948976	+	399	145599863	-	YPDSF_2598	-	prophage integrase
2541	 33.15	-2	2949055..2950143	+	362	145599864	-	YPDSF_2599	-	hypothetical protein
2542	 33.16	-2	2950194..2951339	+	381	145599865	-	YPDSF_2600	-	hypothetical protein
2543	 32.13	-2	2951615..2951863	+	82	145599866	-	YPDSF_2601	-	hypothetical protein
2544	 53.40	+1	2952715..2953038	+	107	145599867	-	YPDSF_2602	-	hypothetical protein
2545	 52.25	0	2953060..2953947	+	295	145599868	-	YPDSF_2603	-	putative DNA-binding prophage protein
2546	 40.30	-1	2953940..2954140	+	66	145599869	-	YPDSF_2604	-	transcriptional regulator
2547	 50.64	0	2954140..2954682	+	180	145599870	-	YPDSF_2605	-	prophage protein
2548	 51.46	0	2954675..2955634	+	319	145599871	-	YPDSF_2606	-	prophage DNA primase
2549	 54.09	+1	2955631..2956719	+	362	145599872	-	YPDSF_2607	-	regulatory prophage protein
2550	 46.67	0	2957068..2957382	-	104	145599873	-	YPDSF_2608	-	DNA-binding prophage protein
48.06	MEAN

4.80	STD DEV
