IslandPath Analysis: Yersinia pestis Pestoides F

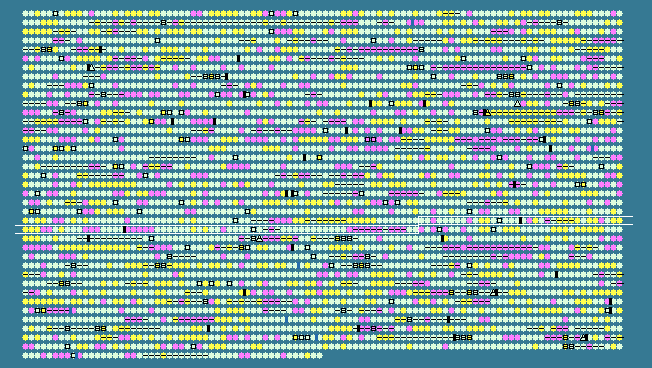

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2367	 45.87	0	2756313..2757014	+	233	145599690	-	YPDSF_2418	-	hypothetical protein
2368	 46.32	0	2757456..2758040	+	194	145599691	-	YPDSF_2419	-	putative outer membrane lipoprotein
2369	 42.77	-1	2758736..2760208	+	490	145599692	-	YPDSF_2420	-	hypothetical protein
2370	 47.54	0	2760290..2762098	+	602	145599693	-	YPDSF_2421	-	substrate-binding transport protein
2371	 48.05	0	2762108..2763208	+	366	145599694	-	YPDSF_2422	-	ABC transporter integral membrane subunit
2372	 50.05	0	2763208..2764236	+	342	145599695	-	YPDSF_2423	-	ABC transporter integral membrane subunit
2373	 51.54	0	2764238..2765830	+	530	145599696	-	YPDSF_2424	-	ABC transporter ATP-binding subunit
2374	 50.14	0	2765891..2766235	-	114	145599697	-	YPDSF_2425	-	hypothetical protein
2375	 30.19	-2	2766649..2766807	-	52	145599698	-	YPDSF_2426	-	hypothetical protein
2376	 50.08	0	2767220..2768419	-	399	145599699	-	YPDSF_2427	-	bicyclomycin/multidrug efflux system
2377	 51.98	0	2768523..2769230	-	235	145599700	-	YPDSF_2428	-	16S rRNA pseudouridylate synthase A
2378	 52.56	0	2769764..2771521	+	585	145599701	-	YPDSF_2429	-	DEAD box helicase family protein
2379	 46.32	0	2771683..2771967	+	94	145599702	-	YPDSF_2430	-	50S ribosomal protein L25
2380	 45.97	0	2772106..2772564	-	152	145599703	-	YPDSF_2431	-	transposase for the IS1541 insertion element
2381	 48.46	0	2772765..2773769	-	334	145599704	-	YPDSF_2432	-	nucleoid-associated protein NdpA
2382	 46.93	0	2773947..2774174	+	75	145599705	-	YPDSF_2433	-	hypothetical protein
2383	 49.30	0	2774202..2775998	+	598	145599706	-	YPDSF_2434	-	membrane protein
2384	 48.48	0	2776969..2778117	+	382	145599707	-	YPDSF_2436	-	hypothetical protein
2385	 39.06	-1	2778130..2778618	+	162	145599708	-	YPDSF_2437	-	hypothetical protein
2386	 51.61	0	2778889..2778981	+	30	145599709	-	YPDSF_2438	-	hypothetical protein
2387	 46.21	0	2779806..2781242	-	478	145599710	-	YPDSF_2439	-	6-phospho-beta-glucosidase
2388	 37.65	-2	2781533..2782273	-	246	145599711	-	YPDSF_2440	-	LacI-family regulatory protein
2389	 46.92	0	2782571..2783350	-	259	145599712	-	YPDSF_2441	-	bacteriophage tail fiber protein
2390	 52.84	0	2783447..2783851	-	134	145599713	-	YPDSF_2442	-	bacteriophage protein
2391	 57.09	+1	2783791..2784051	-	86	145599714	-	YPDSF_2443	-	bacteriophage protein
2392	 54.35	+1	2784048..2785184	-	378	145599715	-	YPDSF_2444	-	bacteriophage protein
2393	 53.29	+1	2785188..2785643	-	151	145599716	-	YPDSF_2445	-	bacteriophage protein GP46
2394	 51.36	0	2785640..2786044	-	134	145599717	-	YPDSF_2446	-	bacteriophage (baseplate assembly) protein
2395	 52.27	0	2786253..2787308	-	351	145599718	-	YPDSF_2447	-	bacteriophage tail protein
2396	 55.29	+1	2787305..2788711	-	468	145599719	-	YPDSF_2448	-	bacteriophage protein
2397	 41.90	-1	2788978..2790471	-	497	145599720	-	YPDSF_2449	-	bacteriophage coat protein
2398	 49.67	0	2790592..2790891	-	99	145599721	-	YPDSF_2450	-	hypothetical protein
2399	 51.60	0	2790845..2791249	+	134	145599722	-	YPDSF_2451	-	hypothetical protein
2400	 52.57	0	2790893..2791261	-	122	145599723	-	YPDSF_2452	-	hypothetical protein
2401	 52.49	0	2791283..2792791	-	502	145599724	-	YPDSF_2453	-	bacteriophage tail sheath protein
2402	 51.79	0	2792788..2792982	-	64	145599725	-	YPDSF_2454	-	bacteriophage protein
2403	 51.94	0	2792987..2793604	-	205	145599726	-	YPDSF_2455	-	ATP-binding protein
2404	 39.86	-1	2793650..2793940	-	96	145599727	-	YPDSF_2456	-	bacteriophage protein
2405	 44.40	0	2794537..2795331	-	264	145599728	-	YPDSF_2457	-	hypothetical protein
2406	 48.34	0	2795307..2796119	-	270	145599729	-	YPDSF_2458	-	transcriptional regulatory protein
2407	 52.19	0	2796122..2796853	-	243	145599730	-	YPDSF_2459	-	putative aldolase
2408	 51.26	0	2796850..2798154	-	434	145599731	-	YPDSF_2460	-	hypothetical protein
2409	 47.08	0	2798365..2798844	-	159	145599732	-	YPDSF_2461	-	phage antitermination protein Q
2410	 47.72	0	2799118..2799840	+	240	145599733	-	YPDSF_2462	-	prophage repressor protein
2411	 35.96	-2	2799890..2800003	-	37	145599734	-	YPDSF_2463	-	hypothetical protein
2412	 44.03	0	2800046..2800288	+	80	145599735	-	YPDSF_2464	-	stress response protein
2413	 40.38	-1	2800460..2801395	+	311	145599736	-	YPDSF_2465	-	outer membrane protease
2414	 50.45	0	2801877..2803664	+	595	145599737	-	YPDSF_2466	-	methyl-accepting chemotaxis protein
2415	 49.39	0	2803738..2804727	-	329	145599738	-	YPDSF_2467	-	hypothetical protein
2416	 47.15	0	2805143..2806669	+	508	145599739	-	YPDSF_2468	-	putative transport protein
2417	 49.79	0	2806944..2808110	+	388	145599740	-	YPDSF_2469	-	beta-lactamase/D-alanine carboxypeptidase
2418	 44.35	0	2808850..2809965	-	371	145599741	-	YPDSF_2470	-	outer membrane porin protein C
2419	 43.01	-1	2812245..2814197	+	650	145599742	-	YPDSF_2473	-	hypothetical protein
2420	 39.09	-1	2814365..2814937	+	190	145599743	-	YPDSF_2474	-	two-component sensor protein like yojN
2421	 39.60	-1	2814940..2815593	+	217	145599744	-	YPDSF_2475	-	transcriptional regulator RcsB
2422	 43.87	0	2815661..2818441	-	926	145599745	-	YPDSF_2476	-	hybrid sensory kinase in two-component regulatory system with RcsB and YojN
2423	 49.70	0	2818722..2821397	-	891	145599746	-	YPDSF_2477	-	DNA gyrase subunit A
2424	 49.93	0	2821659..2822387	+	242	145599747	-	YPDSF_2478	-	3-demethylubiquinone-9 3-methyltransferase
2425	 48.58	0	2822881..2825169	+	762	145599748	-	YPDSF_2479	-	ribonucleotide-diphosphate reductase subunit alpha
2426	 45.80	0	2825332..2826462	+	376	145599749	nrdB	YPDSF_2480	-	ribonucleotide-diphosphate reductase subunit beta
2427	 49.22	0	2826466..2826723	+	85	145599750	-	YPDSF_2481	-	2Fe-2S ferredoxin YfaE
2428	 47.06	0	2826758..2827267	+	169	145599751	-	YPDSF_2482	-	ecotin precursor
2429	 53.94	+1	2827325..2828518	-	397	145599752	-	YPDSF_2483	-	competence damage-inducible protein A
2430	 49.55	0	2829137..2830345	+	402	145599753	-	YPDSF_2484	-	tyrosine-specific transport protein
2431	 53.04	+1	2830602..2831144	-	180	145599754	-	YPDSF_2485	-	hypothetical protein
2432	 49.44	0	2831505..2832944	+	479	145599755	-	YPDSF_2486	-	catalase
2433	 49.24	0	2833012..2835192	-	726	145599756	dinG	YPDSF_2487	-	ATP-dependent DNA helicase DinG
2434	 41.67	-1	2835462..2836577	+	371	145599757	-	YPDSF_2488	-	outer membrane protein C2
2435	 44.81	0	2836614..2836796	-	60	145599758	-	YPDSF_2489	-	hypothetical protein
2436	 49.94	0	2836989..2837879	+	296	145599759	-	YPDSF_2490	-	hypothetical protein
2437	 50.23	0	2837989..2838207	+	72	145599760	-	YPDSF_2491	-	hypothetical protein
2438	 49.07	0	2838325..2839347	-	340	145599761	-	YPDSF_2492	-	amino acid decarboxylase
2439	 49.55	0	2839432..2840640	-	402	145599762	-	YPDSF_2493	-	transposase for the IS285 insertion element
2440	 44.81	0	2840674..2841954	-	426	145599763	-	YPDSF_2494	-	amino acid decarboxylase
2441	 47.12	0	2842024..2843358	-	444	145599764	-	YPDSF_2495	-	arginine:agmatin antiporter
2442	 25.44	-2	2843633..2843860	+	75	145599765	-	YPDSF_2496	-	hypothetical protein
2443	 50.30	0	2843914..2844750	-	278	145599766	-	YPDSF_2497	-	ABC transport integral membrane subunit
2444	 48.03	0	2844747..2845685	-	312	145599767	-	YPDSF_2498	-	ABC transport ATP-binding subunit
2445	 48.48	0	2845682..2846836	-	384	145599768	-	YPDSF_2499	-	ABC transport integral membrane subunit
2446	 48.34	0	2847097..2848029	-	310	145599769	-	YPDSF_2500	-	hypothetical protein
2447	 51.11	0	2848765..2849619	+	284	145599770	-	YPDSF_2501	-	sulfurtransferase
2448	 47.95	0	2849837..2851252	-	471	145599771	-	YPDSF_2502	-	pyridoxal-dependent decarboxylase
2449	 46.97	0	2851276..2852133	-	285	145599772	-	YPDSF_2503	-	hypothetical protein
2450	 50.21	0	2852248..2852946	-	232	145599773	-	YPDSF_2504	-	ABC transport ATP-binding subunit
2451	 48.51	0	2853040..2853876	-	278	145599774	-	YPDSF_2505	-	ABC transport ATP-binding subunit
2452	 50.23	0	2853873..2854949	-	358	145599775	-	YPDSF_2506	-	branched chain amino acid ABC transporter permease
2453	 50.00	0	2854949..2856550	-	533	145599776	-	YPDSF_2507	-	branched chain amino acid ABC transporter permease
2454	 49.96	0	2856674..2857942	-	422	145599777	-	YPDSF_2508	-	substrate-binding periplasmic transport protein
2455	 42.41	-1	2858370..2858843	-	157	145599778	-	YPDSF_2509	-	hypothetical protein
2456	 41.84	-1	2859089..2859970	-	293	145599779	-	YPDSF_2510	-	ABC transport membrane permease
2457	 44.02	0	2859973..2860833	-	286	145599780	-	YPDSF_2511	-	ABC transport membrane permease
2458	 41.29	-1	2860936..2861865	-	309	145599781	-	YPDSF_2512	-	substrate-binding periplasmic transport protein
2459	 41.24	-1	2861902..2862774	-	290	145599782	-	YPDSF_2513	-	ABC transport ATP-binding subunit
2460	 43.37	0	2862946..2863194	-	82	145599783	-	YPDSF_2514	-	hypothetical protein
2461	 47.55	0	2863379..2864482	-	367	145599784	-	YPDSF_2515	-	hypothetical protein
2462	 40.35	-1	2864624..2864794	-	56	145599785	-	YPDSF_2516	-	hypothetical protein
2463	 42.40	-1	2864795..2865136	+	113	145599786	-	YPDSF_2517	-	hypothetical protein
2464	 43.33	0	2865162..2865701	-	179	145599787	-	YPDSF_2518	-	adenylate cyclase 2
2465	 45.59	0	2865911..2867623	+	570	145599788	-	YPDSF_2519	-	D-lactate dehydrogenase
2466	 45.37	0	2867744..2868715	-	323	145599789	pbpG	YPDSF_2520	-	D-alanyl-D-alanine endopeptidase
48.06	MEAN

4.80	STD DEV
