IslandPathversion 1.0

IslandPath Analysis: Yersinia pestis Pestoides F

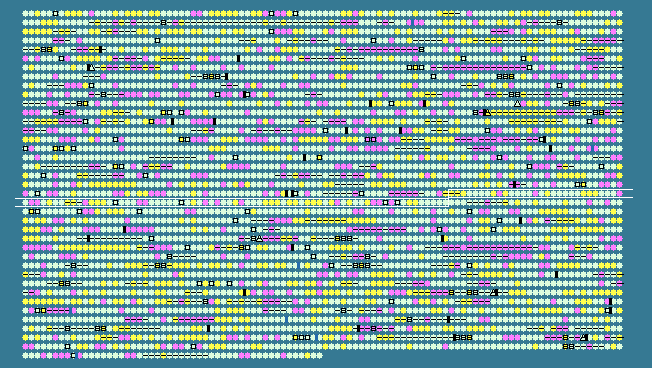

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2072	 52.29	0	2391661..2392752	-	363	145599395	-	YPDSF_2119	-	sulfate/thiosulfate transporter subunit
2073	 53.08	+1	2392742..2393617	-	291	145599396	cysW	YPDSF_2120	-	sulfate/thiosulfate transporter permease subunit
2074	 53.72	+1	2393617..2394450	-	277	145599397	-	YPDSF_2121	-	sulfate/thiosulfate transporter subunit
2075	 48.46	0	2394450..2395487	-	345	145599398	-	YPDSF_2122	-	thiosulfate transporter subunit
2076	 50.62	0	2395802..2397334	-	510	145599399	-	YPDSF_2123	-	putative sialic acid transporter
2077	 48.92	0	2397939..2398817	-	292	145599400	-	YPDSF_2124	-	transcriptional regulator
2078	 47.98	0	2399006..2399476	-	156	145599401	-	YPDSF_2125	-	hypothetical protein
2079	 56.47	+1	2399558..2400430	-	290	145599402	-	YPDSF_2126	-	N-acetylmannosamine kinase
2080	 37.32	-2	2400699..2401826	+	375	145599403	-	YPDSF_2127	-	hypothetical protein
2081	 55.27	+1	2402032..2402733	+	233	145599404	-	YPDSF_2128	-	N-acetylmannosamine-6-phosphate 2-epimerase
2082	 48.55	0	2402796..2403689	+	297	145599405	-	YPDSF_2129	-	N-acetylneuraminate lyase
2083	 48.22	0	2403787..2404686	-	299	145599406	-	YPDSF_2130	-	hypothetical protein
2084	 49.28	0	2405835..2406248	+	137	145599407	-	YPDSF_2133	-	hypothetical protein
2085	 44.60	0	2406804..2409014	+	736	145599408	-	YPDSF_2134	-	autotransporter
2086	 32.13	-2	2409106..2409522	-	138	145599409	-	YPDSF_2135	-	hypothetical protein
2087	 47.65	0	2409995..2410420	-	141	145599410	-	YPDSF_2136	-	putative acetyltransferase
2088	 53.33	+1	2410703..2411632	+	309	145599411	-	YPDSF_2137	-	coproporphyrinogen III oxidase
2089	 51.20	0	2411632..2412090	+	152	145599412	-	YPDSF_2138	-	hypothetical protein
2090	 51.18	0	2412241..2414520	-	759	145599413	-	YPDSF_2139	-	malic enzyme
2091	 46.79	0	2414716..2415339	-	207	145599414	-	YPDSF_2140	-	hypothetical protein
2092	 46.00	0	2415496..2416095	-	199	145599415	-	YPDSF_2141	-	cytochrome c-type protein NapC
2093	 50.64	0	2416123..2416590	-	155	145599416	napB	YPDSF_2142	-	diheme cytochrome c550
2094	 53.03	+1	2416673..2419165	-	830	145599417	-	YPDSF_2143	-	nitrate reductase
2095	 51.69	0	2419162..2419428	-	88	145599418	-	YPDSF_2144	-	assembly protein for periplasmic nitrate reductase
2096	 52.98	+1	2419418..2419921	-	167	145599419	-	YPDSF_2145	-	ferredoxin-type protein NapF
2097	 45.24	0	2420754..2421383	+	209	145599420	-	YPDSF_2146	-	nitrate/nitrite response regulator protein NarP
2098	 48.39	0	2421396..2421674	-	92	145599421	-	YPDSF_2147	-	hypothetical protein
2099	 51.18	0	2422089..2425220	+	1043	145599422	-	YPDSF_2148	-	aminoglycoside/multidrug efflux system
2100	 39.49	-1	2425451..2426035	+	194	145599423	-	YPDSF_2149	-	hypothetical protein
2101	 48.09	0	2426324..2426872	+	182	145599424	-	YPDSF_2150	-	hypothetical protein
2102	 39.29	-1	2427620..2428795	-	391	145599425	-	YPDSF_2151	-	sulfatase modifier protein
2103	 42.05	-1	2428853..2430526	-	557	145599426	-	YPDSF_2152	-	sulfatase
2104	 51.07	0	2431004..2432074	-	356	145599427	-	YPDSF_2153	-	ABC-transporter, ATP-binding protein
2105	 52.32	0	2432067..2433836	-	589	145599428	-	YPDSF_2154	-	binding protein-dependent transport system, inner-membrane component
2106	 47.57	0	2433931..2435019	-	362	145599429	-	YPDSF_2155	-	hypothetical protein
2107	 48.95	0	2435330..2435803	+	157	145599430	-	YPDSF_2156	-	hypothetical protein
2108	 52.13	0	2435963..2436361	+	132	145599431	-	YPDSF_2157	-	hypothetical protein
2109	 52.30	0	2436363..2437490	+	375	145599432	-	YPDSF_2158	-	succinyl-diaminopimelate desuccinylase
2110	 50.88	0	2437487..2438164	+	225	145599433	-	YPDSF_2159	-	carboxypeptidase
2111	 41.54	-1	2438232..2438426	+	64	145599434	-	YPDSF_2160	-	hypothetical protein
2112	 55.46	+1	2438680..2440731	-	683	145599435	-	YPDSF_2161	-	acetyltransferase
2113	 52.54	0	2440733..2441185	-	150	145599436	-	YPDSF_2162	-	hypothetical protein
2114	 51.56	0	2441279..2442145	-	288	145599437	-	YPDSF_2163	-	hypothetical protein
2115	 45.38	0	2442364..2443077	-	237	145599438	-	YPDSF_2164	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2116	 45.97	0	2443225..2443683	-	152	145599439	-	YPDSF_2165	-	transposase for the IS1541 insertion element
2117	 51.46	0	2443858..2444916	-	352	145599440	-	YPDSF_2166	-	lipoprotein
2118	 49.11	0	2444934..2445833	-	299	145599441	-	YPDSF_2167	-	dihydrodipicolinate synthase
2119	 48.46	0	2445935..2446549	+	204	145599442	gcvR	YPDSF_2168	-	glycine cleavage system transcriptional repressor
2120	 44.16	0	2446552..2447022	+	156	145599443	bcp	YPDSF_2169	-	thioredoxin-dependent thiol peroxidase
2121	 41.67	-1	2447689..2448384	-	231	145599444	-	YPDSF_2170	-	hypothetical protein
2122	 45.58	0	2448562..2448708	-	48	145599445	-	YPDSF_2171	-	hypothetical protein
2123	 47.61	0	2448984..2450048	-	354	145599446	-	YPDSF_2172	-	membrane protein
2124	 50.44	0	2450379..2451863	+	494	145599447	-	YPDSF_2173	-	hypothetical protein
2125	 48.18	0	2451970..2452326	+	118	145599448	-	YPDSF_2174	-	arsenate reductase
2126	 48.31	0	2452538..2453245	-	235	145599449	-	YPDSF_2175	-	DNA replication initiation factor
2127	 45.97	0	2453433..2453891	-	152	145599450	-	YPDSF_2176	-	transposase for the IS1541 insertion element
2128	 48.01	0	2454067..2454693	-	208	145599451	upp	YPDSF_2177	-	uracil phosphoribosyltransferase
2129	 51.63	0	2455090..2456133	+	347	145599452	-	YPDSF_2178	-	phosphoribosylaminoimidazole synthetase
2130	 50.55	0	2456248..2456886	+	212	145599453	purN	YPDSF_2179	-	phosphoribosylglycinamide formyltransferase
2131	 39.01	-1	2457115..2457660	+	181	145599454	-	YPDSF_2180	-	spermidine acetyltransferase
2132	 45.32	0	2457754..2458587	-	277	145599455	-	YPDSF_2181	-	hypothetical protein
2133	 43.83	0	2458563..2458943	-	126	145599456	-	YPDSF_2182	-	hypothetical protein
2134	 49.94	0	2459157..2459969	-	270	145599457	-	YPDSF_2183	-	phosphate transport ATP-binding protein
2135	 51.12	0	2459997..2461694	-	565	145599458	-	YPDSF_2184	-	phosphate transport system permease
2136	 54.21	+1	2461694..2463925	-	743	145599459	-	YPDSF_2185	-	phosphate transport system permease
2137	 44.28	0	2464196..2466259	+	687	145599460	-	YPDSF_2186	-	polyphosphate kinase
2138	 51.03	0	2466270..2467829	+	519	145599461	-	YPDSF_2187	-	exopolyphosphatase
2139	 48.83	0	2467941..2468153	+	70	145599462	-	YPDSF_2188	-	hypothetical protein
2140	 50.95	0	2468205..2469680	+	491	145599463	-	YPDSF_2189	-	divalent cation transport protein
2141	 54.40	+1	2469820..2471172	+	450	145599464	-	YPDSF_2190	-	putative chaperone
2142	 53.71	+1	2471444..2472292	-	282	145599465	-	YPDSF_2191	-	ABC transporter permease
2143	 52.29	0	2472354..2473619	-	421	145599466	-	YPDSF_2192	-	ABC transporter permease
2144	 48.20	0	2473666..2474694	-	342	145599467	-	YPDSF_2193	-	transport system periplasmic protein
2145	 53.35	+1	2474747..2476060	-	437	145599468	-	YPDSF_2194	-	4-aminobutyrate aminotransferase
2146	 54.52	+1	2476218..2477723	+	501	145599469	-	YPDSF_2195	-	GntR family regulatory protein
2147	 48.80	0	2478106..2479191	+	361	145599470	-	YPDSF_2196	-	ABC transporter ATP-binding protein
2148	 54.23	+1	2479555..2480889	+	444	145599471	-	YPDSF_2197	-	multidrug efflux system subunit MdtA
2149	 53.72	+1	2480889..2484047	+	1052	145599472	-	YPDSF_2198	-	multidrug efflux system subunit MdtB
2150	 53.79	+1	2487135..2488532	+	465	145599473	-	YPDSF_2201	-	multidrug efflux system protein MdtE
2151	 51.37	0	2488563..2489948	+	461	145599474	-	YPDSF_2202	-	signal transduction histidine-protein kinase BaeS
2152	 53.06	+1	2489958..2490677	+	239	145599475	-	YPDSF_2203	-	DNA-binding transcriptional regulator BaeR
2153	 43.36	0	2490814..2491152	+	112	145599476	-	YPDSF_2204	-	hypothetical protein
2154	 49.61	0	2491427..2492821	+	464	145599477	-	YPDSF_2205	-	protease
2155	 52.08	0	2493457..2494347	+	296	145599478	-	YPDSF_2206	-	lipid kinase
2156	 51.37	0	2494634..2495143	-	169	145599479	-	YPDSF_2207	-	hypothetical protein
2157	 48.76	0	2495374..2496261	+	295	145599480	-	YPDSF_2208	-	hypothetical protein
2158	 55.68	+1	2496323..2497123	-	266	145599481	-	YPDSF_2209	-	phosphomethylpyrimidine kinase
2159	 32.69	-2	2497645..2498112	+	155	145599482	-	YPDSF_2210	-	membrane protein
2160	 39.58	-1	2498171..2498458	+	95	145599483	-	YPDSF_2211	-	hypothetical protein
2161	 49.63	0	2498480..2499688	-	402	145599484	-	YPDSF_2212	-	transposase for the IS285 insertion element
2162	 40.88	-1	2499713..2500414	+	233	145599485	-	YPDSF_2213	-	membrane protein
2163	 45.97	0	2502847..2503305	-	152	145599486	-	YPDSF_2214	-	transposase for the IS1541 insertion element
2164	 49.43	0	2503680..2505257	-	525	145599487	guaA	YPDSF_2215	-	bifunctional GMP synthase/glutamine amidotransferase protein
2165	 51.64	0	2505437..2506900	-	487	145599488	-	YPDSF_2216	-	inositol-5-monophosphate dehydrogenase
2166	 52.25	0	2507070..2508449	+	459	145599489	xseA	YPDSF_2217	-	exodeoxyribonuclease VII large subunit
2167	 48.89	0	2508582..2508806	-	74	145599490	-	YPDSF_2218	-	hypothetical protein
2168	 50.47	0	2508855..2509811	-	318	145599491	-	YPDSF_2219	-	hypothetical protein
2169	 47.98	0	2510158..2511645	-	495	145599492	engA	YPDSF_2220	-	GTP-binding protein EngA
2170	 50.00	0	2511793..2512974	-	393	145599493	-	YPDSF_2221	-	outer membrane protein assembly complex subunit YfgL
2171	 47.01	0	2512986..2513621	-	211	145599494	-	YPDSF_2222	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
