IslandPathversion 1.0

IslandPath Analysis: Yersinia pestis Pestoides F

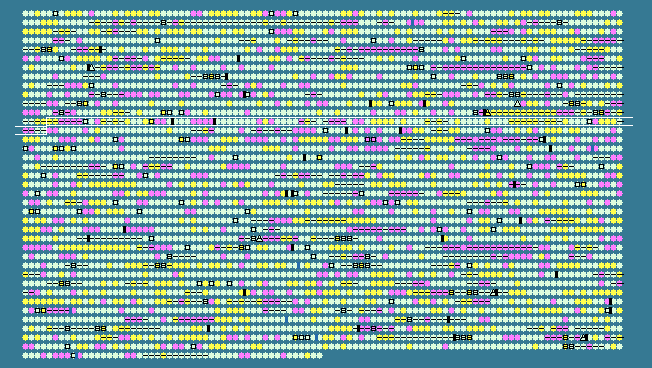

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1205	 54.44	+1	1405754..1406767	-	337	145598528	-	YPDSF_1235	-	oxidoreductase
1206	 54.64	+1	1407435..1408232	-	265	145598529	-	YPDSF_1236	-	GntR family putative transcriptional regulatory protein
1207	 38.89	-1	1408249..1408410	+	53	145598530	-	YPDSF_1237	-	hypothetical protein
1208	 40.58	-1	1408577..1408783	-	68	145598531	-	YPDSF_1239	-	hypothetical protein
1209	 35.63	-2	1409201..1409635	+	144	145598532	-	YPDSF_1240	-	hypothetical protein
1210	 34.39	-2	1409647..1410216	+	189	145598533	-	YPDSF_1241	-	hypothetical protein
1211	 47.49	0	1410634..1410972	-	112	145598534	-	YPDSF_1242	-	transposase
1212	 49.25	0	1410972..1411832	-	286	145598535	-	YPDSF_1243	-	hypothetical protein
1213	 36.86	-2	1411880..1412956	-	358	145598536	-	YPDSF_1244	-	hypothetical protein
1214	 51.55	0	1413022..1413312	-	96	145598537	-	YPDSF_1245	-	hypothetical protein
1215	 44.69	0	1413293..1413565	-	90	145598538	-	YPDSF_1246	-	hypothetical protein
1216	 52.55	0	1413696..1413950	+	84	145598539	-	YPDSF_1247	-	hypothetical protein
1217	 51.33	0	1413947..1414246	+	99	145598540	-	YPDSF_1248	-	hypothetical protein
1218	 53.47	+1	1414263..1414550	+	95	145598541	-	YPDSF_1249	-	hypothetical protein
1219	 47.22	0	1414985..1415200	+	71	145598542	-	YPDSF_1250	-	membrane protein
1220	 45.42	0	1415197..1415502	+	101	145598543	-	YPDSF_1251	-	hypothetical protein
1221	 53.10	+1	1416177..1416596	+	139	145598544	-	YPDSF_1253	-	hypothetical protein
1222	 57.08	+1	1416668..1417627	+	319	145598545	-	YPDSF_1254	-	transposase
1223	 30.43	-2	1417847..1418191	+	114	145598546	-	YPDSF_1255	-	hypothetical protein
1224	 35.06	-2	1418773..1418946	-	57	145598547	-	YPDSF_1256	-	hypothetical protein
1225	 45.34	0	1420002..1420559	+	185	145598548	-	YPDSF_1258	-	hypothetical protein
1226	 46.08	0	1421299..1421847	-	182	145598549	-	YPDSF_1259	-	phosphatidylglycerophosphate synthetase
1227	 44.77	0	1421906..1423759	-	617	145598550	uvrC	YPDSF_1260	-	excinuclease ABC subunit C
1228	 45.51	0	1423731..1424387	-	218	145598551	-	YPDSF_1261	-	response regulator
1229	 43.56	0	1425050..1425274	+	74	145598552	-	YPDSF_1262	-	hypothetical protein
1230	 39.13	-1	1425399..1425743	+	114	145598553	-	YPDSF_1263	-	membrane protein
1231	 39.22	-1	1425771..1426025	-	84	145598554	-	YPDSF_1264	-	hypothetical protein
1232	 37.68	-2	1426365..1426916	-	183	145598555	-	YPDSF_1265	-	attachment invasion locus protein
1233	 46.60	0	1428031..1429455	+	474	145598556	-	YPDSF_1266	-	D-alanine/D-serine/glycine permease
1234	 50.72	0	1429581..1430759	-	392	145598557	-	YPDSF_1267	-	hypothetical protein
1235	 51.50	0	1431153..1431752	+	199	145598558	-	YPDSF_1268	-	TrpR binding protein WrbA
1236	 49.04	0	1431838..1433142	-	434	145598559	-	YPDSF_1269	-	hypothetical protein
1237	 46.95	0	1433153..1434283	-	376	145598560	-	YPDSF_1270	-	hypothetical protein
1238	 49.23	0	1434313..1435161	-	282	145598561	-	YPDSF_1271	-	membrane protein
1239	 48.82	0	1435494..1436978	-	494	145598562	-	YPDSF_1272	-	proline permease
1240	 40.91	-1	1437008..1437205	-	65	145598563	-	YPDSF_1273	-	hypothetical protein
1241	 52.79	0	1437550..1441521	+	1323	145598564	putA	YPDSF_1274	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1242	 43.45	0	1441985..1442320	+	111	145598565	-	YPDSF_1275	-	hypothetical protein
1243	 44.62	0	1442320..1442691	+	123	145598566	-	YPDSF_1276	-	hypothetical protein
1244	 49.48	0	1442983..1443744	-	253	145598567	-	YPDSF_1277	-	putative amino-acid ABC transporter ATP-binding protein YecC
1245	 49.62	0	1443747..1444409	-	220	145598568	-	YPDSF_1278	-	amino-acid ABC transporter (permease)
1246	 51.26	0	1445328..1446320	-	330	145598569	-	YPDSF_1281	-	D-cysteine desulfhydrase
1247	 41.96	-1	1446609..1447118	-	169	145598570	-	YPDSF_1282	-	protein FliZ
1248	 52.97	+1	1447340..1448062	-	240	145598571	fliA	YPDSF_1283	-	flagellar biosynthesis sigma factor
1249	 46.85	0	1448409..1449518	-	369	145598572	-	YPDSF_1284	-	flagellin
1250	 46.54	0	1449815..1451215	+	466	145598573	fliD	YPDSF_1285	-	flagellar capping protein
1251	 46.62	0	1451226..1451624	+	132	145598574	fliS	YPDSF_1286	-	flagellar protein FliS
1252	 41.05	-1	1451635..1451997	+	120	145598575	-	YPDSF_1287	-	flagellar biosynthesis protein FliT
1253	 43.38	0	1452298..1453173	+	291	145598576	-	YPDSF_1288	-	AraC family transcription regulator
1254	 43.01	-1	1453527..1456481	+	984	145598577	-	YPDSF_1289	-	hypothetical protein
1255	 49.18	0	1456642..1457253	+	203	145598578	-	YPDSF_1290	-	glycosidase
1256	 41.93	-1	1457439..1457915	-	158	145598579	-	YPDSF_1291	-	hypothetical protein
1257	 43.33	0	1457926..1458105	-	59	145598580	-	YPDSF_1292	-	hypothetical protein
1258	 49.68	0	1458525..1458836	-	103	145598581	fliE	YPDSF_1293	-	flagellar hook-basal body protein FliE
1259	 53.30	+1	1459189..1460901	+	570	145598582	fliF	YPDSF_1294	-	flagellar MS-ring protein
1260	 52.17	0	1460898..1461890	+	330	145598583	fliG	YPDSF_1295	-	flagellar motor switch protein G
1261	 54.76	+1	1461965..1462594	+	209	145598584	fliH	YPDSF_1296	-	flagellar assembly protein H
1262	 55.22	+1	1462491..1463993	+	500	145598585	fliI	YPDSF_1297	-	flagellum-specific ATP synthase
1263	 47.87	0	1464093..1464539	+	148	145598586	fliJ	YPDSF_1298	-	flagellar biosynthesis chaperone
1264	 55.28	+1	1464536..1465888	+	450	145598587	-	YPDSF_1299	-	flagellar hook-length control protein FliK
1265	 48.40	0	1466062..1466625	+	187	145598588	fliL	YPDSF_1300	-	flagellar basal body-associated protein FliL
1266	 50.50	0	1466631..1467632	+	333	145598589	fliM	YPDSF_1301	-	flagellar motor switch protein FliM
1267	 49.64	0	1467629..1468045	+	138	145598590	fliN	YPDSF_1302	-	flagellar motor switch protein FliN
1268	 57.73	+2	1468045..1468581	+	178	145598591	-	YPDSF_1303	-	flagellar protein FliO
1269	 51.39	0	1468578..1469402	+	274	145598592	fliP	YPDSF_1304	-	flagellar biosynthesis protein FliP
1270	 52.22	0	1469508..1469777	+	89	145598593	fliQ	YPDSF_1305	-	flagellar biosynthesis protein FliQ
1271	 49.71	0	1469708..1470562	+	284	145598594	fliR	YPDSF_1306	-	flagellar biosynthesis protein FliR
1272	 45.00	0	1470996..1471415	+	139	145598595	-	YPDSF_1307	-	hypothetical protein
1273	 52.29	0	1471673..1472632	-	319	145598596	-	YPDSF_1308	-	sugar kinase
1274	 51.42	0	1472681..1473703	-	340	145598597	-	YPDSF_1309	-	sugar ABC transporter, permease
1275	 51.08	0	1473706..1475283	-	525	145598598	-	YPDSF_1310	-	sugar ABC transporter, ATP-binding protein
1276	 50.70	0	1475349..1476344	-	331	145598599	-	YPDSF_1311	-	sugar-binding periplasmic protein
1277	 50.37	0	1476387..1477466	-	359	145598600	-	YPDSF_1312	-	sugar transport system permease protein
1278	 52.01	0	1477596..1479662	-	688	145598601	-	YPDSF_1313	-	short chain dehydrogenase
1279	 50.41	0	1479904..1480881	+	325	145598602	-	YPDSF_1314	-	transcriptional regulatory protein
1280	 47.63	0	1480910..1481923	-	337	145598603	flgL	YPDSF_1315	-	flagellar hook-associated protein FlgL
1281	 50.09	0	1482029..1483693	-	554	145598604	flgK	YPDSF_1316	-	flagellar hook-associated protein FlgK
1282	 54.07	+1	1483992..1484936	-	314	145598605	flgJ	YPDSF_1317	-	peptidoglycan hydrolase
1283	 54.59	+1	1484936..1486045	-	369	145598606	flgI	YPDSF_1318	-	flagellar basal body P-ring protein
1284	 52.17	0	1486060..1486749	-	229	145598607	flgH	YPDSF_1319	-	flagellar basal body L-ring protein
1285	 51.65	0	1486893..1487591	-	232	145598608	-	YPDSF_1320	-	flagellar basal-body rod protein FlgG
1286	 57.94	+2	1487572..1488201	-	209	145598609	flgF	YPDSF_1321	-	flagellar basal body rod protein FlgF
1287	 50.82	0	1488223..1489509	-	428	145598610	flgE	YPDSF_1322	-	flagellar hook protein FlgE
1288	 52.95	+1	1489711..1490388	-	225	145598611	flgD	YPDSF_1323	-	flagellar basal body rod modification protein
1289	 54.07	+1	1490403..1490807	-	134	145598612	flgC	YPDSF_1324	-	flagellar basal body rod protein FlgC
1290	 50.24	0	1490813..1491226	-	137	145598613	flgB	YPDSF_1325	-	flagellar basal body rod protein FlgB
1291	 51.85	0	1491408..1492163	+	251	145598614	flgA	YPDSF_1326	-	flagellar basal body P-ring biosynthesis protein FlgA
1292	 47.52	0	1492314..1492616	+	100	145598615	-	YPDSF_1327	-	anti-sigma28 factor FlgM
1293	 48.75	0	1492635..1493075	+	146	145598616	-	YPDSF_1328	-	flagella synthesis protein FlgN
1294	 50.17	0	1493265..1495337	-	690	145598617	-	YPDSF_1329	-	hypothetical protein
1295	 45.75	0	1495427..1495885	-	152	145598618	-	YPDSF_1330	-	transposase for the IS1541 insertion element
1296	 43.98	0	1495875..1496879	-	334	145598619	-	YPDSF_1331	-	invasin
1297	 52.96	+1	1497543..1497965	-	140	145598620	-	YPDSF_1332	-	flagellar protein FlhE precursor
1298	 51.80	0	1497965..1500043	-	692	145598621	flhA	YPDSF_1333	-	flagellar biosynthesis protein FlhA
1299	 52.54	0	1500043..1501203	-	386	145598622	flhB	YPDSF_1334	-	flagellar biosynthesis protein FlhB
1300	 46.84	0	1501735..1502193	+	152	145598623	-	YPDSF_1335	-	membrane protein
1301	 38.53	-1	1502187..1502513	+	108	145598624	-	YPDSF_1336	-	acyl carrier protein
1302	 44.44	0	1503036..1503377	-	113	145598625	-	YPDSF_1337	-	hypothetical protein
1303	 49.04	0	1503474..1504358	-	294	145598626	-	YPDSF_1338	-	copper resistance protein D
1304	 46.77	0	1504361..1504747	-	128	145598627	-	YPDSF_1339	-	copper resistance protein
48.06	MEAN

4.80	STD DEV
