IslandPath Analysis: Yersinia pestis Pestoides F

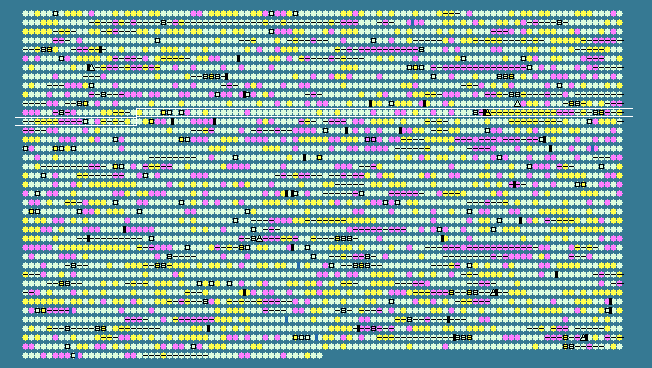

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1120	 51.83	0	1289659..1290231	-	190	145598443	-	YPDSF_1148	-	hypothetical protein
1121	 49.53	0	1290231..1291601	-	456	145598444	-	YPDSF_1149	-	N-formimino-L-glutamate deiminase
1122	 50.91	0	1291749..1292516	+	255	145598445	-	YPDSF_1150	-	GntR family transcriptional regulatory protein
1123	 50.29	0	1292720..1293940	+	406	145598446	-	YPDSF_1151	-	imidazolonepropionase
1124	 52.79	0	1294031..1295053	+	340	145598447	-	YPDSF_1152	-	transposase
1125	 50.38	0	1295053..1295832	+	259	145598448	-	YPDSF_1153	-	transposase/IS protein
1126	 48.89	0	1295848..1296702	+	284	145598449	-	YPDSF_1154	-	N-formylglutamate amidohydrolase
1127	 49.55	0	1296763..1297971	-	402	145598450	-	YPDSF_1155	-	transposase for the IS285 insertion element
1128	 44.51	0	1298434..1299516	-	360	145598451	-	YPDSF_1156	-	hypothetical protein
1129	 48.04	0	1300252..1301244	-	330	145598452	-	YPDSF_1157	-	succinylglutamate desuccinylase
1130	 50.45	0	1301305..1302648	-	447	145598453	-	YPDSF_1158	-	succinylarginine dihydrolase
1131	 53.56	+1	1302672..1304189	-	505	145598454	-	YPDSF_1159	-	succinylglutamic semialdehyde dehydrogenase
1132	 50.71	0	1304186..1305238	-	350	145598455	-	YPDSF_1160	-	arginine succinyltransferase
1133	 51.23	0	1305268..1306608	-	446	145598456	-	YPDSF_1161	-	bifunctional succinylornithine transaminase/acetylornithine transaminase
1134	 51.41	0	1307149..1308570	-	473	145598457	-	YPDSF_1162	-	GntR family regulatory protein
1135	 46.91	0	1308880..1310661	+	593	145598458	-	YPDSF_1163	-	nitrate/nitrite sensor protein NarX
1136	 49.47	0	1311346..1312287	+	313	145598459	-	YPDSF_1164	-	calcium/sodium:proton antiporter
1137	 48.67	0	1312390..1313178	-	262	145598460	-	YPDSF_1165	-	hypothetical protein
1138	 43.16	-1	1313238..1313522	-	94	145598461	-	YPDSF_1166	-	hypothetical protein
1139	 44.73	0	1313955..1314665	-	236	145598462	-	YPDSF_1167	-	acetyltransferase
1140	 50.00	0	1315187..1315654	-	155	145598463	-	YPDSF_1168	-	haemin storage system, HmsS protein
1141	 50.95	0	1315651..1317024	-	457	145598464	-	YPDSF_1169	-	N-glycosyltransferase PgaC
1142	 47.48	0	1316975..1318996	-	673	145598465	-	YPDSF_1170	-	haemin storage system, HmsF protein
1143	 48.12	0	1319009..1321477	-	822	145598466	-	YPDSF_1171	-	outer membrane protein PgaA
1144	 45.57	0	1322146..1323363	-	405	145598467	-	YPDSF_1172	-	peptidase
1145	 45.05	0	1323504..1324391	-	295	145598468	-	YPDSF_1173	-	tellurite resistance protein TehB
1146	 45.71	0	1324564..1324878	-	104	145598469	-	YPDSF_1174	-	cytochrome
1147	 46.70	0	1324875..1325405	-	176	145598470	-	YPDSF_1175	-	thioredoxin
1148	 47.34	0	1325362..1326075	-	237	145598471	-	YPDSF_1176	-	ABC transporter, ATP-binding protein
1149	 49.23	0	1326079..1327242	-	387	145598472	-	YPDSF_1177	-	membrane protein
1150	 52.90	+1	1327232..1328524	-	430	145598473	-	YPDSF_1178	-	membrane protein
1151	 49.08	0	1328527..1329936	-	469	145598474	-	YPDSF_1179	-	membrane protein
1152	 45.45	0	1330221..1330748	-	175	145598475	-	YPDSF_1180	-	hypothetical protein
1153	 52.10	0	1333442..1335082	-	546	145598476	-	YPDSF_1183	-	membrane protein
1154	 49.80	0	1335193..1336200	-	335	145598477	-	YPDSF_1184	-	glutaminase
1155	 46.86	0	1336652..1336858	-	68	145598478	-	YPDSF_1185	-	hydroxypyruvate isomerase
1156	 50.06	0	1337411..1338181	+	256	145598479	-	YPDSF_1186	-	DeoR family transcriptional regulator
1157	 48.04	0	1338903..1340432	+	509	145598480	-	YPDSF_1187	-	L-asparagine permease
1158	 47.29	0	1340628..1341788	-	386	145598481	-	YPDSF_1188	-	aminotransferase
1159	 41.17	-1	1342140..1342739	+	199	145598482	-	YPDSF_1189	-	Na(+)-translocating NADH-quinone reductase subunit E
1160	 50.57	0	1343044..1344006	-	320	145598483	-	YPDSF_1190	-	LysR family transcriptional regulator
1161	 50.11	0	1344118..1344987	+	289	145598484	-	YPDSF_1191	-	dicarboxylic acid hydrolase
1162	 50.73	0	1345053..1346282	+	409	145598485	-	YPDSF_1192	-	sugar transporter
1163	 38.50	-1	1346502..1347062	+	186	145598486	-	YPDSF_1193	-	hypothetical protein
1164	 41.35	-1	1347087..1347560	+	157	145598487	-	YPDSF_1194	-	lipoprotein
1165	 50.96	0	1347635..1348519	-	294	145598488	-	YPDSF_1195	-	LysR family transcriptional regulator
1166	 53.62	+1	1348608..1349450	+	280	145598489	-	YPDSF_1196	-	citrate lyase beta chain
1167	 51.52	0	1349515..1350042	+	175	145598490	-	YPDSF_1197	-	transcription regulatory protein
1168	 50.42	0	1350065..1351387	+	440	145598491	-	YPDSF_1198	-	4-hydroxybutyrate coenzyme A transferase
1169	 40.13	-1	1352213..1352845	+	210	145598492	-	YPDSF_1199	-	two-component response regulator
1170	 46.78	0	1352820..1356821	+	1333	145598493	-	YPDSF_1200	-	signal transduction histidine kinase
1171	 48.59	0	1357202..1357732	+	176	145598494	-	YPDSF_1201	-	fimbrial protein
1172	 42.48	-1	1357825..1358469	+	214	145598495	-	YPDSF_1202	-	pili assembly chaperone
1173	 49.50	0	1358518..1361109	+	863	145598496	-	YPDSF_1203	-	fimbrial usher protein
1174	 47.63	0	1361125..1362474	+	449	145598497	-	YPDSF_1204	-	hypothetical protein
1175	 44.64	0	1362471..1362983	+	170	145598498	-	YPDSF_1205	-	pili assembly chaperone
1176	 49.55	0	1363045..1364253	+	402	145598499	-	YPDSF_1206	-	transposase for the IS285 insertion element
1177	 43.02	-1	1364277..1364534	+	85	145598500	-	YPDSF_1207	-	pili assembly chaperone
1178	 52.65	0	1365074..1366336	+	420	145598501	-	YPDSF_1208	-	integrase
1179	 55.25	+1	1366530..1367834	-	434	145598502	-	YPDSF_1209	-	salicylate synthase Irp9
1180	 59.83	+2	1367862..1369250	-	462	145598503	-	YPDSF_1210	-	signal transducer
1181	 58.62	+2	1369135..1370937	-	600	145598504	-	YPDSF_1211	-	inner membrane ABC-transporter YbtQ
1182	 57.85	+2	1370924..1372636	-	570	145598505	-	YPDSF_1212	-	lipoprotein inner membrane ABC-transporter
1183	 56.35	+1	1372893..1373852	+	319	145598506	-	YPDSF_1213	-	transcriptional regulator YbtA
1184	 60.15	+2	1374043..1380150	+	2035	145598507	-	YPDSF_1214	-	yersiniabactin biosynthetic protein
1185	 60.78	+2	1380238..1389729	+	3163	145598508	-	YPDSF_1215	-	yersiniabactin biosynthetic protein
1186	 60.40	+2	1389726..1390826	+	366	145598509	-	YPDSF_1216	-	yersiniabactin biosynthetic protein YbtU
1187	 58.43	+2	1390838..1391626	+	262	145598510	-	YPDSF_1217	-	yersiniabactin biosynthetic protein YbtT
1188	 58.81	+2	1391630..1393207	+	525	145598511	-	YPDSF_1218	-	yersiniabactin siderophore biosynthetic protein
1189	 56.53	+1	1393338..1395359	+	673	145598512	-	YPDSF_1219	-	pesticin/yersiniabactin receptor protein
1190	 41.44	-1	1396605..1397159	+	184	145598513	-	YPDSF_1220	-	hypothetical protein
1191	 43.01	-1	1397299..1397484	+	61	145598514	-	YPDSF_1221	-	transcriptional regulator
1192	 37.58	-2	1397503..1397667	+	54	145598515	-	YPDSF_1222	-	hypothetical protein
1193	 48.97	0	1397673..1398254	+	193	145598516	-	YPDSF_1223	-	hypothetical protein
1194	 51.90	0	1398244..1398453	+	69	145598517	-	YPDSF_1224	-	hypothetical protein
1195	 44.74	0	1398696..1398809	+	37	145598518	-	YPDSF_1225	-	hypothetical protein
1196	 50.38	0	1398853..1399632	-	259	145598519	-	YPDSF_1226	-	transposase/IS protein
1197	 52.79	0	1399632..1400654	-	340	145598520	-	YPDSF_1227	-	transposase
1198	 41.94	-1	1401132..1401317	+	61	145598521	-	YPDSF_1228	-	hypothetical protein
1199	 47.11	0	1401333..1401557	+	74	145598522	-	YPDSF_1229	-	hypothetical protein
1200	 52.34	0	1401567..1401908	-	113	145598523	-	YPDSF_1230	-	ABC-type sugar transport system, ATPase components
1201	 50.73	0	1401794..1402684	-	296	145598524	-	YPDSF_1231	-	binding-protein-dependent transport system, ATP-binding component
1202	 51.21	0	1402709..1403536	-	275	145598525	-	YPDSF_1232	-	binding-protein-dependent transport system, inner membrane component
1203	 52.03	0	1403529..1404389	-	286	145598526	-	YPDSF_1233	-	binding-protein-dependent transport system, inner membrane component
1204	 51.85	0	1404456..1405724	-	422	145598527	-	YPDSF_1234	-	exported solute-binding protein
1205	 54.44	+1	1405754..1406767	-	337	145598528	-	YPDSF_1235	-	oxidoreductase
1206	 54.64	+1	1407435..1408232	-	265	145598529	-	YPDSF_1236	-	GntR family putative transcriptional regulatory protein
1207	 38.89	-1	1408249..1408410	+	53	145598530	-	YPDSF_1237	-	hypothetical protein
1208	 40.58	-1	1408577..1408783	-	68	145598531	-	YPDSF_1239	-	hypothetical protein
1209	 35.63	-2	1409201..1409635	+	144	145598532	-	YPDSF_1240	-	hypothetical protein
1210	 34.39	-2	1409647..1410216	+	189	145598533	-	YPDSF_1241	-	hypothetical protein
1211	 47.49	0	1410634..1410972	-	112	145598534	-	YPDSF_1242	-	transposase
1212	 49.25	0	1410972..1411832	-	286	145598535	-	YPDSF_1243	-	hypothetical protein
1213	 36.86	-2	1411880..1412956	-	358	145598536	-	YPDSF_1244	-	hypothetical protein
1214	 51.55	0	1413022..1413312	-	96	145598537	-	YPDSF_1245	-	hypothetical protein
1215	 44.69	0	1413293..1413565	-	90	145598538	-	YPDSF_1246	-	hypothetical protein
1216	 52.55	0	1413696..1413950	+	84	145598539	-	YPDSF_1247	-	hypothetical protein
1217	 51.33	0	1413947..1414246	+	99	145598540	-	YPDSF_1248	-	hypothetical protein
1218	 53.47	+1	1414263..1414550	+	95	145598541	-	YPDSF_1249	-	hypothetical protein
1219	 47.22	0	1414985..1415200	+	71	145598542	-	YPDSF_1250	-	membrane protein
48.06	MEAN

4.80	STD DEV
