IslandPathversion 1.0

IslandPath Analysis: Yersinia pestis Pestoides F

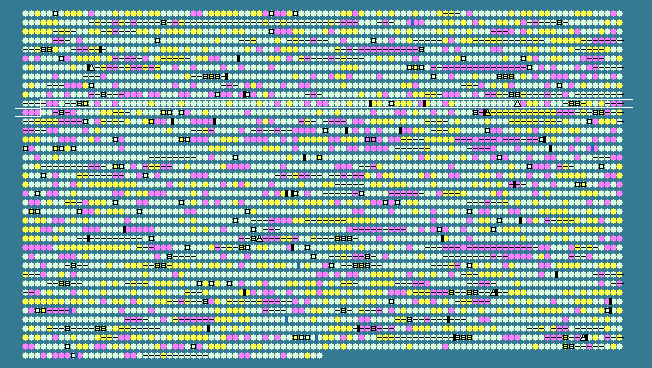

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.06 STD DEV: 4.80
Yersinia pestis Pestoides F, complete genome - 1..4517345
3850 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1004	 45.98	0	1163655..1163828	-	57	145598327	-	YPDSF_1030	-	hypothetical protein
1005	 42.91	-1	1164288..1164851	-	187	145598328	-	YPDSF_1031	-	hypothetical protein
1006	 43.85	0	1165122..1165511	-	129	145598329	-	YPDSF_1032	-	phage antitermination protein
1007	 47.03	0	1165512..1166117	-	201	145598330	-	YPDSF_1033	-	hypothetical protein
1008	 50.56	0	1166191..1166637	-	148	145598331	-	YPDSF_1034	-	hypothetical protein
1009	 50.23	0	1166718..1167362	+	214	145598332	-	YPDSF_1035	-	methyltransferase
1010	 50.38	0	1168090..1168869	-	259	145598333	-	YPDSF_1036	-	transposase/IS protein
1011	 52.79	0	1168869..1169891	-	340	145598334	-	YPDSF_1037	-	transposase for insertion sequence IS100
1012	 49.07	0	1169961..1171199	+	412	145598335	-	YPDSF_1038	-	hypothetical protein
1013	 44.07	0	1171226..1171672	-	148	145598336	-	YPDSF_1039	-	hypothetical protein
1014	 47.34	0	1171775..1172431	-	218	145598337	-	YPDSF_1040	-	hypothetical protein
1015	 46.59	0	1172502..1173587	-	361	145598338	-	YPDSF_1041	-	lipoprotein
1016	 43.59	0	1173728..1174000	-	90	145598339	-	YPDSF_1042	-	hypothetical protein
1017	 47.60	0	1174721..1175407	+	228	145598340	minC	YPDSF_1043	-	septum formation inhibitor
1018	 46.86	0	1175432..1176244	+	270	145598341	-	YPDSF_1044	-	cell division inhibitor MinD
1019	 44.81	0	1176248..1176517	+	89	145598342	minE	YPDSF_1045	-	cell division topological specificity factor MinE
1020	 47.72	0	1176754..1177914	-	386	145598343	-	YPDSF_1046	-	ribonuclease D
1021	 48.32	0	1178035..1179756	-	573	145598344	-	YPDSF_1047	-	long-chain-fatty-acid--CoA ligase
1022	 54.94	+1	1181103..1181801	-	232	145598345	-	YPDSF_1050	-	hypothetical protein
1023	 50.66	0	1181873..1183777	-	634	145598346	-	YPDSF_1051	-	DEAD box family helicase
1024	 48.70	0	1183908..1184252	+	114	145598347	-	YPDSF_1052	-	hypothetical protein
1025	 47.58	0	1184384..1184713	-	109	145598348	-	YPDSF_1053	-	multidrug efflux system protein MdtI
1026	 46.17	0	1184700..1185143	-	147	145598349	-	YPDSF_1054	-	integral membrane protein
1027	 51.87	0	1185858..1186499	-	213	145598350	-	YPDSF_1055	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1028	 48.42	0	1186741..1188225	-	494	145598351	-	YPDSF_1056	-	glucose-6-phosphate 1-dehydrogenase
1029	 46.10	0	1188422..1189447	+	341	145598352	-	YPDSF_1057	-	DNA-binding transcriptional regulator HexR
1030	 50.24	0	1189777..1191219	+	480	145598353	-	YPDSF_1058	-	pyruvate kinase
1031	 46.94	0	1191559..1192521	-	320	145598354	-	YPDSF_1059	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
1032	 48.75	0	1192788..1194104	-	438	145598355	-	YPDSF_1060	-	hypothetical protein
1033	 44.83	0	1194125..1195081	-	318	145598356	znuA	YPDSF_1061	-	high-affinity zinc transporter periplasmic component
1034	 49.08	0	1195154..1195915	+	253	145598357	znuC	YPDSF_1062	-	high-affinity zinc transporter ATPase
1035	 51.65	0	1195912..1196697	+	261	145598358	znuB	YPDSF_1063	-	high-affinity zinc transporter membrane component
1036	 50.35	0	1196752..1197756	-	334	145598359	ruvB	YPDSF_1064	-	Holliday junction DNA helicase B
1037	 50.07	0	1197918..1198598	-	226	145598360	ruvA	YPDSF_1065	-	Holliday junction DNA helicase motor protein
1038	 50.77	0	1198815..1199336	-	173	145598361	ruvC	YPDSF_1066	-	Holliday junction resolvase
1039	 49.06	0	1199545..1200288	-	247	145598362	-	YPDSF_1067	-	hypothetical protein
1040	 52.03	0	1200346..1200789	-	147	145598363	ntpA	YPDSF_1068	-	dATP pyrophosphohydrolase
1041	 51.03	0	1200789..1202585	-	598	145598364	aspS	YPDSF_1069	-	aspartyl-tRNA synthetase
1042	 51.23	0	1203519..1204334	+	271	145598365	-	YPDSF_1070	-	hypothetical protein
1043	 43.94	0	1204514..1204909	+	131	145598366	-	YPDSF_1071	-	hypothetical protein
1044	 49.00	0	1205100..1205903	+	267	145598367	-	YPDSF_1072	-	hypothetical protein
1045	 52.57	0	1205900..1206871	+	323	145598368	-	YPDSF_1073	-	hypothetical protein
1046	 49.15	0	1207064..1207828	-	254	145598369	-	YPDSF_1074	-	copper homeostasis protein CutC
1047	 47.22	0	1208060..1208635	-	191	145598370	-	YPDSF_1075	-	hypothetical protein
1048	 43.45	0	1208665..1208832	+	55	145598371	-	YPDSF_1076	-	hypothetical protein
1049	 49.91	0	1209234..1210964	+	576	145598372	argS	YPDSF_1077	-	arginyl-tRNA synthetase
1050	 41.47	-1	1211195..1215805	-	1536	145598373	-	YPDSF_1078	-	hemolysin
1051	 36.76	-2	1215955..1217616	-	553	145598374	-	YPDSF_1079	-	hemolysin activator protein
1052	 50.98	0	1218072..1219607	-	511	145598375	-	YPDSF_1080	-	membrane protein
1053	 49.72	0	1219874..1221484	-	536	145598376	-	YPDSF_1081	-	oxidoreductase
1054	 48.38	0	1221492..1222076	-	194	145598377	-	YPDSF_1082	-	ribosomal-protein-S5-alanine N-acetyltransferase
1055	 52.49	0	1222370..1223575	+	401	145598378	-	YPDSF_1083	-	multidrug resistance protein MdtH
1056	 45.21	0	1223970..1224533	+	187	145598379	-	YPDSF_1084	-	hypothetical protein
1057	 50.62	0	1224987..1225547	-	186	145598380	-	YPDSF_1085	-	hypothetical protein
1058	 50.27	0	1225584..1226321	-	245	145598381	-	YPDSF_1086	-	putative hydrolase
1059	 55.35	+1	1226956..1228068	-	370	145598382	-	YPDSF_1087	-	transcriptional regulatory protein
1060	 52.71	0	1228082..1228912	-	276	145598383	-	YPDSF_1088	-	hypothetical protein
1061	 51.46	0	1229112..1229453	+	113	145598384	-	YPDSF_1089	-	ABC transporter, ATP-binding subunit
1062	 45.75	0	1229541..1229999	-	152	145598385	-	YPDSF_1090	-	transposase for the IS1541 insertion element
1063	 53.64	+1	1229999..1230904	+	301	145598386	-	YPDSF_1091	-	hypothetical protein
1064	 53.75	+1	1230901..1231767	+	288	145598387	-	YPDSF_1092	-	binding-protein-dependent transport system membrane protein
1065	 52.33	0	1231764..1232600	+	278	145598388	-	YPDSF_1093	-	binding-protein-dependent transport system membrane protein
1066	 51.06	0	1232620..1233702	+	360	145598389	-	YPDSF_1094	-	hypothetical protein
1067	 43.04	-1	1234003..1234878	+	291	145598390	-	YPDSF_1095	-	hypothetical protein
1068	 52.00	0	1235945..1237642	+	565	145598391	-	YPDSF_1096	-	putative sulfate transporter YchM
1069	 50.18	0	1238119..1238973	-	284	145598392	-	YPDSF_1097	-	2-dehydro-3-deoxyphosphooctonate aldolase
1070	 48.27	0	1239069..1239878	-	269	145598393	-	YPDSF_1098	-	putative transcriptional regulator
1071	 43.28	0	1239875..1240276	-	133	145598394	-	YPDSF_1099	-	hypothetical protein
1072	 53.55	+1	1240340..1241170	-	276	145598395	-	YPDSF_1100	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1073	 51.43	0	1241170..1242252	-	360	145598396	prfA	YPDSF_1101	-	peptide chain release factor 1
1074	 50.19	0	1242285..1243601	-	438	145598397	hemA	YPDSF_1102	-	glutamyl-tRNA reductase
1075	 47.76	0	1243853..1244476	+	207	145598398	lolB	YPDSF_1103	-	outer membrane lipoprotein LolB
1076	 49.22	0	1244478..1245377	+	299	145598399	-	YPDSF_1104	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1077	 49.70	0	1244624..1245448	-	274	145598400	-	YPDSF_1105	-	hypothetical protein
1078	 50.00	0	1245718..1246665	+	315	145598401	-	YPDSF_1106	-	ribose-phosphate pyrophosphokinase
1079	 46.52	0	1246867..1247139	-	90	145598402	-	YPDSF_1107	-	hypothetical protein
1080	 47.18	0	1247471..1248091	+	206	145598403	-	YPDSF_1108	-	peptidyl-tRNA hydrolase
1081	 49.54	0	1248255..1249346	+	363	145598404	-	YPDSF_1109	-	translation-associated GTPase
1082	 45.86	0	1249559..1249957	+	132	145598405	-	YPDSF_1110	-	hypothetical protein
1083	 50.78	0	1249975..1250484	+	169	145598406	-	YPDSF_1111	-	integrase core subunit
1084	 41.35	-1	1250532..1250930	-	132	145598407	-	YPDSF_1112	-	rhodanese-like protein
1085	 52.11	0	1250938..1251768	-	276	145598408	-	YPDSF_1113	-	putative esterase
1086	 54.03	+1	1251765..1252421	-	218	145598409	-	YPDSF_1114	-	hypothetical protein
1087	 46.03	0	1253052..1253894	+	280	145598410	-	YPDSF_1115	-	hypothetical protein
1088	 41.67	-1	1254102..1254797	-	231	145598411	-	YPDSF_1116	-	hypothetical protein
1089	 44.89	0	1254812..1255477	-	221	145598412	-	YPDSF_1117	-	flavodoxin
1090	 47.34	0	1255668..1256759	-	363	145598413	-	YPDSF_1118	-	hypothetical protein
1091	 51.23	0	1257024..1257347	+	107	145598414	-	YPDSF_1119	-	response regulator receiver
1092	 52.79	0	1257374..1258396	+	340	145598415	-	YPDSF_1120	-	transposase
1093	 50.38	0	1258396..1259175	+	259	145598416	-	YPDSF_1121	-	transposase/IS protein
1094	 51.73	0	1259214..1259675	+	153	145598417	-	YPDSF_1122	-	transcriptional activator
1095	 51.80	0	1259687..1261072	+	461	145598418	-	YPDSF_1123	-	two-component system sensor protein
1096	 50.83	0	1261349..1261771	+	140	145598419	-	YPDSF_1124	-	decarboxylase
1097	 53.93	+1	1261826..1262296	+	156	145598420	-	YPDSF_1125	-	hypothetical protein
1098	 48.51	0	1262509..1263582	+	357	145598421	-	YPDSF_1126	-	hypothetical protein
1099	 40.29	-1	1264373..1265278	+	301	145598422	-	YPDSF_1127	-	hypothetical protein
1100	 40.62	-1	1265284..1266216	+	310	145598423	-	YPDSF_1128	-	hypothetical protein
1101	 37.12	-2	1266203..1267153	+	316	145598424	-	YPDSF_1129	-	hypothetical protein
1102	 40.38	-1	1267494..1268174	+	226	145598425	-	YPDSF_1130	-	dehydrogenase
1103	 44.39	0	1268279..1268938	+	219	145598426	-	YPDSF_1131	-	hypothetical protein
48.06	MEAN

4.80	STD DEV
