IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

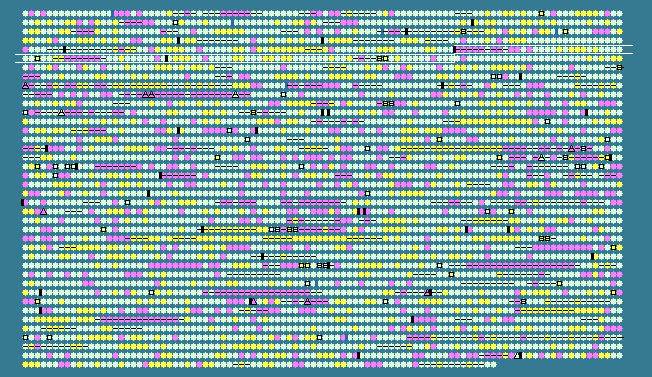

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
473	 43.90	0	581162..581530	-	122	123440876	-	YE0506	-	hypothetical protein
474	 25.40	-2	582024..582149	+	41	123440877	-	YE0507	-	hypothetical protein
475	 42.64	-1	582203..582331	-	42	123440878	-	YE0508	-	hypothetical protein
476	 40.78	-1	582668..582922	+	84	123440879	relB	YE0510	-	bifunctional antitoxin/transcriptional repressor RelB
477	 38.49	-1	582912..583202	+	96	123440880	-	YE0510A	-	hypothetical protein
478	 46.97	0	583769..584098	+	109	123440881	-	YE0512	-	hypothetical protein
479	 42.58	-1	584459..584869	+	136	123440882	-	YE0513	-	putative acetyltransferase
480	 38.41	-1	584895..585584	+	229	123440883	-	YE0514	-	putative transcriptional regulator
481	 45.87	0	585621..586928	+	435	123440884	-	YE0515	-	putative permease
482	 36.97	-2	587027..587191	+	54	123440885	-	YE0516	-	hypothetical protein
483	 29.10	-2	587567..587755	-	62	123440886	-	YE0517	-	hypothetical protein
484	 46.33	0	587957..589264	+	435	123440887	-	YE0518	-	putative permease
485	 43.01	-1	589409..590173	+	254	123440888	-	YE0519	-	hypothetical protein
486	 44.55	0	590196..590498	-	100	123440889	-	YE0520	-	hypothetical protein
487	 45.13	0	590732..591214	-	160	123440890	-	YE0521	-	hypothetical protein
488	 47.24	0	591339..591899	-	186	123440891	-	YE0522	-	hypothetical protein
489	 45.36	0	592004..592294	-	96	123440892	-	YE0523	-	autoinducer-2 (AI-2) modifying protein LsrG
490	 51.37	0	592356..593231	-	291	123440893	-	YE0524	-	aldolase
491	 51.01	0	593287..594321	-	344	123440894	-	YE0525	-	putative periplasmic solute-binding protein
492	 54.02	+1	594378..595373	-	331	123440895	-	YE0526	-	putative ABC transporter permease protein
493	 53.23	+1	595370..596359	-	329	123440896	-	YE0527	-	putative ABC transporter permease protein
494	 51.64	0	596446..598029	-	527	123440897	-	YE0528	-	putative ABC transporter ATP-binding protein
495	 48.67	0	598407..599384	+	325	123440898	-	YE0529	-	putative transcriptional regulatory protein
496	 52.87	+1	599707..601257	+	516	123440899	-	YE0530	-	autoinducer-2 (AI-2) kinase
497	 48.52	0	601930..602877	+	315	123440900	-	YE0531	-	putative lipopolysaccharide core biosynthesis protein
498	 47.88	0	602964..604187	+	407	123440901	-	YE0532	-	putative O-antigen biosynthesis protein
499	 45.92	0	605641..607149	+	502	123440902	arcD	YE0534	-	arginine/ornithine antiporter
500	 49.07	0	607165..608448	+	427	123440903	arcA	YE0535	-	arginine deiminase
501	 49.40	0	608930..610012	+	360	123440904	-	YE0536	-	putative lipoprotein
502	 50.60	0	610012..613098	+	1028	123440905	-	YE0537	-	putative multi-drug efflux protein
503	 56.03	+1	613229..614563	+	444	123440906	-	YE0538	-	transposase for insertion sequence element IS1660
504	 47.58	0	614850..615944	+	364	123440907	gldA	YE0539	-	glycerol dehydrogenase
505	 50.67	0	615982..617106	+	374	123440908	dhaK	YE0540	-	dihydroxyacetone kinase subunit DhaK
506	 51.97	0	617124..617756	+	210	123440909	-	YE0541	-	hypothetical protein
507	 51.39	0	617790..619223	+	477	123440910	-	YE0542	-	dihydroxyacetone kinase subunit M
508	 43.20	0	619269..620474	-	401	123440911	-	YE0543	-	putative glycosyltransferase
509	 37.54	-2	620654..622363	-	569	123440912	-	YE0544	-	putative transferase
510	 38.99	-1	622394..623896	-	500	123440913	-	YE0545	-	putative oxidoreductase
511	 35.01	-2	623925..625358	-	477	123440914	-	YE0546	-	hypothetical protein
512	 31.89	-2	625375..626550	-	391	123440915	-	YE0547	-	putative membrane transport protein
513	 31.60	-2	626577..627443	-	288	123440916	-	YE0548	-	hypothetical protein
514	 44.94	0	627938..629023	+	361	123440917	-	YE0549	-	putative pectinesterase
515	 50.31	0	629026..630945	-	639	123440918	dhaR	YE0550	-	DNA-binding transcriptional regulator DhaR
516	 51.01	0	630932..631966	-	344	123440919	scrR	YE0550A	-	sucrose operon repressor
517	 51.77	0	632013..633422	-	469	123440920	scrB	YE0551	-	sucrose-6-phosphate hydrolase
518	 49.89	0	633422..634792	-	456	123440921	scrA	YE0552	-	PTSsystem, sucrose-specific IIBC component
519	 47.89	0	634860..636398	-	512	123440922	scrY	YE0553	-	sucrose porin
520	 49.79	0	636697..637632	-	311	123440923	scrK	YE0554	-	aminoimidazole riboside kinase
521	 46.77	0	637836..638981	+	381	123440924	-	YE0555	-	putative iron transporter
522	 48.08	0	639479..641635	+	718	123440925	-	YE0556	-	putative iron transporter
523	 41.87	-1	642071..643171	-	366	123440926	hmsT	YE0557	-	HmsT protein
524	 51.11	0	643558..643782	+	74	123440927	-	YE0558	-	hypothetical protein
525	 48.30	0	644247..645335	-	362	123440928	-	YE0559	-	LysR family regulatory protein
526	 51.26	0	645290..646282	+	330	123440929	-	YE0560	-	putative oxidoreductase
527	 51.72	0	646301..647344	-	347	123440930	rsmC	YE0561	-	16S ribosomal RNA m2G1207 methyltransferase
528	 54.79	+1	647457..647894	+	145	123440931	b4372	YE0562	-	DNA polymerase III subunit psi
529	 49.32	0	647839..648282	+	147	123440932	rimI	YE0563	-	ribosomal-protein-alanine N-acetyltransferase
530	 49.25	0	648533..650122	+	529	123440933	prfC	YE0564	-	peptide chain release factor 3
531	 43.90	0	650433..651047	+	204	123440934	b4376	YE0565	-	periplasmic protein
532	 50.32	0	651616..652869	+	417	123440935	-	YE0567	-	hypothetical protein
533	 49.50	0	652890..653687	+	265	123440936	-	YE0568	-	putative metalloenzyme
534	 48.35	0	653889..655160	+	423	123440937	-	YE0569	-	putative Na+ dependent nucleoside transporter-family protein
535	 49.25	0	655540..656337	+	265	123440938	deoC	YE0570	-	deoxyribose-phosphate aldolase
536	 52.91	+1	656425..657747	+	440	123440939	deoA	YE0571	-	thymidine phosphorylase
537	 51.23	0	657801..659024	+	407	123440940	b4383	YE0572	-	phosphopentomutase
538	 48.21	0	659248..659973	+	241	123440941	deoD	YE0574	-	purine nucleoside phosphorylase
539	 46.28	0	660151..661494	+	447	123440942	-	YE0575	-	hypothetical protein
540	 47.49	0	661521..662198	-	225	123440943	smp	YE0576	-	hypothetical protein
541	 52.09	0	662434..663414	+	326	123440944	serB	YE0578	-	phosphoserine phosphatase
542	 54.83	+1	663442..664827	+	461	123440945	b4389	YE0579	-	DNA repair protein RadA
543	 46.96	0	664901..666184	+	427	123440946	b4390	YE0580	-	nicotinamide-nucleotide adenylyltransferase
544	 51.60	0	666181..667182	-	333	123440947	-	YE0581	-	putative oxidoreductase
545	 53.18	+1	667345..668256	+	303	123440948	-	YE0582	-	LysR family transcriptional regulator
546	 44.74	0	668337..669467	+	376	123440949	-	YE0583	-	hypothetical protein
547	 50.58	0	669527..671173	-	548	123440950	-	YE0584	-	putative ABC transporter ATP-binding protein
548	 49.02	0	671835..672344	-	169	123440951	-	YE0585	-	putative lipoprotein
549	 48.37	0	672355..673578	-	407	123440952	-	YE0586	-	hypothetical protein
550	 47.08	0	673677..674309	-	210	123440953	-	YE0587	-	hypothetical protein
551	 49.89	0	674513..677158	-	881	123440954	-	YE0588	-	putative cation-transporting P-type ATPase
552	 53.54	+1	677714..679633	+	639	123440955	slt	YE0589	-	lytic murein transglycosylase
553	 48.65	0	679880..680212	+	110	123440956	trpR	YE0590	-	Trp operon repressor
554	 49.81	0	680221..680748	-	175	123440957	-	YE0591	-	NTPase
555	 56.02	+1	680805..681452	+	215	123440958	gpmB	YE0592	-	phosphoglycerate mutase
556	 48.79	0	681449..682315	-	288	123440959	rob	YE0593	-	putative right origin-binding protein
557	 42.46	-1	682540..683010	+	156	123440960	creA	YE0594	-	hypothetical protein
558	 49.37	0	683089..683805	-	238	123440961	arcA	YE0595	-	two-component response regulator
559	 44.68	0	683908..684048	+	46	123440962	-	YE0596	-	hypothetical protein
560	 55.91	+1	684458..685244	-	261	123440963	-	YE0598	-	transposase for insertion sequence element IS1665
561	 55.98	+1	685300..686637	-	445	123440964	-	YE0599	-	transposase for insertion sequence element IS1660
562	 49.88	0	687253..689712	+	819	123440965	thrA	YE0600	-	bifunctional aspartokinase I/homeserine dehydrogenase I
563	 52.26	0	689715..690644	+	309	123440966	thrB	YE0601	-	homoserine kinase
564	 51.09	0	690648..691937	+	429	123440967	thrC	YE0602	-	threonine synthase
565	 47.10	0	692084..692860	-	258	123440968	-	YE0603	-	hypothetical protein
566	 48.32	0	693271..694224	+	317	123440969	talB	YE0604	-	transaldolase B
567	 48.98	0	694381..694968	+	195	123440970	mogA	YE0605	-	molybdenum cofactor biosynthesis protein
568	 48.46	0	695097..696464	+	455	123440971	-	YE0606	-	putative transport protein
569	 37.21	-2	696532..698982	-	816	123440972	-	YE0607	-	hypothetical protein
570	 49.49	0	699221..699814	-	197	123440973	yaaH	YE0608	-	hypothetical protein
571	 47.59	0	700187..702094	+	635	123440974	dnaK	YE0609	-	molecular chaperone DnaK
572	 49.87	0	702206..703336	+	376	123440975	dnaJ	YE0610	-	chaperone protein DnaJ
47.74	MEAN

4.70	STD DEV
