IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

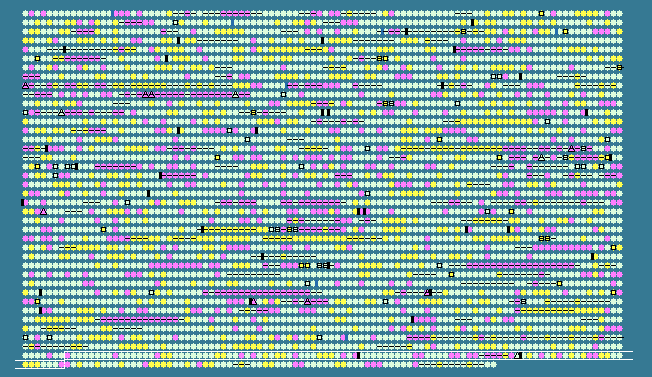

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3808	 43.43	0	4399544..4400464	-	306	123444211	-	YE4037	-	LysR family transcriptional regulator
3809	 45.59	0	4400906..4401688	+	260	123444212	cobA	YE4038	-	uroporphyrin-III C-methyltransferase
3810	 47.51	0	4401710..4402591	+	293	123444213	pduX	YE4039	-	PduX
3811	 44.52	0	4403047..4403493	+	148	123444214	mamA	YE4040	-	methylaspartate mutase subunit S
3812	 47.49	0	4403490..4404881	+	463	123444215	mutL	YE4041	-	glutamate mutase
3813	 49.03	0	4404896..4406341	+	481	123444216	mutE	YE4042	-	methylaspartate mutase E chain
3814	 47.71	0	4406341..4407585	+	414	123444217	-	YE4043	-	methylaspartate ammonia-lyase
3815	 50.00	0	4407587..4408960	+	457	123444218	-	YE4044	-	hypothetical protein
3816	 37.74	-2	4408957..4409274	+	105	123444219	-	YE4045	-	hypothetical protein
3817	 44.80	0	4409436..4410761	+	441	123444220	-	YE4046	-	sodium-dicarboxylic acid transporter
3818	 50.00	0	4410848..4412047	-	399	123444221	-	YE4047	-	hypothetical protein
3819	 49.43	0	4412359..4413855	+	498	123444222	-	YE4048	-	phosphate transport protein
3820	 44.35	0	4413962..4414297	-	111	123444223	uspB	YE4049	-	universal stress protein UspB
3821	 45.19	0	4414990..4415436	+	148	123444224	uspA	YE4050	-	universal stress protein A
3822	 50.97	0	4415700..4417043	+	447	123444225	gdhA	YE4051	-	glutamate dehydrogenase
3823	 41.31	-1	4417247..4418725	+	492	123444226	-	YE4052	-	metalloprotease
3824	 54.68	+1	4418851..4419609	-	252	123444227	-	YE4053	-	putative methyltransferase
3825	 51.25	0	4419613..4421655	-	680	123444228	opdA	YE4054	-	oligopeptidase A
3826	 49.47	0	4421992..4422834	+	280	123444229	-	YE4055	-	hypothetical protein
3827	 50.48	0	4423078..4424430	+	450	123444230	gor	YE4057	-	glutathione reductase
3828	 47.78	0	4424724..4427969	-	1081	123444231	yapE	YE4059	-	putative autotransporter protein
3829	 48.79	0	4428381..4429370	+	329	123444232	-	YE4060	-	hypothetical protein
3830	 48.82	0	4429436..4430158	+	240	123444233	cdh	YE4061	-	CDP-diacylglycerol pyrophosphatase
3831	 50.87	0	4430163..4432283	-	706	123444234	-	YE4062	-	hypothetical protein
3832	 47.36	0	4432402..4433178	-	258	123444235	-	YE4063	-	EAL domain-containing protein
3833	 51.24	0	4433428..4433628	+	66	123444236	-	YE4064	-	putative tautomerase
3834	 51.85	0	4433773..4434717	+	314	123444237	kdgK	YE4065	-	2-dehydro-3-deoxygluconokinase
3835	 50.20	0	4434877..4436382	-	501	123444238	-	YE4066	-	insulinase family protease
3836	 47.64	0	4436866..4438158	-	430	123444239	dctA	YE4067	-	C4-dicarboxylate transporter DctA
3837	 43.54	0	4438536..4439015	-	159	123444240	-	YE4068	-	hypothetical protein
3838	 49.62	0	4439140..4440858	-	572	123444241	pelY	YE4069	-	periplasmic pectate lyase precursor
3839	 39.29	-1	4440935..4441639	-	234	123444242	-	YE4070	-	hypothetical protein
3840	 47.71	0	4442362..4443891	-	509	123444243	-	YE4071	-	hypothetical protein
3841	 52.21	0	4444122..4447607	-	1161	123444244	bcsC	YE4072	-	cellulose synthase subunit BcsC
3842	 51.06	0	4447589..4448716	-	375	123444245	bcsZ	YE4072A	-	endo-1,4-D-glucanase
3843	 52.67	+1	4448722..4451028	-	768	123444246	bcsB	YE4073	-	cellulose synthase regulator protein
3844	 52.32	0	4451036..4453663	-	875	123444247	bcsA	YE4074	-	cellulose synthase catalytic subunit
3845	 50.14	0	4453660..4454397	-	245	123444248	bcsF	YE4075	-	hypothetical protein
3846	 43.23	0	4454401..4454592	-	63	123444249	-	YE4076	-	hypothetical protein
3847	 50.32	0	4454789..4456348	+	519	123444250	bcsE	YE4077	-	hypothetical protein
3848	 49.36	0	4456536..4458188	+	550	123444251	bcsG	YE4078	-	hypothetical protein
3849	 50.70	0	4458531..4459388	-	285	123444252	dppE	YE4079	-	dipeptide transport ATP-binding protein
3850	 52.70	+1	4459550..4460530	-	326	123444253	dppD	YE4080	-	dipeptide transporter ATP-binding subunit
3851	 55.37	+1	4460544..4461446	-	300	123444254	dppC	YE4081	-	dipeptide transporter
3852	 51.47	0	4461457..4462476	-	339	123444255	dppB	YE4082	-	dipeptide transporter permease DppB
3853	 49.32	0	4462836..4464443	-	535	123444256	dppA	YE4083	-	periplasmic dipeptide transport protein
3854	 35.86	-2	4465126..4466508	-	460	123444257	-	YE4084	-	hypothetical protein
3855	 44.71	0	4466537..4468162	-	541	123444258	-	YE4085	-	putative hemolysin activator protein
3856	 34.32	-2	4468292..4469404	-	370	123444259	-	YE4086	-	hypothetical protein
3857	 46.02	0	4469823..4471154	-	443	123444260	uhpC	YE4087	-	regulatory protein UhpC
3858	 46.54	0	4471248..4472777	-	509	123444261	uhpB	YE4088	-	sensory histidine kinase UhpB
3859	 49.41	0	4472774..4473364	-	196	123444262	uhpA	YE4089	-	two-component system response regulator
3860	 45.80	0	4473476..4475167	-	563	123444263	yhjW	YE4090	-	phosphoethanolamine transferase
3861	 49.53	0	4475427..4475852	-	141	123444264	-	YE4091	-	putative osmotic/stress related protein
3862	 47.40	0	4476124..4477587	-	487	123444265	-	YE4092	-	hypothetical protein
3863	 48.21	0	4477855..4479252	-	465	123444266	-	YE4093	-	amino acid permease
3864	 50.79	0	4479362..4480885	-	507	123444267	hutH	YE4094	-	histidine ammonia-lyase
3865	 51.18	0	4480894..4482585	-	563	123444268	hutU	YE4095	-	urocanate hydratase
3866	 33.33	-2	4482645..4482824	-	59	123444269	-	YE4096	-	hypothetical protein
3867	 32.76	-2	4482954..4483127	-	57	123444270	-	YE4097	-	hypothetical protein
3868	 46.40	0	4483223..4484416	-	397	123444271	manA	YE4098	-	mannose-6-phosphate isomerase
3869	 44.54	0	4484438..4485838	-	466	123444272	bglA	YE4099	-	beta-glucosidase
3870	 48.54	0	4485909..4488104	-	731	123444273	-	YE4100	-	beta-1,4 mannanase
3871	 47.72	0	4488112..4489446	-	444	123444274	-	YE4101	-	putative outer membrane porin
3872	 43.53	0	4489690..4490964	-	424	123444275	-	YE4102	-	putative cellobiose-specific phosphotransferase
3873	 38.41	-1	4491149..4491463	+	104	123444276	-	YE4103	-	pts system, cellobiose-specific IIB component
3874	 45.40	0	4491474..4492799	+	441	123444277	-	YE4104	-	putative phosphotransferase protein
3875	 40.59	-1	4492830..4493132	+	100	123444278	-	YE4105	-	putative phosphotransferase protein
3876	 43.85	0	4493211..4494113	+	300	123444279	-	YE4106	-	putative ROK family protein
3877	 46.83	0	4494216..4495178	+	320	123444280	-	YE4107	-	putative transcriptional regulator
3878	 43.51	0	4495212..4495673	-	153	123444281	-	YE4108	-	hypothetical protein
3879	 37.85	-2	4496817..4497812	-	331	123444282	-	YE4109	-	hypothetical protein
3880	 44.12	0	4497889..4498296	-	135	123444283	-	YE4110	-	hypothetical protein
3881	 52.13	0	4498512..4498793	-	93	123444284	-	YE4111	-	hypothetical protein
3882	 32.97	-2	4499404..4500513	+	369	123444285	-	YE4112	-	hypothetical protein
3883	 46.34	0	4502800..4504014	-	404	123444286	-	YE4117	-	putative phage integrase
3884	 49.08	0	4504402..4505595	-	397	123444287	-	YE4118	-	AraC family transcriptional regulator
3885	 51.31	0	4505679..4506863	-	394	123444288	-	YE4119	-	sugar transport system permease protein
3886	 47.36	0	4506850..4508382	-	510	123444289	-	YE4120	-	xylose transporter ATP-binding subunit
3887	 40.56	-1	4508475..4509470	-	331	123444290	xylF	YE4121	-	D-xylose transporter subunit XylF
3888	 46.74	0	4509849..4511168	+	439	123444291	xylA	YE4122	-	xylose isomerase
3889	 52.53	+1	4511318..4512880	+	520	123444292	xylB	YE4123	-	xylulose kinase
3890	 44.14	0	4512828..4513595	-	255	123444293	-	YE4123A	-	putative fimbrial chaperone
3891	 50.05	0	4513765..4514859	+	364	123444294	-	YE4124	-	isochorismatase family hydrolase
3892	 53.51	+1	4514862..4515788	+	308	123444295	-	YE4125	-	putative transcriptional regulator
3893	 46.83	0	4515781..4516773	-	330	123444296	-	YE4126	-	hypothetical protein
3894	 52.03	0	4517024..4518253	+	409	123444297	cmr	YE4127	-	multidrug translocase
3895	 42.19	-1	4518288..4519541	-	417	123444298	-	YE4128	-	hypothetical protein
3896	 44.23	0	4519545..4519856	-	103	123444299	-	YE4129	-	hypothetical protein
3897	 52.61	+1	4520019..4521911	-	630	123444300	selB	YE4130	-	selenocysteinyl-tRNA-specific translation factor
3898	 54.50	+1	4521908..4523296	-	462	123444301	fdhA	YE4131	-	selenocysteine synthase
3899	 49.35	0	4523328..4524257	-	309	123444302	fdhE	YE4132	-	formate dehydrogenase accessory protein FdhE
3900	 49.00	0	4524257..4524907	-	216	123444303	fdoI	YE4133	-	formate dehydrogenase-O subunit gamma
3901	 54.84	+1	4524904..4525875	-	323	123444304	fdoH	YE4134	-	formate dehydrogenase-O, iron-sulfur subunit
3902	 52.36	0	4525888..4528935	-	1014	123444305	fdoG	YE4135	-	formate dehydrogenase-o, major subunit
3903	 51.81	0	4529146..4529973	+	275	123444306	fdhD	YE4137	-	formate dehydrogenase accessory protein
3904	 50.96	0	4530100..4530723	+	207	123444307	sodA	YE4138	-	superoxide dismutase
3905	 47.38	0	4531081..4533030	+	649	123444308	cheM	YE4139	-	methyl-accepting chemotaxis protein II
3906	 50.15	0	4533109..4533780	+	223	123444309	-	YE4140	-	hypothetical protein
3907	 36.19	-2	4533934..4534353	-	139	123444310	-	YE4141	-	hypothetical protein
47.74	MEAN

4.70	STD DEV
