IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

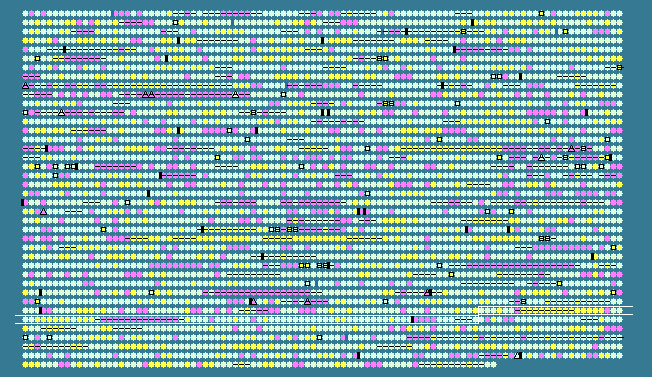

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3377	 44.51	0	3909060..3909587	-	175	123443780	-	YE3592	-	isochorismatase family protein
3378	 44.97	0	3909765..3910331	-	188	123443781	-	YE3593	-	hypothetical protein
3379	 45.18	0	3910509..3912011	-	500	123443782	proP	YE3594	-	proline/glycine betaine transporter
3380	 52.72	+1	3912249..3915374	-	1041	123443783	-	YE3595	-	putative integral membrane efflux protein
3381	 50.62	0	3915387..3916589	-	400	123443784	-	YE3596	-	putative drug efflux protein
3382	 48.42	0	3917096..3919594	+	832	123443785	-	YE3597	-	hypothetical protein
3383	 41.37	-1	3919673..3920344	-	223	123443786	-	YE3598	-	hypothetical protein
3384	 55.56	+1	3920539..3921321	-	260	123443787	thiM	YE3599	-	hydroxyethylthiazole kinase
3385	 57.14	+1	3921409..3923685	-	758	123443788	hydA	YE3600	-	hydrogenase maturation protein
3386	 56.35	+1	3923972..3924940	-	322	123443789	hypE	YE3601	-	hydrogenase isoenzymes formation protein
3387	 55.53	+1	3925089..3926192	-	367	123443790	hypD	YE3602	-	hydrogenase isoenzymes formation protein
3388	 54.04	+1	3926179..3926463	-	94	123443791	hybG	YE3602A	-	hydrogenase 2 accessory protein HypG
3389	 52.23	0	3926454..3927554	-	366	123443792	hypB	YE3603	-	hydrogenase isoenzymes nickel incorporation protein
3390	 53.80	+1	3927575..3927916	-	113	123443793	hybF	YE3603a	-	hydrogenase nickel incorporation protein HybF
3391	 54.53	+1	3927909..3928427	-	172	123443794	hybE	YE3604	-	hydrogenase 2-specific chaperone
3392	 55.28	+1	3928420..3928911	-	163	123443795	hybD	YE3605	-	hydrogenase 2 maturation endopeptidase
3393	 54.16	+1	3928911..3930605	-	564	123443796	hybC	YE3606	-	hydrogenase 2 large subunit
3394	 52.76	+1	3930583..3931776	-	397	123443797	hybB	YE3607	-	putative hydrogenase 2 b cytochrome subunit
3395	 54.23	+1	3931769..3932797	-	342	123443798	hybA	YE3608	-	hydrogenase 2 protein HybA
3396	 55.82	+1	3932800..3933915	-	371	123443799	hyb0	YE3609	-	hydrogenase 2 small subunit
3397	 55.98	+1	3934620..3935087	+	155	123443800	pcpY2	YE3610	-	outer membrane lipoprotein
3398	 31.68	-2	3937695..3938543	-	282	123443801	-	YE3614	-	putative lipase/acylhydrolase
3399	 46.10	0	3939448..3941022	-	524	123443802	-	YE3615	-	putative methyl-accepting chemotaxis protein
3400	 48.48	0	3941617..3942600	-	327	123443803	-	YE3616	-	hypothetical protein
3401	 48.82	0	3942627..3943937	-	436	123443804	-	YE3617	-	putative membrane transport protein
3402	 48.71	0	3944627..3945478	+	283	123443805	fepB	YE3618	-	iron-enterobactin transporter periplasmic binding protein
3403	 54.15	+1	3945828..3946898	+	356	123443806	fepD	YE3619	-	iron-enterobactin transporter membrane protein
3404	 53.93	+1	3946895..3947938	+	347	123443807	fepG	YE3620	-	iron-enterobactin transporter permease
3405	 52.65	+1	3947905..3948753	+	282	123443808	fepC	YE3621	-	iron-siderophore transport system, ATP-binding component
3406	 51.56	0	3948823..3950199	-	458	123443809	fes	YE3622	-	enterobactin/ferric enterobactin esterase
3407	 58.33	+2	3950296..3950379	+	27	123443810	-	YE3623	-	hypothetical protein
3408	 53.14	+1	3953098..3953511	+	137	123443811	-	YE3626	-	hypothetical protein
3409	 49.74	0	3953586..3953975	+	129	123443812	-	YE3627	-	hypothetical protein
3410	 55.58	+1	3953989..3955287	+	432	123443813	-	YE3628	-	outer membrane efflux protein
3411	 52.68	+1	3955284..3956813	+	509	123443814	-	YE3629	-	putative efflux system protein
3412	 52.27	0	3956810..3959941	+	1043	123443815	-	YE3630	-	putative cation efflux system protein
3413	 49.85	0	3960008..3960673	-	221	123443816	aidD	YE3631	-	alkylated DNA repair protein
3414	 41.50	-1	3961220..3961819	+	199	123443817	-	YE3632	-	membrane protein
3415	 36.92	-2	3962020..3962214	+	64	123443818	flp	YE3633	-	pilin protein, major subunit
3416	 40.66	-1	3962286..3962708	+	140	123443819	tadV	YE3634	-	putative tight adherance operon protein
3417	 33.69	-2	3962753..3963586	+	277	123443820	rcpC	YE3635	-	putative tight adherance operon protein
3418	 38.62	-1	3963583..3964944	+	453	123443821	rcpA	YE3636	-	putative tight adherance operon protein
3419	 32.53	-2	3965213..3966331	+	372	123443822	tadZ	YE3637	-	putative tight adherance operon protein
3420	 38.59	-1	3966363..3967637	+	424	123443823	tadA	YE3638	-	putative tight adherance operon protein
3421	 31.91	-2	3967673..3968515	+	280	123443824	tadB	YE3639	-	putative tight adherance operon protein
3422	 29.45	-2	3968512..3969336	+	274	123443825	tadC	YE3640	-	putative tight adherance operon protein
3423	 34.90	-2	3969323..3970090	+	255	123443826	tadD	YE3641	-	putative tight adherance operon protein
3424	 33.12	-2	3970095..3970559	+	154	123443827	tadE	YE3642	-	putative tight adherance operon protein
3425	 36.79	-2	3970543..3971121	+	192	123443828	tadF	YE3643	-	putative tight adherance operon protein
3426	 33.41	-2	3971157..3972536	+	459	123443829	tadG	YE3644	-	putative tight adherance operon protein
3427	 47.89	0	3972581..3973006	-	141	123443830	-	YE3645	-	biopolymer transport protein ExbD
3428	 51.96	0	3973010..3973723	-	237	123443831	-	YE3646	-	MotA/TolQ/ExbB proton channel family protein
3429	 48.02	0	3974502..3975713	+	403	123443832	metC	YE3647	-	cystathionine beta-lyase
3430	 48.42	0	3975920..3976582	+	220	123443833	-	YE3648	-	DedA family membrane protein
3431	 47.65	0	3976641..3977534	-	297	123443834	-	YE3649	-	AraC family transcription regulator
3432	 37.94	-2	3977977..3980016	+	679	123443835	-	YE3650	-	hypothetical protein
3433	 49.48	0	3980364..3981521	+	385	123443836	-	YE3651	-	putative iron-containing alcohol dehydrogenase
3434	 49.52	0	3981740..3982573	+	277	123443837	dkgA	YE3652	-	2,5-diketo-D-gluconate reductase A
3435	 51.17	0	3982575..3984878	-	767	123443838	-	YE3653	-	hypothetical protein
3436	 53.71	+1	3985062..3986489	-	475	123443839	sufI	YE3654	-	repressor protein for FtsI
3437	 47.27	0	3986652..3987383	-	243	123443840	parF	YE3655	-	putative acyltransferase
3438	 50.02	0	3987565..3989841	-	758	123443841	parC	YE3656	-	DNA topoisomerase IV subunit A
3439	 43.27	0	3990153..3990746	+	197	123443842	mda66	YE3657	-	putative modulator of drug activity
3440	 46.08	0	3990779..3991084	+	101	123443843	-	YE3658	-	hypothetical protein
3441	 52.72	+1	3991110..3992027	-	305	123443844	crgA	YE3659	-	LysR family regulatory protein
3442	 50.79	0	3992048..3993943	-	631	123443845	nfxD	YE3660	-	DNA topoisomerase IV subunit B
3443	 48.03	0	3994058..3994642	-	194	123443846	-	YE3661	-	esterase YqiA
3444	 51.09	0	3994639..3995466	-	275	123443847	icc	YE3662	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
3445	 47.18	0	3995546..3995971	-	141	123443848	-	YE3663	-	hypothetical protein
3446	 49.76	0	3995983..3996615	-	210	123443849	nudF	YE3664	-	ADP-ribose pyrophosphatase NudF
3447	 49.12	0	3996933..3998414	+	493	123443850	tolC	YE3665	-	outer membrane channel protein
3448	 51.16	0	3998660..3999349	+	229	123443851	-	YE3666	-	hypothetical protein
3449	 45.39	0	3999360..4000520	+	386	123443852	-	YE3667	-	hypothetical protein
3450	 51.21	0	4000693..4001475	-	260	123443853	-	YE3668	-	hypothetical protein
3451	 50.31	0	4001890..4002543	-	217	123443854	ribB	YE3669	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
3452	 50.00	0	4003009..4003308	+	99	123443855	-	YE3671	-	hypothetical protein
3453	 51.97	0	4003352..4004596	-	414	123443856	asoB	YE3672	-	inner membrane protein YjeH
3454	 52.27	0	4004749..4006179	-	476	123443857	rfaE	YE3673	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
3455	 51.10	0	4006430..4009282	-	950	123443858	glnE	YE3674	-	bifunctional glutamine-synthetase adenylyltransferase/deadenyltransferase
3456	 49.40	0	4009427..4010752	-	441	123443859	-	YE3675	-	hypothetical protein
3457	 47.02	0	4011077..4011697	+	206	123443860	-	YE3676	-	putative signal transduction protein
3458	 51.00	0	4011864..4013108	+	414	123443861	cca	YE3677	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
3459	 47.37	0	4013298..4014116	-	272	123443862	bacA	YE3678	-	undecaprenyl pyrophosphate phosphatase
3460	 48.89	0	4014278..4014637	-	119	123443863	folB	YE3679	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
3461	 49.54	0	4014745..4015398	+	217	123443864	-	YE3680	-	putative glycerol-3-phosphate acyltransferase PlsY
3462	 51.38	0	4015553..4016566	-	337	123443865	gcp	YE3681	-	O-sialoglycoprotein endopeptidase
3463	 46.76	0	4016940..4017155	+	71	123443866	rpsU	YE3682	-	30S ribosomal protein S21
3464	 48.60	0	4017292..4019040	+	582	123443867	dnaG	YE3683	-	DNA primase
3465	 49.48	0	4019198..4021036	+	612	123443868	alt	YE3684	-	RNA polymerase sigma factor RpoD
3466	 40.32	-1	4021463..4022794	-	443	123443869	-	YE3685	-	hypothetical protein
3467	 38.21	-2	4022847..4023932	-	361	123443870	-	YE3686	-	hypothetical protein
3468	 38.98	-1	4023950..4025827	-	625	123443871	-	YE3687	-	glycosyl hydrolase family protein
3469	 41.35	-1	4026155..4027015	-	286	123443872	-	YE3688	-	transcriptional regulator
3470	 48.62	0	4027243..4028151	+	302	123443873	murQ	YE3689	-	N-acetylmuramic acid-6-phosphate etherase
3471	 47.73	0	4028154..4029605	+	483	123443874	murP	YE3690	-	N-acetylmuramic acid phosphotransfer permease
3472	 49.89	0	4029655..4030596	-	313	123443875	-	YE3691	-	glutaminase
3473	 47.01	0	4030666..4032222	-	518	123443876	-	YE3692	-	putative amino acid permease
3474	 46.40	0	4032296..4033696	-	466	123443877	gadA	YE3693	-	glutamate decarboxylase
3475	 45.97	0	4034021..4034479	-	152	123443878	-	YE3694	-	putative transcriptional regulator
3476	 51.17	0	4034588..4035826	+	412	123443879	-	YE3695	-	putative transporter protein
47.74	MEAN

4.70	STD DEV
