IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

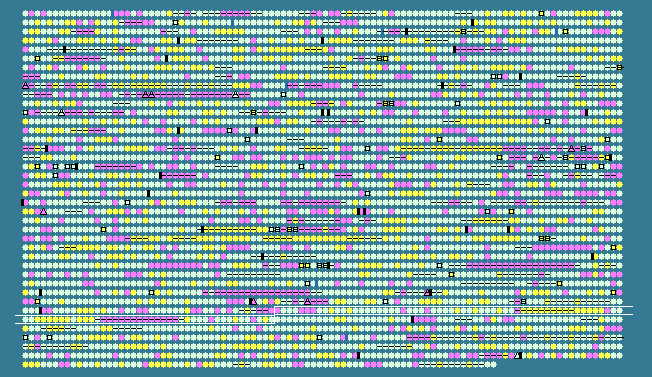

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3343	 36.09	-2	3873442..3873876	+	144	123443746	-	YE3559	-	hypothetical protein
3344	 44.73	0	3873905..3874615	+	236	123443747	ysrR	YE3560	-	response regulator protein
3345	 48.44	0	3874599..3876968	+	789	123443748	ysrS	YE3561	-	sensor kinase protein
3346	 46.99	0	3876961..3877209	+	82	123443749	-	YE3561A	-	hypothetical protein
3347	 37.84	-2	3877682..3878191	+	169	123443750	-	YE3562	-	hypothetical protein
3348	 36.01	-2	3878242..3878727	+	161	123443751	-	YE3563	-	hypothetical protein
3349	 38.31	-2	3878724..3879266	+	180	123443752	yst1C	YE3564	-	general secretion pathway protein C
3350	 46.18	0	3879335..3881311	+	658	123443753	-	YE3565	-	general secretion pathway protein D
3351	 51.17	0	3881308..3882804	+	498	123443754	yst1E	YE3566	-	general secretion pathway protein E
3352	 52.05	0	3882801..3884018	+	405	123443755	yst1F	YE3567	-	general secretion pathway protein F
3353	 51.07	0	3884050..3884517	+	155	123443756	yst1G	YE3568	-	general secretion pathway protein G precursor
3354	 49.65	0	3884517..3885086	+	189	123443757	yst1H	YE3569	-	general secretion pathway protein H
3355	 51.79	0	3885092..3885454	+	120	123443758	yst1I	YE3570	-	general secretion pathway protein I precursor
3356	 47.67	0	3885451..3886050	+	199	123443759	yst1J	YE3570a	-	putative general secretion pathway protein J precursor
3357	 47.69	0	3886040..3887077	+	345	123443760	yst1K	YE3571	-	putative general secretion pathway protein K
3358	 48.08	0	3887079..3888278	+	399	123443761	yst1L	YE3572	-	putative general secretion pathway protein L
3359	 49.29	0	3888265..3888759	+	164	123443762	yst1M	YE3573	-	putative general secretion pathway protein M
3360	 47.96	0	3888768..3889553	+	261	123443763	yst1O	YE3574	-	type 4 prepilin-like proteins leader peptide processing enzyme
3361	 46.27	0	3889575..3889976	-	133	123443764	yst1S	YE3575	-	putative secretion protein
3362	 47.00	0	3890393..3891877	+	494	123443765	ChiY	YE3576	-	N-acetylglucosamine-binding protein A
3363	 51.16	0	3892116..3893495	+	459	123443766	-	YE3577	-	hypothetical protein
3364	 41.56	-1	3893711..3894415	+	234	123443767	-	YE3578	-	response regulator protein
3365	 48.18	0	3894393..3896750	+	785	123443768	-	YE3579	-	sensor kinase protein
3366	 46.44	0	3897562..3897828	+	88	123443769	-	YE3581	-	hypothetical protein
3367	 49.49	0	3897825..3898610	+	261	123443770	map	YE3582	-	methionine aminopeptidase
3368	 42.82	-1	3898753..3899511	-	252	123443771	-	YE3583	-	putative iron ABC transporter, ATP-binding protein
3369	 46.23	0	3899508..3900515	-	335	123443772	-	YE3584	-	putative iron transport permease
3370	 50.10	0	3900505..3901464	-	319	123443773	-	YE3585	-	putative iron transport permease
3371	 48.11	0	3901474..3902427	-	317	123443774	-	YE3586	-	putative iron transport protein
3372	 46.58	0	3902746..3903213	-	155	123443775	-	YE3587	-	putative O-methyltransferase
3373	 52.28	0	3903486..3904889	+	467	123443776	-	YE3588	-	putative transporter protein
3374	 49.61	0	3905083..3906102	+	339	123443777	-	YE3589	-	LacI family regulatory protein
3375	 49.49	0	3906127..3907197	+	356	123443778	-	YE3590	-	putative hydrolase
3376	 51.54	0	3907361..3908980	+	539	123443779	-	YE3591	-	putative Na+/Pi-cotransporter
3377	 44.51	0	3909060..3909587	-	175	123443780	-	YE3592	-	isochorismatase family protein
3378	 44.97	0	3909765..3910331	-	188	123443781	-	YE3593	-	hypothetical protein
3379	 45.18	0	3910509..3912011	-	500	123443782	proP	YE3594	-	proline/glycine betaine transporter
3380	 52.72	+1	3912249..3915374	-	1041	123443783	-	YE3595	-	putative integral membrane efflux protein
3381	 50.62	0	3915387..3916589	-	400	123443784	-	YE3596	-	putative drug efflux protein
3382	 48.42	0	3917096..3919594	+	832	123443785	-	YE3597	-	hypothetical protein
3383	 41.37	-1	3919673..3920344	-	223	123443786	-	YE3598	-	hypothetical protein
3384	 55.56	+1	3920539..3921321	-	260	123443787	thiM	YE3599	-	hydroxyethylthiazole kinase
3385	 57.14	+1	3921409..3923685	-	758	123443788	hydA	YE3600	-	hydrogenase maturation protein
3386	 56.35	+1	3923972..3924940	-	322	123443789	hypE	YE3601	-	hydrogenase isoenzymes formation protein
3387	 55.53	+1	3925089..3926192	-	367	123443790	hypD	YE3602	-	hydrogenase isoenzymes formation protein
3388	 54.04	+1	3926179..3926463	-	94	123443791	hybG	YE3602A	-	hydrogenase 2 accessory protein HypG
3389	 52.23	0	3926454..3927554	-	366	123443792	hypB	YE3603	-	hydrogenase isoenzymes nickel incorporation protein
3390	 53.80	+1	3927575..3927916	-	113	123443793	hybF	YE3603a	-	hydrogenase nickel incorporation protein HybF
3391	 54.53	+1	3927909..3928427	-	172	123443794	hybE	YE3604	-	hydrogenase 2-specific chaperone
3392	 55.28	+1	3928420..3928911	-	163	123443795	hybD	YE3605	-	hydrogenase 2 maturation endopeptidase
3393	 54.16	+1	3928911..3930605	-	564	123443796	hybC	YE3606	-	hydrogenase 2 large subunit
3394	 52.76	+1	3930583..3931776	-	397	123443797	hybB	YE3607	-	putative hydrogenase 2 b cytochrome subunit
3395	 54.23	+1	3931769..3932797	-	342	123443798	hybA	YE3608	-	hydrogenase 2 protein HybA
3396	 55.82	+1	3932800..3933915	-	371	123443799	hyb0	YE3609	-	hydrogenase 2 small subunit
3397	 55.98	+1	3934620..3935087	+	155	123443800	pcpY2	YE3610	-	outer membrane lipoprotein
3398	 31.68	-2	3937695..3938543	-	282	123443801	-	YE3614	-	putative lipase/acylhydrolase
3399	 46.10	0	3939448..3941022	-	524	123443802	-	YE3615	-	putative methyl-accepting chemotaxis protein
3400	 48.48	0	3941617..3942600	-	327	123443803	-	YE3616	-	hypothetical protein
3401	 48.82	0	3942627..3943937	-	436	123443804	-	YE3617	-	putative membrane transport protein
3402	 48.71	0	3944627..3945478	+	283	123443805	fepB	YE3618	-	iron-enterobactin transporter periplasmic binding protein
3403	 54.15	+1	3945828..3946898	+	356	123443806	fepD	YE3619	-	iron-enterobactin transporter membrane protein
3404	 53.93	+1	3946895..3947938	+	347	123443807	fepG	YE3620	-	iron-enterobactin transporter permease
3405	 52.65	+1	3947905..3948753	+	282	123443808	fepC	YE3621	-	iron-siderophore transport system, ATP-binding component
3406	 51.56	0	3948823..3950199	-	458	123443809	fes	YE3622	-	enterobactin/ferric enterobactin esterase
3407	 58.33	+2	3950296..3950379	+	27	123443810	-	YE3623	-	hypothetical protein
3408	 53.14	+1	3953098..3953511	+	137	123443811	-	YE3626	-	hypothetical protein
3409	 49.74	0	3953586..3953975	+	129	123443812	-	YE3627	-	hypothetical protein
3410	 55.58	+1	3953989..3955287	+	432	123443813	-	YE3628	-	outer membrane efflux protein
3411	 52.68	+1	3955284..3956813	+	509	123443814	-	YE3629	-	putative efflux system protein
3412	 52.27	0	3956810..3959941	+	1043	123443815	-	YE3630	-	putative cation efflux system protein
3413	 49.85	0	3960008..3960673	-	221	123443816	aidD	YE3631	-	alkylated DNA repair protein
3414	 41.50	-1	3961220..3961819	+	199	123443817	-	YE3632	-	membrane protein
3415	 36.92	-2	3962020..3962214	+	64	123443818	flp	YE3633	-	pilin protein, major subunit
3416	 40.66	-1	3962286..3962708	+	140	123443819	tadV	YE3634	-	putative tight adherance operon protein
3417	 33.69	-2	3962753..3963586	+	277	123443820	rcpC	YE3635	-	putative tight adherance operon protein
3418	 38.62	-1	3963583..3964944	+	453	123443821	rcpA	YE3636	-	putative tight adherance operon protein
3419	 32.53	-2	3965213..3966331	+	372	123443822	tadZ	YE3637	-	putative tight adherance operon protein
3420	 38.59	-1	3966363..3967637	+	424	123443823	tadA	YE3638	-	putative tight adherance operon protein
3421	 31.91	-2	3967673..3968515	+	280	123443824	tadB	YE3639	-	putative tight adherance operon protein
3422	 29.45	-2	3968512..3969336	+	274	123443825	tadC	YE3640	-	putative tight adherance operon protein
3423	 34.90	-2	3969323..3970090	+	255	123443826	tadD	YE3641	-	putative tight adherance operon protein
3424	 33.12	-2	3970095..3970559	+	154	123443827	tadE	YE3642	-	putative tight adherance operon protein
3425	 36.79	-2	3970543..3971121	+	192	123443828	tadF	YE3643	-	putative tight adherance operon protein
3426	 33.41	-2	3971157..3972536	+	459	123443829	tadG	YE3644	-	putative tight adherance operon protein
3427	 47.89	0	3972581..3973006	-	141	123443830	-	YE3645	-	biopolymer transport protein ExbD
3428	 51.96	0	3973010..3973723	-	237	123443831	-	YE3646	-	MotA/TolQ/ExbB proton channel family protein
3429	 48.02	0	3974502..3975713	+	403	123443832	metC	YE3647	-	cystathionine beta-lyase
3430	 48.42	0	3975920..3976582	+	220	123443833	-	YE3648	-	DedA family membrane protein
3431	 47.65	0	3976641..3977534	-	297	123443834	-	YE3649	-	AraC family transcription regulator
3432	 37.94	-2	3977977..3980016	+	679	123443835	-	YE3650	-	hypothetical protein
3433	 49.48	0	3980364..3981521	+	385	123443836	-	YE3651	-	putative iron-containing alcohol dehydrogenase
3434	 49.52	0	3981740..3982573	+	277	123443837	dkgA	YE3652	-	2,5-diketo-D-gluconate reductase A
3435	 51.17	0	3982575..3984878	-	767	123443838	-	YE3653	-	hypothetical protein
3436	 53.71	+1	3985062..3986489	-	475	123443839	sufI	YE3654	-	repressor protein for FtsI
3437	 47.27	0	3986652..3987383	-	243	123443840	parF	YE3655	-	putative acyltransferase
3438	 50.02	0	3987565..3989841	-	758	123443841	parC	YE3656	-	DNA topoisomerase IV subunit A
3439	 43.27	0	3990153..3990746	+	197	123443842	mda66	YE3657	-	putative modulator of drug activity
3440	 46.08	0	3990779..3991084	+	101	123443843	-	YE3658	-	hypothetical protein
3441	 52.72	+1	3991110..3992027	-	305	123443844	crgA	YE3659	-	LysR family regulatory protein
3442	 50.79	0	3992048..3993943	-	631	123443845	nfxD	YE3660	-	DNA topoisomerase IV subunit B
47.74	MEAN

4.70	STD DEV
