IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

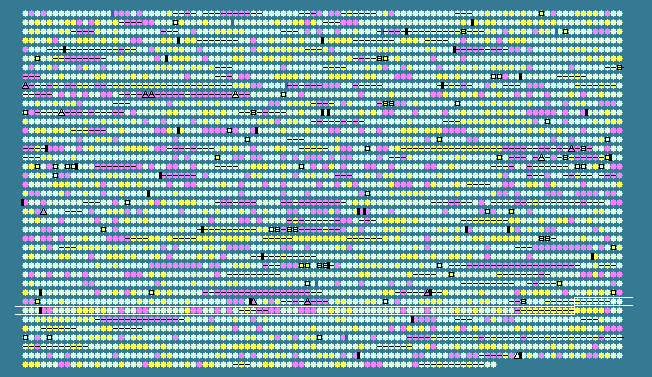

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3293	 52.51	+1	3817733..3818170	-	145	123443696	-	YE3505	-	putative type IV pilus operon exported poprotein
3294	 49.13	0	3818172..3819146	-	324	123443697	-	YE3506	-	putative type IV pilus operon lipoprotein
3295	 47.69	0	3819341..3819772	-	143	123443698	-	YE3507	-	hypothetical protein
3296	 44.34	0	3819884..3820201	-	105	123443699	-	YE3508	-	hypothetical protein
3297	 45.86	0	3820501..3821043	-	180	123443700	-	YE3509	-	hypothetical protein
3298	 47.83	0	3821333..3822091	-	252	123443701	-	YE3510	-	hypothetical protein
3299	 48.88	0	3822260..3823462	-	400	123443702	-	YE3511	-	hypothetical protein
3300	 48.42	0	3823568..3824137	-	189	123443703	-	YE3512	-	hypothetical protein
3301	 47.20	0	3824134..3825720	-	528	123443704	-	YE3513	-	putative ATP/GTP binding protein
3302	 49.71	0	3825720..3827087	-	455	123443705	dnaB2	YE3514	-	putative DNA helicase
3303	 45.69	0	3827080..3827961	-	293	123443706	-	YE3515	-	hypothetical protein
3304	 39.81	-1	3829378..3829686	-	102	123443707	-	YE3518	-	hypothetical protein
3305	 36.31	-2	3829958..3830125	+	55	123443708	-	YE3519	-	hypothetical protein
3306	 44.93	0	3830294..3831526	-	410	123443709	-	YE3520	-	hypothetical protein
3307	 45.35	0	3836292..3836549	+	85	123443710	-	YE3525	-	hypothetical protein
3308	 48.48	0	3836661..3837980	-	439	123443711	potE2	YE3526	-	putrescine transporter
3309	 48.45	0	3838102..3840264	-	720	123443712	speF2	YE3527	-	ornithine decarboxylase
3310	 51.23	0	3841009..3842349	-	446	123443713	-	YE3528	-	hypothetical protein
3311	 52.74	+1	3842531..3844303	-	590	123443714	-	YE3529	-	hypothetical protein
3312	 53.43	+1	3844419..3845468	-	349	123443715	-	YE3530	-	multidrug resistance protein MdtN
3313	 51.07	0	3845478..3845804	-	108	123443716	-	YE3531	-	hypothetical protein
3314	 51.43	0	3845878..3847341	-	487	123443717	-	YE3532	-	hypothetical protein
3315	 47.22	0	3847625..3847876	-	83	123443718	acpY	YE3533	-	hypothetical protein
3316	 44.96	0	3847876..3849801	-	641	123443719	-	YE3534	-	Serine rich protein
3317	 44.03	0	3850012..3851058	-	348	123443720	yspD	YE3535	-	YspD
3318	 50.75	0	3851074..3852405	-	443	123443721	yspC	YE3536	-	membrane protein
3319	 48.99	0	3852424..3854454	-	676	123443722	yspB	YE3537	-	putative type III secretion system effector protein
3320	 35.88	-2	3854483..3854992	-	169	123443723	sycA	YE3538	-	putative type III secretion apparatus protein
3321	 42.22	-1	3855090..3856214	-	374	123443724	ysaU	YE3539	-	surface presentation of antigens protein SpaS
3322	 47.57	0	3856230..3857030	-	266	123443725	ysaT	YE3540	-	putative type III secretion apparatus protein
3323	 47.78	0	3857030..3857299	-	89	123443726	ysaS	YE3541	-	type III secretion apparatus protein
3324	 46.22	0	3857315..3857989	-	224	123443727	spaP	YE3542	-	surface presentation of antigens protein SpaP
3325	 50.69	0	3857992..3858930	-	312	123443728	ysaQ	YE3542A	-	type III secretion apparatus protein
3326	 51.12	0	3858930..3859997	-	355	123443729	-	YE3543	-	type III secretion protein
3327	 47.15	0	3859969..3860424	-	151	123443730	-	YE3543A	-	hypothetical protein
3328	 53.13	+1	3860424..3861716	-	430	123443731	ysaN	YE3544	-	ATP synthase SpaL
3329	 43.38	0	3861720..3862127	-	135	123443732	ysaK	YE3545	-	type III secretion sytem protein
3330	 42.84	-1	3862139..3864211	-	690	123443733	ysaV	YE3546	-	type III secretion system apparatus protein
3331	 47.48	0	3864208..3865317	-	369	123443734	ysaW	YE3547	-	type III secreted effector protein
3332	 49.82	0	3865308..3866999	-	563	123443735	ysaC	YE3548	-	type III secretion system protein
3333	 40.97	-1	3866989..3867669	-	226	123443736	ysaE	YE3549	-	AraC family transcription regulator
3334	 46.26	0	3867949..3869178	+	409	123443737	-	YE3550	-	hypothetical protein
3335	 43.69	0	3869209..3869517	+	102	123443738	-	YE3551	-	hypothetical protein
3336	 44.88	0	3869576..3869878	+	100	123443739	ysaI	YE3552	-	putative virulence associated protein
3337	 48.79	0	3869882..3870625	+	247	123443740	ysaJ	YE3553	-	type III secretion system apparatus lipoprotein
3338	 53.55	+1	3870622..3871170	+	182	123443741	-	YE3554	-	hypothetical protein
3339	 47.75	0	3871205..3871849	+	214	123443742	-	YE3555	-	hypothetical protein
3340	 40.59	-1	3871917..3872288	+	123	123443743	-	YE3556	-	hypothetical protein
3341	 42.77	-1	3872301..3872777	+	158	123443744	ysaH	YE3557	-	type III secretion system effector protein
3342	 37.86	-2	3872952..3873437	+	161	123443745	-	YE3558	-	hypothetical protein
3343	 36.09	-2	3873442..3873876	+	144	123443746	-	YE3559	-	hypothetical protein
3344	 44.73	0	3873905..3874615	+	236	123443747	ysrR	YE3560	-	response regulator protein
3345	 48.44	0	3874599..3876968	+	789	123443748	ysrS	YE3561	-	sensor kinase protein
3346	 46.99	0	3876961..3877209	+	82	123443749	-	YE3561A	-	hypothetical protein
3347	 37.84	-2	3877682..3878191	+	169	123443750	-	YE3562	-	hypothetical protein
3348	 36.01	-2	3878242..3878727	+	161	123443751	-	YE3563	-	hypothetical protein
3349	 38.31	-2	3878724..3879266	+	180	123443752	yst1C	YE3564	-	general secretion pathway protein C
3350	 46.18	0	3879335..3881311	+	658	123443753	-	YE3565	-	general secretion pathway protein D
3351	 51.17	0	3881308..3882804	+	498	123443754	yst1E	YE3566	-	general secretion pathway protein E
3352	 52.05	0	3882801..3884018	+	405	123443755	yst1F	YE3567	-	general secretion pathway protein F
3353	 51.07	0	3884050..3884517	+	155	123443756	yst1G	YE3568	-	general secretion pathway protein G precursor
3354	 49.65	0	3884517..3885086	+	189	123443757	yst1H	YE3569	-	general secretion pathway protein H
3355	 51.79	0	3885092..3885454	+	120	123443758	yst1I	YE3570	-	general secretion pathway protein I precursor
3356	 47.67	0	3885451..3886050	+	199	123443759	yst1J	YE3570a	-	putative general secretion pathway protein J precursor
3357	 47.69	0	3886040..3887077	+	345	123443760	yst1K	YE3571	-	putative general secretion pathway protein K
3358	 48.08	0	3887079..3888278	+	399	123443761	yst1L	YE3572	-	putative general secretion pathway protein L
3359	 49.29	0	3888265..3888759	+	164	123443762	yst1M	YE3573	-	putative general secretion pathway protein M
3360	 47.96	0	3888768..3889553	+	261	123443763	yst1O	YE3574	-	type 4 prepilin-like proteins leader peptide processing enzyme
3361	 46.27	0	3889575..3889976	-	133	123443764	yst1S	YE3575	-	putative secretion protein
3362	 47.00	0	3890393..3891877	+	494	123443765	ChiY	YE3576	-	N-acetylglucosamine-binding protein A
3363	 51.16	0	3892116..3893495	+	459	123443766	-	YE3577	-	hypothetical protein
3364	 41.56	-1	3893711..3894415	+	234	123443767	-	YE3578	-	response regulator protein
3365	 48.18	0	3894393..3896750	+	785	123443768	-	YE3579	-	sensor kinase protein
3366	 46.44	0	3897562..3897828	+	88	123443769	-	YE3581	-	hypothetical protein
3367	 49.49	0	3897825..3898610	+	261	123443770	map	YE3582	-	methionine aminopeptidase
3368	 42.82	-1	3898753..3899511	-	252	123443771	-	YE3583	-	putative iron ABC transporter, ATP-binding protein
3369	 46.23	0	3899508..3900515	-	335	123443772	-	YE3584	-	putative iron transport permease
3370	 50.10	0	3900505..3901464	-	319	123443773	-	YE3585	-	putative iron transport permease
3371	 48.11	0	3901474..3902427	-	317	123443774	-	YE3586	-	putative iron transport protein
3372	 46.58	0	3902746..3903213	-	155	123443775	-	YE3587	-	putative O-methyltransferase
3373	 52.28	0	3903486..3904889	+	467	123443776	-	YE3588	-	putative transporter protein
3374	 49.61	0	3905083..3906102	+	339	123443777	-	YE3589	-	LacI family regulatory protein
3375	 49.49	0	3906127..3907197	+	356	123443778	-	YE3590	-	putative hydrolase
3376	 51.54	0	3907361..3908980	+	539	123443779	-	YE3591	-	putative Na+/Pi-cotransporter
3377	 44.51	0	3909060..3909587	-	175	123443780	-	YE3592	-	isochorismatase family protein
3378	 44.97	0	3909765..3910331	-	188	123443781	-	YE3593	-	hypothetical protein
3379	 45.18	0	3910509..3912011	-	500	123443782	proP	YE3594	-	proline/glycine betaine transporter
3380	 52.72	+1	3912249..3915374	-	1041	123443783	-	YE3595	-	putative integral membrane efflux protein
3381	 50.62	0	3915387..3916589	-	400	123443784	-	YE3596	-	putative drug efflux protein
3382	 48.42	0	3917096..3919594	+	832	123443785	-	YE3597	-	hypothetical protein
3383	 41.37	-1	3919673..3920344	-	223	123443786	-	YE3598	-	hypothetical protein
3384	 55.56	+1	3920539..3921321	-	260	123443787	thiM	YE3599	-	hydroxyethylthiazole kinase
3385	 57.14	+1	3921409..3923685	-	758	123443788	hydA	YE3600	-	hydrogenase maturation protein
3386	 56.35	+1	3923972..3924940	-	322	123443789	hypE	YE3601	-	hydrogenase isoenzymes formation protein
3387	 55.53	+1	3925089..3926192	-	367	123443790	hypD	YE3602	-	hydrogenase isoenzymes formation protein
3388	 54.04	+1	3926179..3926463	-	94	123443791	hybG	YE3602A	-	hydrogenase 2 accessory protein HypG
3389	 52.23	0	3926454..3927554	-	366	123443792	hypB	YE3603	-	hydrogenase isoenzymes nickel incorporation protein
3390	 53.80	+1	3927575..3927916	-	113	123443793	hybF	YE3603a	-	hydrogenase nickel incorporation protein HybF
3391	 54.53	+1	3927909..3928427	-	172	123443794	hybE	YE3604	-	hydrogenase 2-specific chaperone
3392	 55.28	+1	3928420..3928911	-	163	123443795	hybD	YE3605	-	hydrogenase 2 maturation endopeptidase
47.74	MEAN

4.70	STD DEV
