IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

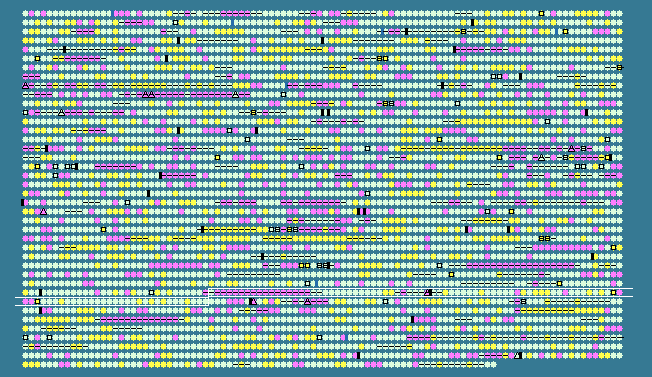

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3132	 46.36	0	3649748..3650392	+	214	123443535	-	YE3337	-	hypothetical protein
3133	 42.54	-1	3650397..3651938	-	513	123443536	cheD	YE3338	-	putative methyl-accepting chemotaxis protein
3134	 36.02	-2	3652152..3652598	-	148	123443537	-	YE3339	-	hypothetical protein
3135	 30.45	-2	3652607..3653266	-	219	123443538	-	YE3340	-	reguatory protein
3136	 32.01	-2	3653632..3654465	-	277	123443539	-	YE3341	-	prepilin peptidase
3137	 28.87	-2	3654480..3654905	-	141	123443540	-	YE3342	-	hypothetical protein
3138	 31.16	-2	3654920..3656116	-	398	123443541	outL	YE3343	-	general secretion pathway protein L
3139	 31.00	-2	3656116..3657057	-	313	123443542	outK	YE3344	-	general secretion pathway protein K
3140	 31.31	-2	3657072..3657665	-	197	123443543	outJ	YE3344A	-	general secretion pathway protein J precursor
3141	 31.13	-2	3657658..3658020	-	120	123443544	outI	YE3345	-	general secretion pathway protein I
3142	 33.11	-2	3658058..3658507	-	149	123443545	outG	YE3346	-	general secretion pathway protein G
3143	 31.84	-2	3658527..3659735	-	402	123443546	outF	YE3347	-	general secretion pathway protein
3144	 38.26	-2	3659722..3661203	-	493	123443547	outE	YE3348	-	general secretion pathway protein E
3145	 35.70	-2	3661224..3663170	-	648	123443548	outD	YE3349	-	general secretion pathway protein D
3146	 27.20	-2	3663207..3663728	-	173	123443549	outC	YE3350	-	general secretion pathway protein C
3147	 29.98	-2	3663788..3664204	-	138	123443550	-	YE3351	-	hypothetical protein
3148	 43.25	0	3664902..3665657	-	251	123443551	-	YE3352	-	putative carbonic anhydrase
3149	 48.18	0	3665807..3666190	-	127	123443552	-	YE3353	-	hypothetical protein
3150	 49.20	0	3666293..3667042	+	249	123443553	-	YE3354	-	short chain dehydrogenase
3151	 46.08	0	3667114..3667419	-	101	123443554	-	YE3355	-	chaperone-modulator protein CbpM
3152	 49.58	0	3667426..3668379	-	317	123443555	-	YE3356	-	curved DNA-binding protein CbpA
3153	 46.08	0	3668569..3669651	-	360	123443556	-	YE3357	-	LacI-family regulatory protein
3154	 50.31	0	3670044..3671351	+	435	123443557	-	YE3358	-	putative sugar transporter
3155	 50.08	0	3671378..3673753	+	791	123443558	-	YE3359	-	putative glucosidase
3156	 50.12	0	3673831..3674247	-	138	123443559	-	YE3360	-	hypothetical protein
3157	 48.62	0	3674381..3674851	+	156	123443560	-	YE3361	-	AsnC family transcriptional regulator
3158	 44.50	0	3675083..3676327	-	414	123443561	-	YE3362	-	hypothetical protein
3159	 46.72	0	3676410..3676805	-	131	123443562	-	YE3363	-	hypothetical protein
3160	 48.12	0	3677085..3677510	-	141	123443563	arsC	YE3364	-	arsenate reductase
3161	 51.40	0	3677524..3678813	-	429	123443564	arsB	YE3365	-	arsenical pump membrane protein
3162	 52.14	0	3679048..3679398	-	116	123443565	arsR	YE3366	-	DNA-binding transcriptional repressor ArsR
3163	 44.79	0	3679643..3680785	-	380	123443566	-	YE3367	-	hypothetical protein
3164	 39.08	-1	3681131..3681565	+	144	123443567	-	YE3368	-	hypothetical protein
3165	 51.06	0	3681558..3681698	+	46	123443568	-	YE3369	-	hypothetical protein
3166	 46.78	0	3682136..3682477	-	113	123443569	-	YE3370	-	putative inner membrane protein
3167	 45.13	0	3682624..3683301	-	225	123443570	-	YE3371	-	hypothetical protein
3168	 42.92	-1	3684016..3685632	-	538	123443571	-	YE3373	-	putative integrase
3169	 48.42	0	3686176..3687693	-	505	123443572	lysS	YE3374	-	lysyl-tRNA synthetase
3170	 47.41	0	3687703..3688801	-	365	123443573	prfB	YE3376	-	peptide chain release factor 2
3171	 52.83	+1	3689253..3690986	-	577	123443574	recJ	YE3378	-	ssDNA exonuclease RecJ
3172	 45.47	0	3690993..3691709	-	238	123443575	dsbC	YE3379	-	thiol:disulfide interchange protein DsbC
3173	 50.78	0	3691758..3692657	-	299	123443576	xerD	YE3380	-	site-specific tyrosine recombinase XerD
3174	 46.55	0	3692763..3693284	+	173	123443577	fldB	YE3381	-	flavodoxin FldB
3175	 48.24	0	3693343..3694764	-	473	123443578	creD	YE3382	-	hypothetical protein
3176	 50.98	0	3694856..3696283	-	475	123443579	creC	YE3383	-	sensory histidine kinase CreC
3177	 51.50	0	3696294..3696992	-	232	123443580	blrA	YE3384	-	DNA-binding response regulator CreB
3178	 50.70	0	3696992..3697417	-	141	123443581	-	YE3385	-	hypothetical protein
3179	 45.32	0	3697398..3697664	-	88	123443582	-	YE3386	-	hypothetical protein
3180	 50.96	0	3698059..3699051	+	330	123443583	-	YE3387	-	putative global regulator
3181	 47.64	0	3699105..3699677	-	190	123443584	-	YE3388	-	putative hemolysin III
3182	 49.75	0	3700019..3700621	+	200	123443585	-	YE3389	-	hypothetical protein
3183	 43.15	0	3700807..3701244	-	145	123443586	-	YE3390	-	hypothetical protein
3184	 52.19	0	3701556..3704435	-	959	123443587	gcvP	YE3391	-	glycine dehydrogenase
3185	 49.10	0	3704636..3705022	-	128	123443588	gcsH	YE3392	-	glycine cleavage system protein H
3186	 51.28	0	3705089..3706186	-	365	123443589	gcvT	YE3393	-	glycine cleavage system aminomethyltransferase T
3187	 53.58	+1	3706695..3707909	-	404	123443590	visC	YE3394	-	hypothetical protein
3188	 54.53	+1	3707997..3709166	-	389	123443591	ubiH	YE3395	-	2-octaprenyl-6-methoxyphenyl hydroxylase
3189	 51.07	0	3709170..3710483	-	437	123443592	pepP	YE3396	-	proline aminopeptidase P II
3190	 48.53	0	3710538..3711116	-	192	123443593	-	YE3397	-	hypothetical protein
3191	 43.94	0	3711500..3711829	+	109	123443594	-	YE3398	-	Z-ring-associated protein
3192	 48.91	0	3712268..3712864	+	198	123443595	-	YE3399	-	putative 5-formyltetrahydrofolate cyclo-ligase-family protein
3193	 48.55	0	3712960..3714201	-	413	123443596	serA	YE3400	-	D-3-phosphoglycerate dehydrogenase
3194	 46.15	0	3714515..3715177	-	220	123443597	rpiA	YE3401	-	ribose-5-phosphate isomerase A
3195	 52.80	+1	3715398..3716291	+	297	123443598	iciA	YE3402	-	chromosome replication initiation inhibitor protein
3196	 47.88	0	3716293..3717048	-	251	123443599	yggE	YE3403	-	hypothetical protein
3197	 53.24	+1	3717259..3717876	-	205	123443600	yggA	YE3405	-	arginine exporter protein
3198	 47.47	0	3718184..3719053	-	289	123443601	-	YE3406	-	hypothetical protein
3199	 52.93	+1	3719323..3720792	-	489	123443602	-	YE3407	-	transposase for IS1668
3200	 31.40	-2	3721000..3722502	-	500	123443603	-	YE3408	-	hypothetical protein
3201	 35.86	-2	3723246..3723641	-	131	123443604	traM	YE3409	-	conjugal transfer protein TraM
3202	 41.78	-1	3724129..3724566	+	145	123443605	-	YE3411	-	hypothetical protein
3203	 53.06	+1	3724618..3726087	-	489	123443606	-	YE3412	-	transposase for IS1668
3204	 48.06	0	3726210..3727289	-	359	123443607	fba	YE3413	-	fructose-bisphosphate aldolase
3205	 49.83	0	3727548..3728711	-	387	123443608	pgk	YE3414	-	phosphoglycerate kinase
3206	 48.57	0	3728815..3729831	-	338	123443609	epd	YE3415	-	erythrose 4-phosphate dehydrogenase
3207	 51.33	0	3730171..3732165	-	664	123443610	tkt	YE3416	-	transketolase
3208	 49.80	0	3732460..3733212	+	250	123443611	-	YE3417	-	putative lipoprotein
3209	 47.98	0	3733285..3733605	-	106	123443612	-	YE3418	-	putative Rieske protein
3210	 49.90	0	3733933..3735912	-	659	123443613	speA	YE3419	-	arginine decarboxylase
3211	 49.09	0	3736915..3738069	+	384	123443614	metK	YE3421	-	S-adenosylmethionine synthetase
3212	 51.19	0	3738135..3738554	-	139	123443615	-	YE3422	-	hypothetical protein
3213	 49.77	0	3738571..3739002	-	143	123443616	-	YE3422A	-	hypothetical protein
3214	 48.69	0	3738999..3739304	-	101	123443617	-	YE3423	-	transcription regulator ArsR
3215	 48.15	0	3739455..3739967	+	170	123443618	-	YE3424	-	hypothetical protein
3216	 48.59	0	3740064..3740771	+	235	123443619	endA	YE3425	-	endonuclease I
3217	 50.96	0	3740817..3741548	+	243	123443620	-	YE3426	-	hypothetical protein
3218	 50.42	0	3741574..3742527	+	317	123443621	gsh-II	YE3427	-	glutathione synthetase
3219	 47.87	0	3742839..3743402	+	187	123443622	-	YE3428	-	hypothetical protein
3220	 53.66	+1	3743402..3743824	+	140	123443623	-	YE3429	-	Holliday junction resolvase-like protein
3221	 49.94	0	3744006..3744890	+	294	123443624	-	YE3430	-	putative carbon-nitrogen hydrolase
3222	 51.67	0	3744972..3746018	+	348	123443625	-	YE3431	-	agmatine deiminase
3223	 48.53	0	3746333..3747385	-	350	123443626	-	YE3432	-	hypothetical protein
3224	 51.58	0	3747486..3748181	+	231	123443627	-	YE3433	-	hypothetical protein
3225	 48.91	0	3748217..3749038	+	273	123443628	proC	YE3434	-	pyrroline-5-carboxylate reductase
3226	 49.37	0	3749167..3749721	+	184	123443629	yggT	YE3435	-	hypothetical protein
3227	 50.17	0	3749718..3750008	+	96	123443630	-	YE3436	-	hypothetical protein
3228	 53.03	+1	3750245..3750838	+	197	123443631	-	YE3437	-	putative deoxyribonucleotide triphosphate pyrophosphatase
3229	 50.04	0	3750831..3751961	+	376	123443632	-	YE3438	-	coproporphyrinogen III oxidase
3230	 49.53	0	3752051..3752791	-	246	123443633	-	YE3439	-	hypothetical protein
3231	 50.50	0	3752894..3753796	-	300	123443634	-	YE3440	-	glutaminase
47.74	MEAN

4.70	STD DEV
